Taidacent от 0 до 10 секунд автомобильный осциллятор регулируемый модуль контроллера NE555 переключатель задержки 12 Вольт релейный защиты
- Категория: Switches >>>
- Поставщик: Shenzhen,Taida,Century,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.19 $* | 0.68 $* |
| Aug-18-2025 | 0.84 $* | 0.22 $* |
| Jul-18-2025 | 0.75 $* | 0.3 $* |
| Jun-18-2025 | 0.75 $* | 0.12 $* |
| May-18-2025 | 0.67 $* | 0.1 $* |
| Apr-18-2025 | 0.39 $* | 0.40 $* |
| Mar-18-2025 | 0.50 $* | 0.41 $* |
| Feb-18-2025 | 0.62 $* | 0.62 $* |
| Jan-18-2025 | 0.90 $* | 0.84 $* |
Характеристики
Taidacent 0 to 10 Second 0~10S Car Oscillator Adjustable Controller Module NE555 Delay Switch 12 Volt Timer Relay Shield Module

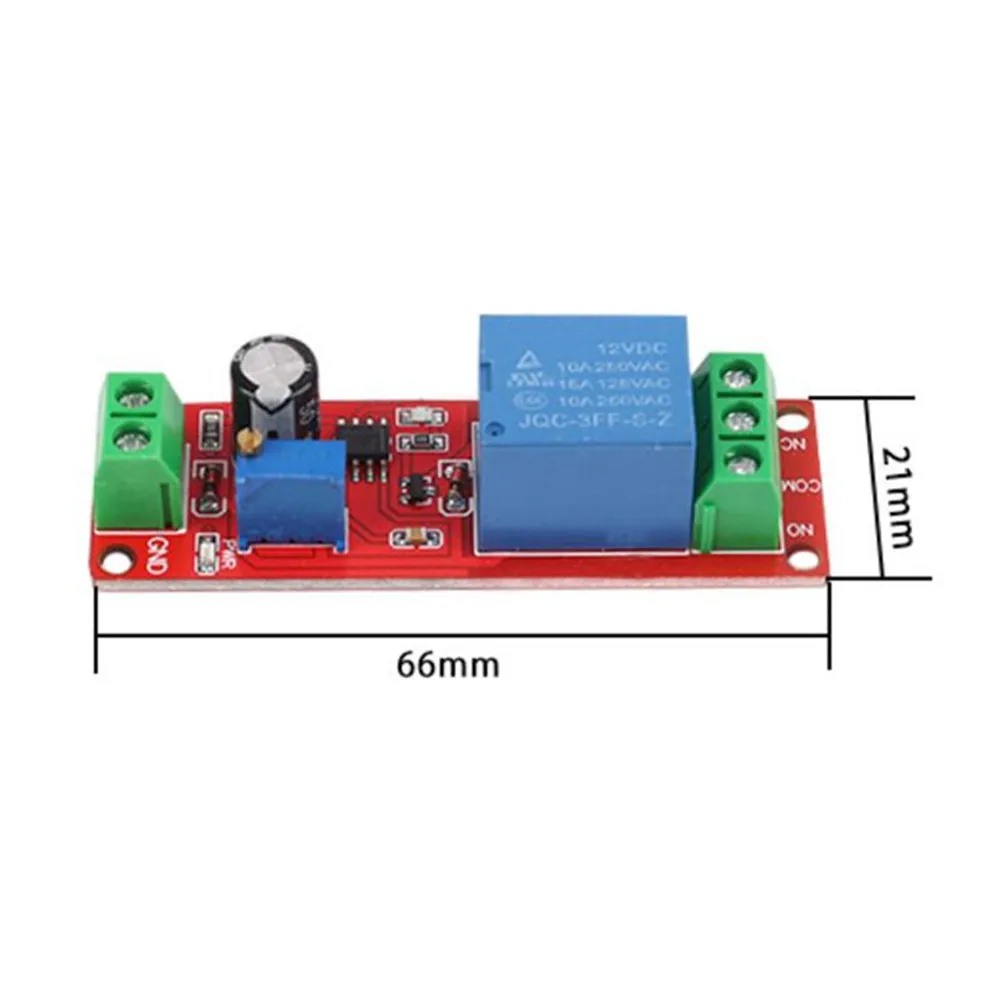

1. size: 6.8CM *2.1CM
2. the main chip: NE555
3. the working voltage: 12V
2. the main chip: NE555
3. the working voltage: 12V
Feature
1.power relay delay pull. Specifically:12v power supply to the relay, the relay will not immediately sucked and status relay
outputs are normally open disconnected public,normally closed and public conduction,wait until the delay 1-10s (adjustable),the relay suction and, this time, the relay output status is: normally open and public conduction,normally closed and publicdisconnected; as long as uninterruptible power module, this state will remain.
2. the delay time is adjustable(0 to 10 seconds)
3.increasing the potential can increase the delay time
4. increasing the capacitor C1 can increase the delay time
5. with input power indicator
6.with relay indicator
7. can control AC 220V / 10A about equipment. (Maximum control equipment 2000W)
8. with freewheeling protection relay.
9. the delay time formula: T = 1.1RC. For example: a resistor capacitor 100uf 100K
T = 1.1 * 100000 * 0.0001 = 11 seconds
outputs are normally open disconnected public,normally closed and public conduction,wait until the delay 1-10s (adjustable),the relay suction and, this time, the relay output status is: normally open and public conduction,normally closed and publicdisconnected; as long as uninterruptible power module, this state will remain.
2. the delay time is adjustable(0 to 10 seconds)
3.increasing the potential can increase the delay time
4. increasing the capacitor C1 can increase the delay time
5. with input power indicator
6.with relay indicator
7. can control AC 220V / 10A about equipment. (Maximum control equipment 2000W)
8. with freewheeling protection relay.
9. the delay time formula: T = 1.1RC. For example: a resistor capacitor 100uf 100K
T = 1.1 * 100000 * 0.0001 = 11 seconds

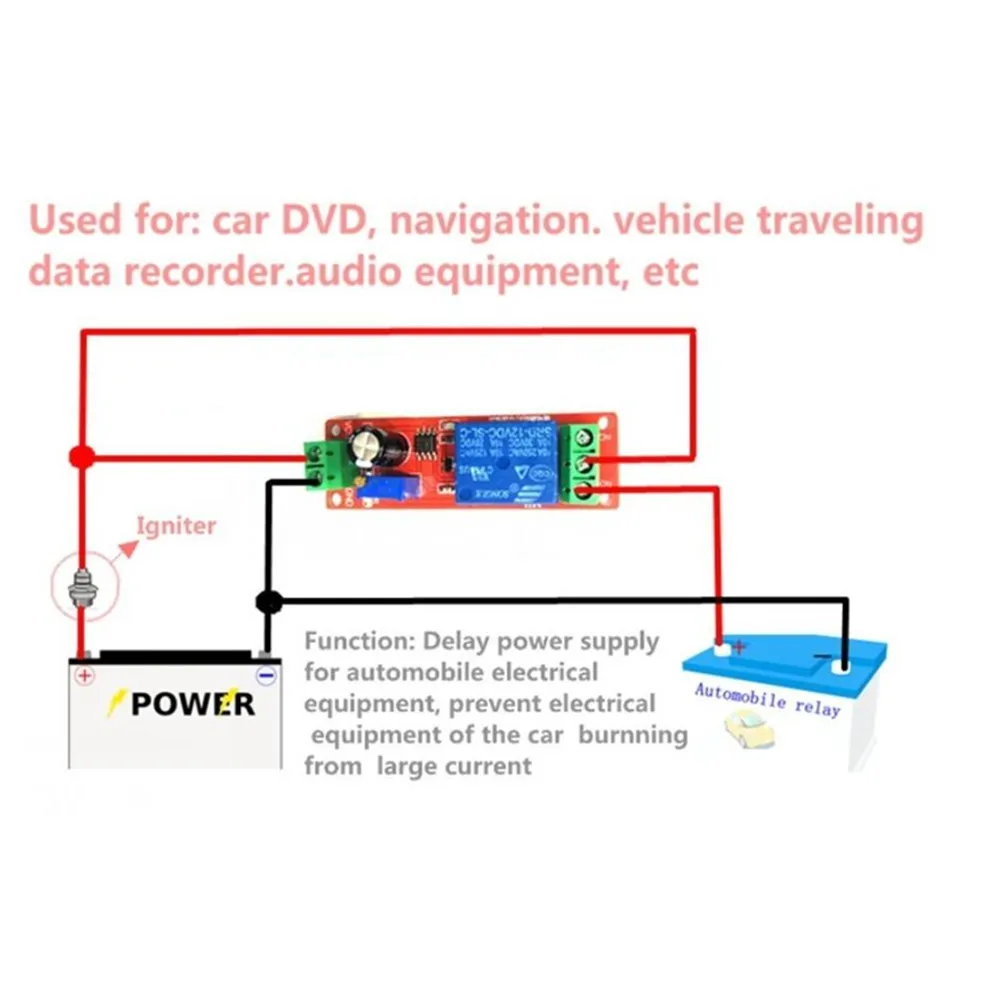

Application
1. the delay-vehicle device is turned on, to prevent excessive current when the car ignition burn-vehicle device.
2.you need to have in order to start the occasion, to prevent multiple devices simultaneously starting current is too large
burning appliances
2.you need to have in order to start the occasion, to prevent multiple devices simultaneously starting current is too large
burning appliances
Product Description
Specification
item | value |
Application | Timer delay relay switch |
Model Number | TDJLNE555 |
Supplier Type | Original manufacturer, Odm |
Place of Origin | China |
Guangdong | |
Brand Name | Taidacent |
Description | DC 12V Timer Delay Relay Switch |
Size / Dimension | 6.8CM*2.1CM |
Voltage | 12V |
Voltage Rating | |
D/C | new |
