Дистрибьюторы системы кондиционирования воздуха и моторный потолочный вихревой
- Категория: Системы ОВКВ и запчасти >>>
- Поставщик: Foshan,Xuxing,Ventilation,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 12.47 $* | 13.5 $* |
| Aug-16-2025 | 12.14 $* | 13.8 $* |
| Jul-16-2025 | 10.1 $* | 11.11 $* |
| Jun-16-2025 | 12.15 $* | 13.52 $* |
| May-16-2025 | 10.26 $* | 11.43 $* |
| Apr-16-2025 | 11.27 $* | 12.82 $* |
| Mar-16-2025 | 11.7 $* | 12.54 $* |
| Feb-16-2025 | 11.12 $* | 12.31 $* |
| Jan-16-2025 | 11.43 $* | 12.62 $* |
Характеристики
Product Description

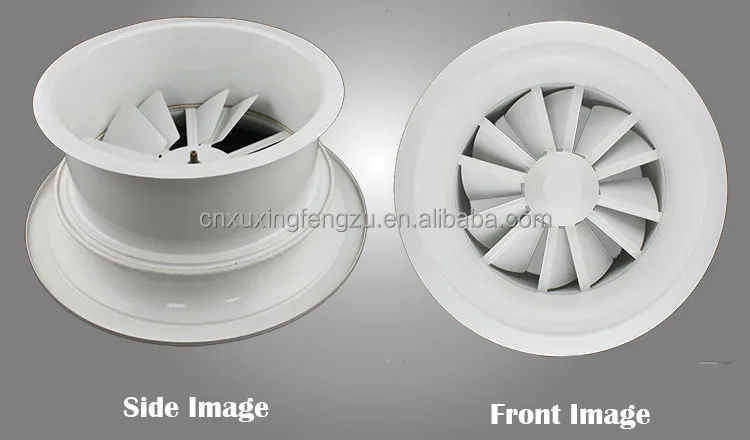

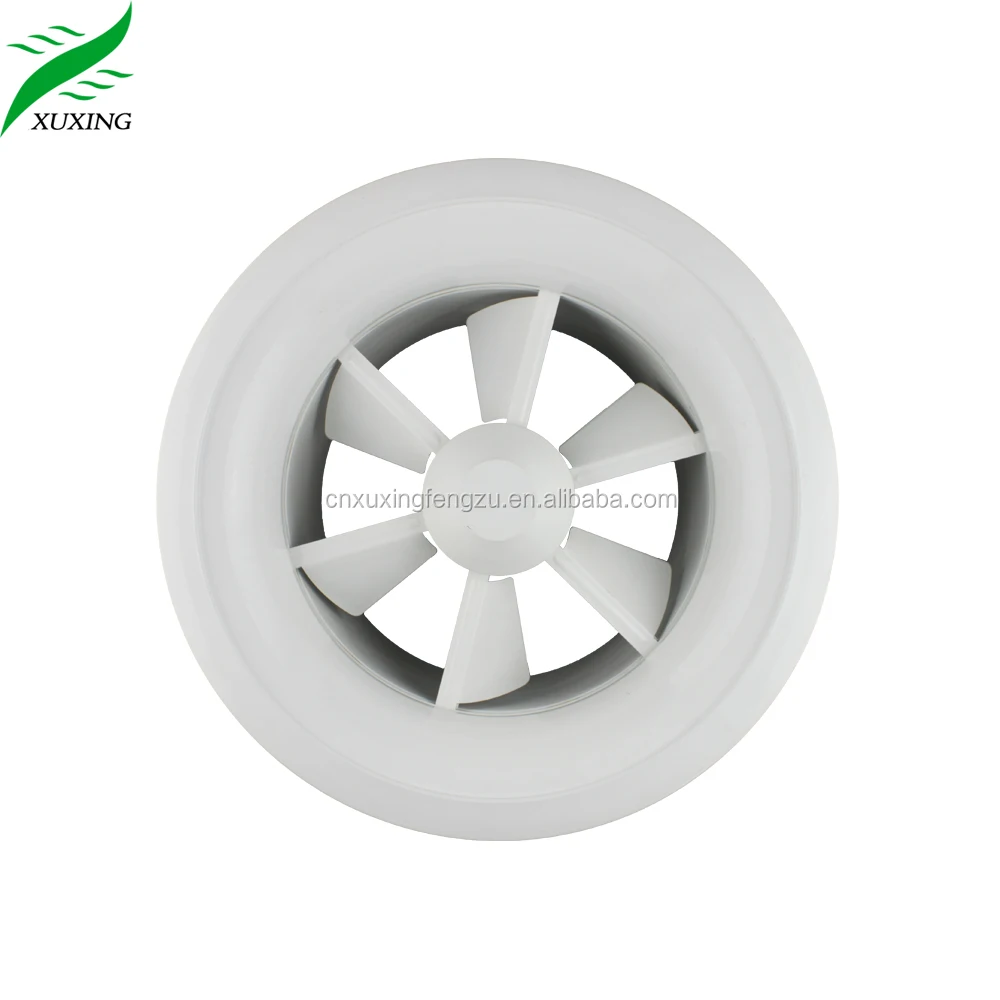

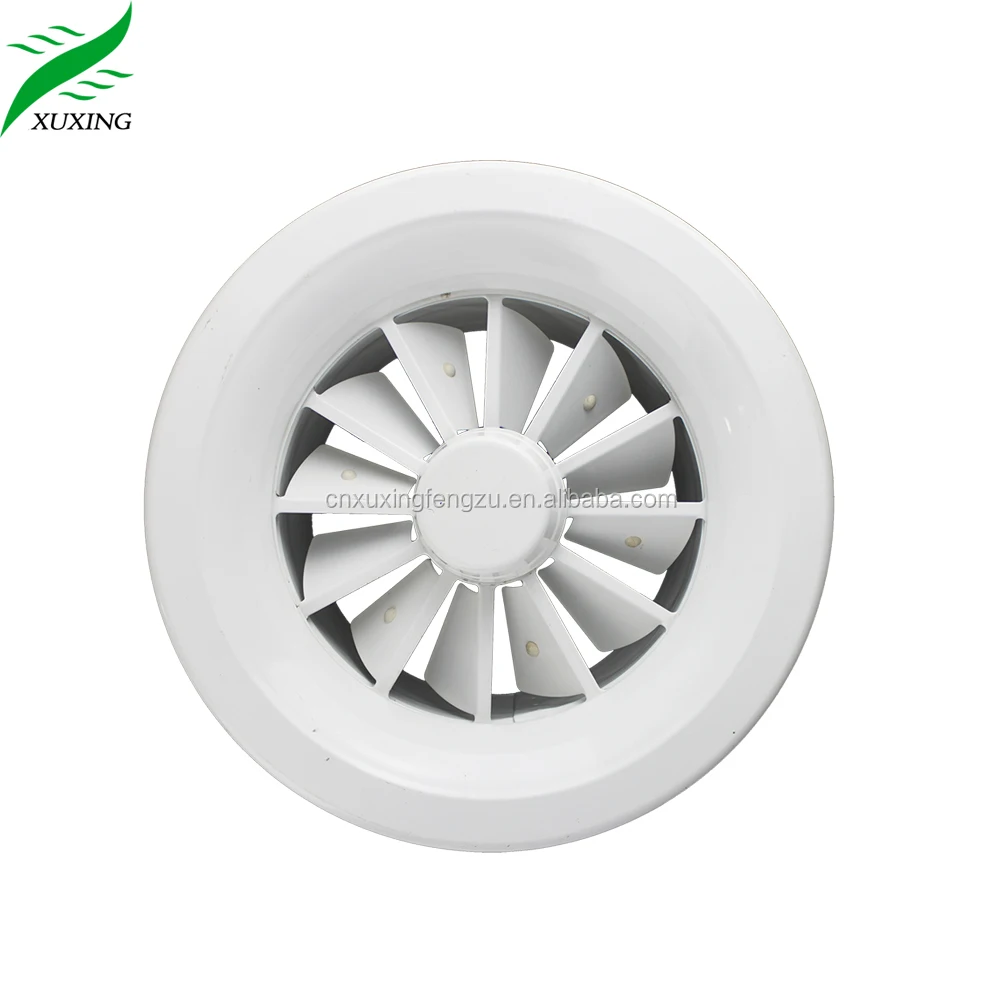

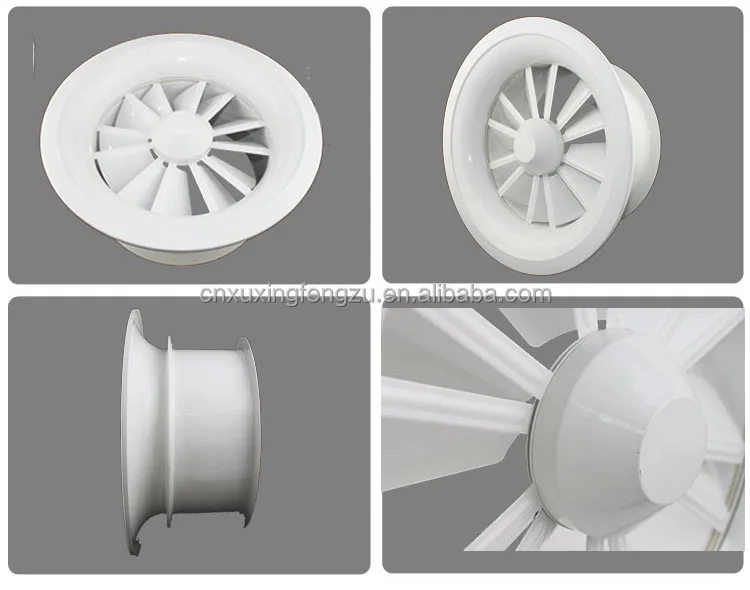

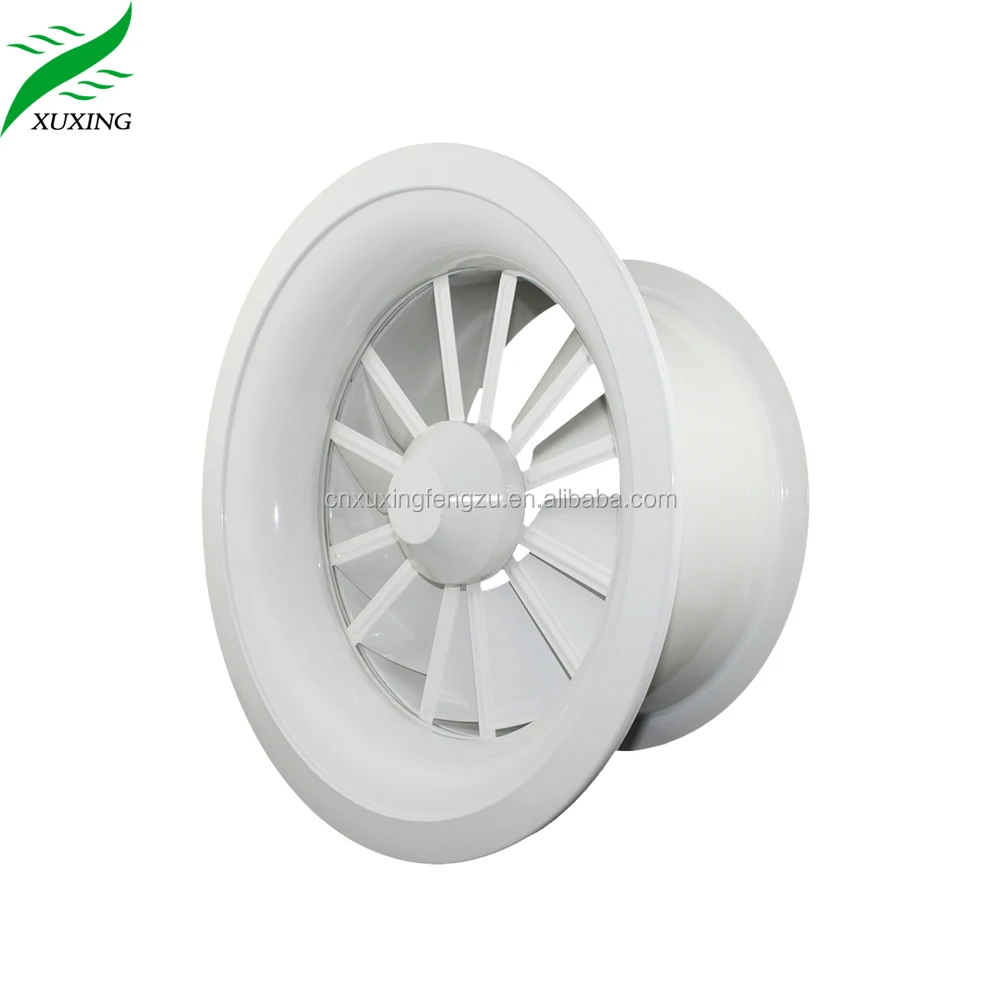

The specification of hvac swirl diffuser air conditioning damper motors
| Name: | air conditioning grill distributors with motor ceiling swirl diffuser |
| Material: | extruded aluminum alloy sheet |
| Surface Finsh: | Anodized / powder coated |
| Color: | Ral 9016 as standard , all other colors available upon request |
| Accessary: | Opposed blade damper / Neck adaptor / Air filter |
| Application: | Ventilation / Air-condition system |

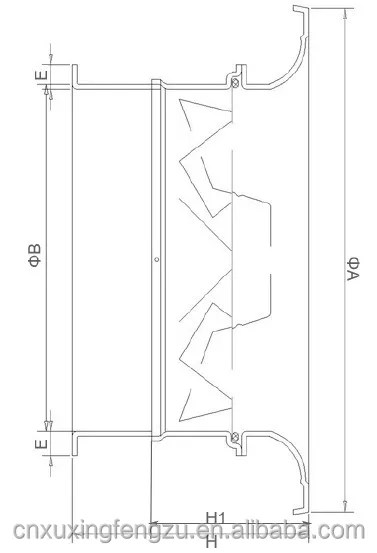

Standard size for hvac swirl diffuser air conditioning damper motors
| Item Code | Neck Φ B (mm) | Face Φ A (mm) | H1 | H | |
| SWD-A1-200 | 200 | 300 | 38 | 145 | |
| SWD-A1-250 | 250 | 360 | 41 | 166 | |
| SWD-A1-315 | 315 | 462 | 63 | 203 | |
| SWD-A1-400 | 400 | 568 | 80 | 236 | |
| SWD-A1-500 | 500 | 704 | 100 | 300 | |
| SWD-A1-630 | 630 | 871 | 125 | 383 | |
Any customerized sizes available upon your reuqested
Packaging & Shipping
The packing & shipping of hvac swirl diffuser air conditioning damper motors
Our Services
We here promise every inqury will be replied within 24 hours any time!
Company Information
XuXing Air-coditioning Eqipment Factory, which is a proffesional manufacture for ventilation product, such as air diffuser, air grille, air damper, aluminum flexible duct, aluminum foil tape and so on, have 10 expeience c/w good reputation all over the world.
FAQ
Q: What's the sample policy for air diffuser & ar grille?
A: Sample c/w it's value within USD50.00 is freely provided, while the delivery cost is in client's account.
Q: What's the lead time?
A: Normally it is about 14 working days. For urgent order, we can get it ready 7-10 working days upon the order quantity.
