Наклонный строительный подъемник 160 кг и
- Категория: Строительные подъемники >>>
- Поставщик: Langfang,CABR,Construction,Machinery,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 46410.23 $* | 48731.72 $* |
| Aug-16-2025 | 46020.19 $* | 48321.77 $* |
| Jul-16-2025 | 38610.31 $* | 40541.20 $* |
| Jun-16-2025 | 45240.77 $* | 47502.71 $* |
| May-16-2025 | 39390.64 $* | 41360.34 $* |
| Apr-16-2025 | 44460.26 $* | 46683.81 $* |
| Mar-16-2025 | 44070.1 $* | 46274.7 $* |
| Feb-16-2025 | 43680.47 $* | 45864.45 $* |
| Jan-16-2025 | 43290.63 $* | 45455.66 $* |
Характеристики

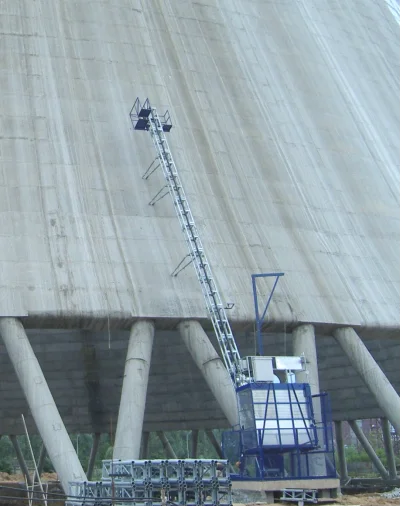

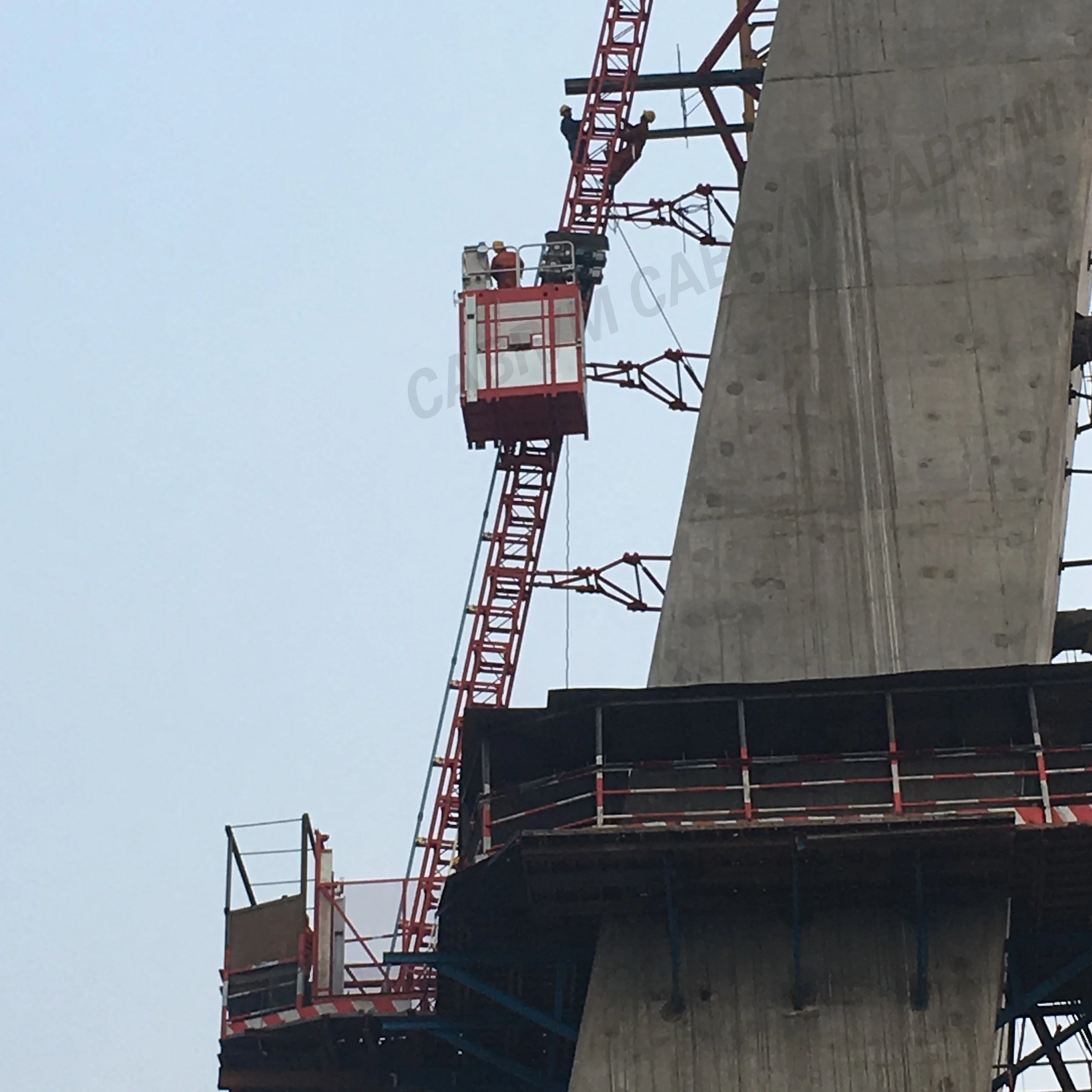

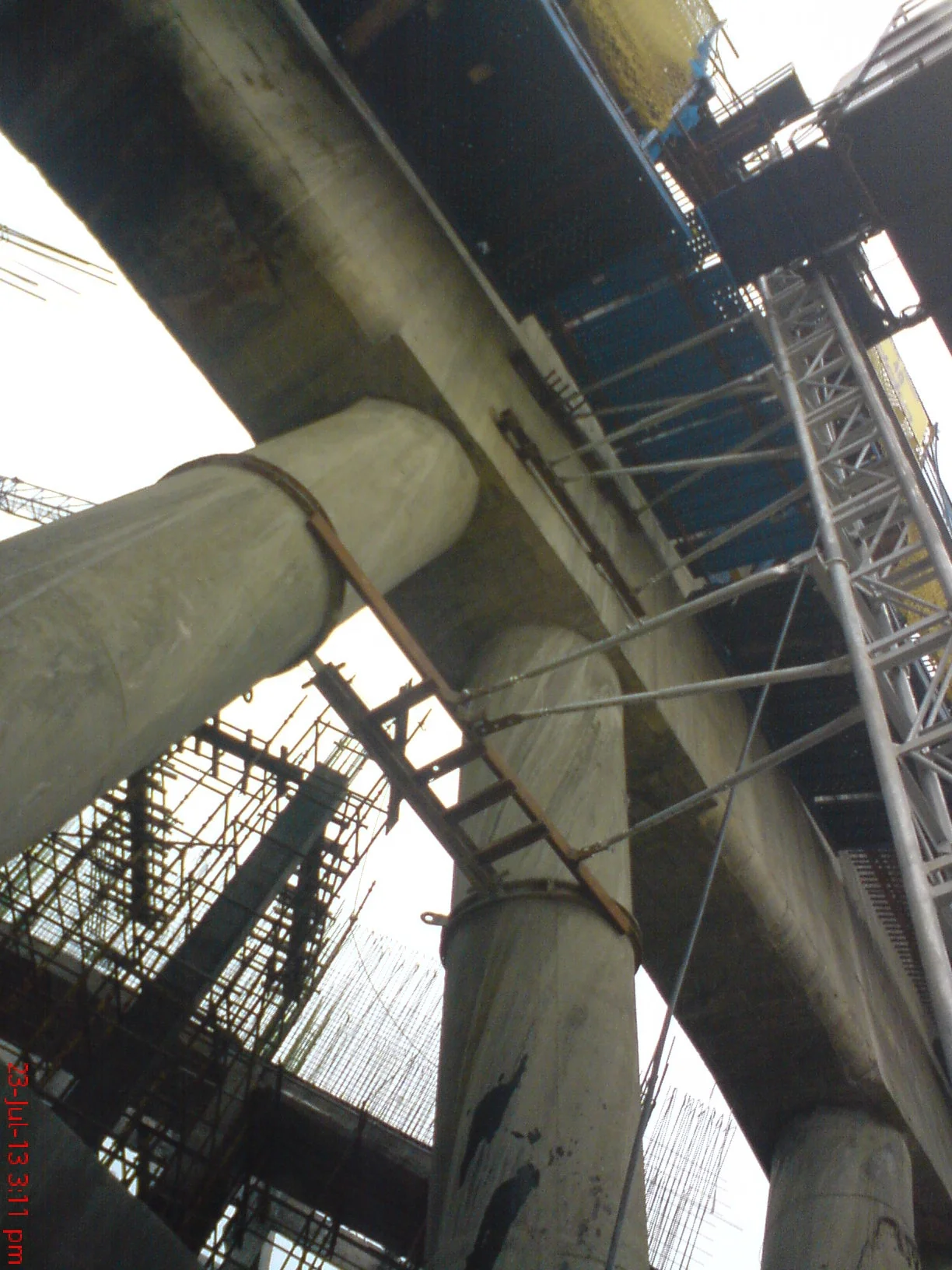

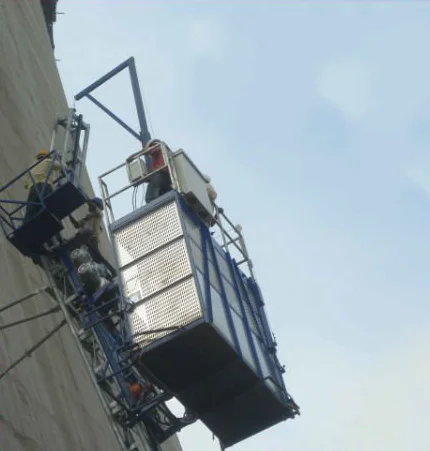

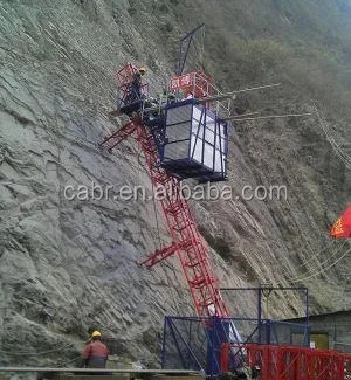

Curved and inclined building hoist
1.Its track is in curved shape and parallel to the exterior of the building by special disposal.
2.It adopts floating self-level mechanism to make sure the hoist moves in level along the curved or inclined line.
3.The curved and inclined building hoists are widely used in constructions, such as chimneys, cooling towers and bridges, etc.
Technical data of curved and inclined building hoist
| Model | Rated load(kg) | Lifting speed(m/min) | Adaptable angle |
Curved building hoist | SCQ60 | 600 | 33 | -7º~+21º |
0~60 | ||||
SCQ120 | 1200 | 33 | -7º~+21º | |
0~60 | ||||
Inclined building hoist | SC160/160 | 2*1600 | 28 |
|
0~60 | ||||
SC200/200 | 2*2000 | 33 |
| |
0~60 |
Remark:

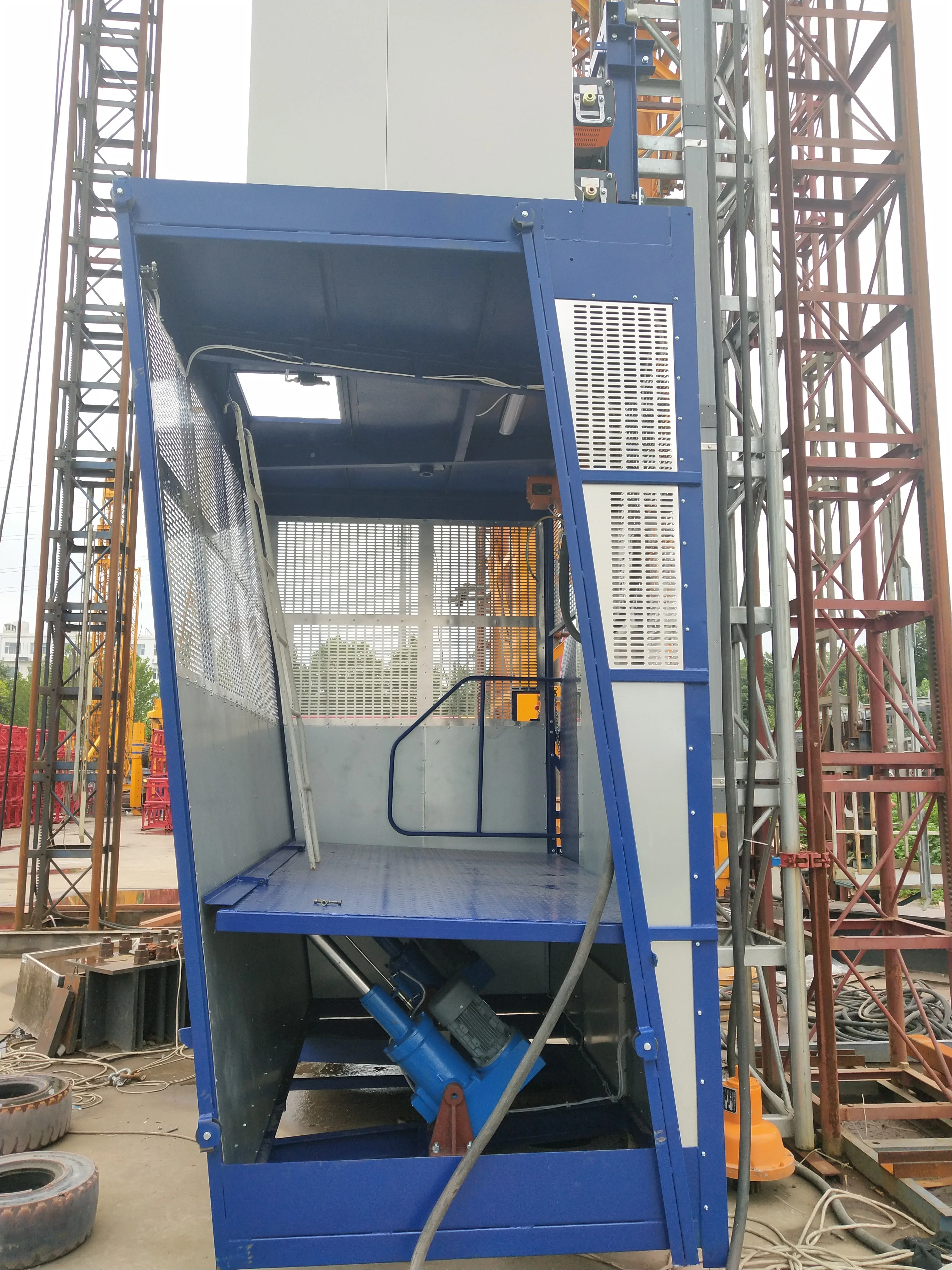

- The recommended cage dimension (LxWxH)(m): 2.0x1.0x2.5, 2.5x1.0x2.5, 2.5x1.3x2.5, 3.0x1.3x2.5, 3.2x1.5x2.5 etc. We can also manufacture cages of other size according to the user.
- The cage and the door material can be aluminum molded board, punched-plate, figured aluminum board or other type according to your requirements.
- The mast and the tie-in surface can adopt paint-spray, or hot galvanized processing.
- Both domestic and imported driving systems are available.
