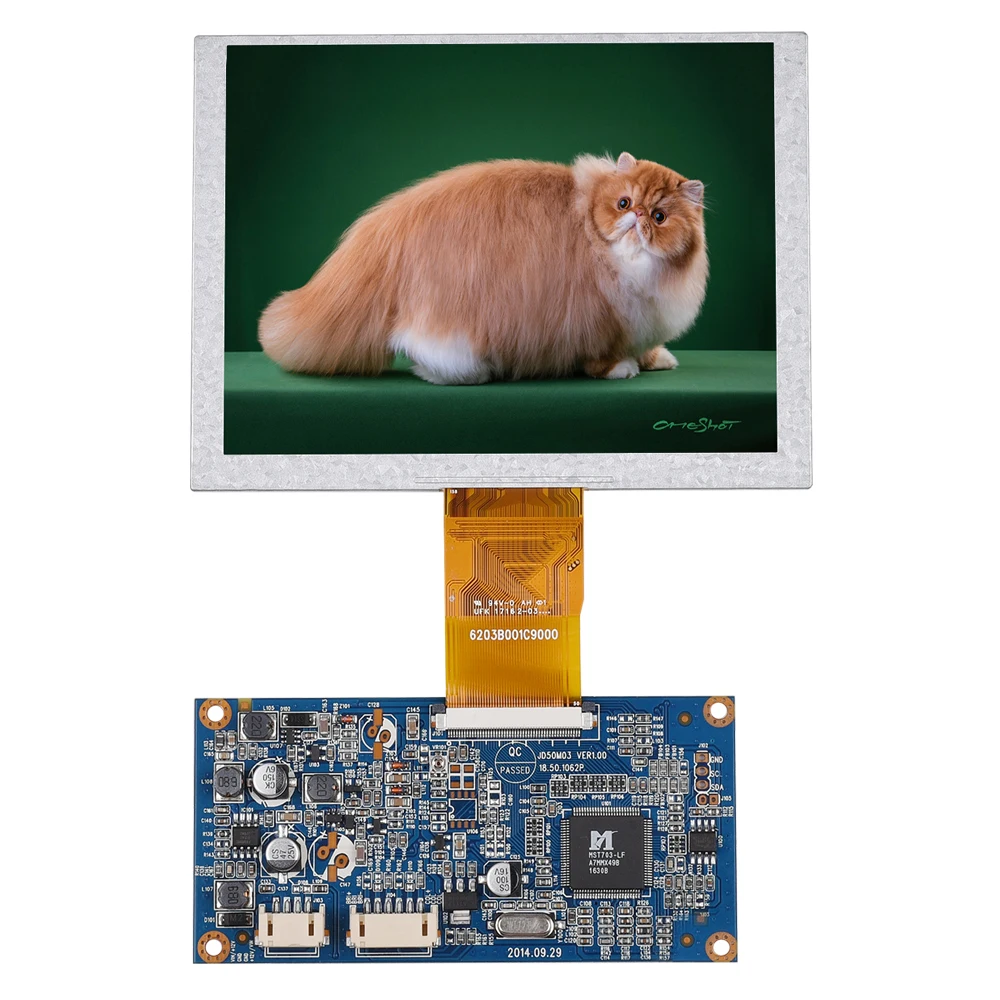

5 6 дюймов TFT LCD Жидкокристаллический модуль AV вход CVBS сигнала настроек потенциометров используемые для крытый
- Категория: LCD Module >>>
- Поставщик: Zhuhai,Shenjiuding,Optronics,Technologies,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 48.71 $* | 50.68 $* |
| Aug-15-2025 | 47.20 $* | 49.37 $* |
| Jul-15-2025 | 40.78 $* | 42.87 $* |
| Jun-15-2025 | 46.63 $* | 48.84 $* |
| May-15-2025 | 40.89 $* | 42.57 $* |
| Apr-15-2025 | 46.40 $* | 48.48 $* |
| Mar-15-2025 | 45.87 $* | 47.66 $* |
| Feb-15-2025 | 45.3 $* | 47.94 $* |
| Jan-15-2025 | 44.18 $* | 46.38 $* |
Характеристики
Products Description
Specifications
LCD parameters | Model: | AT056TN52 |
Size | 5.6 inch | |
Display ratio | 4:3 | |
Backlight | LED | |
Brightness | 200±50 cd/m2 (nit) | |
Resolution | 640x480 (RGB) | |
View angle | 50/70/70/70 (up/down/left/right) | |
Dimension | 126.5x100x5.7 mm ( WxHxD ) | |
Effect area | 112.9x84.7 mm ( HxV )h | |
Driver board parameters | Model: | JD70M03 |
Dimension | 102x50x6.8 mm ( WxHxD ) | |
Working voltage | Min DC 9V, Standard DC 12V, Max DC 18V | |
Working current | DC200mA ± 20mA | |
Power Consumption | 2.4W (TYP) | |
Start time | ≤ 2.0 s | |
Working Temp. | 0 ℃ ~ 60 ℃ | |
Storage Temp. | -20 ℃ ~ 75 ℃ | |
Humidity | 5%~95% RH |
Driver Board Details
1 | Input | + DC 12V | Option 9~18V |
2 | P | GND | NULL |
3 | P | GND | NULL |
4 | Input | CVBS video signal | 0.3 - 1.8V P-P |
Accessories
Power & AV connector
DC 12V input, Analog CVBS signal input
Default potentiometer adjustment
Default OSD menu disappear
Option Keypad adjustment
OSD menu displaying
Potentiometer Diagram (J104)
1 | Brightness + | Input |
2 | Brightness adjusting | Input |
3 | Brightness - | Input |
4 | Color + | Input |
5 | Color adjusting | Input |
6 | Color - | Input |
Option "Keypad Diagram"
1 | NC | NC |
2 | Brightness / SAR0 | key 0 input |
3 | Brightness+ / GND | Ground |
4 | NC | NC |
5 | Color / SAR1 | key 1 input |
6 | NC | NC |
Product packaging
* Potentiometer and keypad to choose one of two, packing way are same.
* Product box will be put in a standard carton box which dimension at 52x51x40 cm.
* One standard carton box could pack 90pcs 7inch LCD or 180pcs 4.3inch or 104pcs 5inch.
