Клеммная колодка PCB угловой контакт
- Категория: Terminal Blocks >>>
- Поставщик: Ningbo,Zhongbo,Photovoltaic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.87 $* | 0.36 $* |
| Aug-17-2025 | 0.30 $* | 0.98 $* |
| Jul-17-2025 | 0.23 $* | 0.83 $* |
| Jun-17-2025 | 0.37 $* | 0.85 $* |
| May-17-2025 | 0.87 $* | 0.27 $* |
| Apr-17-2025 | 0.12 $* | 0.12 $* |
| Mar-17-2025 | 0.84 $* | 0.33 $* |
| Feb-17-2025 | 0.25 $* | 0.42 $* |
| Jan-17-2025 | 0.52 $* | 0.79 $* |
Характеристики

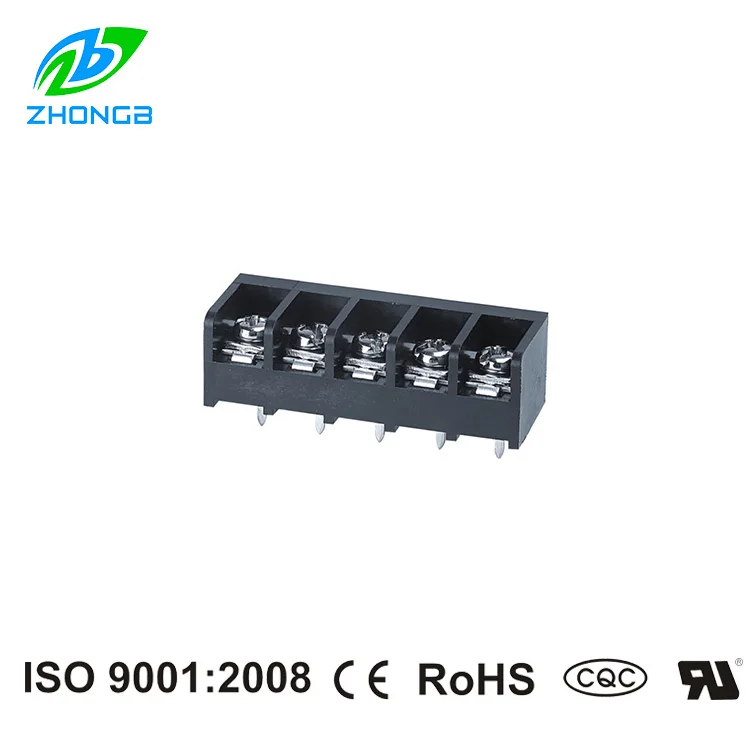

Barrier Terminal Blocks 9.5mm Power Terminal block
Product Description
| Features: | |
| Product Name | Barrier Terminal Block |
| Model Number | ZB9500 |
| Pitch | 9.5mm |
Material
Screw Steel,M3 Ni-plated | |
| Terminal | Brass,0.7t Tin-plated |
| Housing | PA66,UL94V-0 |
| Electrical | |
| Rated Voltage | 300v |
| Rated Current | 20A |
| Insulation Resistance | 500mΩ/DC500v |
| Withstanding Voltage | AC2000v/1 Min |
| Mechanical | |
| Temperature Range | -40°C~+105°C |
| Wire Range | 22-14AWG |
| Max.Torque Value | 0.5Nm 4.4Lb.i |
Packaging & Shipping
1. Packaging: Take strong bags/boxes/cartons for package, in order to reduce the damage during the shipments.
2. Delivery Method: by sea, by air, or express such as DHL/TNT/UPS etc
3. Delivery Time: normally 7-15days, could be negotiable when order is urgent.
Our Services
1.Delivery time 2~15 days, On-Time delivery.
2.Good quality :all of terms have UL/CUL ROHS certificate. ISO9001:2008.ISO14001:2004
3.Flexibility:Prompt reaction to urgent order and samples.
4.Competetive price at same quality level.
5.Help customers find the non-standard products.
6.OEM/ODM services.
7.Free samples will be sent for your evaluation.
Company Information
Ningbo Zhongbo Photovoltaic Technology Co., Ltd--- Manufacturer located in Ningbo.
Address: No.299 Heng’er Road,Xiaolin North Industry Park, Cixi, Ningbo, China
website: www.nbzhongbo.com
Tel: +86-574-63007598
Fax: +86-574-63477000
How to contact us | |
Sales | Miya Shen |
Mob/WhatsApp | 86-15957407785 |
