Braiding Machines

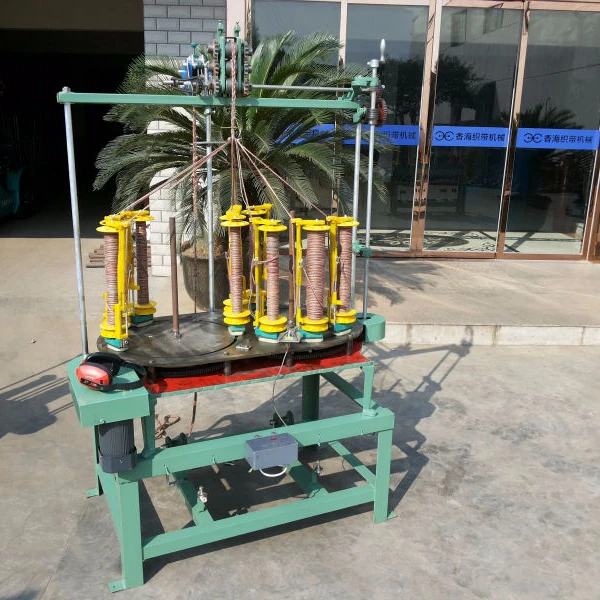

DH180 серии 9 шпинделя средняя скорость круглый ropebraiding

DH180 серии 9 шпинделя средняя скорость круглый ropebraiding

Категория: Braiding Machines >>>
Поставщик: Shanghai,Xianghai,Braiding,Machine,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	0.70 $*	0.77 $*
Aug-15-2025	0.45 $*	0.56 $*
Jul-15-2025	0.25 $*	0.58 $*
Jun-15-2025	0.32 $*	0.89 $*
May-15-2025	0.91 $*	0.78 $*
Apr-15-2025	0.34 $*	0.32 $*
Mar-15-2025	0.98 $*	0.4 $*
Feb-15-2025	0.65 $*	0.1 $*
Jan-15-2025	0.58 $*	0.1 $*

Характеристики

High quality braiding machine

Application of braiding products:

High strength cables, fire ropes, mountaineering ropes, marine ropes, safety ropes, and etc..

Range of braiding materials:

All flexible fibers, yarns, belts, threads

Control system:

- Frequency inverter controlled production speed.

- Yarn broken sensor (if a yarn is broken or a bobbin is empty, the machine stops automatically)

- Speed set

- Control cabinet

Scope of supply:

- Machine with control system

- Operation and maintenance manual

- Tool box

- Wearing and sparing parts

- Training and trial operation

- Packing

Specifications

- Intellignrt control system and Reliability

- High quality and Factory,Cheap1

- Flexible Operation and High Poductivity

- CE,ISO9001

DH130,150 Series Middle Speed Round Rope Braiding Machine

Model

Spindle Qty

Measurement(mm)

Power (kw)

Bobbin Size(mm)

DH130-16

660 X 500 X 1700

0.25

Φ58 X 180

DH130-24

720 X 600 X 1700

0.25

Φ58 X 180

DH130-32

800 X 680 X 1700

0.36

Φ58 X 180

DH130-40

1050 X 860 X 1800

0.36

Φ58 X 180

DH130-48

1150 X 1000 X 1800

0.5

Φ58 X 180

DH150-16

660 X 550 X 1700

0.25

Φ70 X 210

DH150-24

790 X 660 X 1700

0.25

Φ70 X 210

DH150-32

880 X 750 X 1700

0.36

Φ70 X 210

DH150-40

1150 X 950 X 1800

0.36

Φ70 X 210

DH150-48

1270 X 1100 X 1800

0.5

Φ70 X 210

DH180 Series Medium Speed Braiding Machine

Model	Spindle Qty	Head Qty	Measurement(mm)	Power(kw)	Speed(rpm/min)	Spindle Type	Bobbin Size(mm)
DH180-3	3	1	660×600×1700	0.18	1360	D	Φ100×330
DH180-9	9	1	1200×800×1800	0.25	1360	D	Φ100×330

Range of Products:
Gift bag ropes,high tension ropes,fishing lines,satety rope,fiberglass sleeves,round elastic bands,hollow ropes,core ropes,and etc.

Feature

1.There is a different kind of line according to the requirements of your product:

2. For the reduction of labor costs and increase production.

3. Machine long life, very durable

4. All the spare parts are made by ourselves, So we each production procedure of the control machine

samples:

DH180-3 rope.jpg
