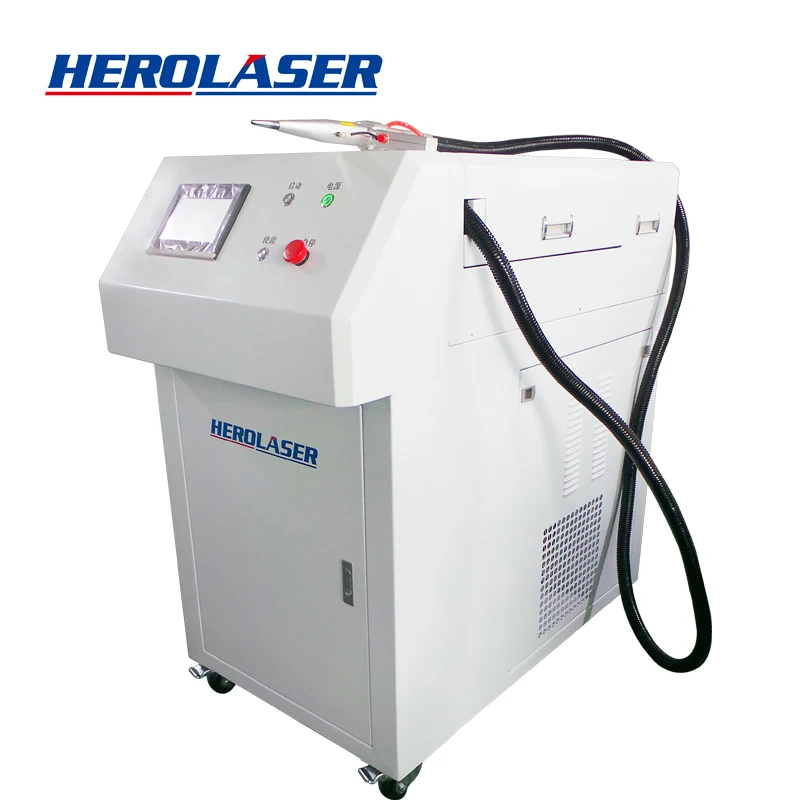

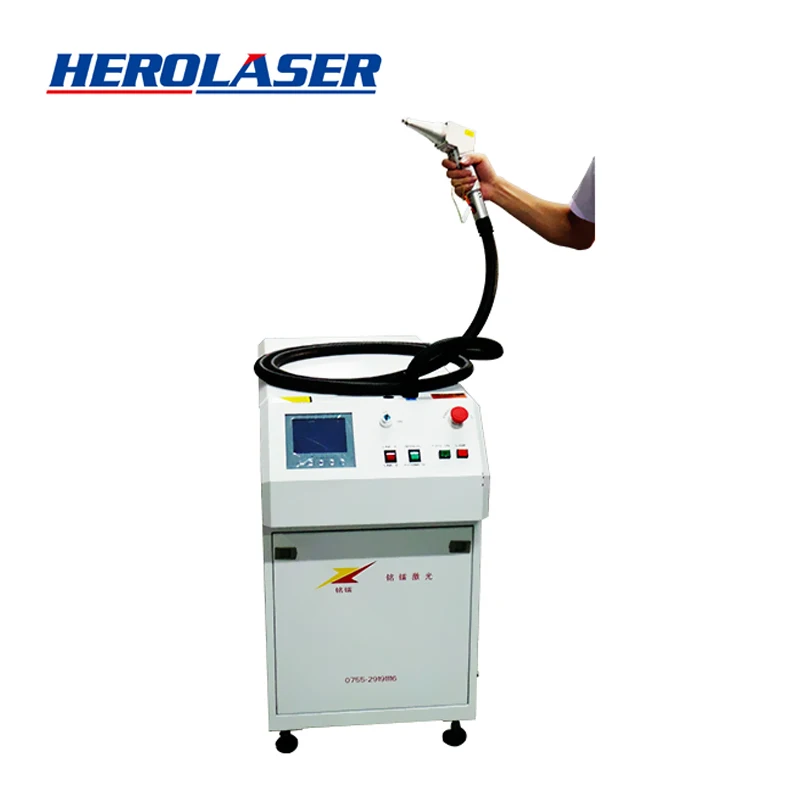

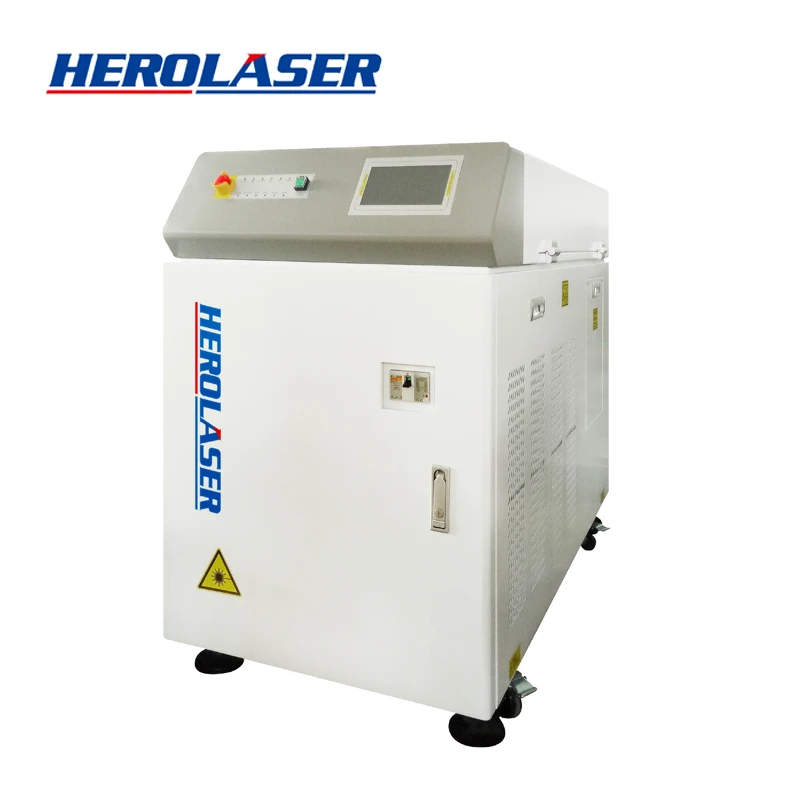

China LED letter Laser welding machine with fibre-optical hand held welding



The working principle of this laser deposition welding system is to use laser high thermal energy and the melting technology in spot to process the welding and repairing of minute parts. It makes up the shortage of traditional hydrogen arc welding in repairing precision surfaces, avoids the two difficulties of thermal strain and after-treatment, and saves the production period of ad. character laser  welding.



Advantages:

It is specially designed for the advertising company and the technology is imported from Germany. With unique structure design, it is suitable for repairing of large, medium and small ad.words.

1.Ceramic converging cavity is imported from the Britain. It is corrosion resistant and high temperature resistant, and has 8-10 years service life. The life of xenon lamp is more than 8 million times.

2.Use the most advanced light shielding system to eliminate the irritation to eyes by light during working.

3.The laser head and optics part can be rotated for 360°, upward/downward lifting and forward/backward pushing, suitable for repairing of large, medium and small moulds.

4.The parameters are controlled by intelligent remote controller, which is simple and convenient.

5.The work bench can be lifted, and moved in three dimensions.

6.The size of light spot can be adjusted.



Technical Specifications:

Bearing of work bench	≤200kg
Device weight	300kg
Power supply	220V±10%/50Hz or 380V±10%/50Hz
Laser type	Nd:YAG pulse
Adjusting range of light spot	0.1-0.3mm
Size of light spot	0.2-3.0mm
Laser wavelength	1064nm
Pulse width	≤20ms
Maximum laser power	200W
Pulse frequency	≤50Hz
Laser output focus length	100mm/150mm (optional)
Laser cooling	Water cooling
Welding wire diameter	0.1mm-0.8mm
