Характеристики

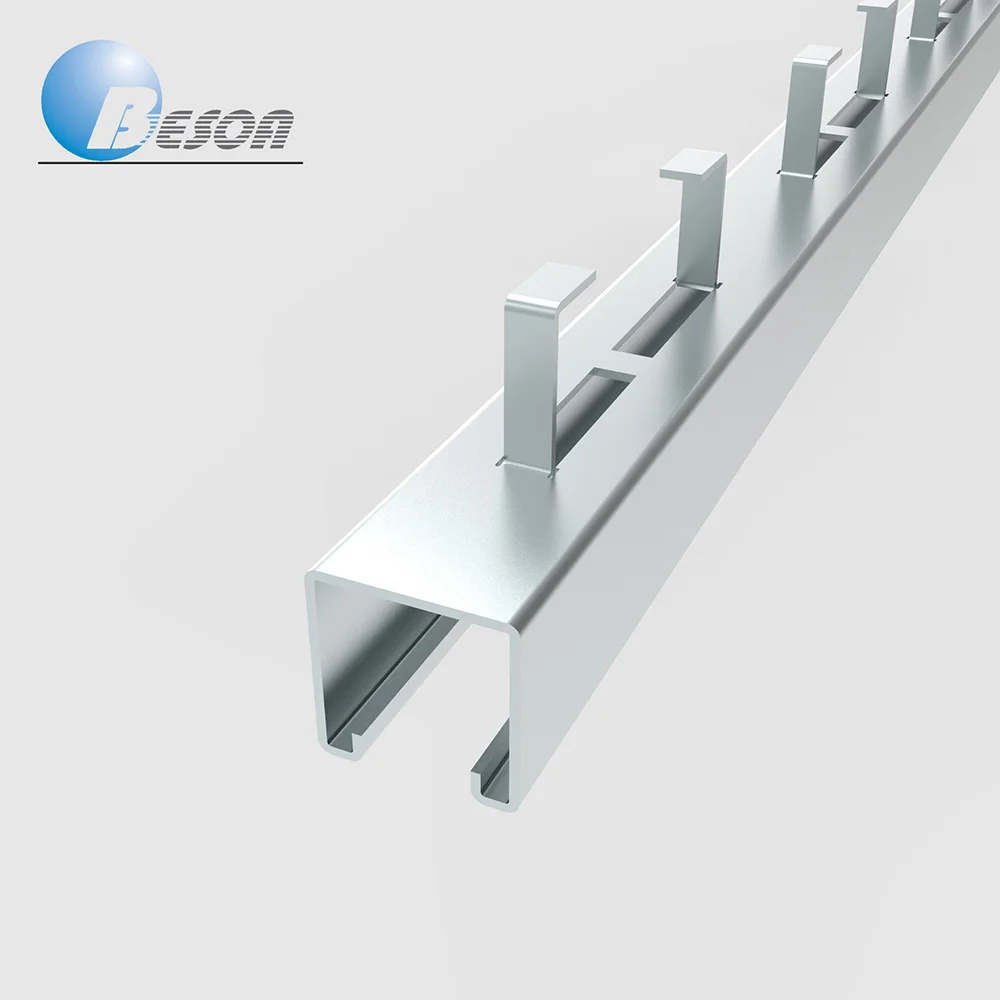

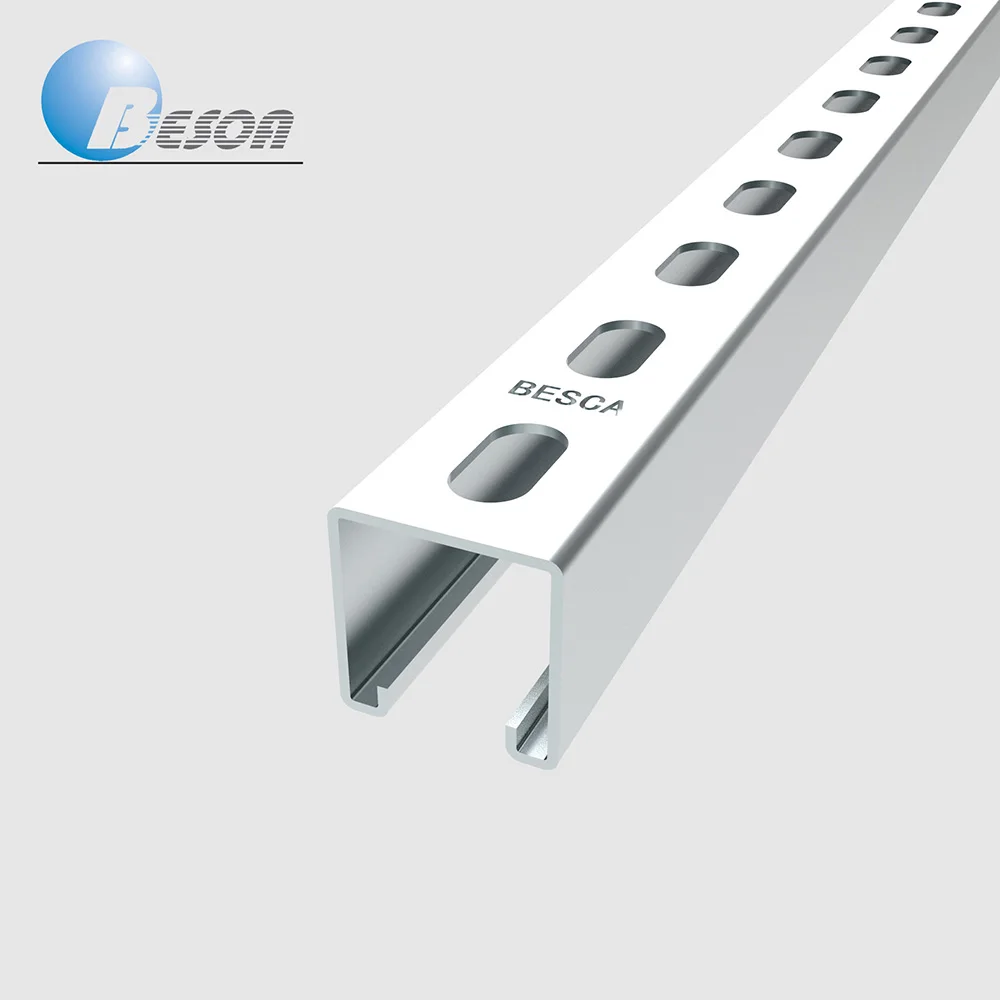

Slotted Unistrut Channel







Product Description





Strut Channel Detailed Specification:
High quality & reasonable Price, no need welding and punching, can use repeatedly, wide usage range, flexible for installation.





♦ Standard thickness: 1.0mm, 1.5mm, 2mm, 2.5mm,2.75mm, 3mm
♦ Standard length: 2440mm, 3000mm, 5800mm, 6000mm
♦ Standard size: 41*21, 41*25, 41*41,41*62,41*72,41*82


































































































No.Size(mm)Size(inch)Thickness(mm)Thcikness(Gage)TypeSurface Finish
121x1013/16x13/32"1.0, 1.5,2.0,2.5,2.75,3.019,16,14,12Slotted, SolidHDG,PG,SS,Al,PC
221x21 13/16x13/16"1.0, 1.5,2.0,2.5,2.75,3.0 19,16,14,12 Slotted, Solid HDG,PG,SS,Al,PC
341x211-5/8x13/16"1.0, 1.5,2.0,2.5,2.75,3.0 19,16,14,12 Slotted, Solid  HDG,PG,SS,Al,PC
441x221-5/8x7/8"1.0, 1.5,2.0,2.5,2.75,3.0 19,16,14,12 Slotted, Solid HDG,PG,SS,Al,PC
541x251-5/8x1"1.0, 1.5,2.0,2.5,2.75,3.0 19,16,14,12 Slotted, Solid HDG,PG,SS,Al,PC
641x411-5/8x1-5/8"1.0, 1.5,2.0,2.5,2.75,3.0 19,16,14,12 Slotted, Solid  HDG,PG,SS,Al,PC
741x621-5/8x2-7/16"1.0, 1.5,2.0,2.5,2.75,3.0 19,16,14,12 Slotted, Solid HDG,PG,SS,Al,PC
841x831-5/8x3-1/4"1.0, 1.5,2.0,2.5,2.75,3.0 19,16,14,12  Slotted, Solid HDG,PG,SS,Al,PC
 ''''''''''''''''''''''''''''''''''''''''''''

Single and Double or Back to Back are availble for Besca.





Length: No more than 6000 meters or 20 feet.






  Strut Channel System Advantages:

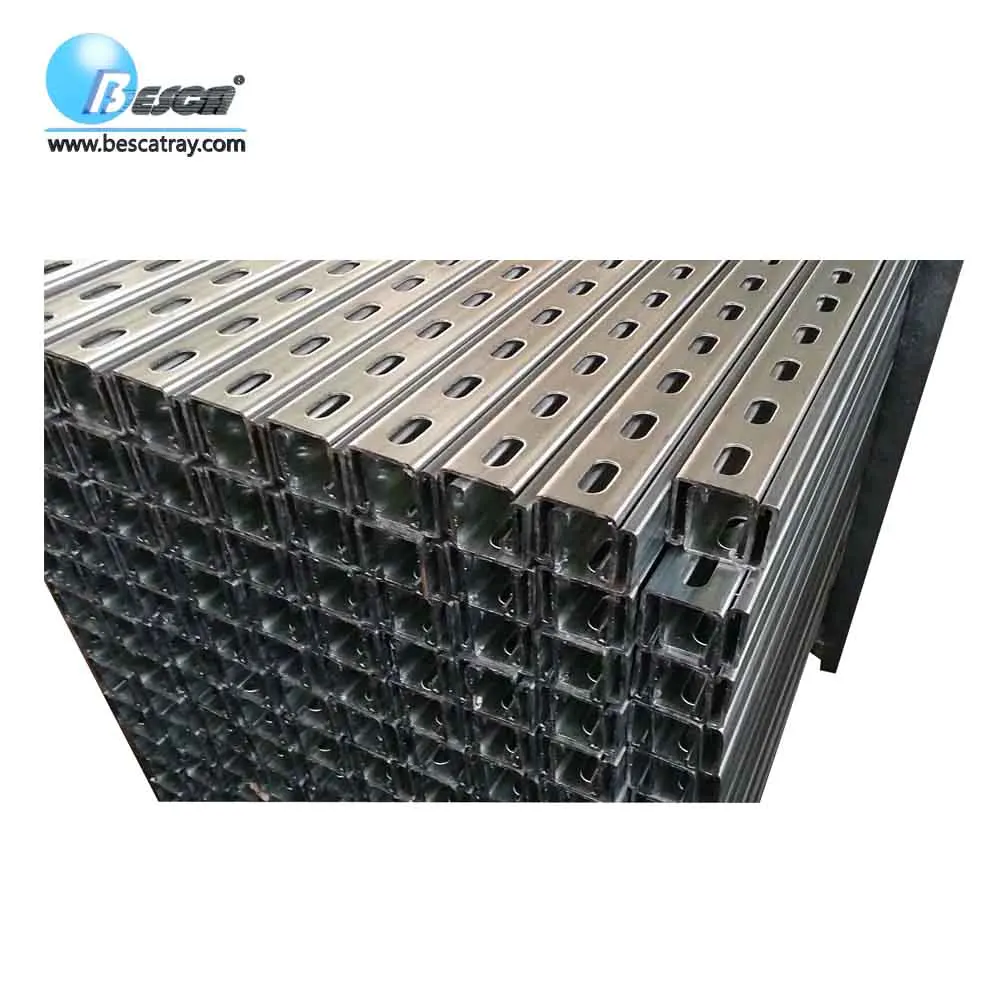

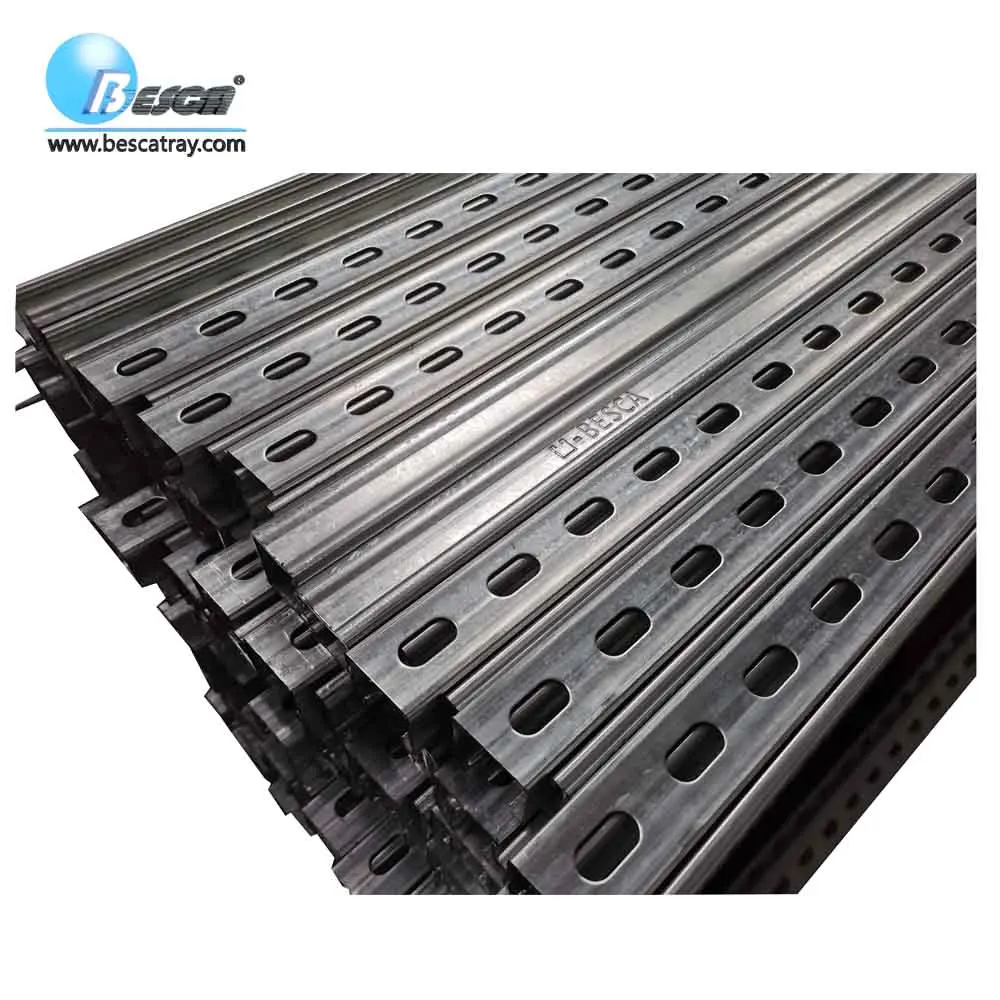

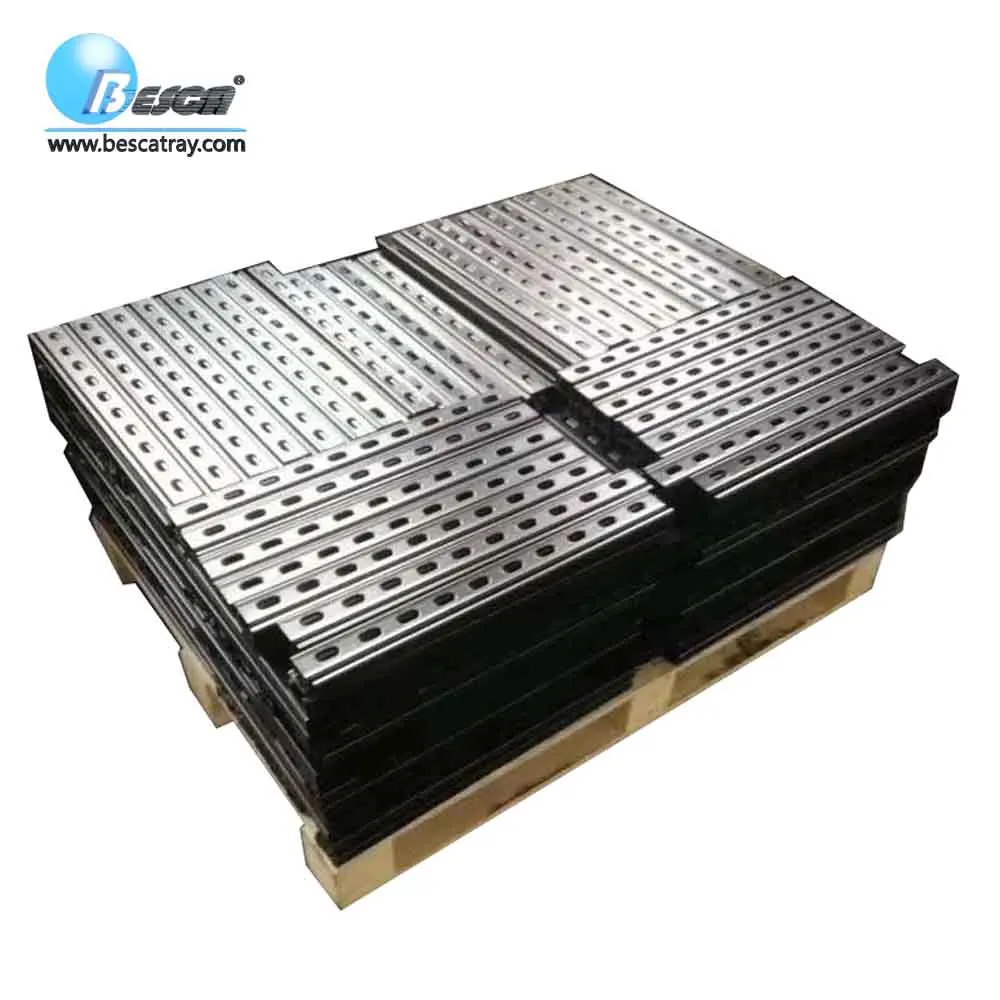

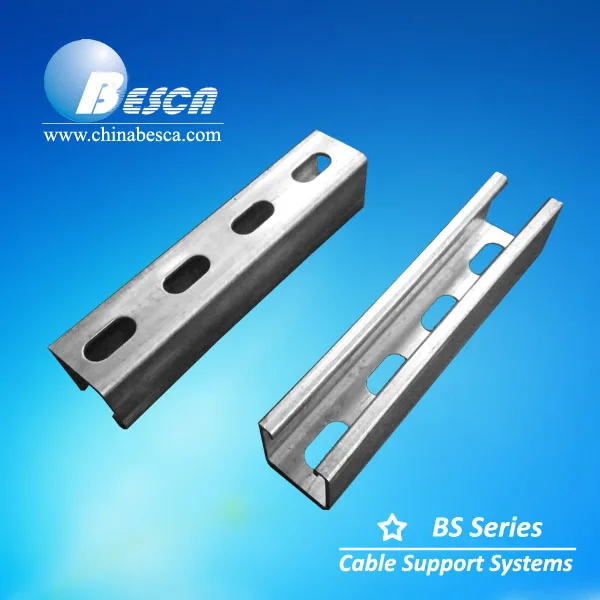

 Strut Channel 1.jpgStrut Channel 2.jpgStrut Channel 3.jpgStrut Channel 4.jpgStrut Channel 5.jpgStrut Channel 6.jpg


♥ High strength to ocst ratio


♥ Completely adjustable


♥ No welding or drilling required


♥ Strut is re-usable


♥ One-inventory adaptable to many jobs


♥ Saw and wrench are the only tools needed












Strut-Channel-Clamp_06Strut-Channel-Clamp_07Strut-Channel-Clamp_08Strut-Channel_09


Strut Channel Surface Finish:





♣  Powder coated- BS-6497-1984, between 60 and 85 microns thick


♣  Hot Dipped Galvanized-for outdoor use to BS EN 1461-1999, between 60 and 80 microns thick


♣  Acid Washing or Electrolytic Polishing- for stainless cable basket tray use








Company Information



Shanghai Besca Introduction:


 1. Besca Main products :Cable Tray, Cable Ladder/Ladder Type Cable Tray, Cable Trunking / Raceway / Cable Duct, Wire Mesh Cable Tray/ Basket Cable Tray, Strut Channel / Unistrut / C Channel/ Profile





2. Fittings and Accessories: Bend, Elbow, Riser, Reducer, Tee, Cross. Cover, Couplers, Threaded Rod, Spring Nut, Angle, Brackets, Bolt,Nut and So on.






3. Material and Surface Finish: HDG(hot dipped galvanized), PG/GI(pre-galvanized /    galvanized), SS(ss304,ss316), Al(Aluninum), FRP / GRP(Fiber Reinforced Plastic / Glass Reinforced Plastic).




4. The cerifticates: cUL/UL , CE, IEC, SGS, NEMA and ISO9001-2008.




5. Availble Documents and Information: Reference Price List, Samples, E-catalogs and products drafts.



6.Payment Terms: T/T, L/C, Western Union, and Others.



7.Delivery Time: 7 working days for cable tray, cable trunking, strut channel, 10 working days for wire mesh cable tray, cable ladder and accessories.





8. Others: OEM services is acceptable.




AL-Cable-Ladder_14AL-Cable-Ladder_15
