Характеристики

Main Features

1.The building construction hoist adopts the most advanced VF speed control device and microcomputer programmable logic controller.
2.The building construction hoist stepless speed control helps eliminate the concussion during start up and braking, steady the operation process, and ensures automated leveling.
3.The building construction hoist adopts open loop V/F control; the speed control precision can reach +2~3%. Realizes accurate low speed positioning of the hoist and avoids slipping during downward stopping of hoist.
4.The VF system has current-restriction function, ensuring a small current when motor start up and reducing the concussion to power supply. It reduces the energy consumption and mitigates effects to on site electric equipments.
5.The steadiness during running mitigates concussion to mechanical parts, reduces wears of rack, pinion and the brake and prolongs the spare parts’ life.
6.The VF system also has the over voltage protection, low voltage protection, overcurrent, overload and anti-stalling protection functions.
7.The system applies the special software for hoists developed by our company, making the operation more safe and reliable.

Main parameter of SC200/200
Lifting capacity
2000kg per cage
Lifting speed (m/min)
0-60
Cage dimension(m)
3.0x1.5x2.5
Motor power per cage
2x15kw (87Hz, 2x26kw)
Mast section
650x650x1508
Tie in length
2.0-2.1m
Cable
3x25+2x10
Power supply
380/415V, 50/60Hz
Optional parameter of the building construction hoist
Lifting capacity
2000kg or as required
Cage dimension (m)
3.0x1.5x2.2 or as required
Lifting speed (m/min)
0-36
0-63
0-96
Motor power per cage (kw)
2x9.2
2x15
3x15
Frequency inverter(kw)
37
55
90
Mast section
650x650x1508 or customized according to site condition
Remarks: all above information can be customized as required.

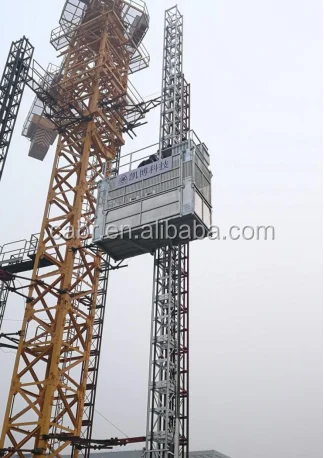

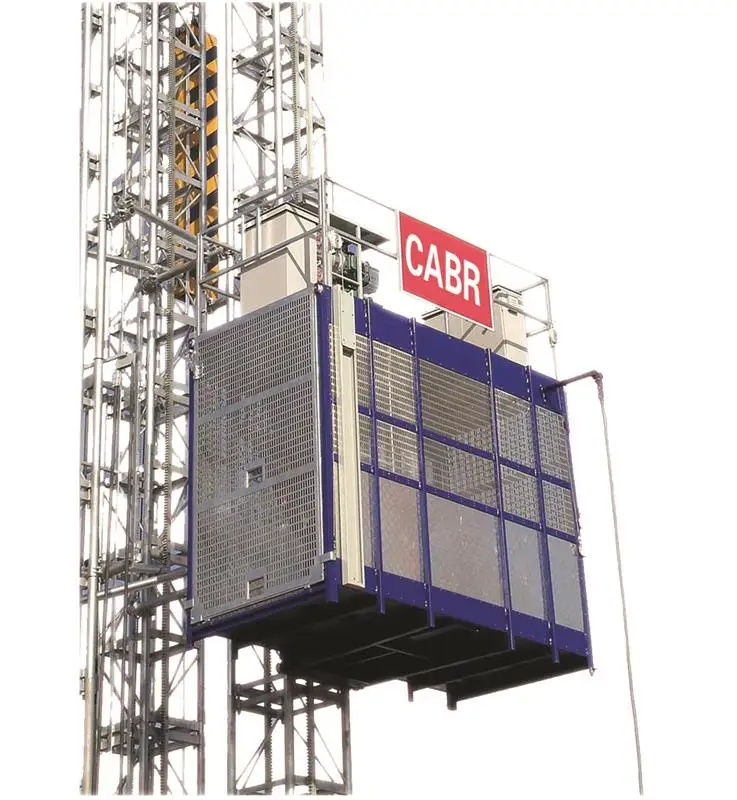

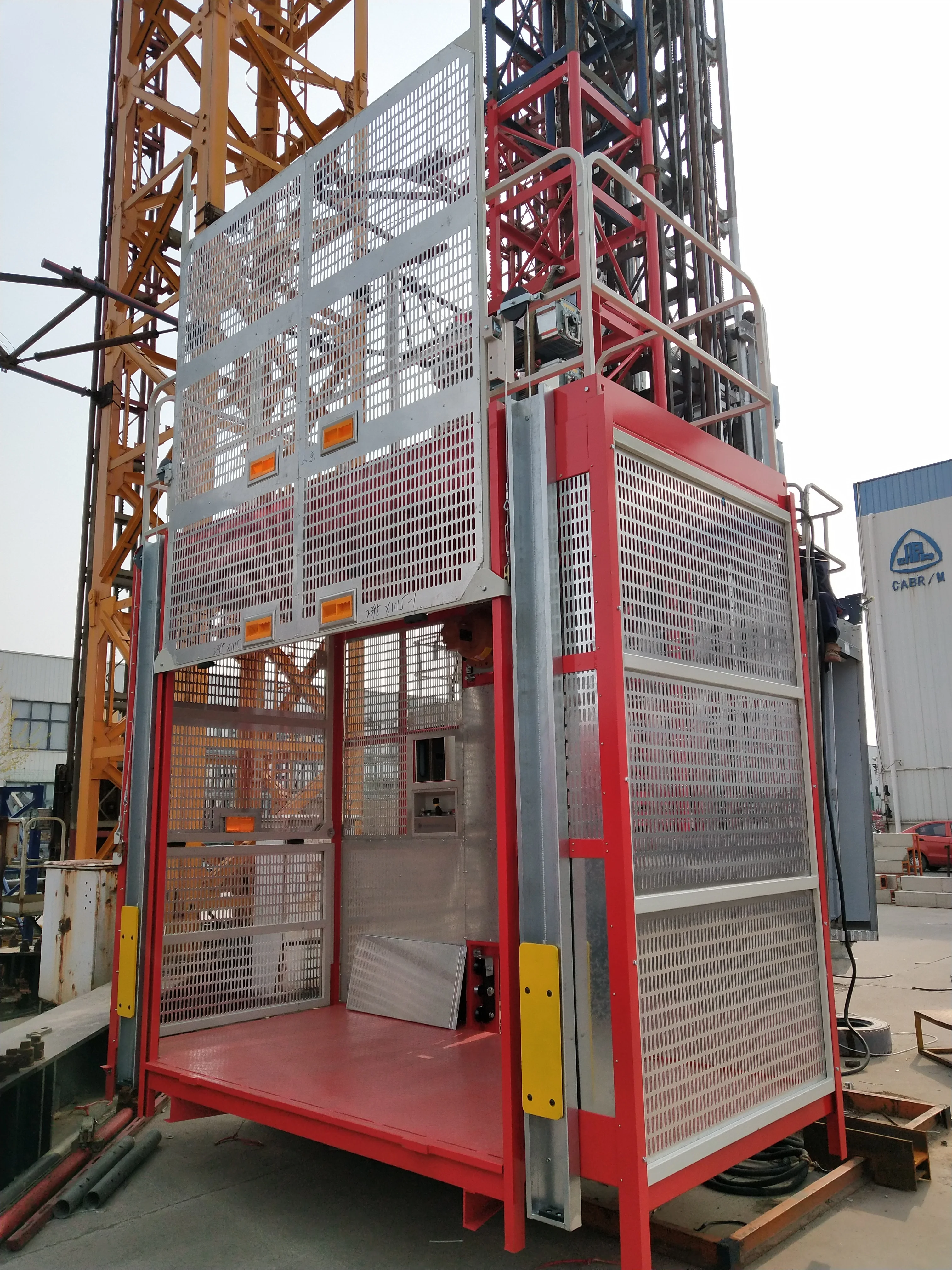

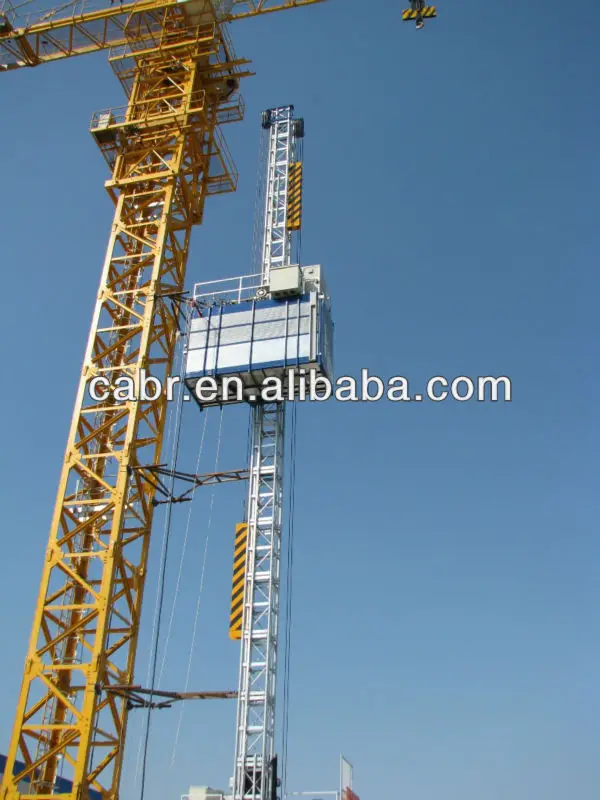

Detailed Images

Machine Parts

Name: Motor & gearbox

Brand: Chinese brand

Original: China

1.Transmission efficiency 95%;

2. Power saving 40%;

3. Higher axial bearing capacity;

4.Simple maintennace;

5. SEW/NORD brand is available;

Main Parts

Name: Safety device
Original: China
Safety device is the most importance part of building construcion hoist, and it is the last safety assurance for the machine.

Optional Parts

Name: Intelligent Early Warning System
Brand: CABRM
Original: China
1.Dynamic real-time display shows hoist parameters and its operating status;

2.Human voice system alarms once there is any fault or operation errors;

3.Different kinds of language are optional;
