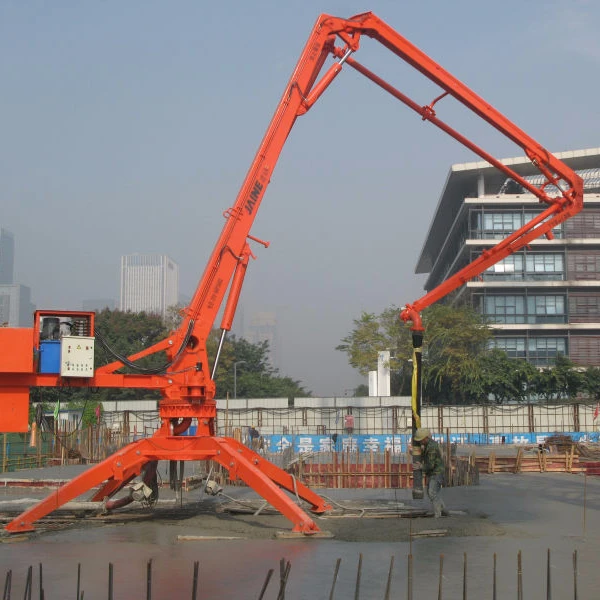

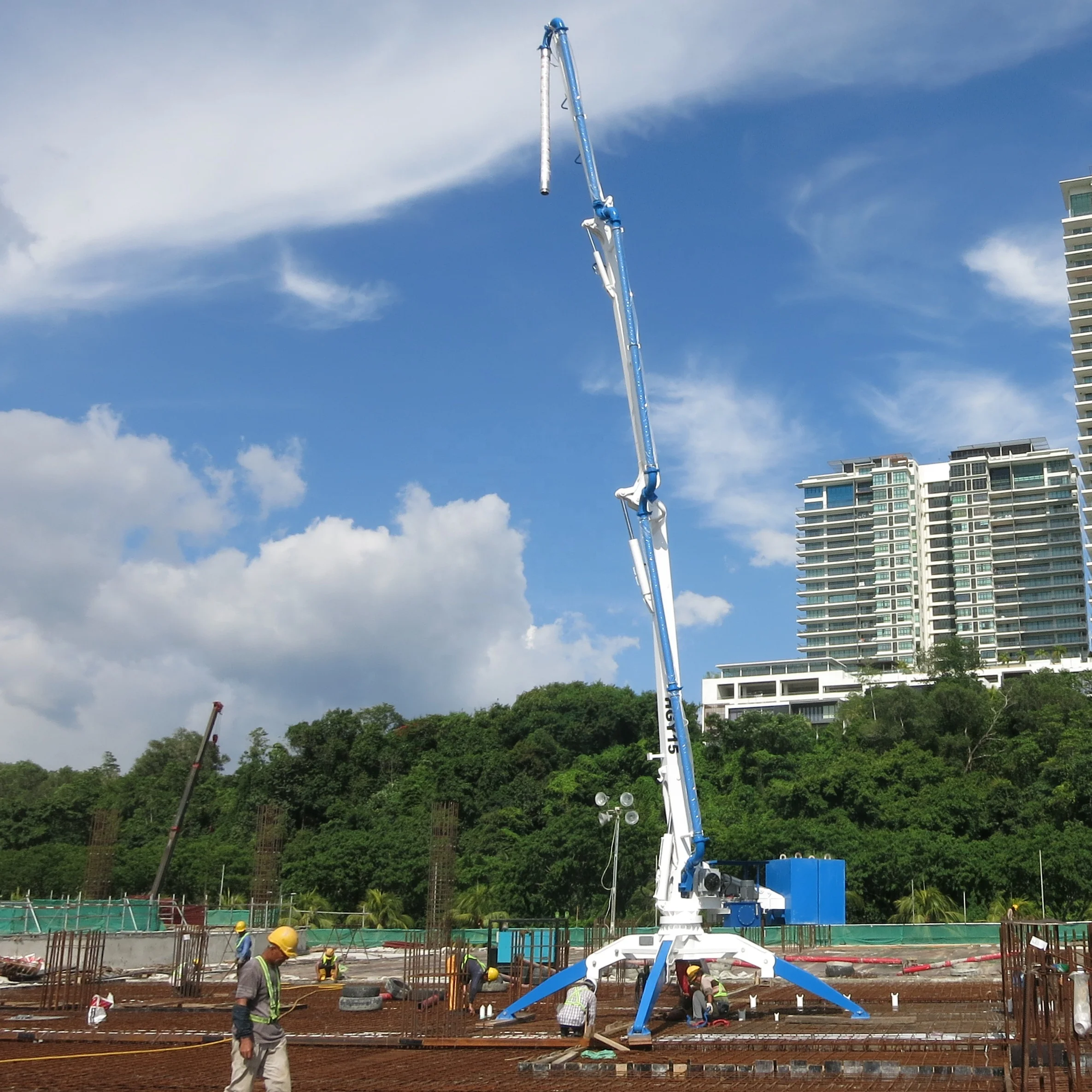

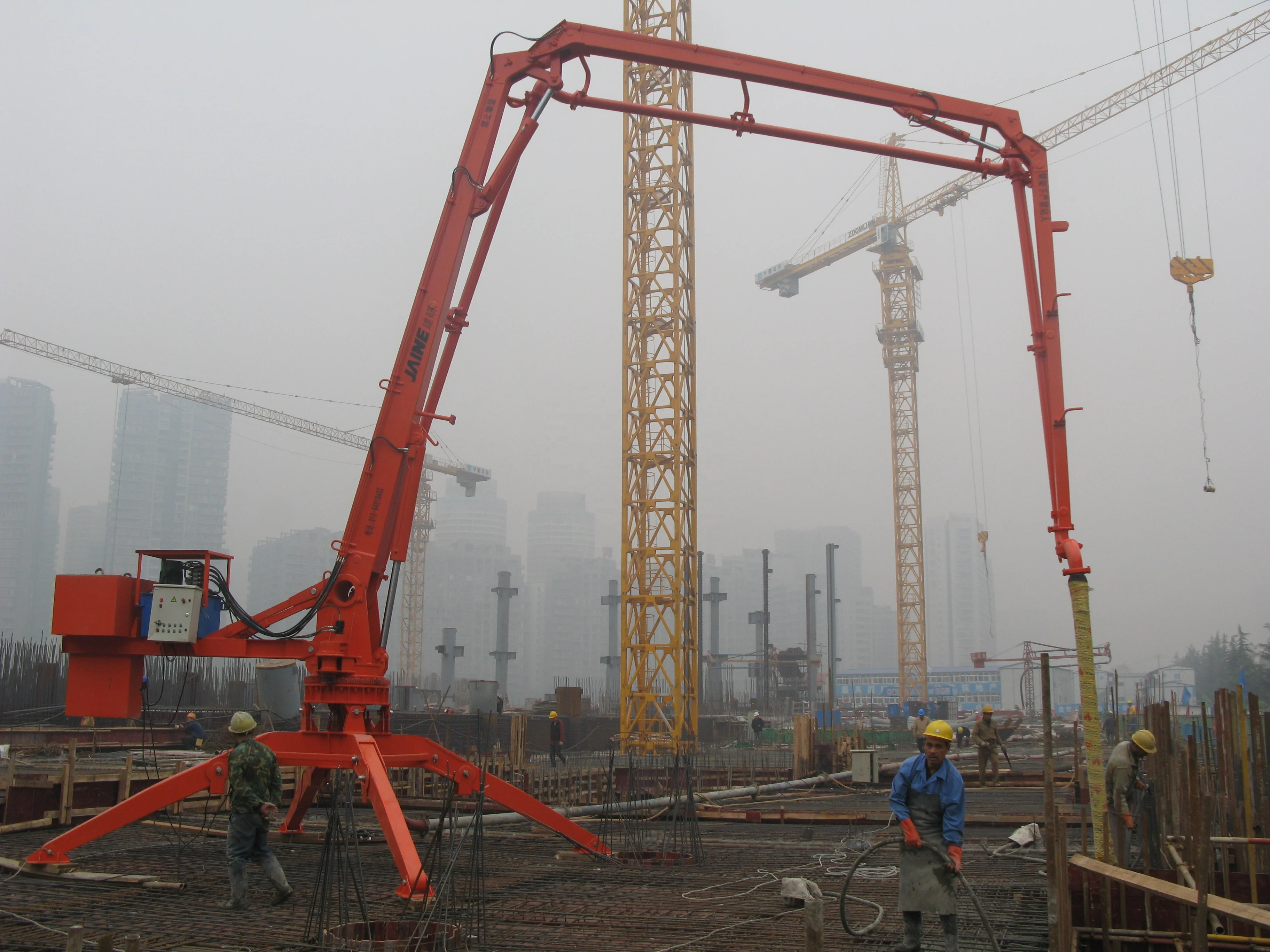

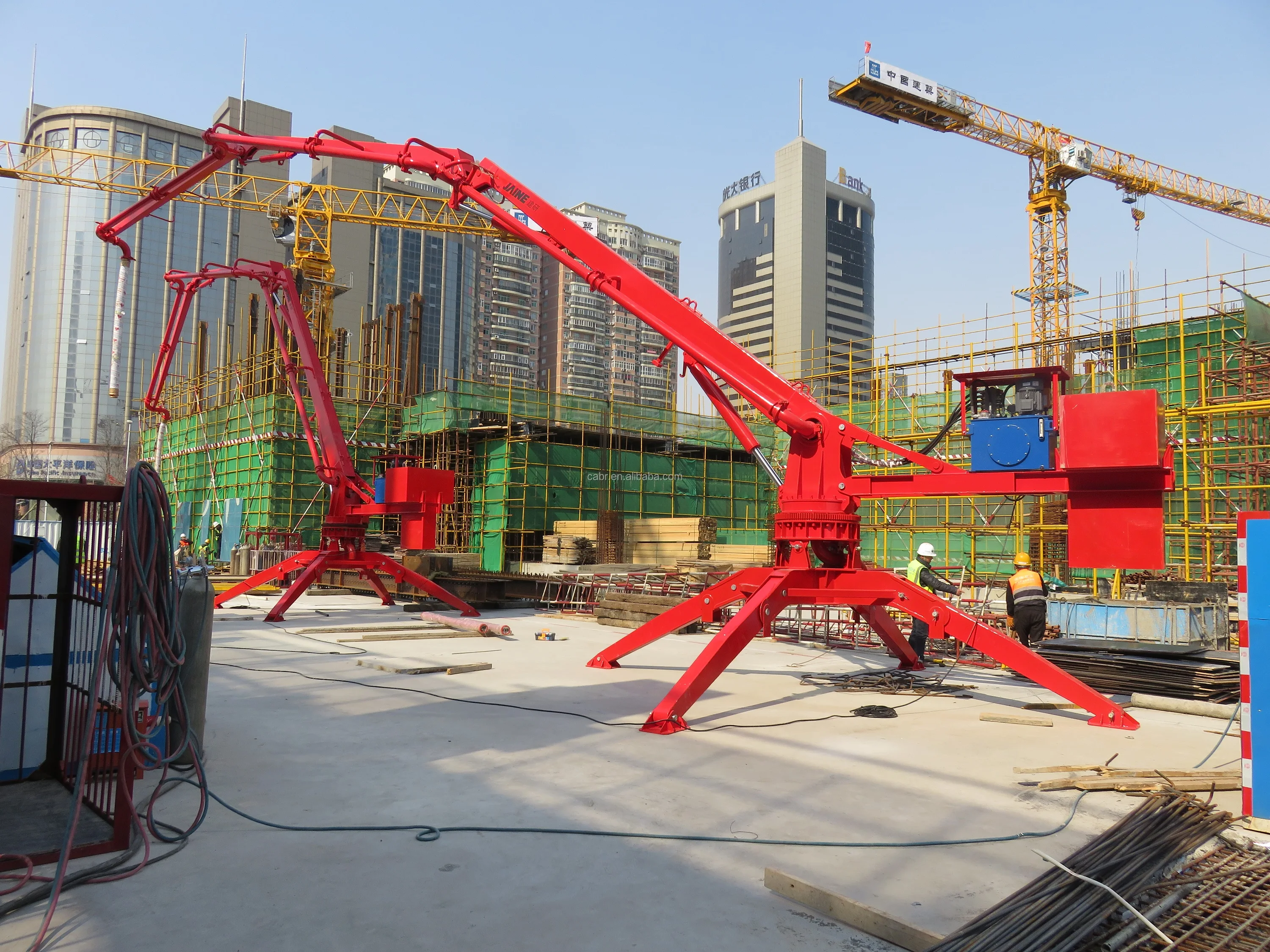

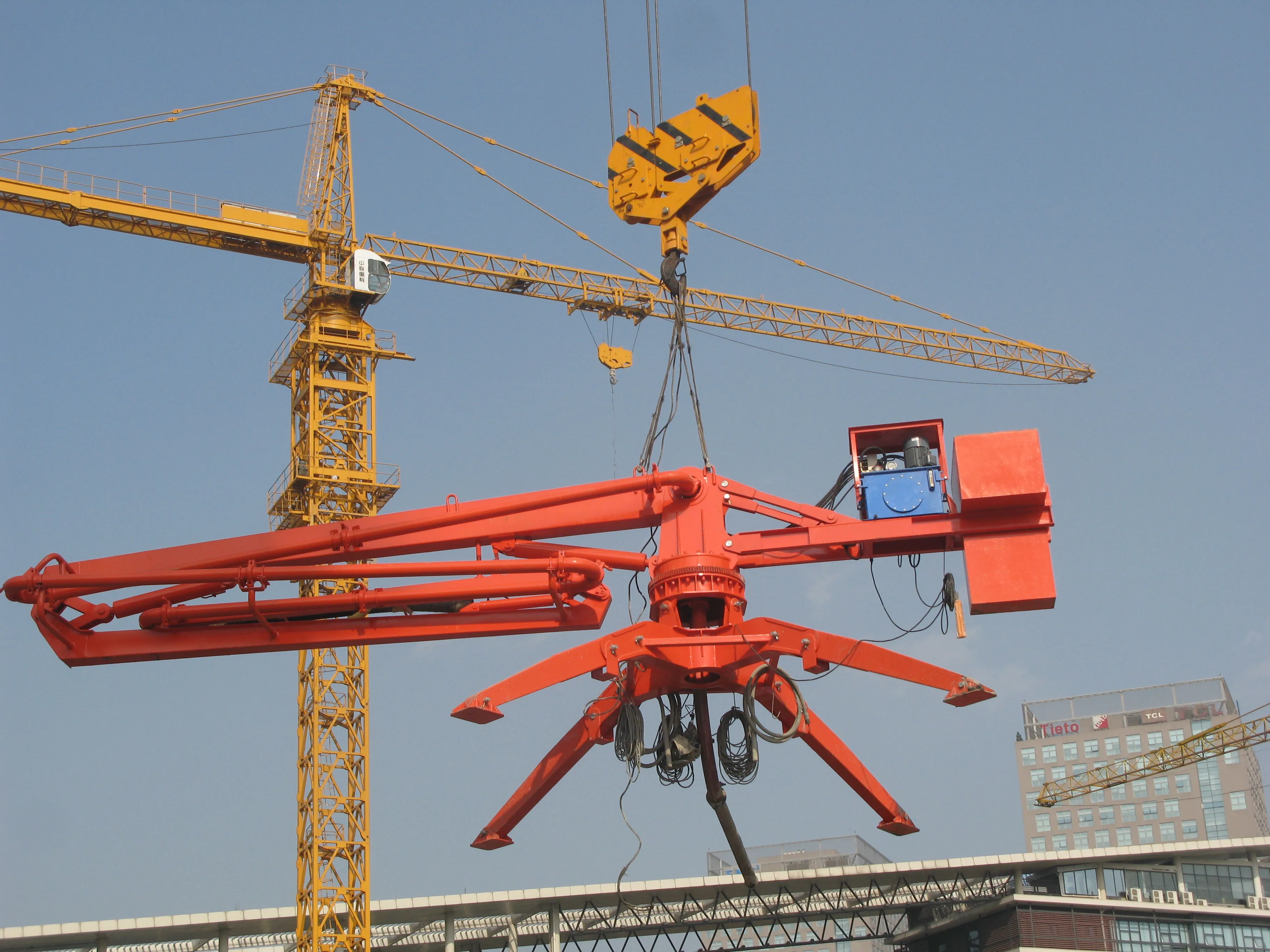

JAINE HGY17 Mobile Concrete Placing boom
The placing boom has a Z-shaped boom assembly with three foldable sections, which can swing through 360 degrees while luffing, folding/unfolding, thus allowing it to place concrete to form walls, pipes, columns, piles and other vertical structures without confined placement areas.
Main Specification:
Model | HGY13 | HGY15 | HGY17 | ||
Horizontal reach (m) | 13 | 15 | 17 | ||
Length of hose (m) | 3 | ||||
Rotation () | 360 | ||||
Elevation angle () | -2-84.4 | 0-90 | |||
Elevation angle (Mpa) | 20 | ||||
Hydraulics output (kW) | 4 | 4 | 5.5 | ||
Mode of drive | Hydraulic | ||||
Total weight (t) | Without counterweight | 2.7 | 3.2 | 4.94 | |
Counterweight | 1.6 | 2.2 | 2.1 |
