12 шпинделя алмаз шнур одноцветное оплеточная

Product Application

material use:
PP,Polyester,PE,HDPE,Cotton,Nylon,Dyneema,etc.
Range of products:
Gift bag ropes, high tension ropes,fishing lines,safty ropes,fiberglass sleeves,round elastic bands,hollow ropes,core ropes,and etc.

Control system:

- Frequency inverter controlled production speed.
- Yarn broken sensor (if a yarn is broken or a bobbin is empty, the machine stops automatically)
- Speed set
- Control cabinet

Scope of supply:

- Machine with control system
- Operation and maintenance manual
- Tool box
- Wearing and sparing parts
- Training and trial operation
- Packing

Specifications

- Intellignrt control system and Reliability
- High quality and Factory,Cheap1
- Flexible Operation and High Poductivity
- CE,ISO9001

MAIN FEATURES:

- The Machine is High speed and still noiseless.
- Space saving, because of compact design
- The yarn packages, generally available in cone form, can directly mounted on creel and fed to the machine.
- Stop motion fitted for detecting the yarn.
- Density of produced cord is adjustable by change pitch gears system.
-make different size of products by changing the pitch gears
- adopting frequency control motor which is easy to control the speed
-auto stop system has a sensitive reaction, when the yarn is over or breaks, the machine will stop  automatically, which reduce the waste of the yarn. So when there is nobody works near the machine, it is  also safe. This device lower the labor cost and increase the production.

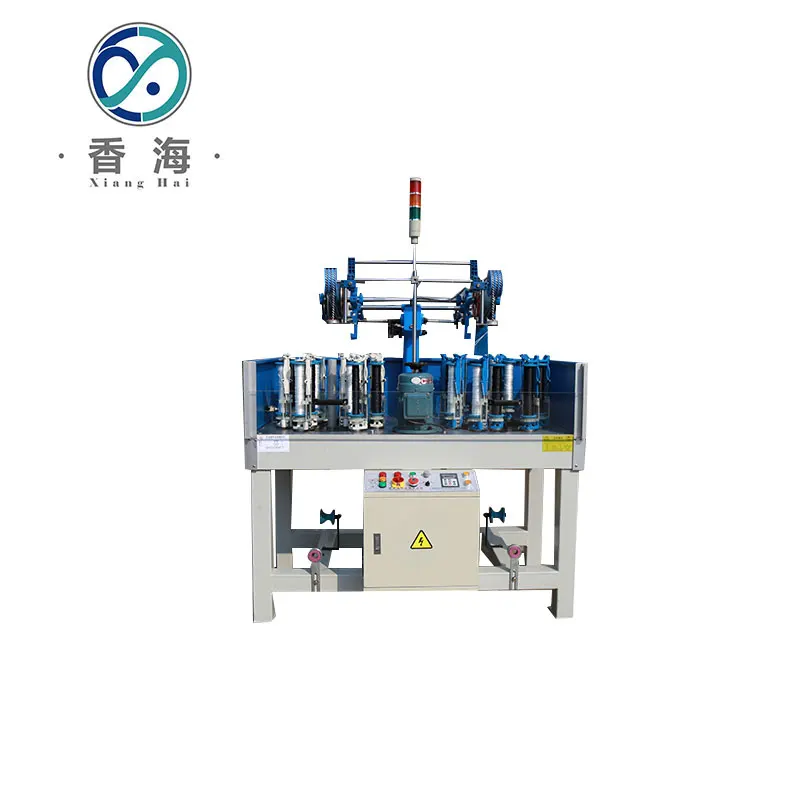

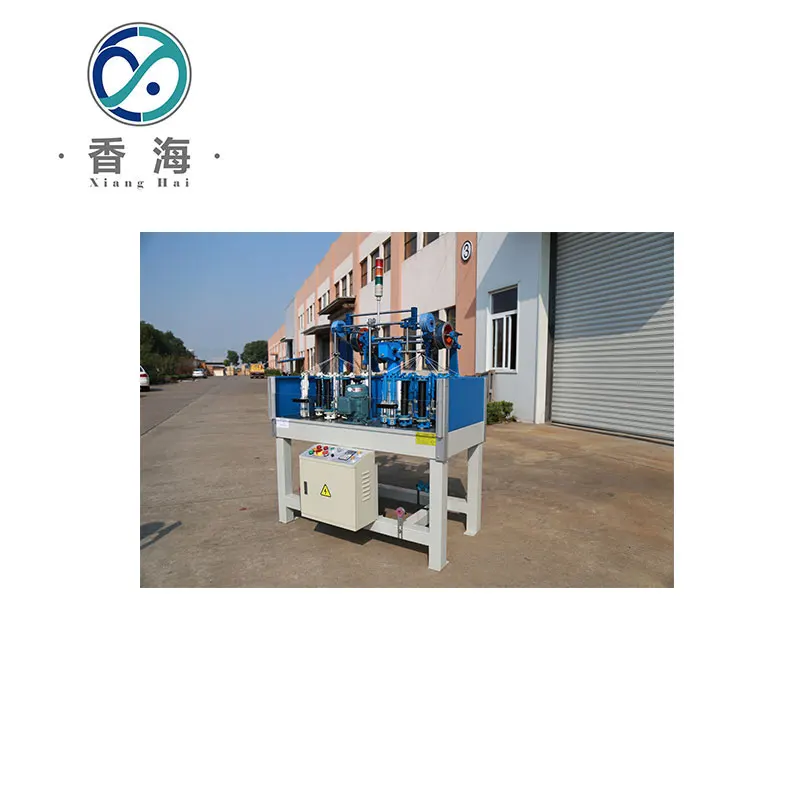

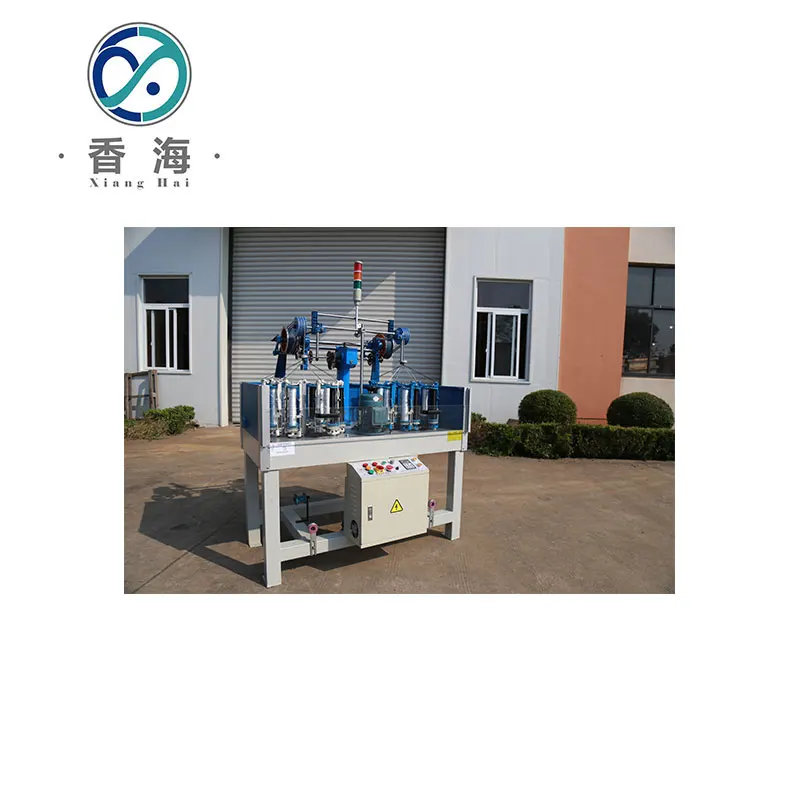

12 carriers solid braid rope Braiding machine

Name:TS90-12-4

Brand: XIANGHAI

Original: CHINA

Dia Rope:1-8mm

12 carriers solid braid rope Braiding machine

Name: TS130-12-2
Brand: XIANGHAI
Original: CHINA

Dia Rope :5-15mm

18 carriers solid braid rope Braiding machine

Name: TS130-18-1
Brand: XIANGHAI
Original: CHINA

Dia Rope:5-18mm

20 carriers solid braid rope Braiding machine

Name: TS168-20-1
Brand: XIANGHAI
Original: CHINA

Dia Rope:6-20mm
