Характеристики
Automatic Quartz Sand Filter
Quartz sand filter removes impurities from raw water to achieve water reuse. Filter is automatic operation and back-flushing, under control system of dp-switch (pressure drop), butterfly and PLC control system.

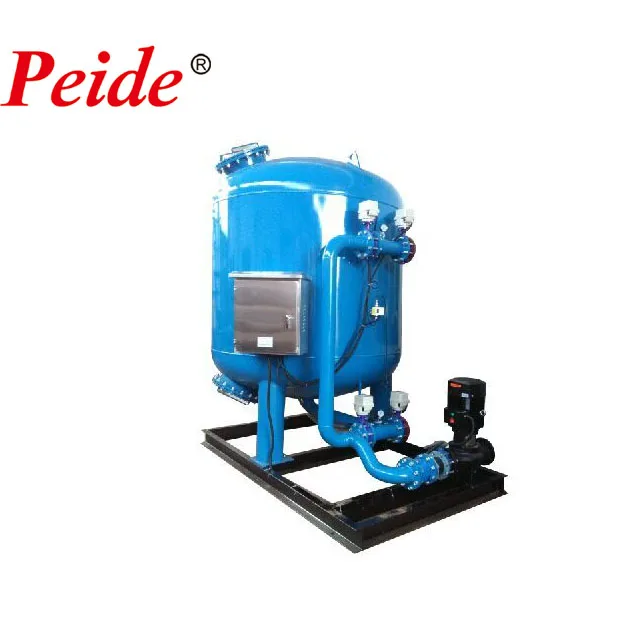

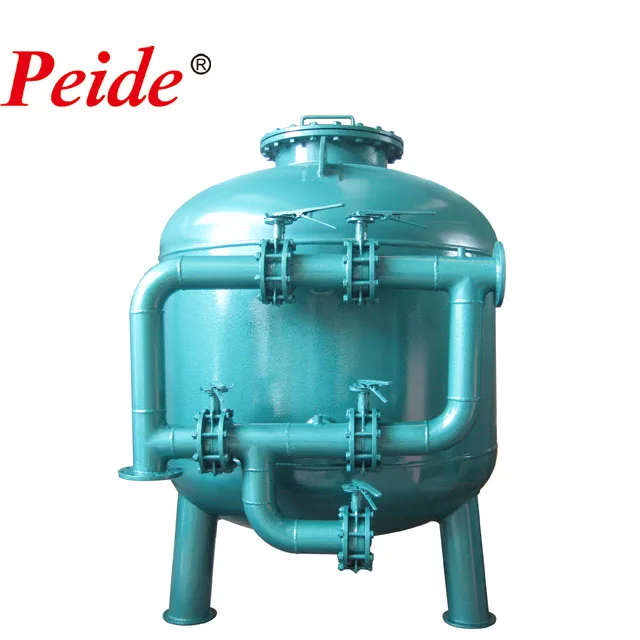

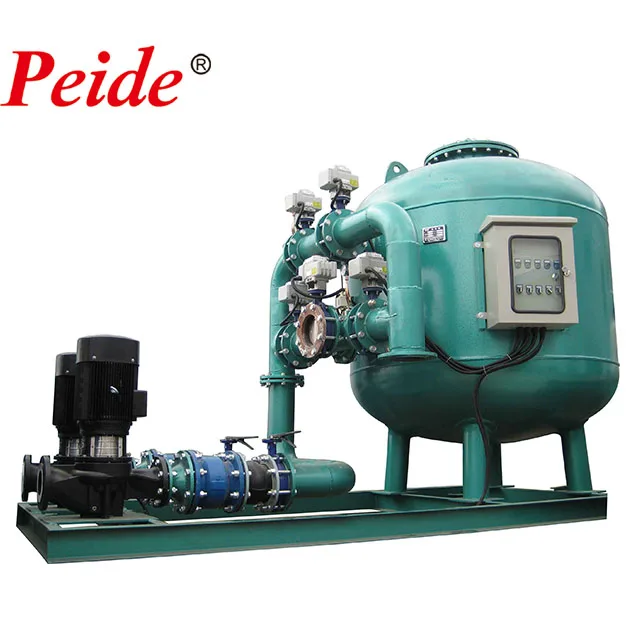

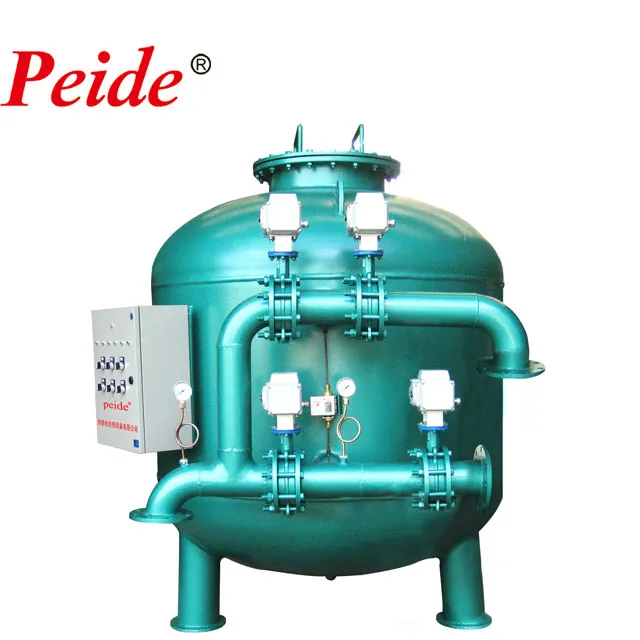

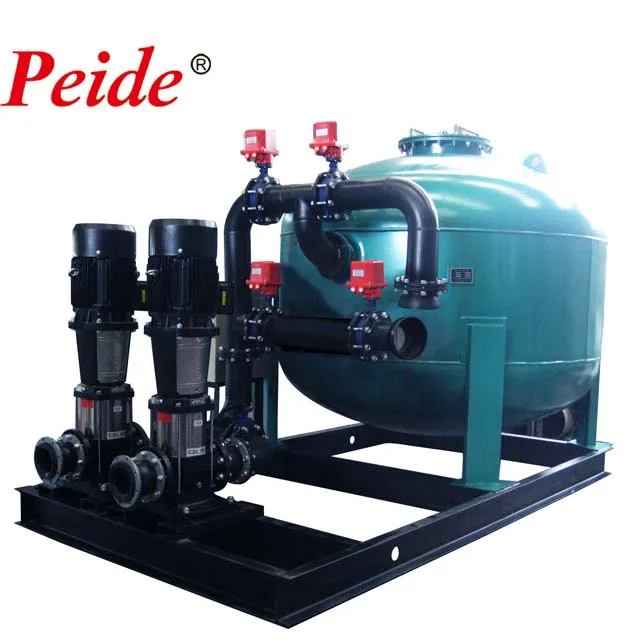

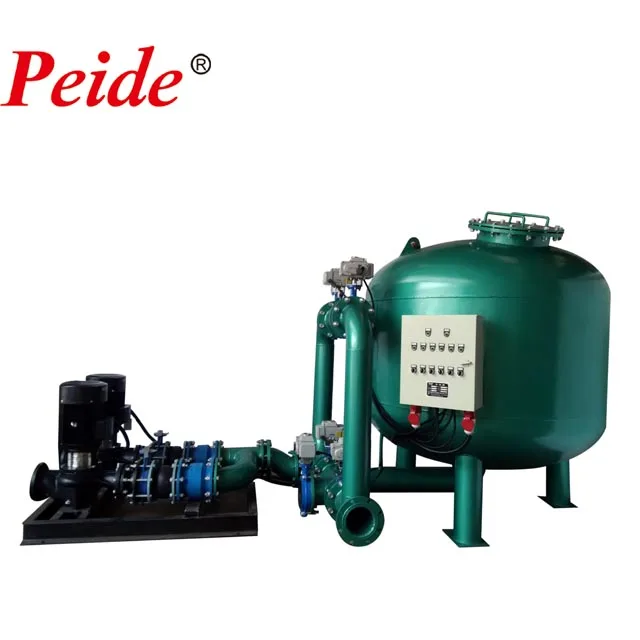

| Circulating water filter Pictures |
Big-flow auto Small-flow auto Small-flow auto big-flow manual small-flow manual |
| How does the quartz Sand filter works |
Raw water passes inside water distributor into filter media layer (quartz sand), which let impurities stay at sand layer. Clean water flow out stably from water collector. When the pressure drop reaches the given value, the cleaning cycle is started. The rinse control start working at pressure drop value at 0.05-0.15MPa, return to 0.02-0.04MPa after back flushing. Quartz sand inside tank mixed with coarse and fine sands. They are allocated above water distributor averagely. Even in back flushing, water consumption is little. Tank inside has rubber line and plastic line for option. It is for anti-corrosion, which ensure a tank can be used 10-20years. The completed filter control system has finished already in factory. |
Technical Parameter
| Circulating water filter Parameter | ||||||||||||||||||||||||
|
Application
| Where to use quartz Circulating water filter |
Swimming pool, hotel spa, water entertainment, aquarium, fish farm Irrigation in agriculture Drinking water pre-treatment Industrial recycled water, central air-condition system |
Model Specification
| We have models for choose | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Quartz sand filter with water enters from top
Quartz sand filter with water enters from side
|
| Diagram on pressure drop |
|
Installation Diagram
| Drawings help you understand clear |
|
Install Notice
| Attentions in using |
1. When quartz sand filter first into use, users should clean sand firstly, after that to start filtration. 2. Turn all operating valves slowly, to avoid water impact. |
| Circulating water filter How to install ? |
Before installing a quartz sand filter, please make sure the ground is strong and even. The space is big enough for connecting pipes, valves and repair. The filter needs changes sands after using some time. Follow below steps one by one: 1.Take down control valve 2.Pour sand into tank, by covering a protective cover at the inlet to avoid sand inside After replacing new sand, return control valve, connect tightly. Remember there’s a pressure gauge, but not fasten it tightly. Make sure each pipe connection is correct and no leak. |
Internal Fitting
| Circulating water filter Inside look |
|
| Circulating water filter media |
Natural quartz sand: contains SiO2, smooth and clean out appearance. Quartz sand from mine bed: irregular shape of sand, with strong hardness. Sea sand: smooth and clean out appearance.   |
Accessory
| Circulating water filter Othering fittings |
|
Packing
| Circulating water filter Packing |
|
| Manufacturing process |
|
| Customers |
|
| Certificates |
|
| FAQ |
Do you have certificates? Yes , we have ISO / CE certificate and certificate of patent Do you have design team? We have a professional design team provide drawings, we wait for your confirmation and production Can you guarantee delivery time ? Timely transport, ensure the delivery time Are you maufacturer ? Yes, we are the professional water treatment equipment manufacturer in china |
