The specification is based on6colors

Technical parameter:

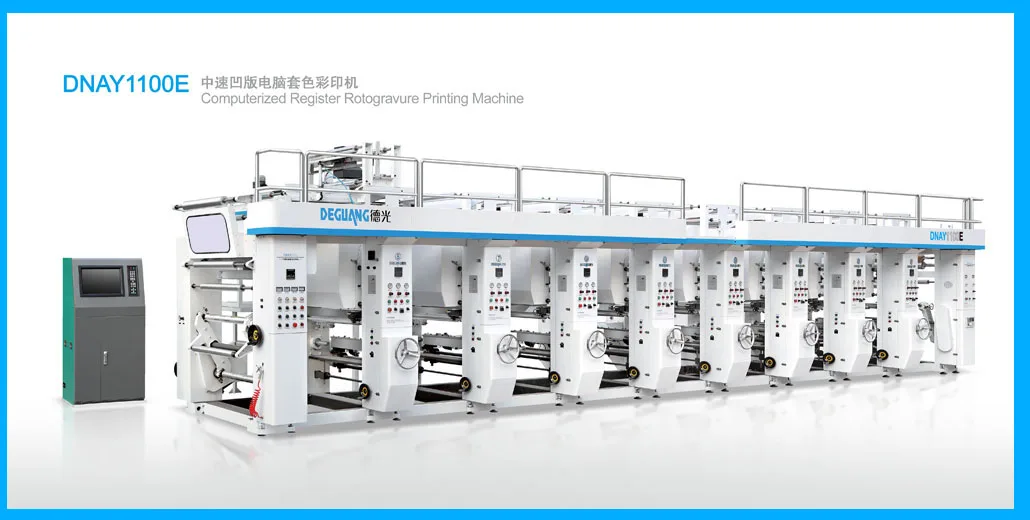

Model	DNAY800E Model	DNAY1100E Model
Web width	800mm	1100mm
Printing speed	Max 80-100m/min	Max 80-100m/min
Print cyl. dia.	Φ100-350mm	Φ100-350mm
Rolling material dia.	Φ570mm	Φ570mm
Print cyl. cross adjustable	30mm	30mm
Print cyl.Longitudinal adjustable	100°	100°
Registering accuracy	±0.1mm	±0.1mm
Total power	76kw	89kw
Weight	9000kg	10000kg
Overall dimensions(L×W×H)(mm)	10600×2900×3020	10600×3200×3020











Features:

1. Usage: It is suitable for BOPP, PET, CPP, PVC and combined film and paper with the same properties. Its printing speed is 120m/min, mechanical speed is 130m/min.

2. Three frequency motor controlling system.
3. PLC control.

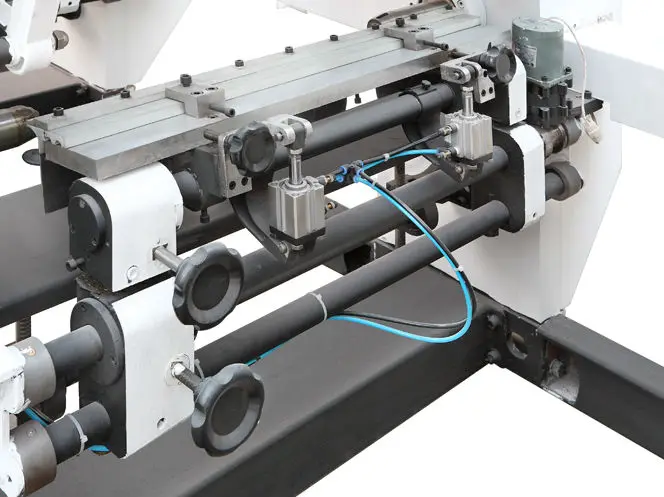

4. Automatic splicing and cutting.

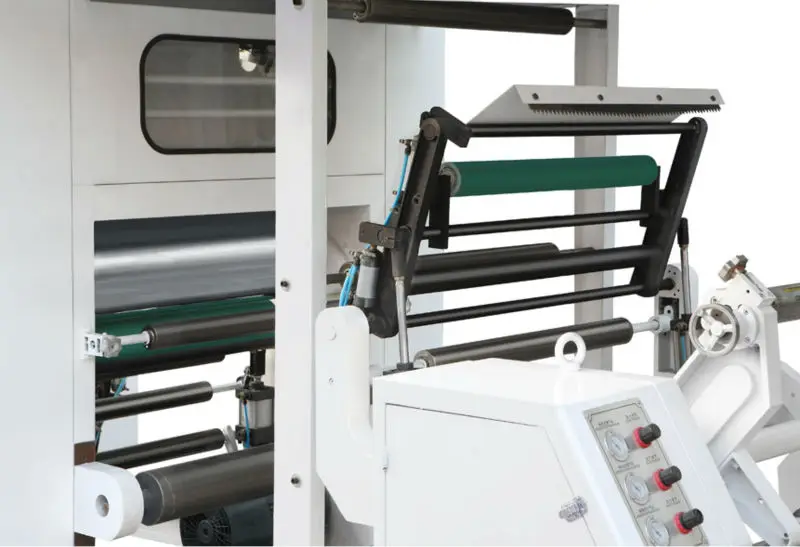

5. Two floating roller to adjust tension

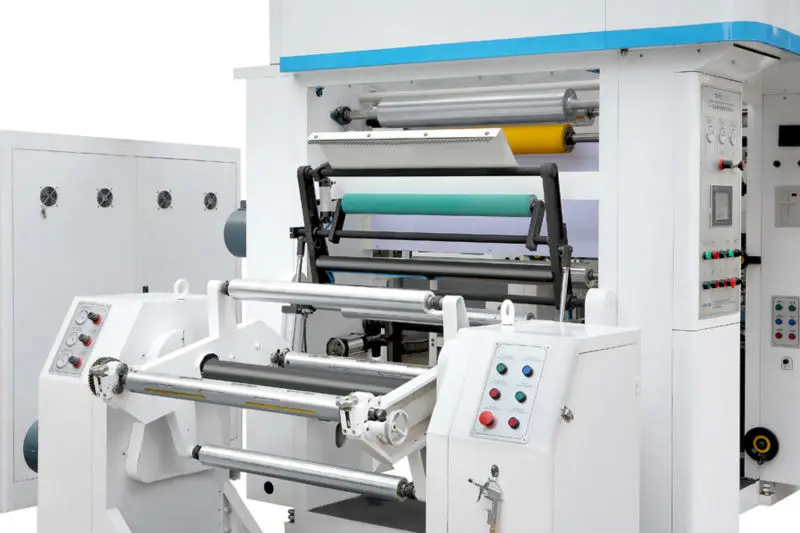

6. Unwinding and rewinding dual station turret, inching rotation.

7. Unwinding powder brake, automatic tension.
8. Unwinding traction adopts frequency motor.

9. Unwinding and rewinding air shaft

10. Pneumatic pressing roller.

11. Shaftess printing cylinder.

12. Automatic registration with video inspection.

13. Pneumatic doctor blade.

14. Pneumatic ink pump.

15. Electric heating or gas heating or oil heating.

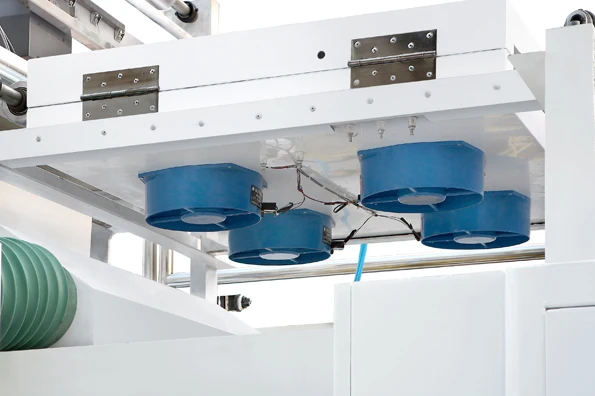

11. Independent drying and suction exhausting system, air circulated, max recycled rate 50%, outside oven increase the amount of blowing air to ensure the drying.
12. Assisted oven on the top of last printing unit can prevent the last color adhesive to the printing cylinder when the color cover the whole cylinder, making the film completely dry.
13. Pre-heating system
14. Water cooling and air cooling, two option.
15. Waste air eliminating tunnel.

16. Rewinding adopts two torque motor.
17. Rewinding traction adopts frequency motor.

18. Main motor: Frquency motor

19. Cast iron wallboard, thickness is 70mm.
