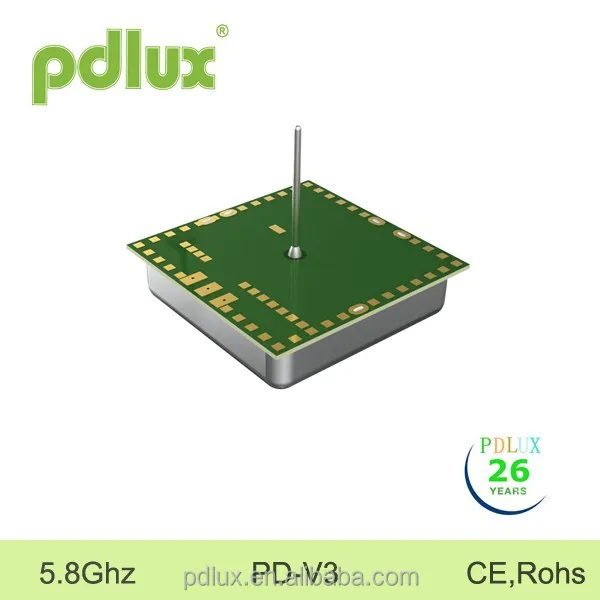

360 градусов угол pdlux PD-V3 с большой дальностью обнаружения модуль микроволнового

Описание и отзывы

Трекер стоимости

Характеристики

Pdlux HF Microwave sensor module can be customized :

Like Voltage(3~3.3V),Detection Distance,Power consumption all can be Customized.



1.The Product size of HF sensor modules PD-V3:



2.The Technical Specification of HF sensor modules PD-V3:







Parameter	Note	Min	Typ	Max	Units
Frequency setting	1	5.75	5.8	5.85	GHz
Rated power(EIRP)	1	0.18	0.20	0.22	mW
Setting Time		5	10	20	μSec
Received signal strength	2	150	200	300	μvp-p
Noise	3	0.5		1.5	mvrms
Supply voltage		4.75	5.00	5.25	V(impulse power source)
Current comsumption		12	12.5	13.5	mA
Pulse repetition Frequency	4	2.0	2.2	3.0	KHz
Pulse Width	4	15	50	70	μsec
Operation temperature		-15	22	90	°C
		4.0	4.3	4.8	g





 3.The  Antenna Beam Pattern of HF sensor modules PD-V3:









 The Certificate of Our Products:

The Overview of Our Manufactory:





The Image of Our Workshop & Equipments:















Our service:



1.your inquiry related to our products or prices will be replied in 12 hours

2.well-trained and experienced staffs to answer all your enquires in fluent English

3.OEM&ODM,any your customized products we can help you to design and put into production

4.Protection of your sales area, ideas of design and all your private information
