Open Type ZB Copeland R404 12HP ZB88KQ-TFD 3PH380V50HZ/3PH460V60HZ MEDIUMM/HIGH BACK PRESSURE COMPRESSOR   condensing unit prices



Main features

A .Save labor

Change traditional structure to plat work structure, well formed, light weight saving labor;

B. Save time

Connecting tube adopt bell like mouth, more convenient for connecting, will save 50% of installation;

C. Save space

New type of thin-wall design, can install back by wall and save space

D. Mute refrigerating technology

E. Anticorrosive shell

F. A variety of compressor selection

G. Easy for installation and maintain

Range of application

 Refrigeration industry,cold-room project

Agricultural,food,restaurants,chemical industry

Technical Data								R404  3PH 380V 50HZ
Condensing Unit	Compres Model	Displacement	Max.Oper.Current	Receiver	Fan	Air Flow	Overall Dimension			Instaling Measure			Tube Connection		Gross Weight
		m³ /h	A	L	n°	m³ /h	B mm	T mm	H mm	b mm	t mm	Φ mm	SL inc	FL inc	KG
HGZ20ES	ZB15KQE-TFD	5.90	6.48	2	1	4235	700	675	505	660	635	11	3/4"	3/8"	65
HGZ25ES	ZB19KQE- TFD	6.80	6.58	2	1	5580	735	700	540	695	370	11	3/4"	3/8"	70
HGZ30ES	ZB21KQE- TFD	8.60	8.58	2	1	5580	735	700	540	695	370	11	3/4"	3/8"	72
HGZ35ES	ZB26KQE- TFD	9.90	10.58	3	1	5580	735	700	540	695	370	11	3/4"	3/8"	79
HGZ40ES	ZB30KQE- TFD	11.40	11.85	3	1	7620	735	700	800	695	370	11	7/8"	3/8"	90
HGZ50ES	ZB38KQE- TFD	14.50	13.35	3	1	7620	735	700	800	695	370	11	7/8"	3/8"	98
HGZ60ES	ZB45KQE- TFD	17.20	16.95	6	1	7620	735	700	800	695	370	11	7/8"	1/2"	100
HGZ70ES	ZB48KQE- TFD	18.80	18.16	6	2	11160	1190	800	650	1155	475	14	7/8"	1/2"	152
HGZ80ES	ZB58KQE- TFD	22.10	24.16	14	2	11160	1190	800	700	1155	475	14	1- 1/8"	5/8"	182
HGZ90ES	ZB66KQE- TFD	25.70	25.36	14	2	11160	1190	800	700	1155	475	14	1- 3/8"	5/8"	201
HGZ100ES	ZB76KQE- TFD	28.80	28.60	14	2	15240	1400	800	860	1155	475	14	1- 3/8"	5/8"	217
HGZ120ES	ZB88KQE- TFD	33.20	32.70	14	2	15240	1400	800	860	1155	475	14	1- 3/8"	5/8"	219
HGZ130ES	ZB92KCE- TWD	36040	33.32	14	4	22320	1190	800	1250	1155	475	14	1- 3/8"	5/8"	275
HGZ150ES	ZB11MCE- TWD	43.40	40.32	18	4	22320	1190	800	1250	1155	475	14	1- 3/8"	5/8"	308



Condensing Unit	Compres Model	Ambient Temp(°C)		Evaporating Temperature (°C)
				7	5	0	-5	-7	-10	-15	-20
HGZ20ES	ZB15KQE-TFD	Q	32		5550	4830	4180	3830	3540	2870	2350
			38		5080	4410	3770	3520	3180	2510	2010
			43				3390	3170	2860	2190	1720
		P	32		1910	1870	1850	1830	1830	1800	1810
HGZ25ES	ZB19KQE-TFD	Q	32	7150	6960	6060	5220	4840	4480	3660	3070
			38	6780	6430	5590	4780	4510	4080	3280	2730
			43			5150	4390	4130	3740	2960	2450
		P	32	2300	2280	2220	2160	2140	2110	2070	2040
HGZ30ES	ZB21KQE-TFD	Q	32			6920	6000	5540	5160	4260	3570
			38			6410	5520	5190	4730	3840	3190
			43					4760	4340	3470	2860
		P	32			2730	2650	2630	2580	2490	2440
HGZ35ES	ZB26KQE-TFD	Q	32		9490	8280	7200	6780	6180	5050	4250
			38		8820	7650	6620	6210	5630	4520	3780
			43				6080	5700	5140	4070	3370
		P	32		3170	3080	3000	2960	2920	2830	2790
HGZ40ES	ZB30KQE-TFD	Q	32	11990	11390	9890	8580	7910	7350	6010	5020
			38	11100	10530	9120	7840	7360	6680	5380	4460
			43			8400	7180	6730	6090	4830	3990
		P	32	3630	3590	3490	3420	3380	3340	3070	3220
HGZ50ES	ZB38KQE-TFD	Q	32		13880	12100	10510	9700	9020	7390	6190
			38		12890	11200	9660	9070	8220	6640	5510
			43				8880	8330	7510	6000	4940
		P	32		4590	4460	4340	4290	4220	4100	4030
HGZ60ES	ZB45KQE-TFD	Q	32				11830	10950	10200	8430	7070
			38				10940	10280	9360	7590	6320
			43						8590	6840	5680
		P	32				5030	4980	4890	4710	4600
HGZ70ES	ZB48KQE-TFD	Q	32		17760	15480	13480	12460	11570	9510	7970
			38		16510	14350	12400	11650	10560	8540	7110
			43				11400	10690	9660	7700	6370
		P	32		5760	5580	5430	5370	5280	5130	5030
HGZ80ES	ZB58KQE-TFD	Q	32		20960	18400	15990	14790	13740	11200	9190
			38		19630	17160	14800	13900	12580	10000	7990
			43					12790	11520	8920	6930
		P	32		7110	6880	6620	6530	6380	6120	6000
HGZ90ES	ZB66KQE-TFD	Q	32			20420	17810	16520	15400	12700	10680
			38			19020	16470	15550	14130	11470	9520
			43					14360	12990	10390	8530
		P	32			7660	7390	7260	7120	6840	6660
HGZ100ES	ZB76KQE-TFD	Q	32		28350	24700	21620	19990	18590	15230	12670
			38		26460	23120	19970	18790	17040	13710	11270
			43				18450	17320	15660	12380	10060
		P	32		9340	9000	8670	8540	8340	8030	7810
HGZ120ES	ZB88KQE-TFD	Q	32		30430	26450	22870	21020	19450
			38		29240	25360	21670	20270
			43				20560	19180
		P	32		9350	8910	8500	8370	8160
HGZ130ES	ZB92KCE-TWD	Q	32		36240	31620	26930	24930	23150	19050	15310
			38		33550	29200	24660	23180	20920	16740
			43			26960	22610	21160	18930	14780
		P	32		11610	11200	10810	10680	10460	10140	9910
HGZ150ES	ZB11MCE-TWD	Q	32		42480	37080	31530	29150	26970	22110	9910
			38		39530	34340	28880	27110	24380	19520
			43			31750	26460	24720	22060	17220
		P	32		13840	13330	12890	12730	12470	12060	11770

Product pictures

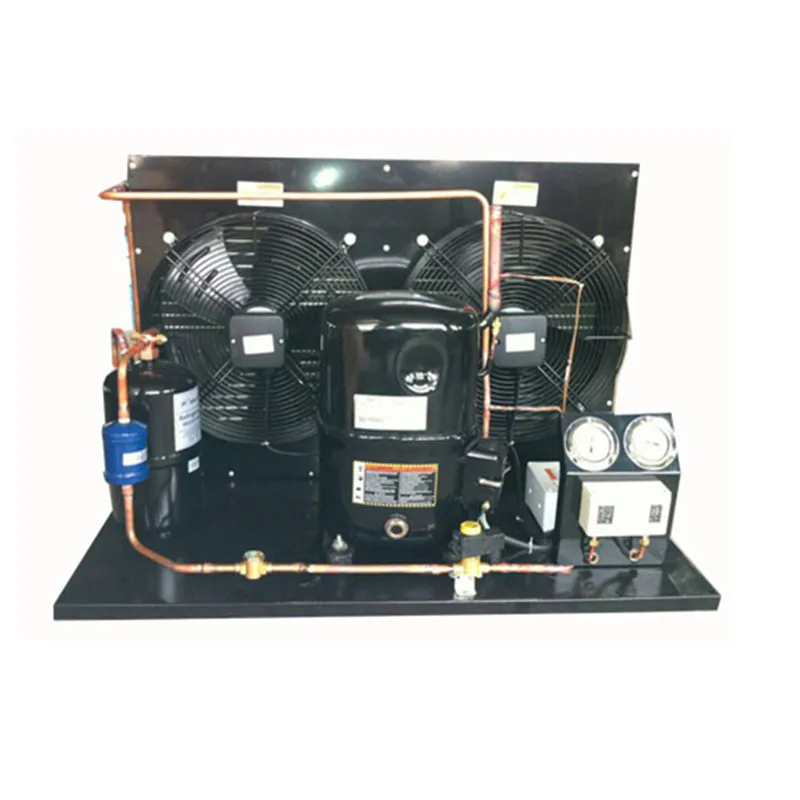

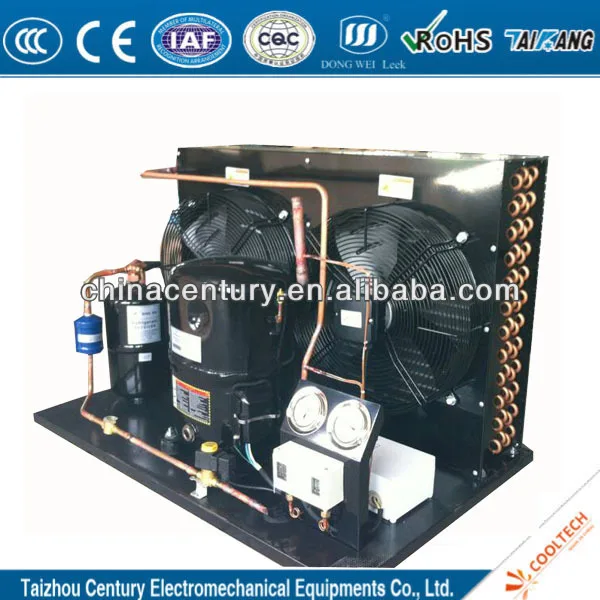

Product

Schematic diagram





Transport
