GSM MODEM pool also known as "SMS Modem Pool" in China, USB 2.0 can be used directly into the computer USB port, for laptops, desktops can be used. Break the rule that multi-tech can only be used in desktop computers. Built-in wireless modules can be inserted SIM cards, simultaneously to send text messages.

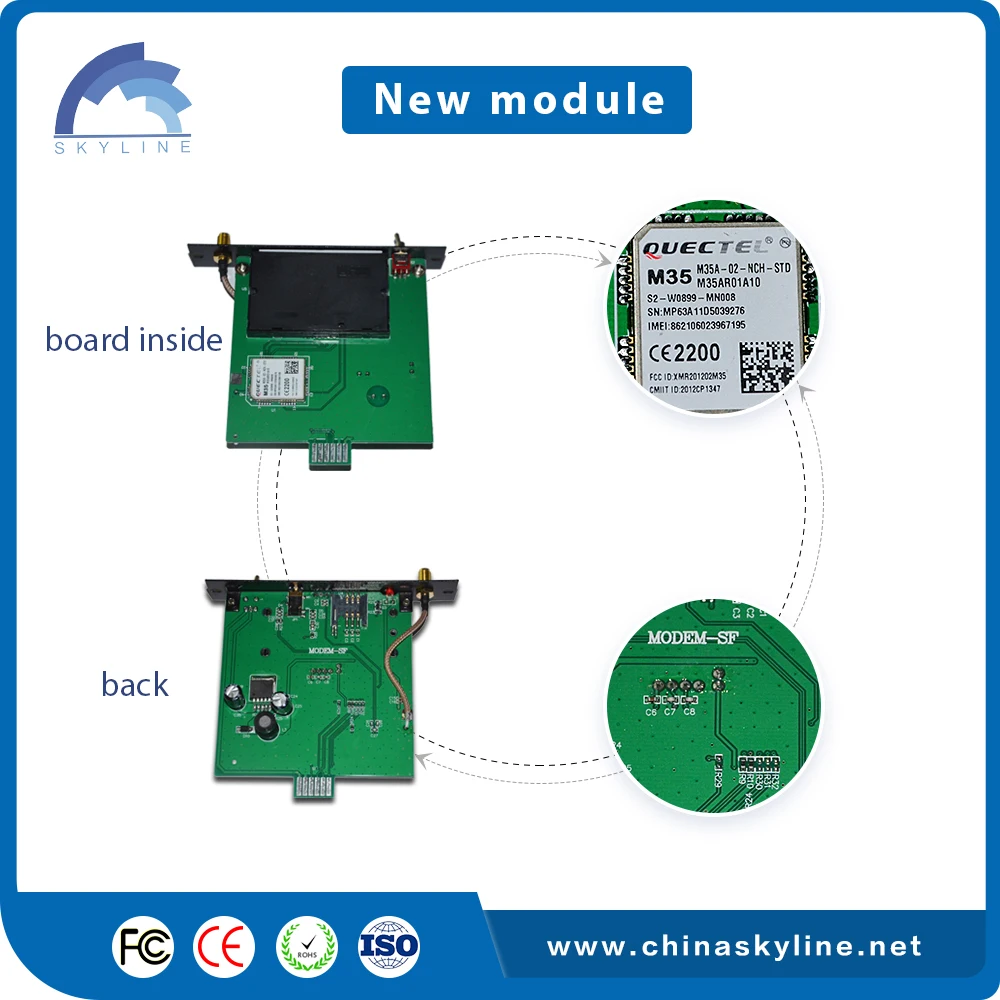

The device built-in 1/4/8/16/32/64 wireless modules can be inserted8/16/32/64 SIM cards, can use eight cards to send text messages, send speed as 8/16/32/64 times as a single channel modem. It uses the development of QUECTEL module, 220V power supply, can be a long time stability, generous luxury housing.It is working compatible with windows 2008 R2, Windows 7, Vista, XP, 2006/2000, 98SE/CE, LINUX.
Gms Modem
Key Feature
-Just like 8 single-channel equipments work at the same time -Insert 8 SIM cards(big or small) -Connection with the computer through a data line be integrated with Serial 8 -Each channel with separate power switch -Each individual module be demolished -Industrial chassis, elegant shell -GSM frequency:850/900/1800/1900MHz -Wireless access to internet -Comply with GSM phase2 standard -Dual-band/Quad-band(optional) -USB interface -Optional data, voice function -Send and receive English SMS/MMS in bulk
Gms Modem
Basic Feature
-Asynchronous, transparent or non-transparent, to a maximum 14400 bits/s -Baud Rate: 300-115200 bits/s -Automatic baud rate: 2400 -19200 bits/s -Fax support three -Switched voice and fax -V. 42, V. 42bis -GPRS compatible -Wap compatible -SMA Antenna Interface -SIM Card Outlet -Power connector -RS-232, the Mini-dB-9 connector -AT command control ( GSM 07.07 and 07.05)
Gms Modem
Hardware Feature
-Support dual-band GSM: 850/900/1800/1900MHz -Meet the ETSI GSM 2 + standards -Class 4 ( 2W @ 900 MHz) Class 5 ( 1W @ 1800 MHz) -5 -24 VDC power supply (which be directly connected to the nickel- metal -Hydride or lithium batteries) -Operating Temperature: -20 ° C - + 55 ° C -Storage temperature: -25 ° C - + 70 ° C -Size: Standard 1U chassis
Gms Modem
Specification
Product Name
8 Ports Sms Modem
Function
Send SMSReceive SMS IMEI Change AT Command Voice Call
Module
M26
Frequency
850/900/1800/1900@GSM
SMS
Support Text and PDU mode
Power consumption
Voltage : 3.6V Class4(2W@850/900MHz) Class1(1W@1800/1900MHz)
Single-channel input V
5V-28V
Single-channel input C
MAX 1.7A, average 270MA
Baud rate
Default 115200bps
Transmit-receive rate
800-1200sms/hour/port
AT command control standards
GSM07.07, GSM07.05 and other extension
Antenna
50 ohm,3dB gain
Weight
4KG
Range of temperature
- 35℃ to +80℃ working - 40℃ to +85℃ conserve
Input
110~240AC/50~60HZ
SIMslots
8
Antenna interface
SMA antenna
Packing & Delivery
Company Profile
FAQ
1. How to use it? Install Driver and Sms Software-SMSCaster in computer (free) Insertl sims and antennas in Modem Connect modem and computer by USB Manage software in computer to send bulk sms Gms Modem 2. What are the additional expense for the whole system operation except the modem? Network Sims/sms cost Computer Gms Modem 3. How can I get help? Contact me. Let me arrange technician to help. Skype: skylinesimon WhatsApp: +8618825043723 Gms Modem 4. What is delivery and arrival time? Delivery time : within 0-3 days after payment received Arrival time: 5-7 days by DHL normally Gms Modem 5. Any relative products? 2G sms modem M26 module 8/16/32/64 ports 3G sms modem UG module(cant change imei) and UC20E/A module 8/16/32/64 ports 4G sms modem EC25-A/E module 8/16/32/64 ports Gms Modem 6. What payment and shipmet terms? Payment terms: Visa, Credit card, E-checking, TT(Company Bank Account), Payoneer, Webmoney Shipment terms: DHL, Fedex, Aramex, EMS, TNT, Alibaba line
