Горячий холодный ламинатор/холодный и горячий ламинатор машина для печати

Описание и отзывы

Трекер стоимости

Характеристики

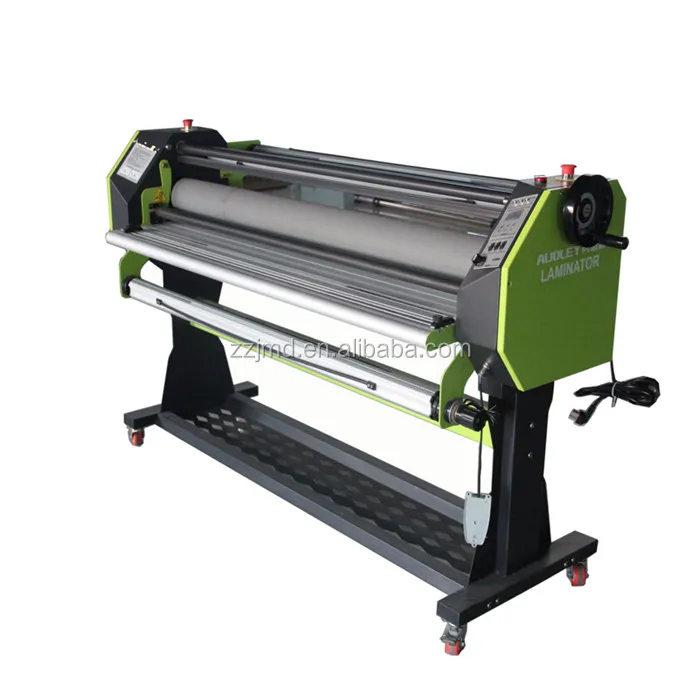

hot cold laminator/cold& hot laminating machine,laminate printing machine

special details:

Max Width	1520mm
Max Thickness	20mm
Speed	0-7M/min
Temp Range	Room Temp-120°C
Lifting Way	Unilateral Ascension
Heating Way	Infrared Heating
Preheating Time	10-15min
Rated Input Power	2200w
Power	0.8-1kw/h
Rated Input Voltage	110/220v
Weight	230/180kg
Packing Size	220*71*80cm
Auto	Yes



Configuration:

1.Motor

2.Turn-over aluminium alloy front working platform

3.130mm-diameter anti-adhesive silica gel lower-roller

4.130mm-diameter high-temperature resisting silica gel upper-roller

5.automatic product rolling structure

6.Crinkle-resistant and anti-slided paper advancing structure(initiative)

7.Unilateral balanced voltage controlled hand wheel

8.Non-contact infrared temp-measuring system

9.Pedal Switch

advantages:

1. Intelligent control panel, easy to operate



2 External damping device, prevent the walk





3. Rotary worktable, convenient to maintenance, saving the operation time





4. Rubber roller elevating handwheel, unilateral linkage lifting roller, synchronous lifting pressure evenly







5. Human foot switch: to control motor operation, more humanized simple operations









6. Feeding blank device: the whole roll feeding tectorial membrane, avoid wrinkles, improve the effect of efficiency
