Полуавтоматическая машина для горячего тиснения фольгой с


Поделиться:


Цена:3 900,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-20-2025 4641.98 $* 4873.0 $*
Aug-20-2025 4602.9 $* 4832.21 $*
Jul-20-2025 3861.37 $* 4054.97 $*
Jun-20-2025 4524.67 $* 4750.55 $*
May-20-2025 3939.79 $* 4136.60 $*
Apr-20-2025 4446.84 $* 4668.35 $*
Mar-20-2025 4407.35 $* 4627.80 $*
Feb-20-2025 4368.20 $* 4586.47 $*
Jan-20-2025 4329.22 $* 4545.76 $*

Характеристики


 Semi-automatic Hot Foil Stamping Machine with Slider Worktable Embossing Machine



Product Description

 Semi-automatic Hot Foil Stamping Machine with Slider Worktable Embossing Machine























































































H-TC3040LN Pneumatic Movement-table hot stamping Machine//Structure






Working table



High strength Steel plate , size:420*500mm.automatically in-out



Stamping Head drive



Pneumatic drive



Foil collecting method



Motor-drive , Collecting time adjustable



Press adjustment



Up-down of working table



Temperature control



Heating tube heat up,Automatically temperature controlling, temperature free setting



Foil collecting



Motor drive, Automatically collecting



Stamping plate size



300*400mm.



H-TC3040LN Pneumatic movement-table hot stamping machine //Usage and characters






Guide




  • Gilding - paper, leather, wood, plastic,

  • Baked - wood products, baked painting, gift box packaging;

  • Embossing - paper, leather, cloth.

  • Flat-object stamping machine with large-pressure, Suitable for stamping on invitation letter, card. Leather, wooden gift, Paper package, Plastics film, Electron products;

  • Automatic feed foil, automatic temperature controlling ensures stamping quality.

  • Because of large pressure, It is suitable for gilding and baking Impression on leather, paper, wooden materials.

  • Pneumatic drive, pressure large.

  • Automatically working table



Application fields




  • Paper Gilding, Leather Impression, Wood ware Baking

  • Paper Concave-convex embossing, Cloth hot stamping,

  • Plastics Bronzing

  • Mobile screen, Household appliances Panel , Thick paper card, PVC board Etc. large dimension Flat substrate stamping and Bronzing.

  • Woodiness objects baking-burns and Impress;

  • Leather bronzing and Molding;

  • Paper products concavo indentation.

  • Graduated disc of clock bronzing.



H-TC3040LN Pneumatic movement-table hot stamping Machine //Parameter






Technical parameters






H-TC3040LN precision hot stamping Machine



  • Hot plate area:300×400 mm

  • Working table area:420 ×500mm

  • Max printing pressure:2,000-3000 Kg

  • Up and down distance:45mm

  • Heat wattage:3000W

  • Foil in feed: Motor Drive

  • Temperature adjustment:0-300oC .


H-TC3045LN precision hot stamping Machine



  • Hot plate area:300 × 450 mm

  • Working table area:420 ×500mm

  • Max printing pressure:2,000-3000 Kg

  • Up and down distance:45mm

  • Heat wattage:1000W

  • Foil in feed: Motor Drive

  • Temperature adjustment:0-300oC



Works supply




  • 110V-220VPower supply;

  • 5-7Bar compress air



Package list




  • Package size: 790*850*1550mm

  • Gross weight: 265kg;

  • CBM: 1.96524




H.S.Code



8443198000



Certificate



CE



H-TC3040LN Pneumatic movement-table hot stamping machine //Advantage






Function




  • Table can be pulled into and pulled out the pick and place of convenience products;

  • Table can be up and down, around, before and after the precision adjustment, to facilitate the adjustment of the precise location of the gilt;

  • Table lifting screw adjustment, simple and convenient;

  • Relays for process control, stable operation, easy maintenance;

  • The use of advanced temperature control system, the temperature can be set freely, high precision temperature control, with automatic temperature control;

  • leveraged cylinder pressure, the pressure is uniform and strong;

  • The basic parameters of the hot stamping process; temperature, pressure, hot pressure, the rolls of time in accordance with the process requirements of the flexible adjustment;

  • Motor to control the delivery of the gold foil paper, resin length can be flexibly adjusted according to the size of the stamping area;

  • Using high strength steel, gilt plate and table, has a very high flatness;

  • Heating tube for heating, heat supply is stable, easy to replace

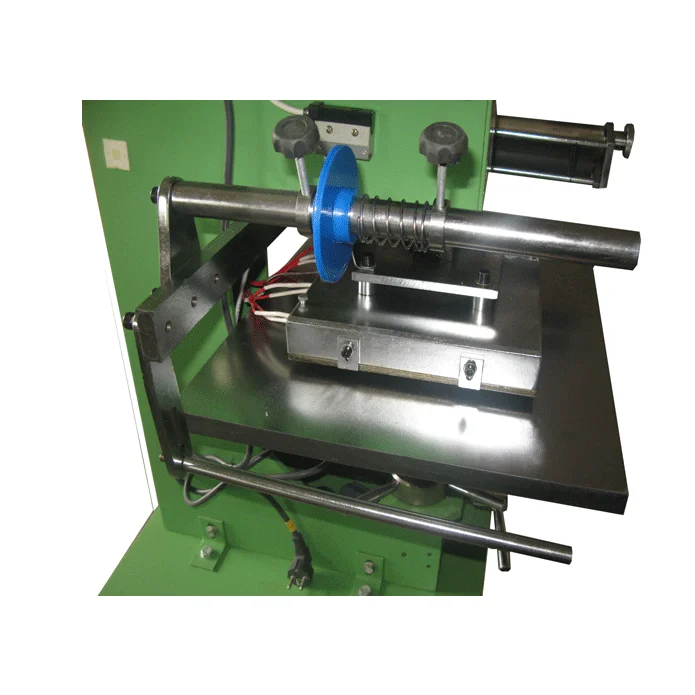

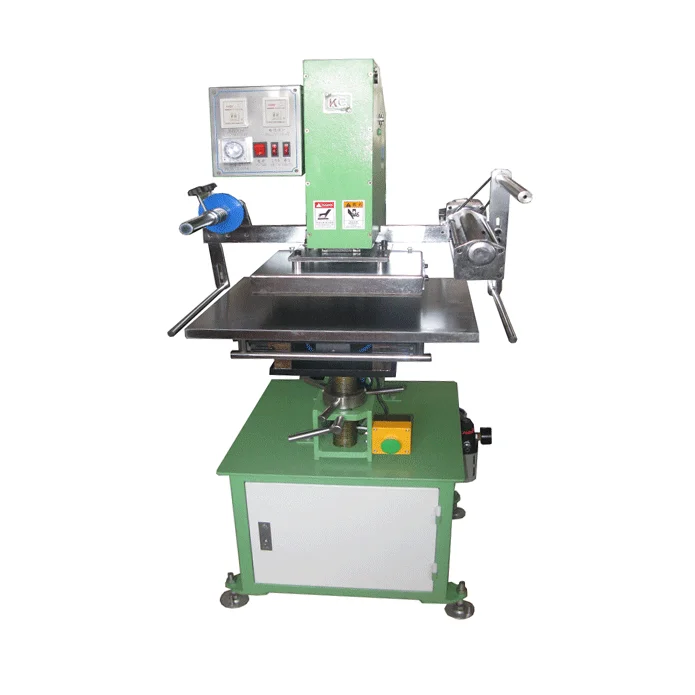

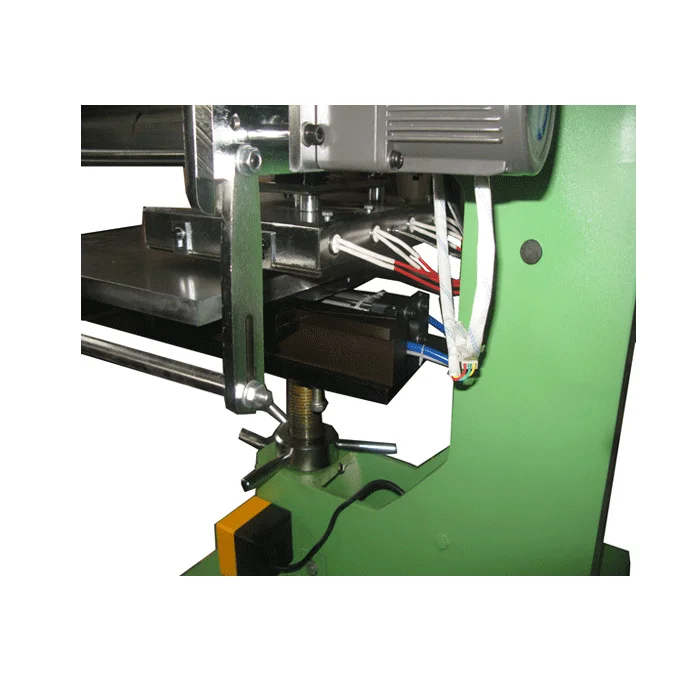

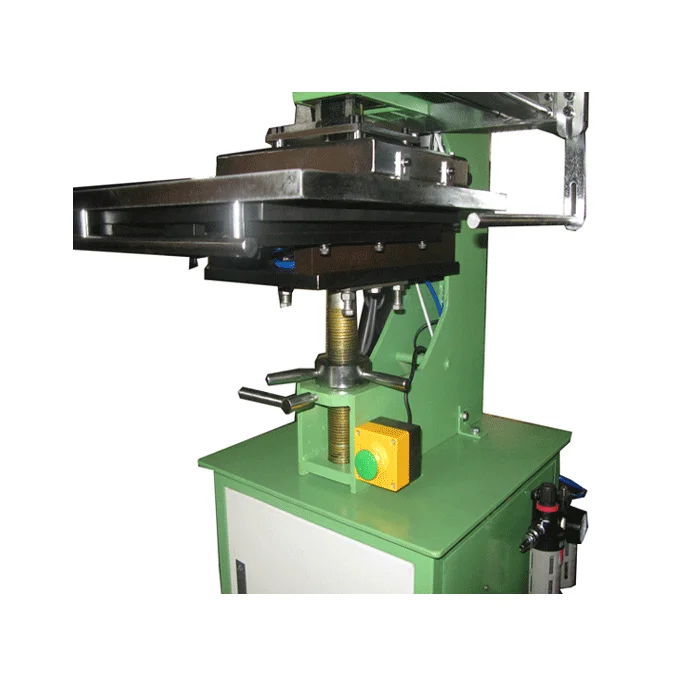

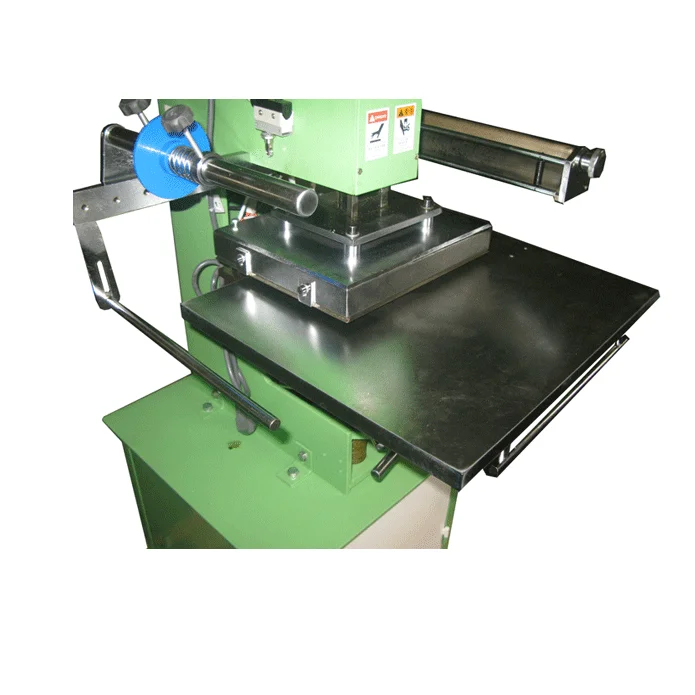

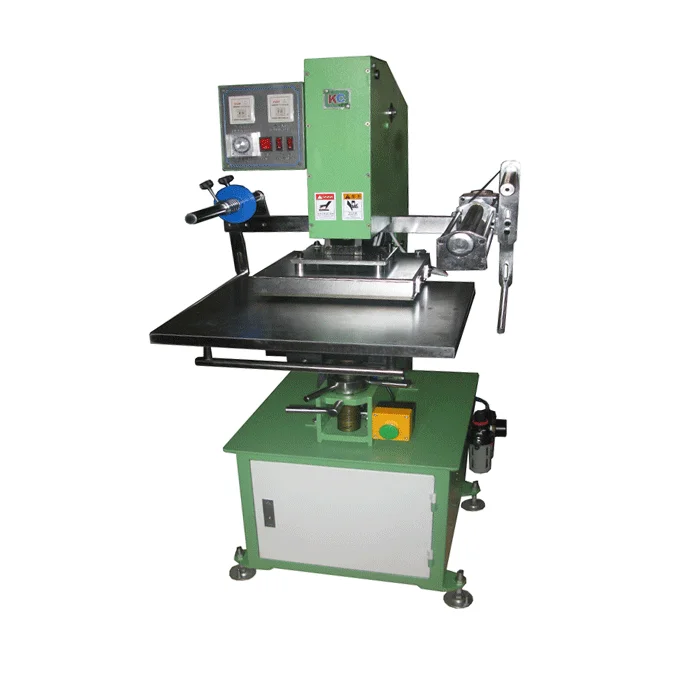

Details


Test case


Hot stamping process





Packaging & Shipping




Machine is very heavy, It is recommended to use mechanical forklift move and handling, avoid i nversion, Impact, Shake.








Company Information


       The world is only one China, China only one LC, we are the production and sale of pad printing machines, silk screen machines, bronzing machines and automatic printing equipment and world famous!




 Excellence in product quality depends on the high precision machining equipment;
 The company has dozens of leading domestic CNC, printing machines, silk screen machines, bronzing machines and other special printing equipment, data and standardized management in the forefront of the domestic.Excellence in product quality depends on the high precision machining equipment.




All Machine has CE certification.


    CE of pad printers


     CE of screen printers


     CE of hot foil stamping machine


     CE of UV exposure machine and UV curing machine.          Etc







Our clients







FAQ


1) What are your main products?
     Pad printers,


     Silk screen printers,


     Hot stamping machines,


     and the supply chain related to the above-mentioned industrial printing, we will also provide users with complete printing solutions.





2) What kind of pre-sale service do you provide.



   Free technical consultation, pictures, technical materials, and video materials are provided. For those that cannot be provided, we may provide design solutions.





3) What kind of payment method should I choose?



 For new users, if the amount is smaller, you can use the credit guarantee order, TT, and if the amount is larger, you can consider a letter of credit. In order to protect the safety of customers' funds, we do not recommend customers to transfer to personal accounts, or use Western Union, paypal and other personal payment methods. Unless the customer makes a special request.










4) How to order the machine?
   When you confirm to buy the machine, we will provide PI, and pay according to the payment method guided by PI. We will produce the machine and arrange the calculation until you get the machine safely.










5) Questions about proofing?
For direct users, it is very important to confirm whether the machine is suitable for their products and require the factory to carry out proofing as the standard for machine delivery, because pad printing machines, screen printing machines and hot stamping machines usually require fixtures, printing plates, and inks. The perfect match of the bronzing paper can meet the requirements. For the proofing of the customer's confirmed order, we are free. For the proofing without the confirmed order, we will charge a certain proofing fee. When you confirm the order, the proofing fee will be deducted from the machine purchase price.










6) How about after-sales service?



Companies that sell through the Internet are usually small in scale, and none of them have set up after-sales service points overseas. After-sales service requires online support from sales staff. In general, pad printers, screen printers and hot stamping machines are relatively simple machines, and most problems can be solved through online communication.







7) How do you evaluate the quality of your products?
   When each user purchases a product, he balances price and quality. This balance may be difficult to grasp, but this is how you do business. Most of the products sold on the Internet are in the middle of whether the price is not low or the quality is not bad. end. You have to negotiate professionally with the sales staff for better products. There are roughly 300 similar manufacturing plants and more than 8,000 trading companies in China. It is not difficult to choose products that suit you.
