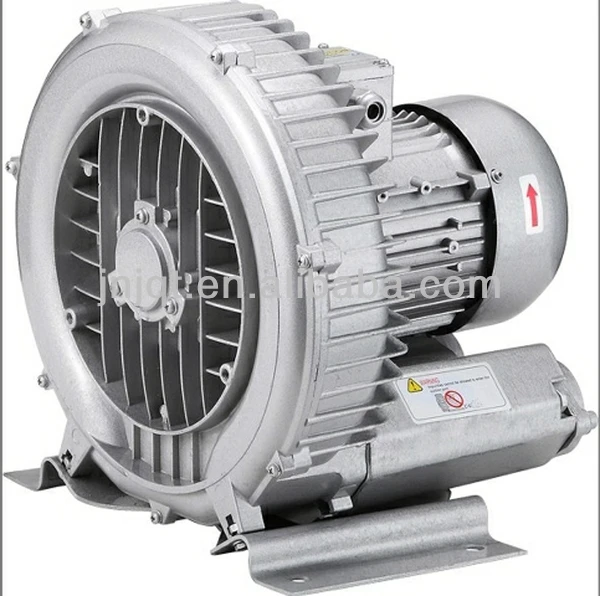

          High pressure regenerative blower vortex ring blower









Feature :

1.Impeller JQT series gas ring vacuum pump installed on the motor rotor directly and no touch compression completely.

2.As the bearing is installed in the compression chamber outside,It can ensure the machines Max. working possibility under the Max. different pressure.









Configuration:



Model Number	JQT-750-C
Structure	Single stage
Type	Air blower
Pressure	High pressure
Power Source	Electric Blower
Rated Voltage	AC110V/50Hz
Rated Power	750w
Max pressure	16Kpa
Max vacuum	-14Kpa
Maximum flow	110m3/h
Weight	14kg
Outline dimensions	294×288×315mm
Insulation Class	F
Certification	CE
Application	Used in filter cigarette shapers, pulverizing dresser and so on.
Die cast	Aluminium





Working principle:



Inlet 1 suck gas firstly,then it goes into side channel 2,the impeller will give gas a speed in the direction of rotation.The centrifugal force of the blade make the gas acceleration and pressure increased.Gas pressure to further increased because of revolving and gas kinetic energy increased.

At last,side channel is becoming narrow at the exit,the gas is squeezed out pressure chamber and exit.





Usage:





Detailed Photo:













If you are interested in our products ,Please don't hesitate to contact me.
