Ветрогенератор 5 кВт 10 энергосберегающий генератор ветровая турбина 1 3 ветровой Гибридный комплект солнечных батарей
- Категория: >>>
- Поставщик: Foshan,Tanfon,Energy,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 10472.56 $* | 10996.65 $* |
| Aug-16-2025 | 10384.67 $* | 10903.29 $* |
| Jul-16-2025 | 8712.31 $* | 9148.97 $* |
| Jun-16-2025 | 10208.63 $* | 10718.99 $* |
| May-16-2025 | 8888.41 $* | 9332.70 $* |
| Apr-16-2025 | 10032.39 $* | 10534.88 $* |
| Mar-16-2025 | 9944.27 $* | 10441.39 $* |
| Feb-16-2025 | 9856.48 $* | 10349.72 $* |
| Jan-16-2025 | 9768.72 $* | 10256.0 $* |
Характеристики

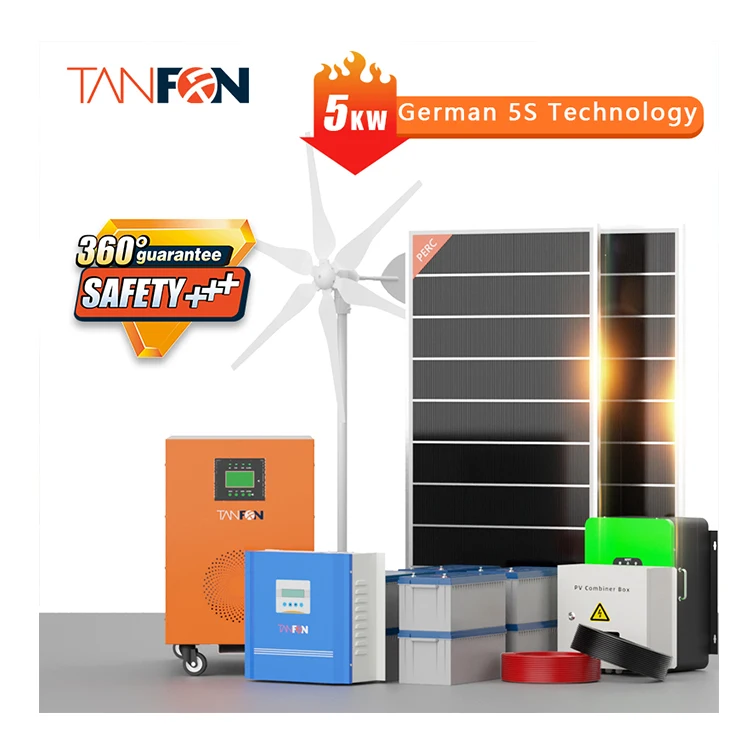

wind generator 5kw10kw wind turbine Energy Saving Generator Wind Turbine 1KW 3KW 5KW 10KW Wind Hybrid Solar Power Kit Generators

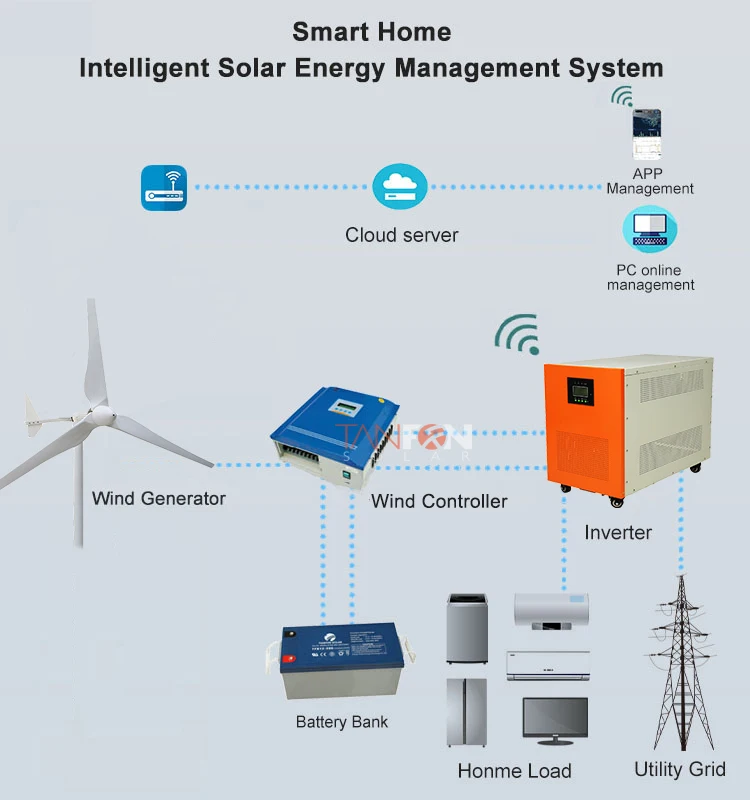

Wind turbine produce unstable three phase AC, solar panel produce unstable DC, and send to the CPU in the controller, the
controller have rectify functions, it will rectify the unstable AC and DC to stable DC, so the battery can save the electricity.
Through the off grid inverter to transfer the DC to AC, the battery can be send to the household equipments.
controller have rectify functions, it will rectify the unstable AC and DC to stable DC, so the battery can save the electricity.
Through the off grid inverter to transfer the DC to AC, the battery can be send to the household equipments.
Wind Generator Features:
1. Small vibration and tiny friction, stable rotation in higher speed2. Streamlined wind turbine body and blade outline design
3. Blades have 2 kinds, 300w-1kw for high-rigidity FRP materials and blades are dynamic-balanced
4. Noise level below 55dB around the wind turbine tower
5. State of the art, workmanship and beautiful appearance
6. Use magnetic saturation technology, with 20years designed life;
7. Select high quality bearing, free to maintenance;
8. Anti-twist device, generator can whirl in each direction
9. Anti strong wind, the blade protect itself automatically,
10. Applications for Household, Farm, Marine, Boat,Street Lights, Home, Opening Plaza lighting etc.
11. Supply matched controller/inverter(optional), make solar and wind energy system more stable.
12. At night or on rainy day, wind turbine generate wind power. On sunny day, solar panel generate solar power. On windy and sunny days, both solar and wind generate power.
3kw hybrid power system | ||||||
product | Model | Quantity | Description | |||
solar panel | 250W | 4pc | Size : 1950*992*40mm | |||
Wind turbine | 2000W | 1pc | working wind speed 3.0-20m/s | |||
Hybrid Inverter | 3000W pure sine wave | 1pc | DC:48v ; AC:110v or 220v single phase | |||
Gel Battery | 12V/200AH | 4pc | Size:483*170*219mm | |||
Hybrid Controller | Input 1000W solar power+2000W wind power | 1pc | DC 48V input ;MPPT intelligent control | |||
Guy Cable Pole | 6m Guy Cable Pole | 1set | 6m | |||
wind turbine
>3years warranty,20year use life> Advantage: light weight, small volume
> Starting wind speed:3m/s
> Rated wind speed:10m/s
> Security wind speed:40m/s>Rated speed:310 r/m
solar panel
Max power :380w
Vmp:38.39V Voc:47.13V Imp 9.75A
Size : 1950*992*40mm
Glass:3.2mm Tem pered
25 years power output guarantee
2)PV bracket: Stainless steel;(ground or roof rack)
Vmp:38.39V Voc:47.13V Imp 9.75A
Size : 1950*992*40mm
Glass:3.2mm Tem pered
25 years power output guarantee
2)PV bracket: Stainless steel;(ground or roof rack)
hybrid Inverter
> 4 years warranty(solar with IOT)> With built-in charge controller
> Pure sine wave inverter
> Use copper transformer;
> Bypass function with AC charger;
> Output: 220V 380V 415V 50/60HZ
Battery
1.Free maintenance, service life 6-8 years2.DOD 70% cycles 1500 times
3.The latest through-wall welding technology,more suitable for motor loads.
hybrid Controller
>DC 48V input ;MPPT intelligent control>Protection Function: Solar reverse charge
>protection , Solar reverse connection protection,
>Battery-over-charge-protection
>Battery-reverse connection protection
cables
1)3pc16mm2*35CM battery cable
4pcs 16mm2*2M battery connect cable
2)4mm2 PV cable 20M 6mm2 wind cable 50M
3)terminals and MC4 + 1P63A Battery switch
