Products Description

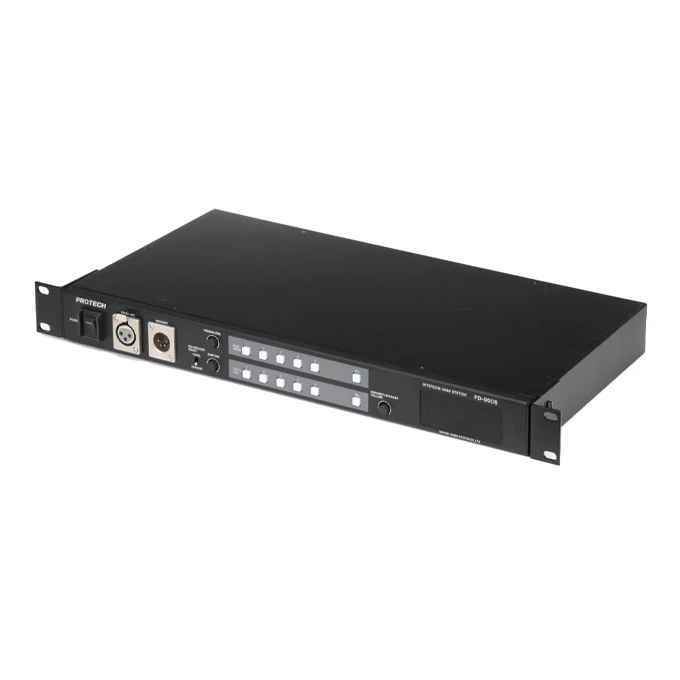

PROTECH NIPROS BNC wired Intercom Base Station FD-900S

This Intercom Base Station is for FD-400A series, to build intercom and tally systems for simple multi-camera studio systems.




The FD-900S has five channels for individual talk or simultaneously talk.
Up to eight units of FD-400A can be connected to each channel (40 units of FD-400A can be connected in total) and DC power can be supplied from this intercom base station to the FD-400A beltpacks.

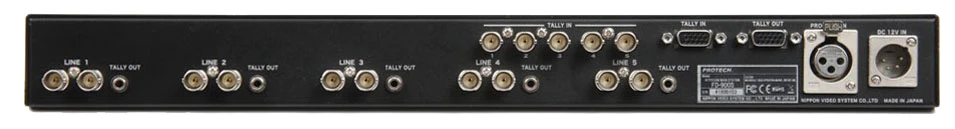

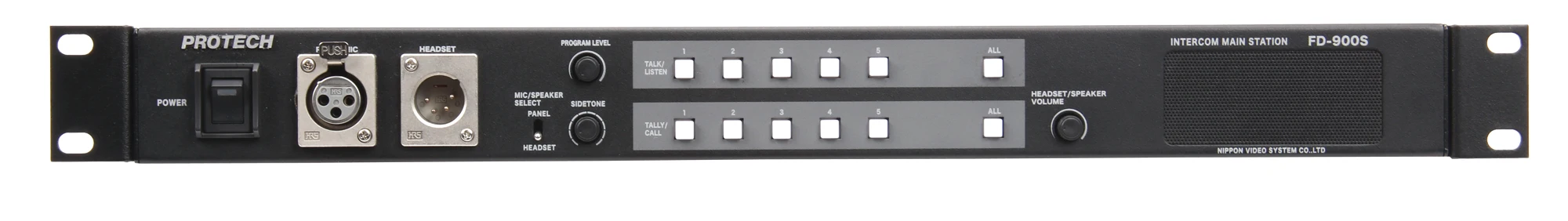

FD-900S
Intercom Line Input/Output
BNC x2 x5 chennels

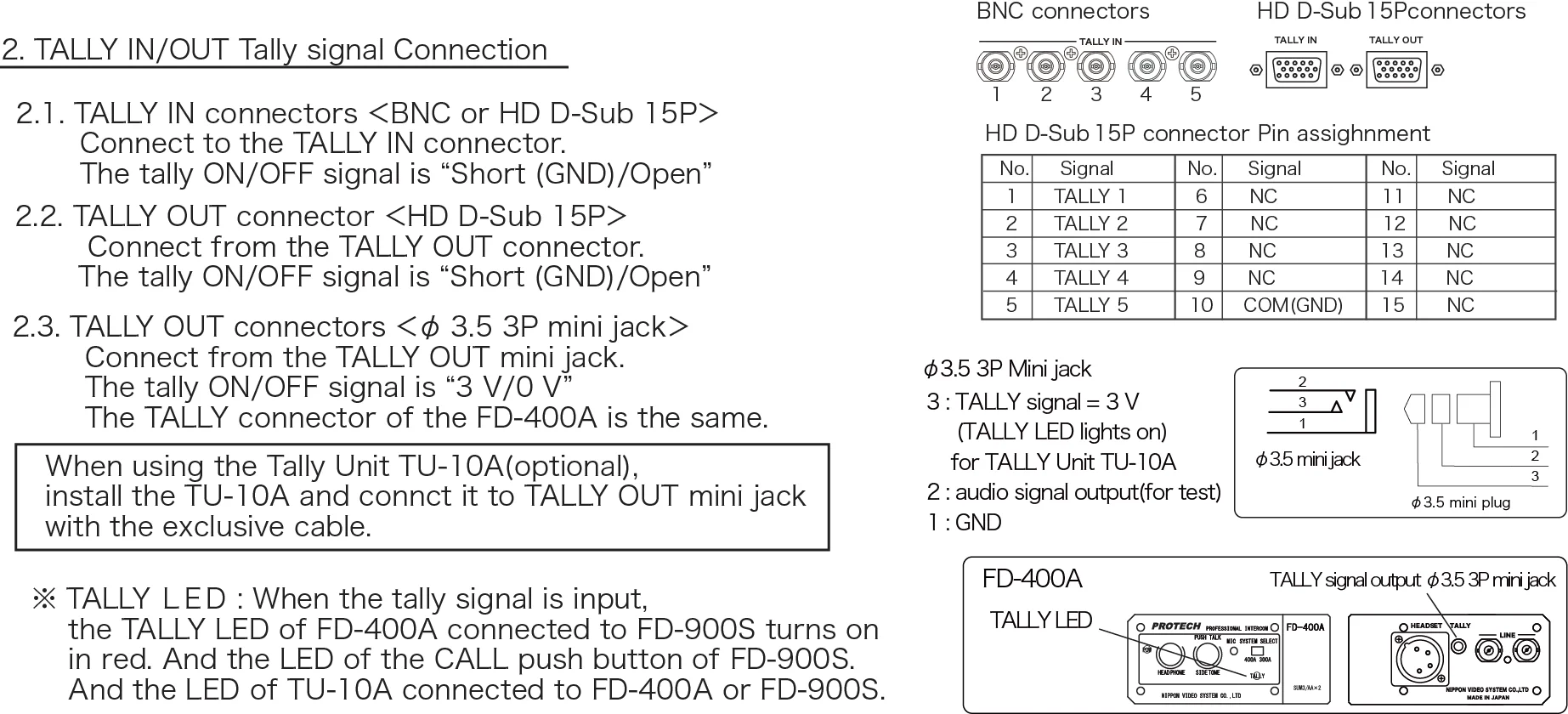

Tally In
BNC x5,
D-sub 15-pin female x1
Tally Out
φ3.5 mini jack x5,
D-sub 15-pin female x1
MIC
XLR 3-pin female x1
Headset
XLR 4-pin male x1
Speaker
Dynamic
Program In
XLR 3-pin female x1
DC IN
12V XLR 4-pin male x1
Dimention
430x44x220mm (1U)
Weight
3.5kg
Accessory
AC adapter,
Rack mount bracket,
Instruction manual

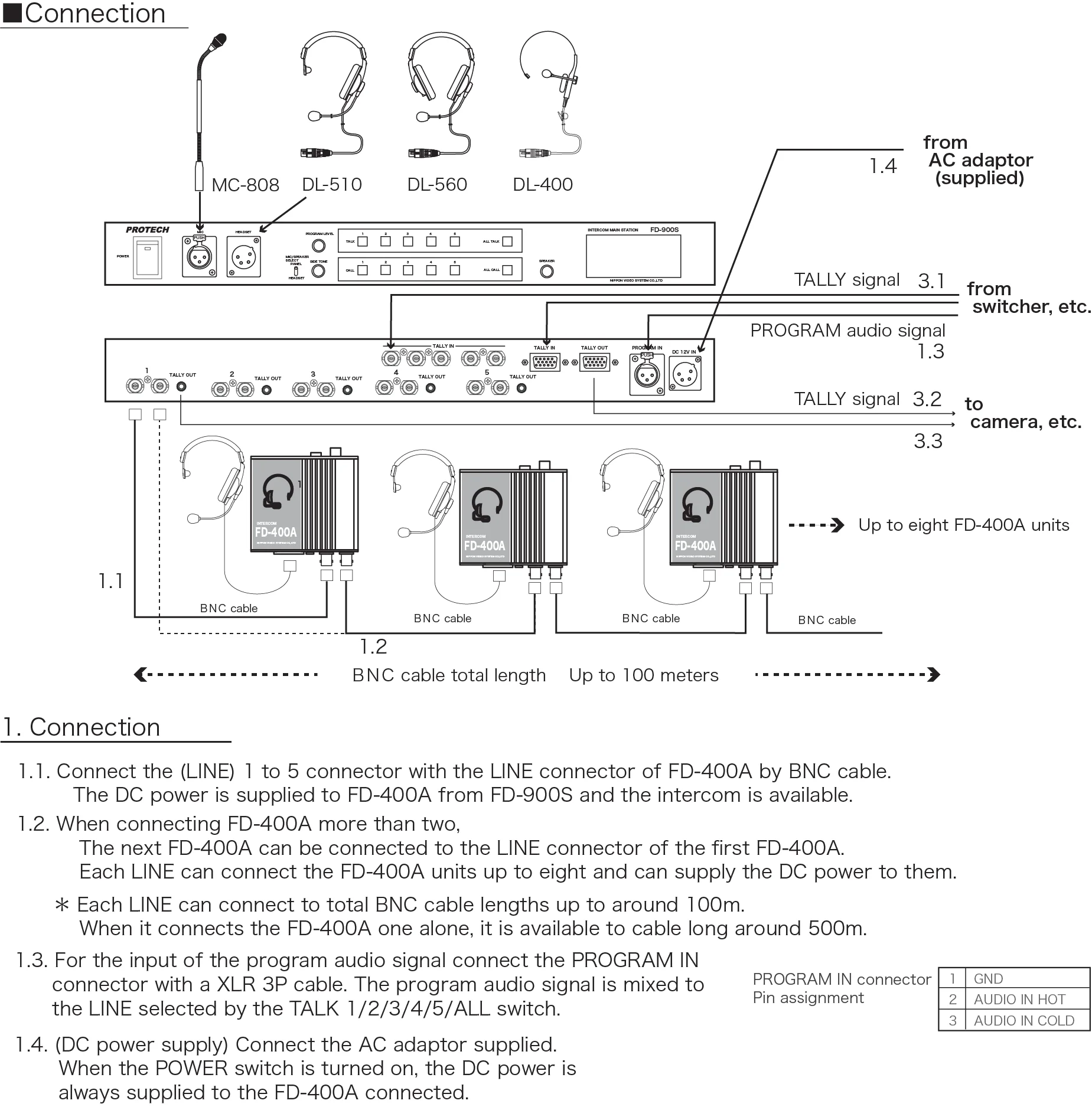

BNC cable connection between FD-400A or between intercom base station and FD-400A.

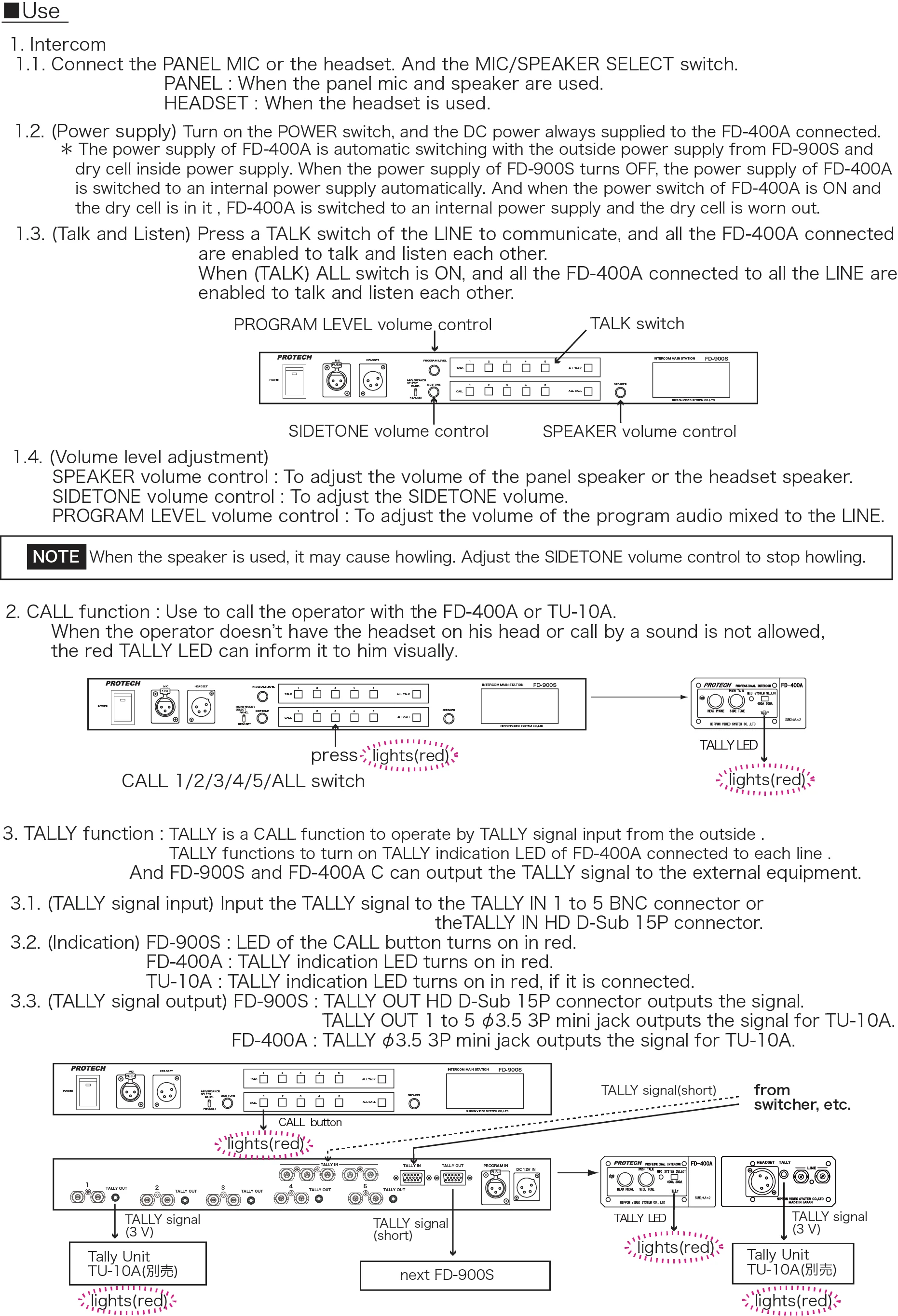

In addition to the headset XLR 4-pin connector, the FD-900S is equipped with a 3-pin XLR connector for general microphones and built in speaker for convenient use when the FD-900S is deployed in an operation room, etc., without the need for a headset.






The FD-900S is equipped with a function to input the main program audio (line audio) at an event venue, a concert, etc., and then mix and distribute it to each intercom line.

*Note
Features, design and specifications are subject to change without notice.

Please contact us for more information or inquiry.
