Портативный Высокочастотный рентгеновский аппарат
- Категория: Medical Ultrasound Instruments >>>
- Поставщик: MEDSINGLONG,CO,LTD
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.67 $* | 0.61 $* |
| Aug-16-2025 | 0.9 $* | 0.64 $* |
| Jul-16-2025 | 0.17 $* | 0.64 $* |
| Jun-16-2025 | 0.5 $* | 0.78 $* |
| May-16-2025 | 0.77 $* | 0.10 $* |
| Apr-16-2025 | 0.56 $* | 0.61 $* |
| Mar-16-2025 | 0.68 $* | 0.82 $* |
| Feb-16-2025 | 0.84 $* | 0.15 $* |
| Jan-16-2025 | 0.83 $* | 0.98 $* |
Характеристики
Product Description
Specification
item | value |
Place of Origin | China |
Brand Name | MSL |
Model Number | MSLGX01 |
Power Source | Electric |
Warranty | 1 Year |
After-sale Service | Online technical support |
Material | metal, Plastic |
Shelf Life | 3 years |
Quality Certification | ce |
Instrument classification | Class II |
Safety standard | GB/T18830-2009 |
Maximum output power | 8.0kW |
Power capacity | 100kV, 80mA |
Photography kV range | 40-70kV |
Photography mA range | 100mA-32mA |
mAs range | 0.32-400mAs |
Exposure time range | 0.01-6.3s |
Inverter frequency | ≥30kHz |
Input power type | 220V ±10%, 50Hz/60Hz Or 110V ±10%, 50Hz/60Hz |
Host size | 370mm *300mm*240mm(including collimator) |
Inveter mode | PWM(pulse width modulation) |
Product introduction

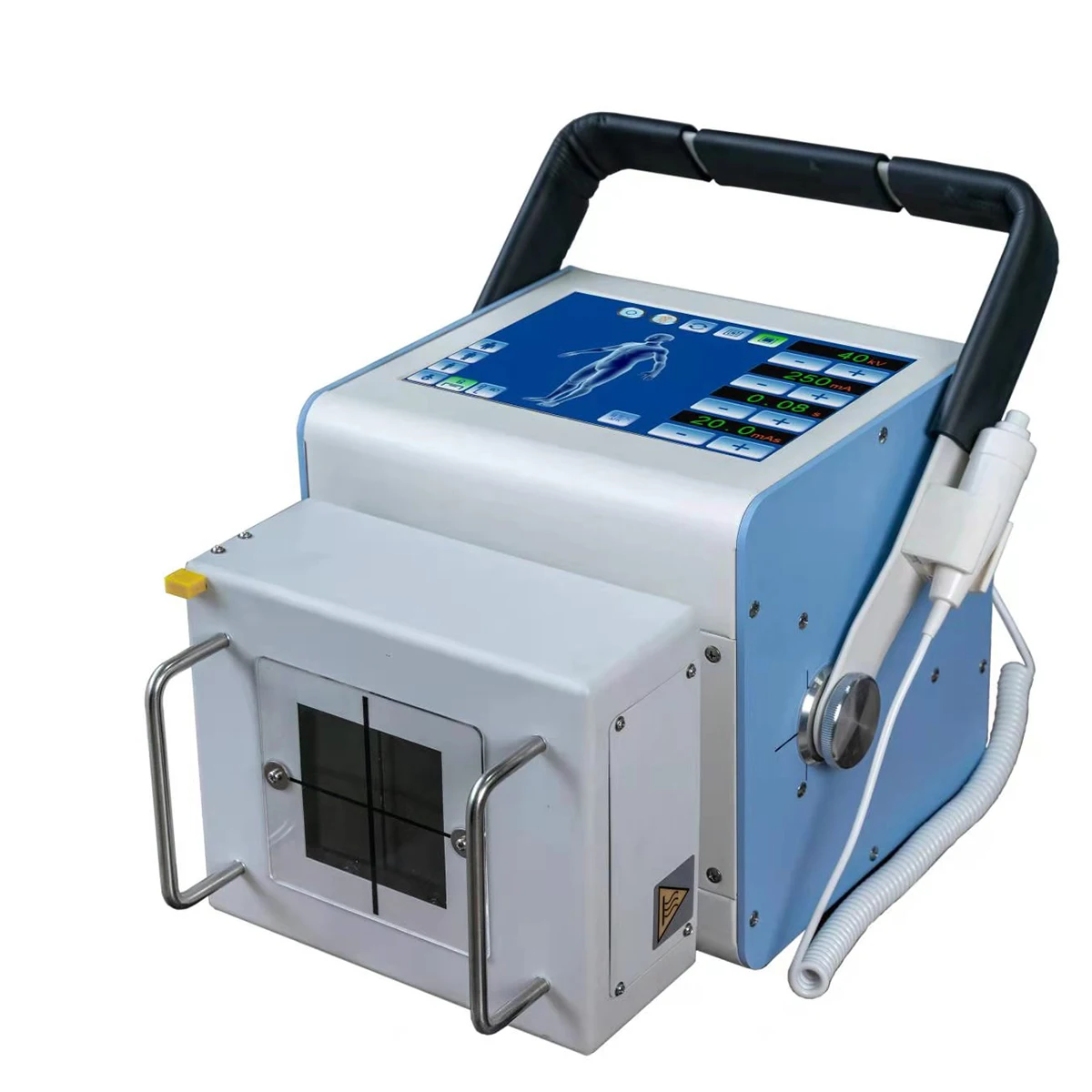

MSLGX01portable medical diagnostic high-frequency X-ray machine for the protection of electric shock risk belongs to type I, B, portable ordinary equipment. The working system is continuously connected to the power supply network in standby and in accordance with the specified load. 1.2 Product Main Structure The main structure of MSLGX01 portable X-ray machine is composed of X-ray machine mainframe (including electrical control system, operation panel, X-ray source component, high voltage generator, collimator), hand brake and power cord. The operation panel adopts a LCD touch key, a key sound prompts and a direct embedding on the X ray main shell. The operation panel is displayed on the LCD screen, and the handle can swing at 90 degrees.
