Японские легкие спеченные металлические планетарные редукторы промышленные
- Категория: Speed Reducers >>>
- Поставщик: Matex,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.95 $* | 0.37 $* |
| Aug-17-2025 | 0.21 $* | 0.22 $* |
| Jul-17-2025 | 0.76 $* | 0.52 $* |
| Jun-17-2025 | 0.43 $* | 0.83 $* |
| May-17-2025 | 0.66 $* | 0.33 $* |
| Apr-17-2025 | 0.84 $* | 0.33 $* |
| Mar-17-2025 | 0.1 $* | 0.42 $* |
| Feb-17-2025 | 0.73 $* | 0.85 $* |
| Jan-17-2025 | 0.18 $* | 0.18 $* |
Характеристики
Products Description

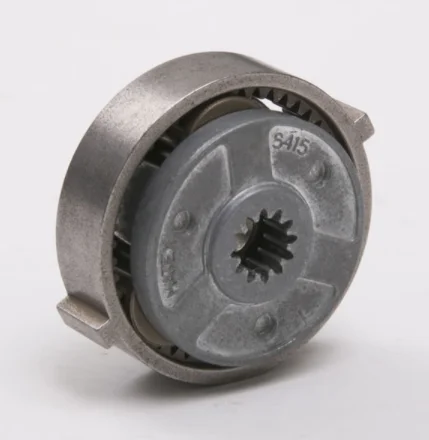

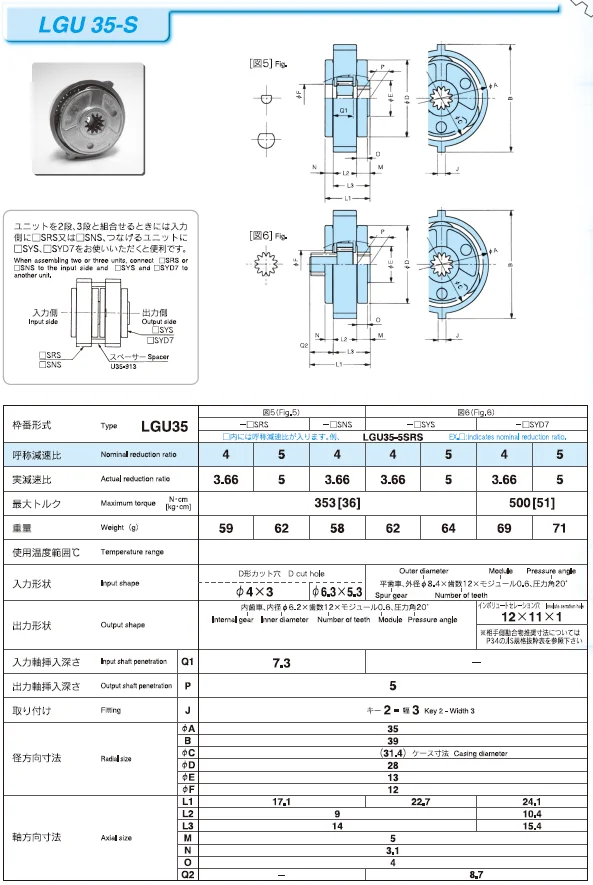

LGU35-S Series Sintered Metal Light Weight Planetary Gear Reducer
Matex can provide from small sample quantity to large mass production quantity.
Unit price is depending on the quantity you need.
Please feel free to contact us.
Matex can provide from small sample quantity to large mass production quantity.
Unit price is depending on the quantity you need.
Please feel free to contact us.
Applicable Industries | Automotive Maker, Automotive Maker |
Gearing Arrangement | Planetary |

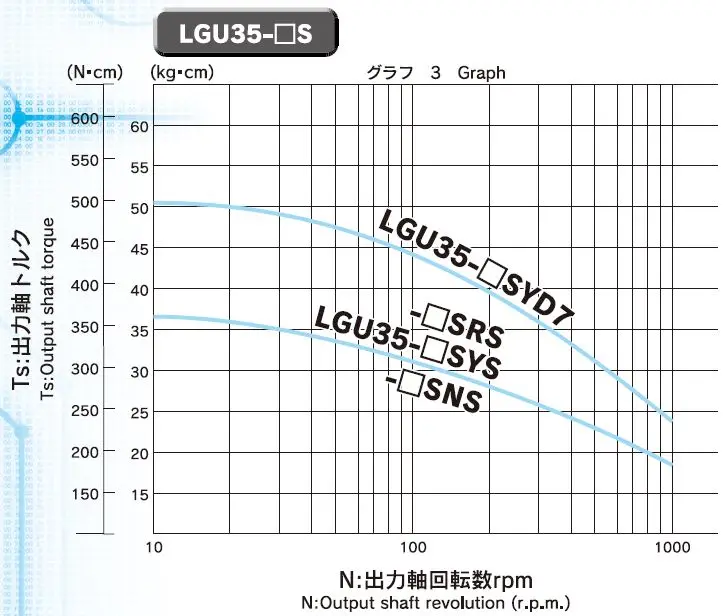

Output Torque | 353-500Ncm |
Input Speed | 3660-5000rpm |
Output Speed | 1000rpm |
Place of Origin | JP |
Brand Name | Matex |
Product name | Planetary Gear Reducer |
Ratio | 3.66:1-5:1 |
Input Form | D Cut hole/Spur Gear |
Output Form | Internal Gear/Involute Serration Hole |
Gear material | Sintered Metal |

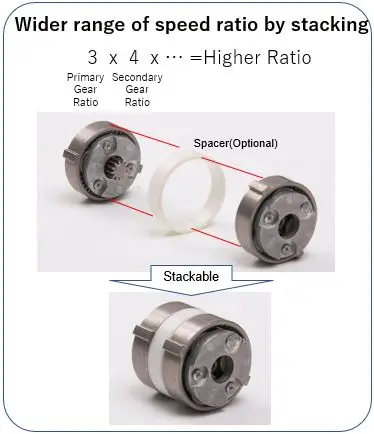

Structures | Stackable |
Examples of application
Company Profile
Matex is a professional group for designing and manufacturing of planetary gears, gearboxes, transmissions and plastic injection molding parts. We have many achievements in development and manufacturing according to customer's specifications including home appliances, machinery, automobile parts, and health equipment. In addition, we fully respond to your needs, including contracted development and manufacturing of mechanical parts such as actuators, power units, pumps, and plastic injection molding and assembly.
