Китай, Мраморная дробильная установка, Щековая камнедробилка
US $7851-$8851
Горизонтальная направляющая буровая установка
- Категория: Energy & Mineral Equipment >>>
- Поставщик: Henan,Yugong,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 21004.53 $* | 22054.75 $* |
| Aug-17-2025 | 20827.92 $* | 21868.17 $* |
| Jul-17-2025 | 17474.27 $* | 18348.20 $* |
| Jun-17-2025 | 20474.35 $* | 21498.37 $* |
| May-17-2025 | 17827.52 $* | 18718.41 $* |
| Apr-17-2025 | 20121.77 $* | 21127.70 $* |
| Mar-17-2025 | 19945.14 $* | 20942.5 $* |
| Feb-17-2025 | 19768.42 $* | 20756.37 $* |
| Jan-17-2025 | 19592.31 $* | 20572.6 $* |
Характеристики
Product Description

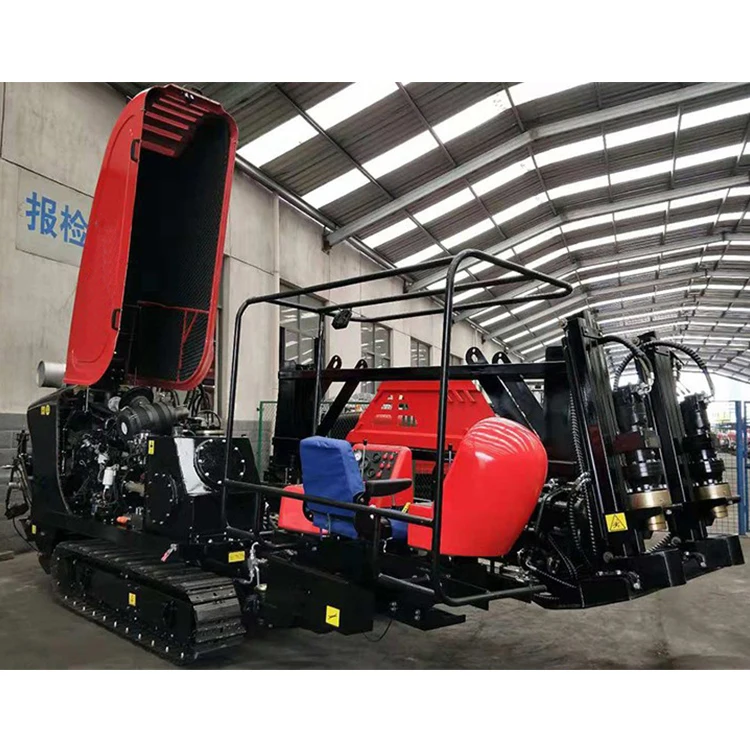

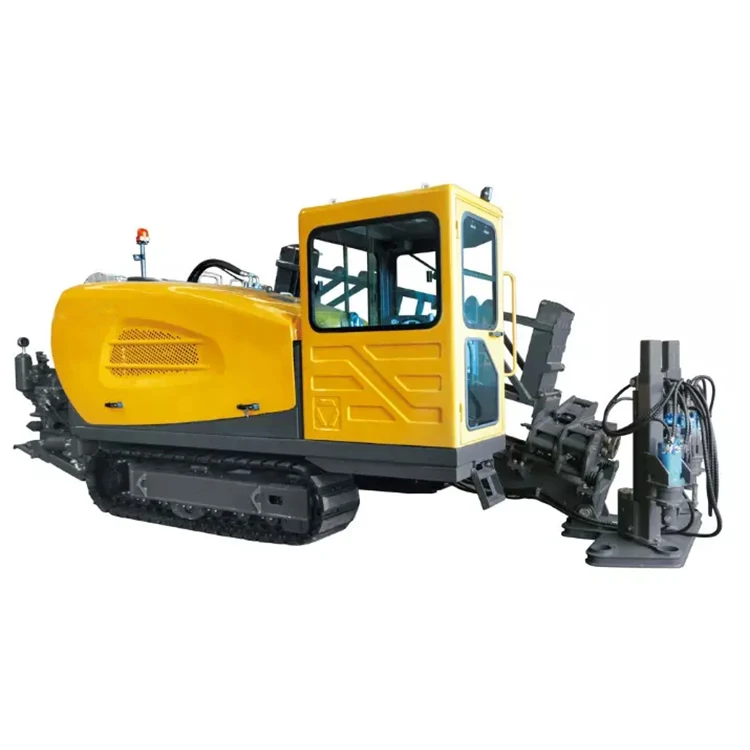

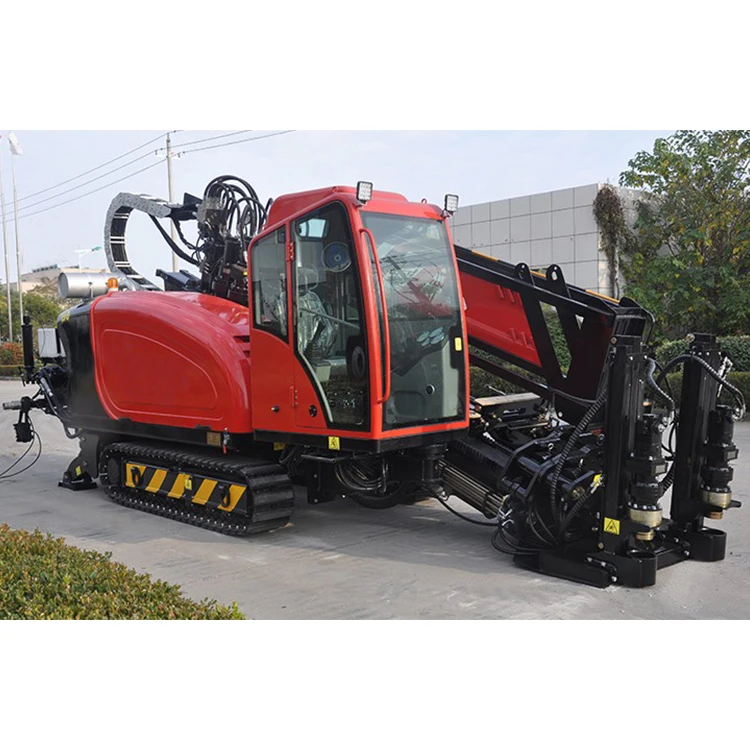

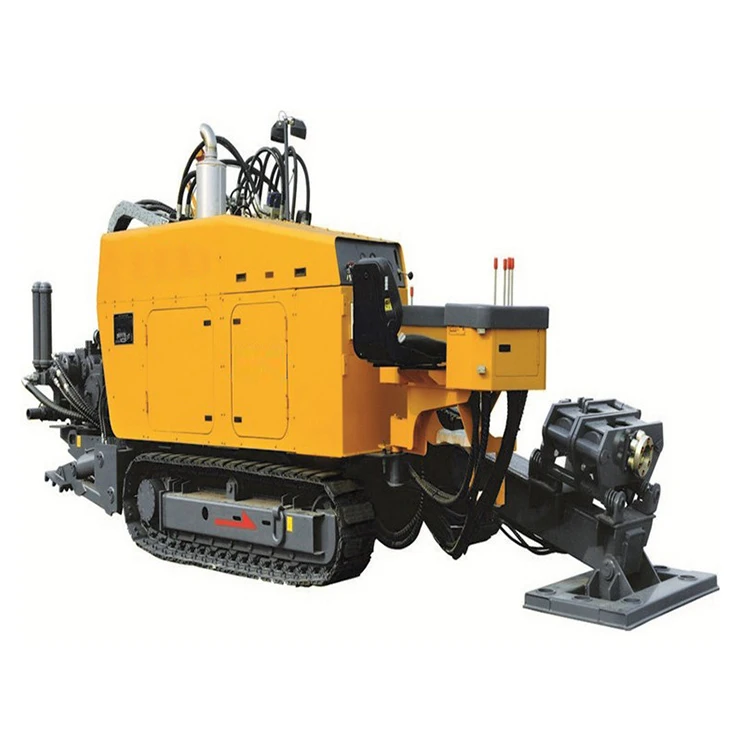

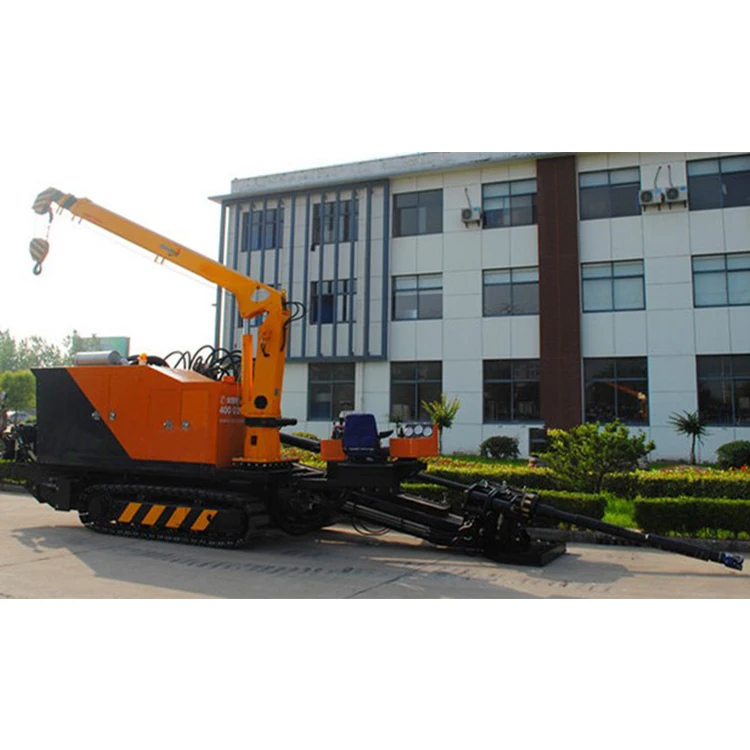

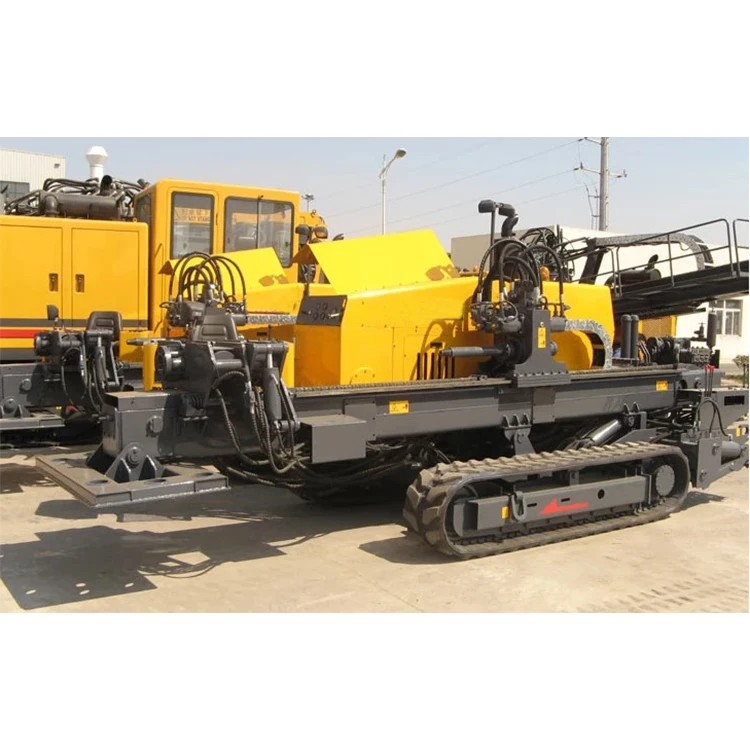

Mini horizontal directional drilling machine for pipeline construction
Drilling rig system-it is composed of a main drilling rig, a turntable, etc. The main drilling rig is placed on the drilling frame to complete drilling operations and towing operations. The turntable is installed at the front end of the main body of the drilling rig, connected to the drill rod, and by changing the rotation of the turntable and the output speed and torque to meet the requirements of different operating conditions.
| Model | YG-600D | YG-180 |
| Engine rated power | 55KW | 97KW |
| Push and pull | Cylinder | Motor |
| Maximum drag/feed force | 160/100KN | 180/180KN |
| Maximum torque of power head | 5000N.n | 6000N.n |
| Power head speed | 0-180r/min | 0-140r/min |
| Moving speed of power head | 30m/min | 20m/min |
| Maximum reaming hole diameter | Φ600mm | Φ600mm |
| Drill rod length (single) | 2m | 3m |
| Drill pipe diameter | Φ50mm | Φ60mm |
| Drill angle | 10-22° | 10-22° |
| Maximum mud flow | 160L/min | 250L/min |
| Maximum mud pressure | 100bar | 80bar |
| Overall quality | 2700kg | 8500kg |
| Dimensions (length*width*height) | 3800*1600*1800mm | 6400*2270*2340mm |
Feature:
1.Do not obstruct traffic, do not damage the road.
2.High precision, can be turned, the depth can be adjusted at any time, and obstacles can be avoided.
3.City construction will pass three meters, and the river will reach 6-18 meters.
4.The project period is short, the construction personnel are less, it is safer and the cost is lower.
Packaging & Shipping
1. Packaging:
Packed by standard import & export wooden cases or carton boxes.
2. Shipping:
By logistics; by automobile; by train; by shipping; by air etc.
Company Information
Our Services
1.We have more than15 years manufacture and export experience.
2.Exporting to all over the world,win high reputation among customers.
3.CE, ISO 9001 and Strict Production Guideline to guarantee the high quality of our products.
4.Near the Qingdao port convenient for exporting.
5.Customer service staff 24 hours online,offer free technical support.
6.Factory and Competitive Price we offer.
7.Strong Research & Development technical team.
8.Various machinery to meet all your needs at our factory.
9.Engineers are available to guide the installation and take care of other problems.
10.We offer OEM&ODM service to meet all your requirements.
FAQ
1.Q:Are you trading company or manufacturer?
A:We are original equipment manufacturer.
2.Q:How long is your delivery time?
A:It is according to the model and quantity.Generally it is 3-5 days if the product are in stock.It will be 15-30 days if you want to customize the product.
3.Q:Do you provide samples? ls it free or extra?
A:Yes,we could offer you the sample.But it's not free.
You need to pay for the sample and the cost of freight.
4.Q:What is your terms of payment?
A:We accept T/T,Westerm Union,Money Gram,Paypal,etc.
