CRI 98 cozy light 170lm/w 50W high power COB LED
US $0.10-$11.00
Huanyu и он имеет высокую эффективность 130-140LM/W 1313 мм 30-34V 300mA cri80 cri90 10w привело початка чип использовать для светодиодная точечная
- Категория: COB LED >>>
- Поставщик: Shenzhen,Huanyu,Dream,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.44 $* | 0.21 $* |
| Aug-16-2025 | 0.38 $* | 0.32 $* |
| Jul-16-2025 | 0.29 $* | 0.78 $* |
| Jun-16-2025 | 0.6 $* | 0.44 $* |
| May-16-2025 | 0.2 $* | 0.56 $* |
| Apr-16-2025 | 0.13 $* | 0.46 $* |
| Mar-16-2025 | 0.71 $* | 0.7 $* |
| Feb-16-2025 | 0.63 $* | 0.46 $* |
| Jan-16-2025 | 0.13 $* | 0.71 $* |
Характеристики
Product Presentation
Huanyu High efficiency 130-140LM/W 1313mm 30-34V 300mA cri80 cri90 10w LED COB Chip use for LED Spot lamp
Product Name | HY01311-60D3-1202B |
Material | 99.99%, Gold wire, Ceramics |
Power | 10W |
Voltage | 30-34V |
Current | 300mA |
Application | Spot light, flood light, outdoor lighting |
Series&Parallel | 12S2P |
Efficiency(LM/W) | 130-140LM/W |
SDCM | ≤3 |
Size(MM) | 13*13mm |
Light Area(mm) | φ11mm |
Power | Voltage | Current | Efficiency(LM/W) | Color Temperature | SDCM |
10W | 30-34V | 300mA | 120LM/W | 3000K | ≤3 |
10W | 30-34V | 300mA | 130LM/W | 4000K | ≤3 |
10W | 30-34V | 300mA | 140LM/W | 5000K | ≤3 |
10W | 30-34V | 300mA | 150LM/W | 6000K | ≤3 |
Product specification

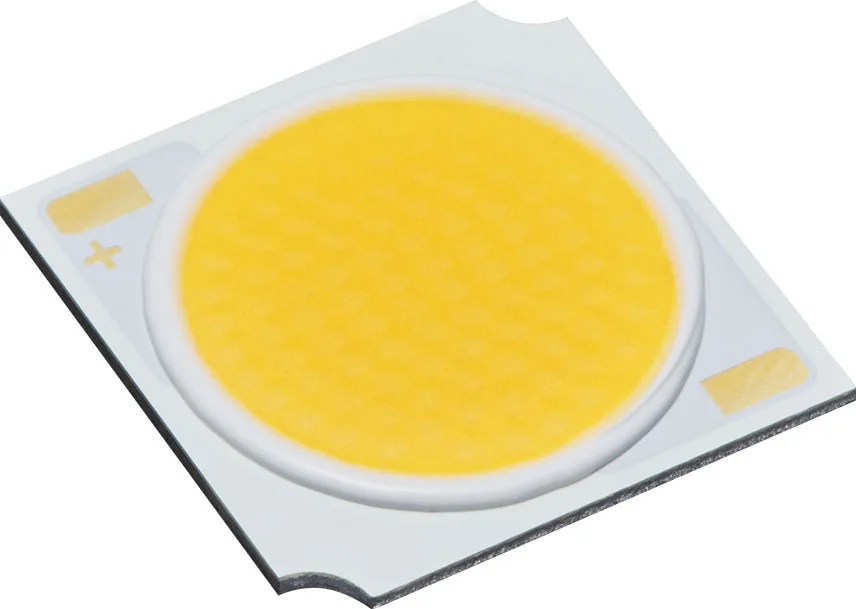

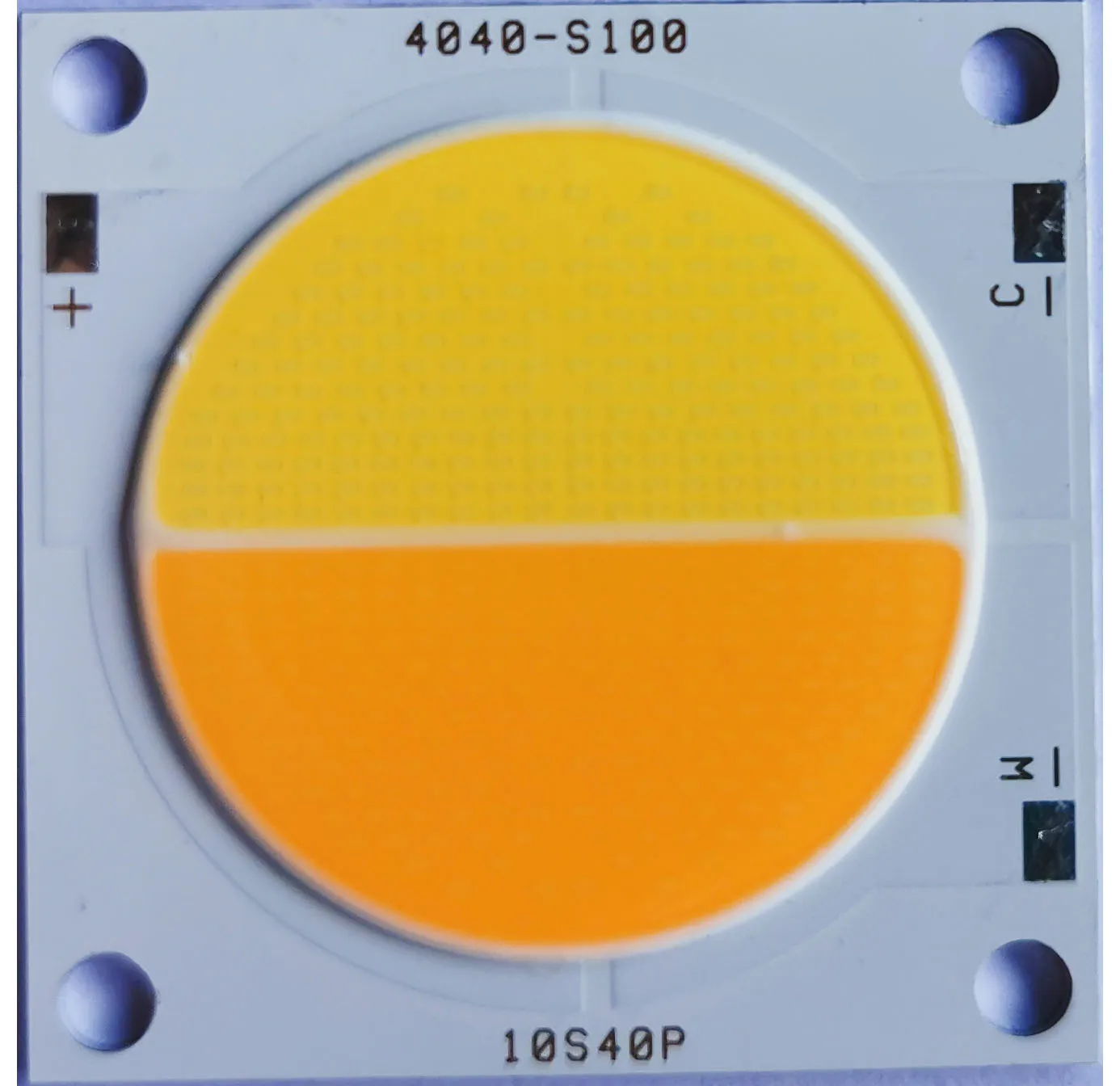

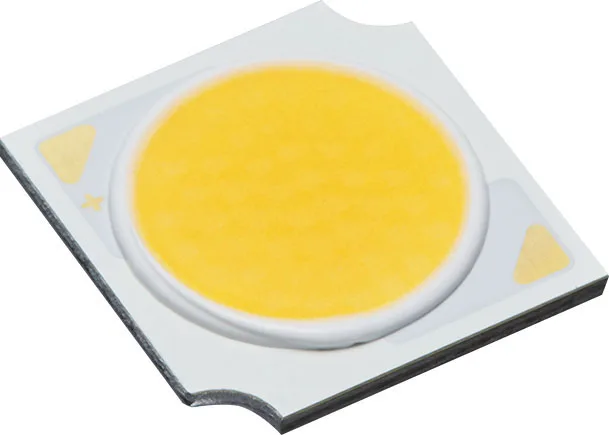

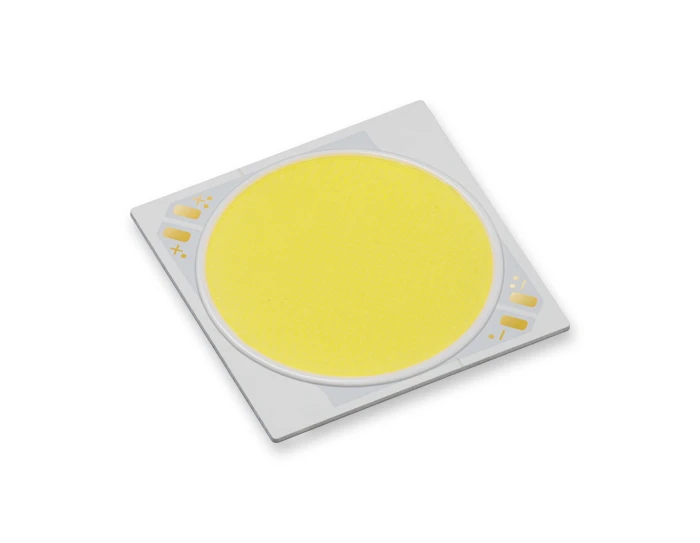

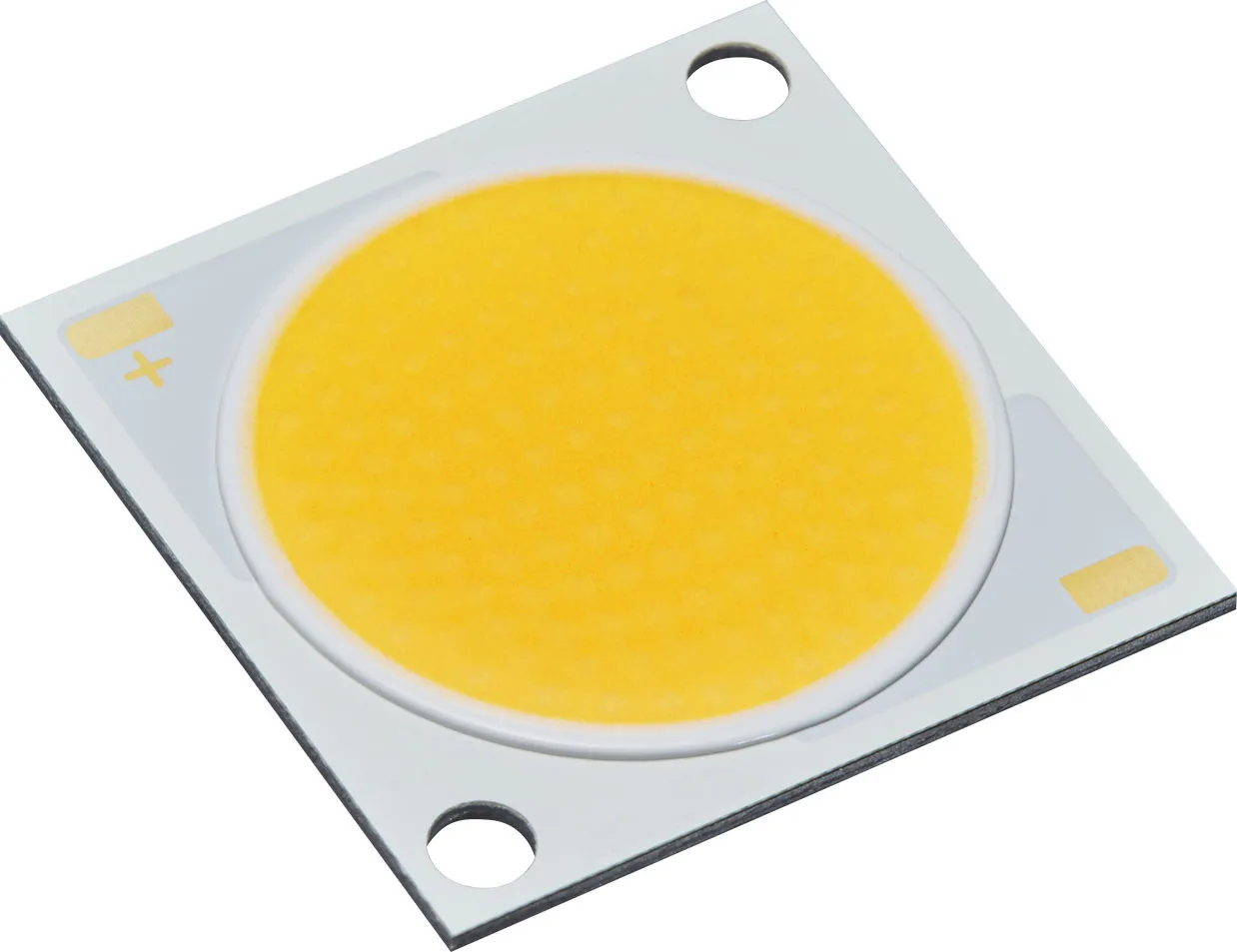

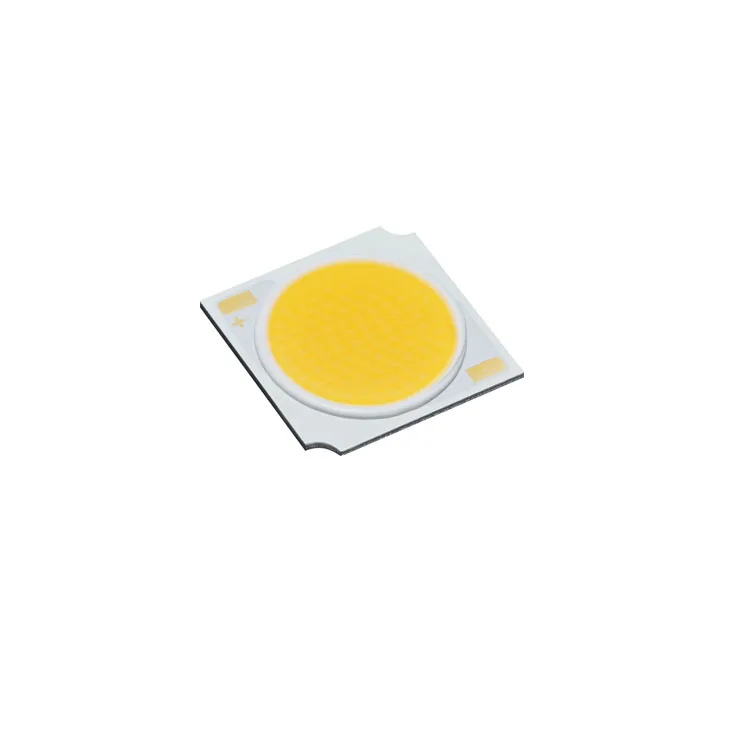

What is the COB led chip ?
COB LED Chip uses a large number of chips in series and parallel to achieve high brightness, high lumen, high CRI effect. The chips are bonded and packaged directly on the whole substrate, that is, N chips are inherited and integrated on the inner substrate for packaging. The utility model is mainly used for solving the problem of manufacturing high-power LED lamps with small power chips, can disperse chip heat dissipation, improve light efficiency, and improve glare effect of LED lamps at the same time.COB has high luminous flux density, low glare and soft glow, and emits a uniformly distributed light surface.
What are the advantages of cob led chip?
1，High sunlike fidelity- full spectrum wavelength- Ra97
2，Mac Adam 1 or 3 step
3，Using thermoelectric speraration of substrate,the heat dissipating performance is good, Thermal resistance<2.5℃
4, Small size of the COB to achieve high power efficency,Easy to use for customers
5, Ultra-high power Ultra-high density: Φ23mm light-emitting surface realizes 200W, Φ55mm light-emitting surface realizes 1200W;
6,High-power small-angle light distribution: small light-emitting surface is conducive to high-power small-angle light distribution, high center light intensity and long projection distance;
7,High luminous flux Small luminous surface: The luminous efficiency can reach up to 180Lm/w, the optical density is high and there is no light spot.
8,No gold wire package, low risk of dead light; 9,High reliability Cost-effective: Low thermal resistance package structure, the fastest thermal conductivity, guarantees a long light source life.
Application
Related Products
Related products can be ready to ship
Packaging & Shipping
Company Information
Our Advantage: Own the LED special dust-free, anti-static workshop.Formed a number of world-class United States ASM automaticmachine crystalline solid,ASM automatic soldering machines, H120 automatic LED light colour scanner 100% sure our quality is best.
Customer Reviews
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 1-3 days, mass production time needs 3-7 days according order quantity .
Q3. Do you have any MOQ limit for led light order?What's the Payment way ?
A: MOQ is 100pcs for each model. We accept T/T Paypal and Western Union three ways payment.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 2-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
