ALLTOP Zhongshan Off Grid 330W 335W 340W 345W 350W 5bb Mono Poly домашняя солнечная
- Категория: Solar Panels >>>
- Поставщик: Zhongshan,Alltop,Lighting,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.96 $* | 0.79 $* |
| Aug-19-2025 | 0.30 $* | 0.22 $* |
| Jul-19-2025 | 0.58 $* | 0.53 $* |
| Jun-19-2025 | 0.2 $* | 0.38 $* |
| May-19-2025 | 0.9 $* | 0.75 $* |
| Apr-19-2025 | 0.67 $* | 0.84 $* |
| Mar-19-2025 | 0.89 $* | 0.44 $* |
| Feb-19-2025 | 0.47 $* | 0.68 $* |
| Jan-19-2025 | 0.58 $* | 0.16 $* |
Характеристики
Module Type | ATP-72M / ATP-72P | ||||||||
Maximum Power(Pmax) | 330W | 335W | 340W | 345W | 350W | ||||
Open-circuit Voltage (Voc) | 45.8V | 46.1V | 46.5V | 46.7V | 46.9V | ||||
Maximum Power Voltage | 37.7V | 38.0V | 38.1V | 38.2V | 38.4V | ||||
Short-circuit Current (Isc) | 9.22A | 9.10A | 9.4A | 9.5A | 9.59A | ||||
Maximum Power Current (Imp) | 8.76A | 8.82A | 8.93A | 9.04A | 9.12A | ||||
Module Efficiency (%) | 17.0% ~ 18.0% | ||||||||
Power Tolerance | 0~+5W | ||||||||
Standard Test Environment | lrradiance 1000 W/m 2 , module temperature 25 °C, AM=1.5;Tolerances of Pmax, Voc and Isc are all within +/- 5%. | ||||||||
Operating Module Temperature | -40 °C to +85 °C | ||||||||

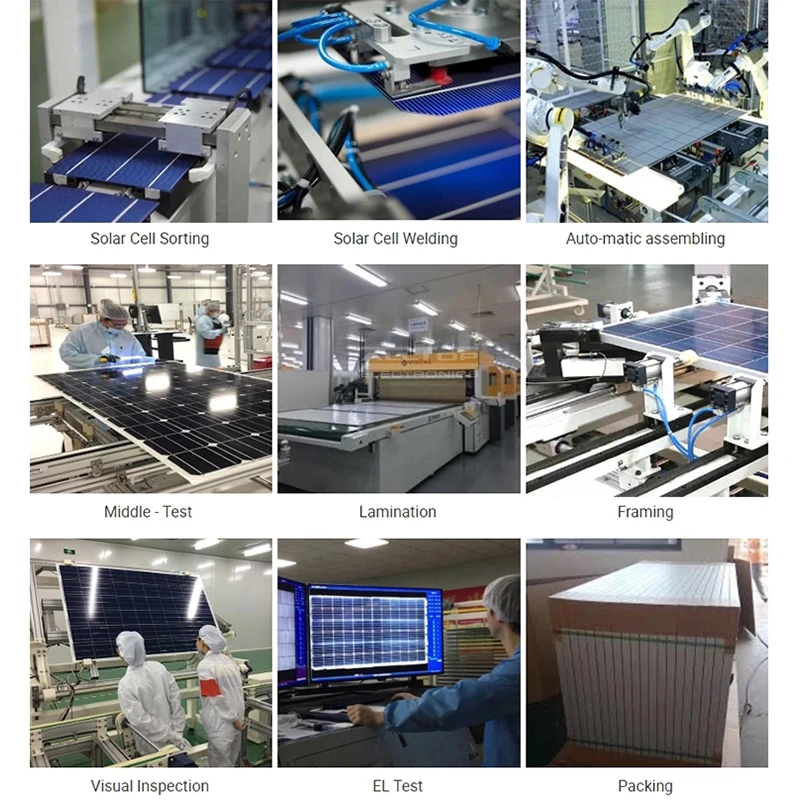

Production Process
Details Images
Solar Cells
* 5BB, 6BB, 9BB Availablec
* High output-power: conversation efficiency is 18%-22%
* High shunt-resistance: adapt the several
environmental conditions.
environmental conditions.
* Bypass diode minimizes the power drop by shade
* Excellent low light effect
* Low breakage rate
Glass
* High-transmittance and low reflection
* Inspection:GB15763.2-2005.ISO9050
* High solar transmittance
* High mechanical strength
* High flatness
* Inspection:GB15763.2-2005.ISO9050
* High solar transmittance
* High mechanical strength
* High flatness
Frame
* Aluminium extrusion profile with prompt delivery
* Available in customized surface finish
* Excellent material for smooth and subtle edges
* Extrusion for construction and other industrial purposes
* Thickness variable according special request
* Available in customized surface finish
* Excellent material for smooth and subtle edges
* Extrusion for construction and other industrial purposes
* Thickness variable according special request
Junction Box
* High current and voltage carrying capacity
* Simple, quick and safe effective field assembly
* IP 68 it can be used in the outdoor iron environment
* Expansion connector are available for future requirement
* Double permanent connection are adapted for all of the connecting.
* Simple, quick and safe effective field assembly
* IP 68 it can be used in the outdoor iron environment
* Expansion connector are available for future requirement
* Double permanent connection are adapted for all of the connecting.
Waterproof Customized Label
OEM with your Logo
Professional Silver Color
OEM with your Logo
Professional Silver Color
Project Cases
Product introduction: application, function, style, etc
Packing&Shipping
(60 cells panels )Container | 20GP | 40HQ |
Pcs/Pallet | 30 | 30 |
Pallets/Container | 14 | 28 |
Pcs/Container | 400 | 910 |
(72 cells panels )Container | 40HQ | 40HQ |
Pcs/Pallet | 27 | 27 |
Pallets/Container | 10 | 24 |
Pcs/Container | 296 | 660 |
Certificate
ALLTOP has obtained ISO9001 quality management system certification, China energy saving certification, SGS,CB,CE,ROHS,TUV and some other certificates. And our production department always insists on the idea ‘Responsible for the quality of each product’,‘strict control for incoming materials and final goods inspection before shipment’
Company Introduction
ALLTOP is working hard to be the top-class brand in the world renewable energy industry. We insist on “Making the top quality solar products in the world”as our goal,“The most cost-effective products for our customers”as our mission, and “Making the top environmental products” as our social responsibility.
Related Products
FAQ
Q: How About the Performance of Your Solar Panel?
A: We Use a Class Solar Cells Which Made, and Good Material. It's Enough Power and Good Performance.
Q: How About the Conversion Rate of the Solar Panel?
A: the Poly Solar Panel is About 16.8%, the Mono Solar Panel is About 17.6%.
Q: Can You Print Our Company Logo on Solar Panels, Nameplates and Packaging?
A: Yes, We Accept Customized Order, but the Quantity Needs to Reach at Least 100 Pieces.
Q: What Kind of Certificate of the Solar Panel You Have?
A: We Have CCC,CE, SGS, ROHS, ISO9001, SONCAP, SASO,etc.
Q: What is Moq of the Solar Panel?
A: the Moq of the Solar Panel is 1 Piece for Sample.
Q: What is the Warranty for the Solar Panel?
A: for the All in One Solar Panel, We Offer 3 Years Warranty for Free.
Q: What is Your Terms of Payment?
A:usually, We Accept T/t,irrevocable L/c at Sight.for Regular Orders, Terms of Payment 30%deposit, full Payment Before Delivery the Goods.
Q: What is the Delivery Time?
A: 3~7 Work Day with Stock After Receiving the Payment. No Stock, 15~20 Work Days After Receiving the Payment.
