Заводская Высококачественная камнедробильная машина установка для

Описание и отзывы

Трекер стоимости

Характеристики

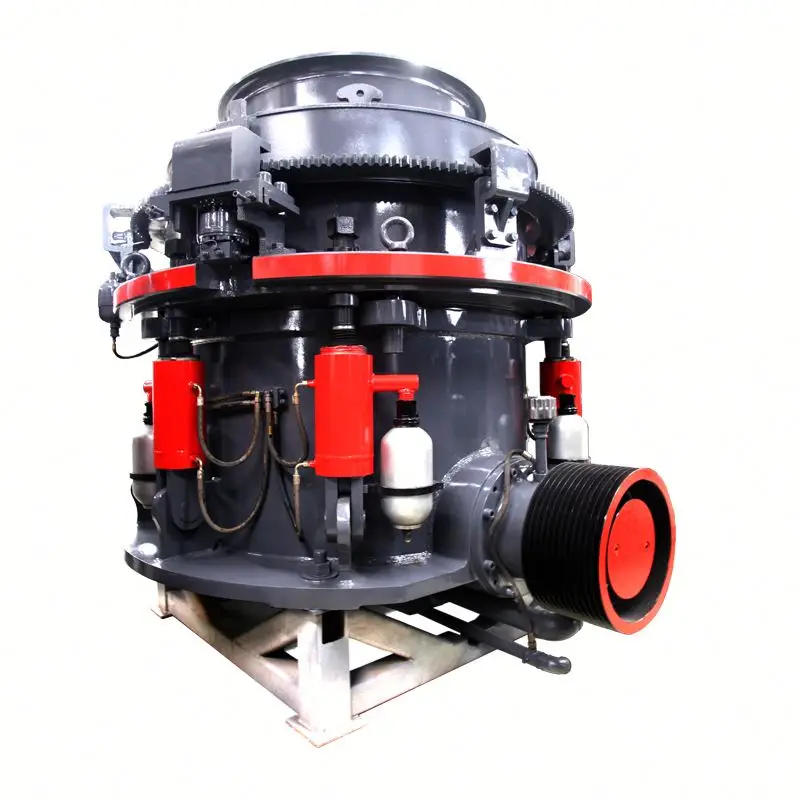

 $stone crasher machine gravel stone crushing plant

Input Size: 0-350mm
Capacity: 45-1200TPH
Material: Granite, diabase, basalt, pebble, limestone, dolomite, metallic ores and non-metallic ores, etc $stone crasher machine gravel stone crushing plant



Product Parameters



Model	Cavities	Feed opening (mm)	Capacities (t/h)	Maximum installed power (kw)	Overall dimension (mm)
HPT100	C1(Extra Coarse)	140	75-140	90	1705×1510×1583
	C2(Coarse)	100	60-110
	M(Medium)	70	52-100
	F1(Fine)	50	50-95
	F2(Extra Fine)	20	45-90
HPT200	C2(Coarse)	185	145-250	160	2135×1750×1927
	M(Medium)	125	135-235
	F1(Fine)	95	115-220
	F2(Extra Fine)	75	90-190
HPT300	C1(Extra Coarse)	230	220-440	250	2725×2110×2871
	C2(Coarse)	210	190-380
	M(Medium)	150	175-320
	F1(Fine)	105	145-280
	F2(Extra Fine)	80	110-240
HPT400	C1(Extra Coarse)	295	300-630	315	2775×2370×2295
	C2(Coarse)	251	285-560
	M(Medium)	196	250-490
	F1(Fine)	110	180-345
	F2(Extra Fine)	90	135-320
HPT500	C1(Extra Coarse)	330	425-790	400	2800×3480×4050
	C2(Coarse)	290	370-700
	M(Medium)	210	330-605
	F1(Fine)	135	270-535
	F2(Extra Fine)	95	220-430
HPT800	C1(Extra Coarse)	350	570-1200	630	3970×3345×4235
	C2(Coarse)	299	520-1050
	M(Medium)	265	475-950
	F1(Fine)	220	370-800
	F2(Extra Fine)	150	310-600

 $stone crasher machine gravel stone crushing plant

Customer Site

350-450TPH Pebble Crushing Line

Pebble enters into CS240 cone crusher for middle crushing.

Next, by screening a part of material is sieved out as finished products and the material more than 31.5mm would be transported into HPT300 multi-cylinder hydraulic cone crusher by belt conveyor.



Equipment Configuration
CS240 Cone crusher (1 set), HPT300 multi-cylinder hydraulic cone crusher (2 sets), VSI5X9532 high-efficiency impact crusher (2 sets)



Project Advantages
The project was totally designed by ZENITH, which greatly reduced the unnecessary investment when using the advanced multi-cylinder hydraulic cone crusher. The principle of lamination crushing brought good granularity. The whole hydraulic control was accurate and reliable. VSI5X impact crusher which was used to produce sand had greater pass rate and capacity. Besides, we adopted deep cavity rotor with optimized design so that material through-put rate increased by 30%. The ratio of sand to gravel can be arbitrarily adjusted due to integrated design  $stone crasher machine gravel stone crushing plant





Packaging & Shipping





Our Strength





6 large-scale production bases1,200,000m2
>1500 production personnel
100 advanced management personnel
30% senior technical workers





Service

Exhibition





 Frequently Asked Questions



1,How is the quality of your machine?
Our products are manufactured strictly according to national and international standard, and we take a test on every grinder before delivery.



2,How about price?
We are factory and be able to give you the lowest price than market one.



3,Payment Terms?
30% of total prices should be paid by T/T as down payment; 70% balance payment should be paid by T/T before delivery.

Connect Us



In order to recommend the suitable models and supply more complete quotation for you, Send your Requiry Details in the below!



Include:
1. Which machine do you need?

(such as crusher, grinder, vibrating screen, vibrating feeder, belt conveyor and others)



2. Which kind of material you are going to process?

Soft stone (dolomite, limestone and others) or hard stone (granite, basalt, river pebble and others) ?



3. What's the production capacity you want?

How many tons or cubic meters per hour?



And please tell me your email and phone, I will give you factory price with full specification and you will know all details about machine and discount.





stone crasher machine gravel stone crushing plant

For more details and quotations about stone crasher machine gravel stone crushing plant, please send us an email in time and look forward to your letter!
