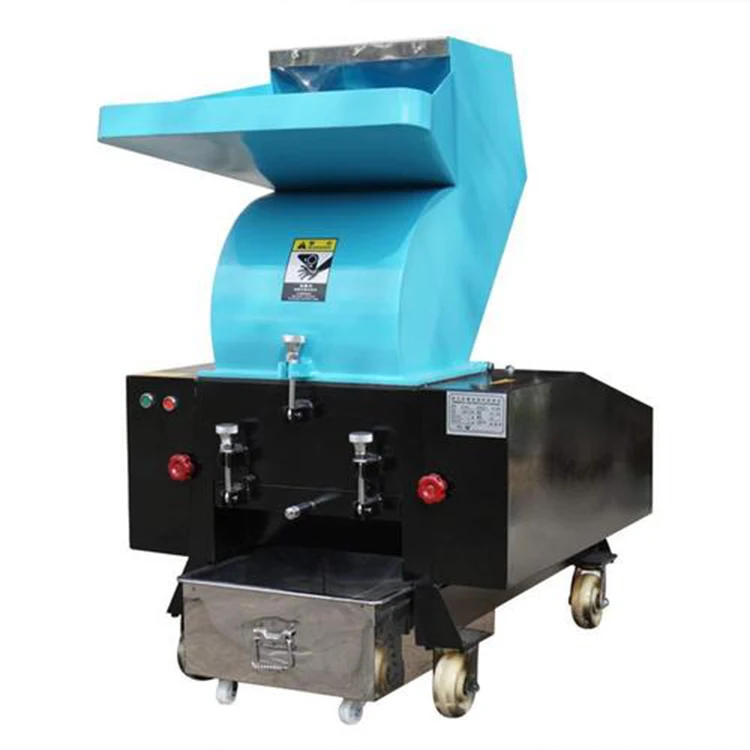

Пластиковая дробилка из полипропилена, 800 кг/ч
US $10000-$28000
Высокоскоростная автоматическая переработка машины дробилка для бутылок из ПЭТ/машина переработки
- Категория: Plastic Crushing Machines >>>
- Поставщик: Shenyang,Beiteng,Chemical,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.53 $* | 0.22 $* |
| Aug-19-2025 | 0.39 $* | 0.98 $* |
| Jul-19-2025 | 0.65 $* | 0.61 $* |
| Jun-19-2025 | 0.73 $* | 0.6 $* |
| May-19-2025 | 0.81 $* | 0.18 $* |
| Apr-19-2025 | 0.40 $* | 0.91 $* |
| Mar-19-2025 | 0.96 $* | 0.15 $* |
| Feb-19-2025 | 0.19 $* | 0.91 $* |
| Jan-19-2025 | 0.61 $* | 0.37 $* |
Характеристики
Product Description
Plastic crusher, also known as plastic crusher. Mainly used for crushing all kinds of plastic and rubber, such as plastic profiles, pipes, rods, silk thread, film, waste rubber products. The granule can be directly used by extruder or injection molding, or it can be recycled through basic granulation. Another kind of plastic crusher is the peripheral equipment of the injection molding machine, which can crush and recycle the defective products and nozzle materials produced by the injection molding machine.
Model L | 300 | 400 | 500 | 600 | 700 | 800 |
Motor Power kW/hp | 5.5/7 | 7.5/10 | 11/15 | 15/20 | 22/30 | 30/40 |
Spindle speed R/min | 610 | 580 | 600 | 506 | 493 | 440 |
Spindle diameter mm | 72 | 72 | 78 | 82 | 110 | 110 |
Blades number PCS | 9 | 12 | 15 | 18 | 21 | 24 |
Blades fixed number PCS | 2 | 2 | 2 | 4 | 4 | 4 |
Working efficiency KG/H | 150-200 | 250-400 | 300-500 | 500-600 | 600-700 | 700-800 |
Feed port size mm | 300×200 | 400×250 | 500×330 | 600×400 | 685×430 | 800×450 |
Machine Weight KG | 300 | 460 | 616 | 850 | 1350 | 1800 |
Screen hole diameter mm | 8 | 10 | 10 | 12 | 12 | 12 |
Screen hole diameter mm | 1.07×0.72×1.08 | 1.29×0.86×1.18 | 1.37×1.0×1.39 | 1.77×1.17×1.96 | 1.75×1.25×1.96 | 1.95×1.37×2.18 |
Product application:
It can be used for the re-crushing and recycling of all waste plastics, such as boxes, thin pipe fittings, blow molding parts, bottles, shells, daily plastic products, etc., or as an auxiliary machine of the injection molding machine to re-crush the nozzle material or defective parts of the injection molding machine.
Maintenance:
1. The plastic crusher should be placed in the ventilation position to ensure the heat emission of the motor and prolong its life.
2. Lubricating oil should be added to the bearings regularly to ensure the lubricity between the bearings.
3. Check the tool screw regularly. After using the brand new plastic crusher for 1 hour, tighten the moving knife and fix the screw with the tool to strengthen the stability between the blade and the tool holder.
4. In order to ensure the sharpness of the tool cut, the tool should be checked frequently to ensure its sharpness and reduce the unnecessary damage to other parts caused by the blunt lack of the blade.

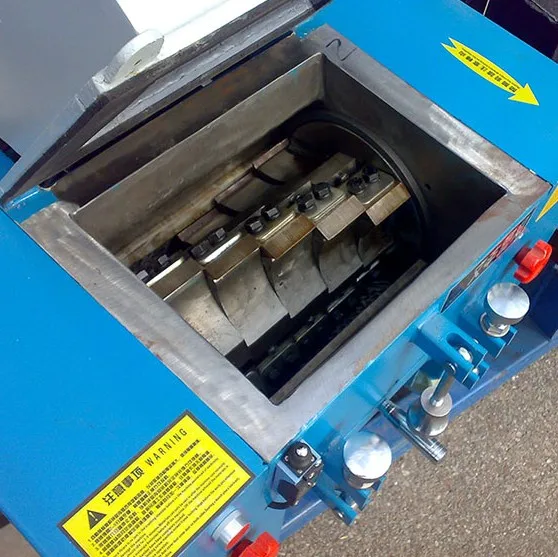

5. When changing the cutter, the gap between the moving cutter and the fixed cutter: the crusher 0.8MM above 20HP is better, and the crusher 0.5MM below 20HP is better. The thinner the recycled material is, the larger the gap can be.
6. Before the second start-up, the remaining debris in the machine room should be removed to reduce the start-up resistance.
The inertia cover and pulley cover should be opened regularly to remove the ash outlet under the flange because the powder discharged from the plastic crusher chamber enters the shaft bearing.
7. The machine should be well grounded.
8. Regularly check whether the plastic crusher belt is loose and tighten it in time.
1. The plastic crusher should be placed in the ventilation position to ensure the heat emission of the motor and prolong its life.
2. Lubricating oil should be added to the bearings regularly to ensure the lubricity between the bearings.
3. Check the tool screw regularly. After using the brand new plastic crusher for 1 hour, tighten the moving knife and fix the screw with the tool to strengthen the stability between the blade and the tool holder.
4. In order to ensure the sharpness of the tool cut, the tool should be checked frequently to ensure its sharpness and reduce the unnecessary damage to other parts caused by the blunt lack of the blade.
5. When changing the cutter, the gap between the moving cutter and the fixed cutter: the crusher 0.8MM above 20HP is better, and the crusher 0.5MM below 20HP is better. The thinner the recycled material is, the larger the gap can be.
6. Before the second start-up, the remaining debris in the machine room should be removed to reduce the start-up resistance.
The inertia cover and pulley cover should be opened regularly to remove the ash outlet under the flange because the powder discharged from the plastic crusher chamber enters the shaft bearing.
7. The machine should be well grounded.
8. Regularly check whether the plastic crusher belt is loose and tighten it in time.
