Характеристики
Product Description

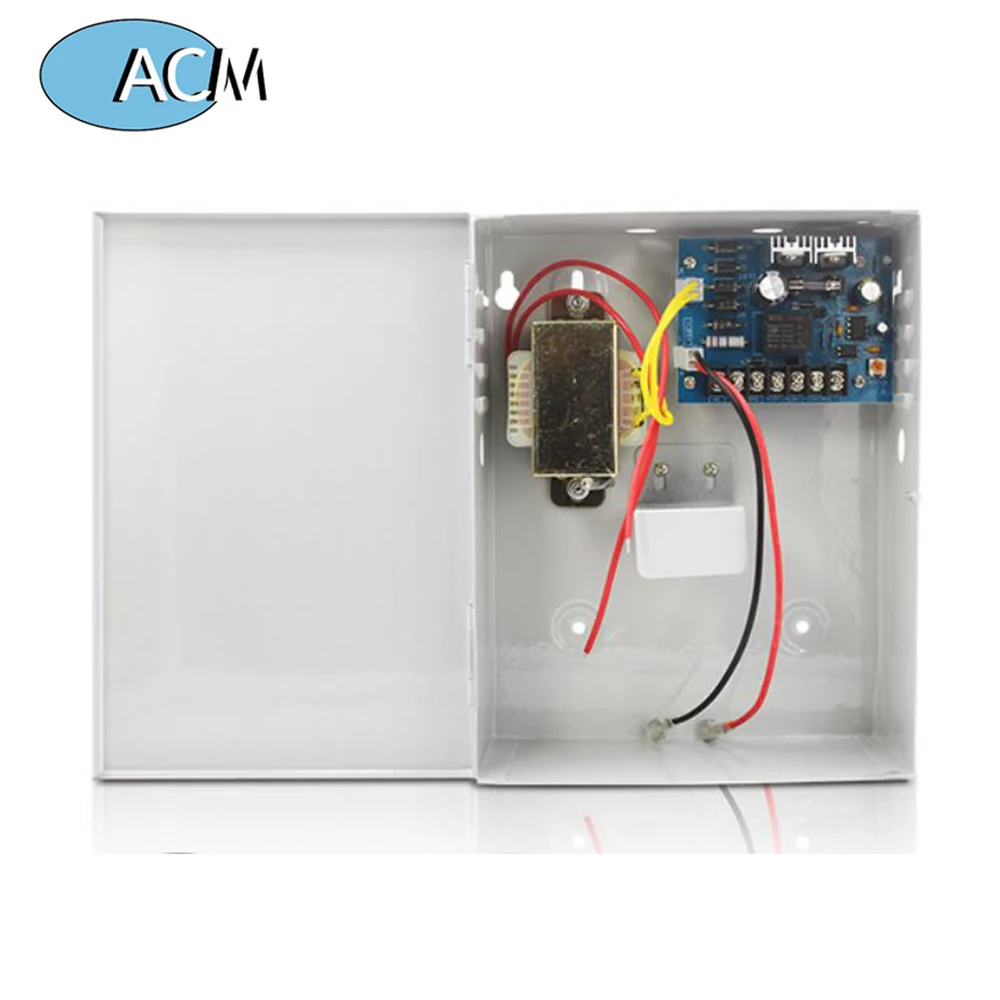

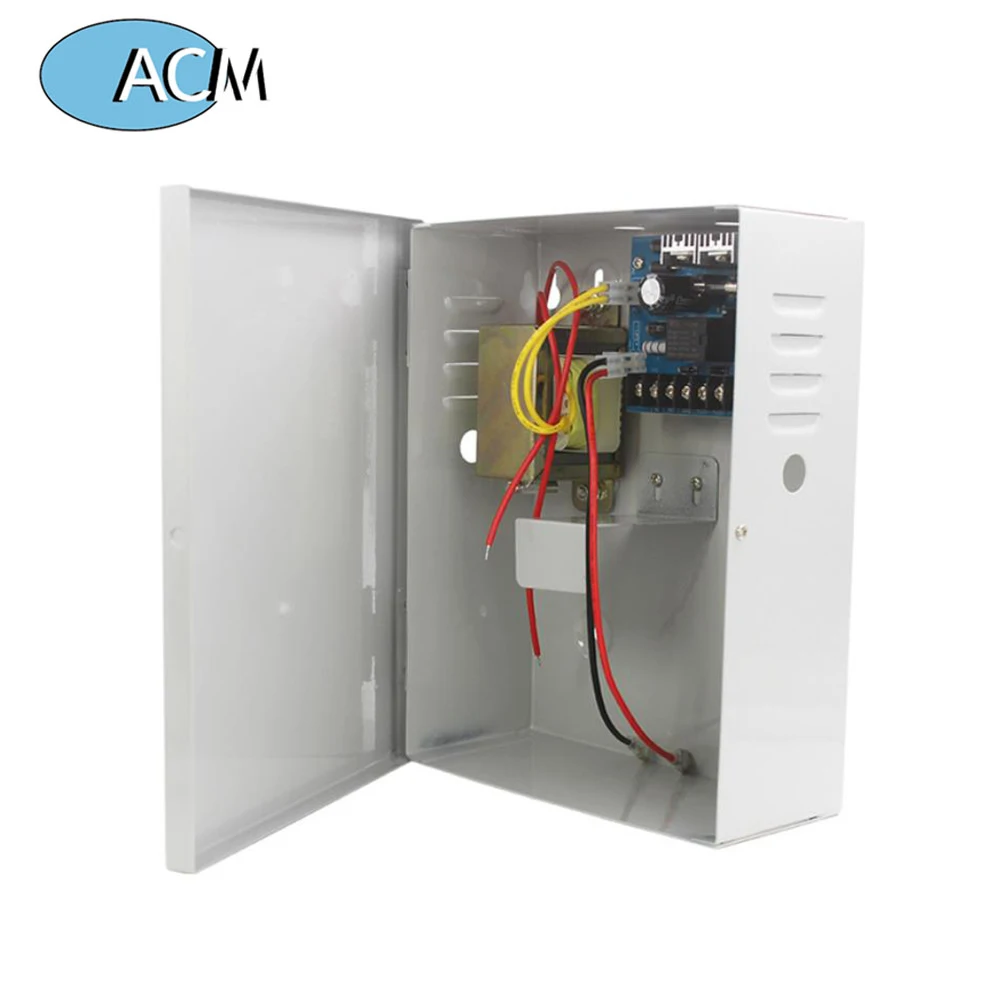

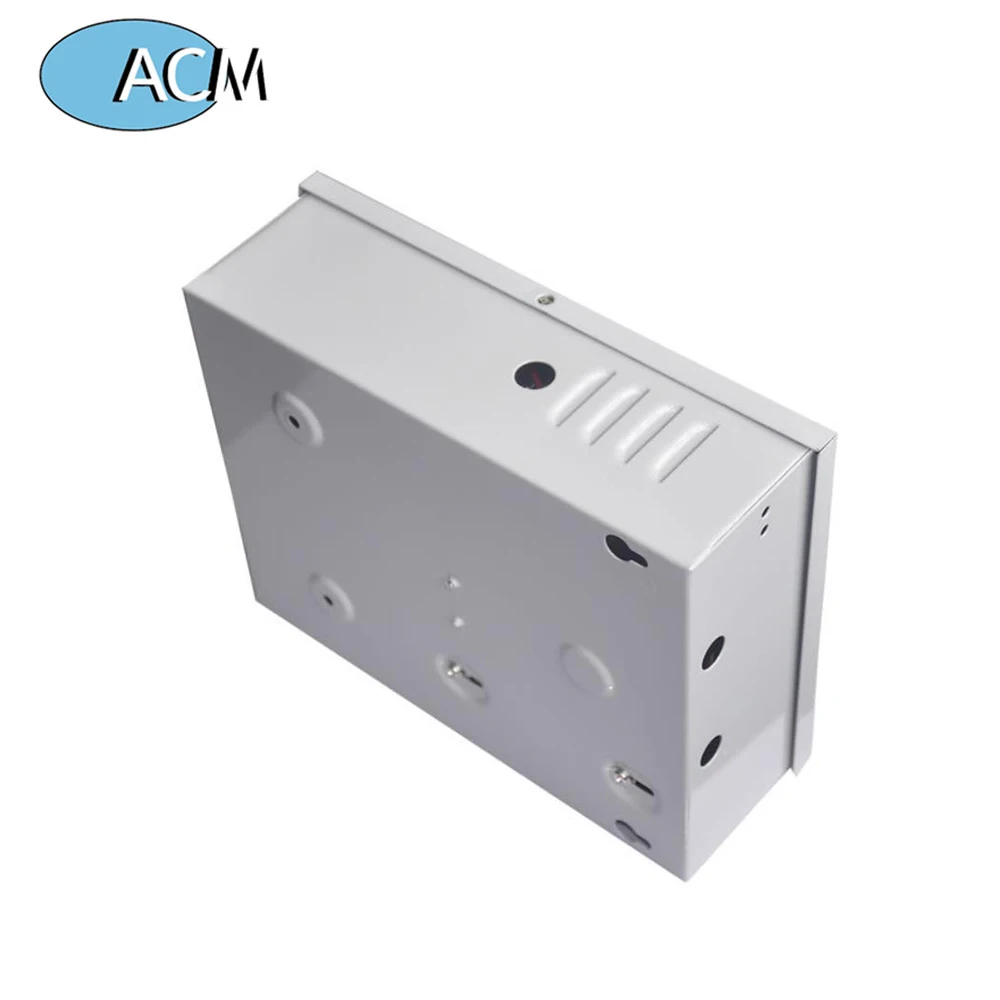

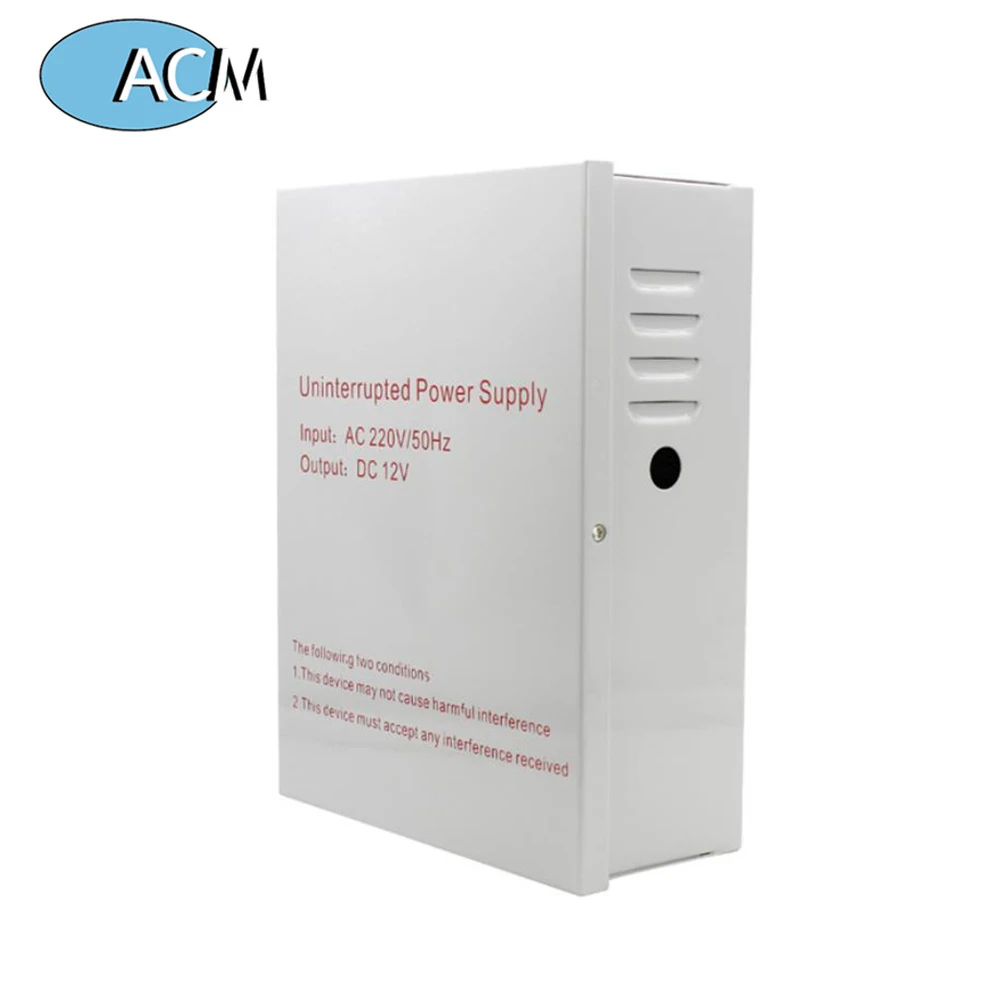

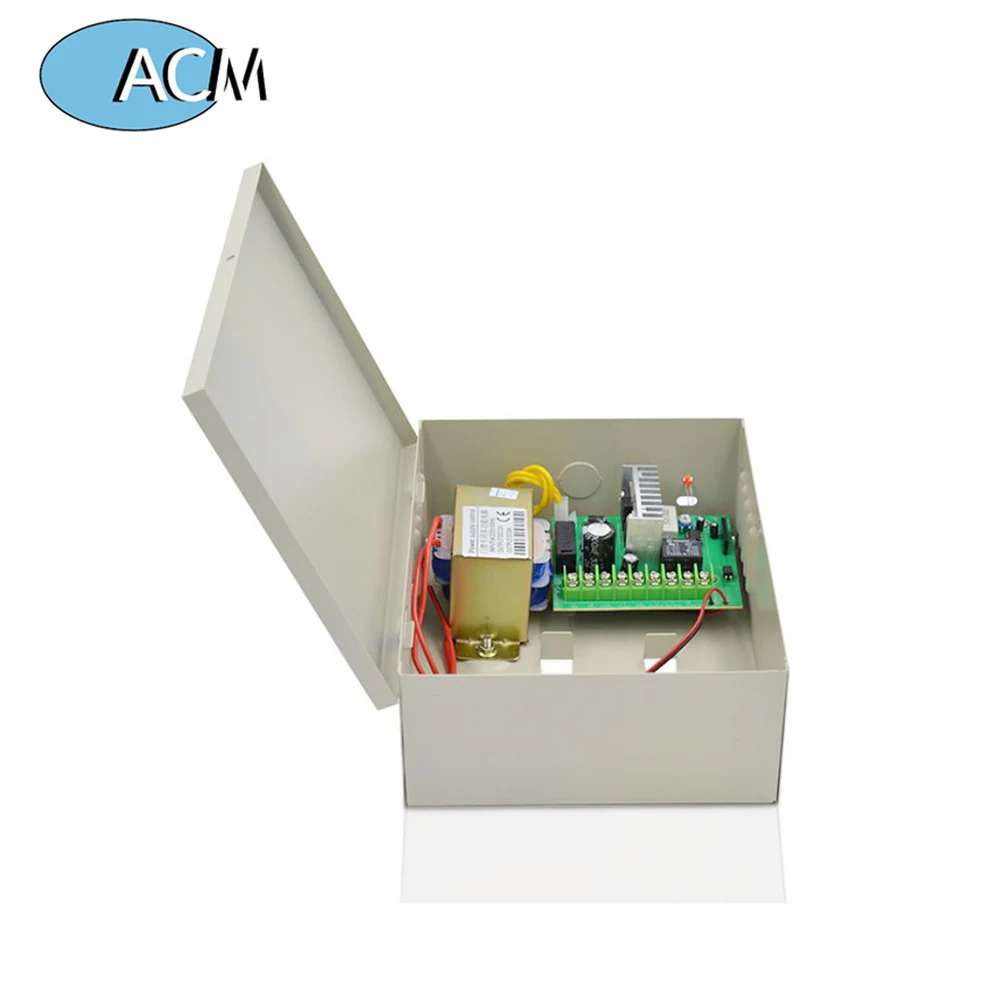

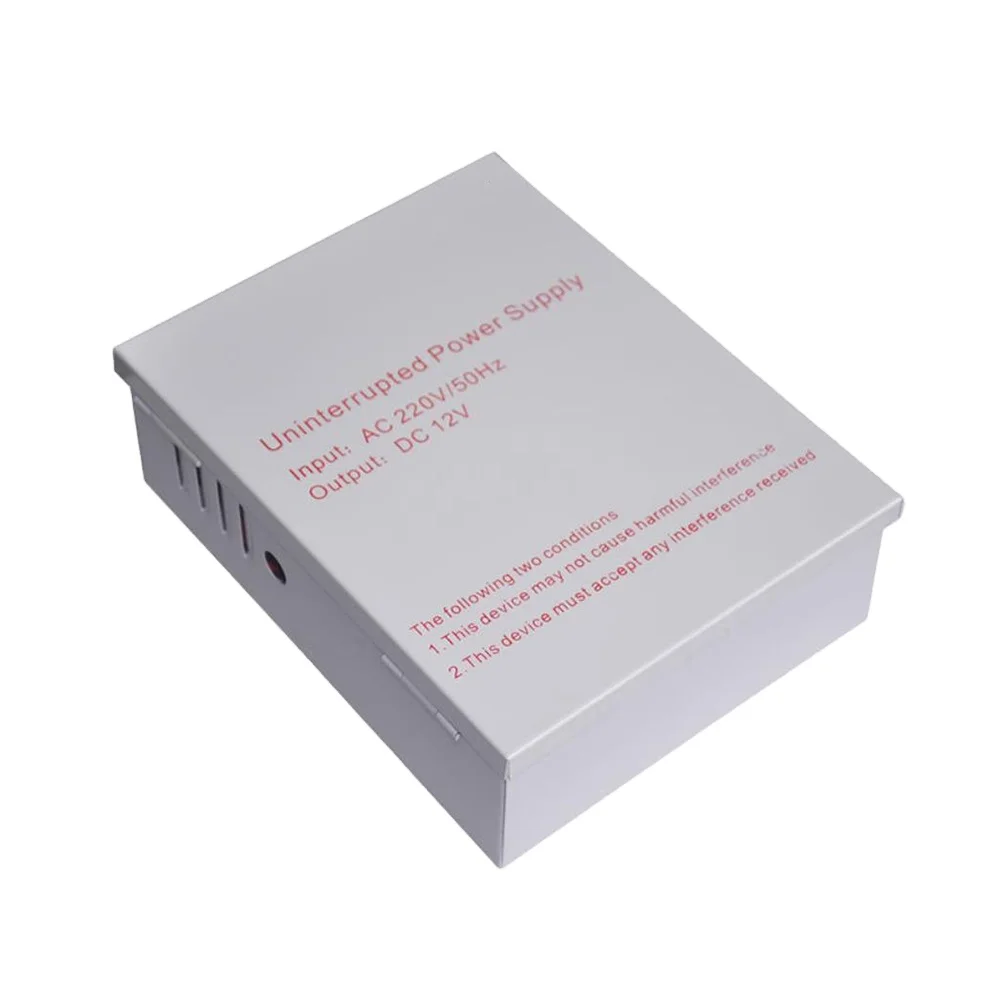

High Quality 12V 5A Access Control System Back Up Power Standby Back-up Source Electrical Metal Power Supply Box
5A Current power supply
Built-in reverse surge protection and Short-circuit protection function.
This power supply is suitable for building intercom, various entrances access control, particularly suitable for all kinds of
electric locks
Built-in reverse surge protection and Short-circuit protection function.
This power supply is suitable for building intercom, various entrances access control, particularly suitable for all kinds of
electric locks
Product Parameter | Parameter Description |
ripple voltage | Up ≤ 50mV |
Input voltage | AC 220V |
Input Frequency | 50Hz |
Output voltage | DC12V |
Output current (optional) | 1A/3A/5A |
Output voltage trim range | +_10%~+_15% |
Load stability | 1%typical |
Time Delay | 0~15sec. |
Output Contact | Access control, Electric Lock, Release Button |
Hold time | at full load typ 20ms |
Working temperature | -20~+65°C |
Standard Designe | Steel material, Painted |
Protect Safely | Short Circuit protection |
Suitable For | Access control, Electric lock |
Products Feature
1: NO terminal and COM terminal , normally open no output , the key trigger output DC12V, connected electronically controlled lock(0-15 seconds delay , a positive , three negative ) ;
2: NC terminal and COM terminal , normally closed output DC12V, after the power button is triggered,then the electric or magnetic latch,Power locks ( 0-15 seconds delay , 2 positive, 3 negative ) ;
3: DC12V output voltage regulation, 4 is positive , 5 negative ;
4: open button input terminal ( for negative power supply ) , which can be accessed switch output(relay output, low)control
Electric lock access control system ;
5: open button input terminal ( on the positive power supply ) , which can be accessed switch output (relay output, high level) control ,Electric lock access control system ;
6: 12V input voltage door, dedicated to the direct control of the output voltage electric lock access control
2: NC terminal and COM terminal , normally closed output DC12V, after the power button is triggered,then the electric or magnetic latch,Power locks ( 0-15 seconds delay , 2 positive, 3 negative ) ;
3: DC12V output voltage regulation, 4 is positive , 5 negative ;
4: open button input terminal ( for negative power supply ) , which can be accessed switch output(relay output, low)control
Electric lock access control system ;
5: open button input terminal ( on the positive power supply ) , which can be accessed switch output (relay output, high level) control ,Electric lock access control system ;
6: 12V input voltage door, dedicated to the direct control of the output voltage electric lock access control
