Характеристики

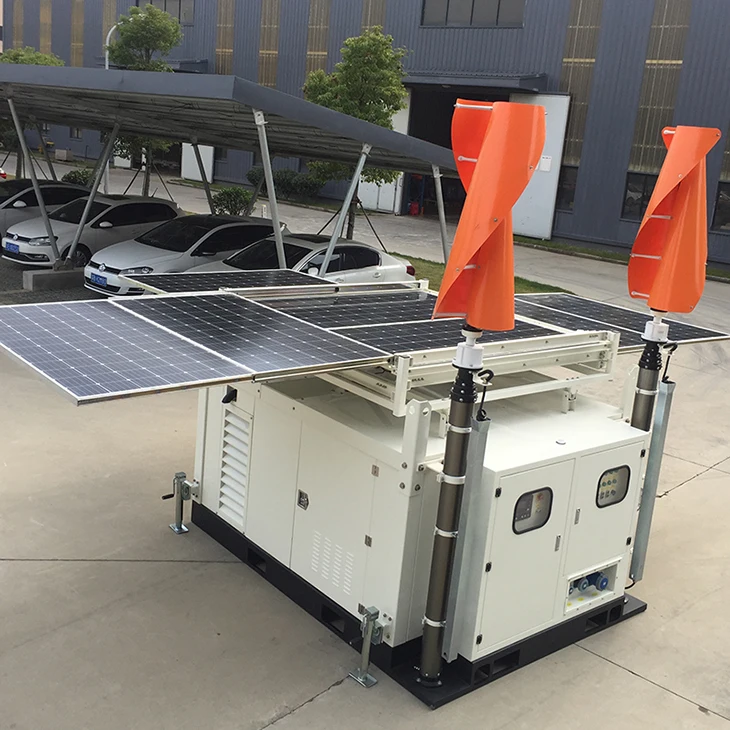

Portable Solar And Wind Turbine Hybrid Power And Storage Station
The Trailer Dc24v Led Light Tower With 1224v Circuit Mobile Solar Power System For Cctv Camera
Product Description

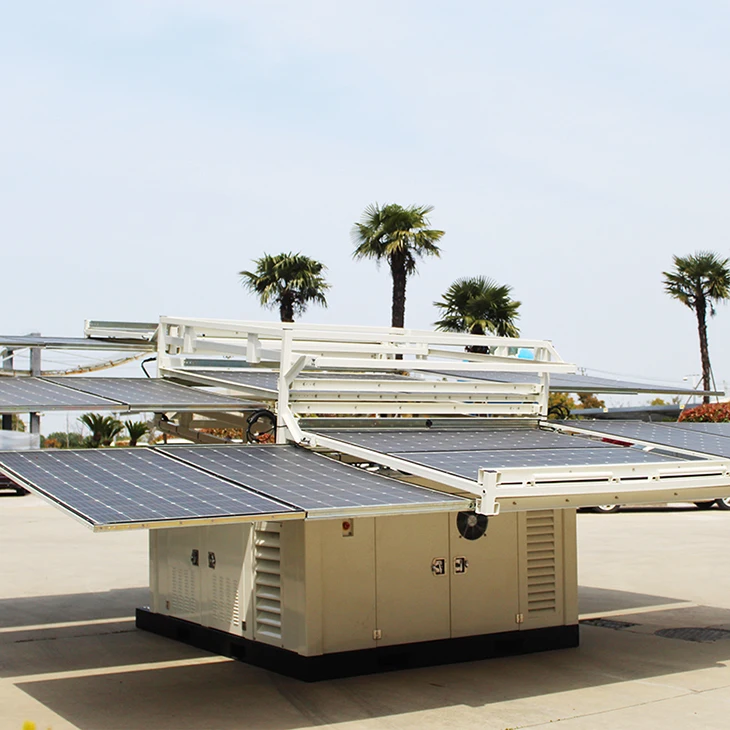

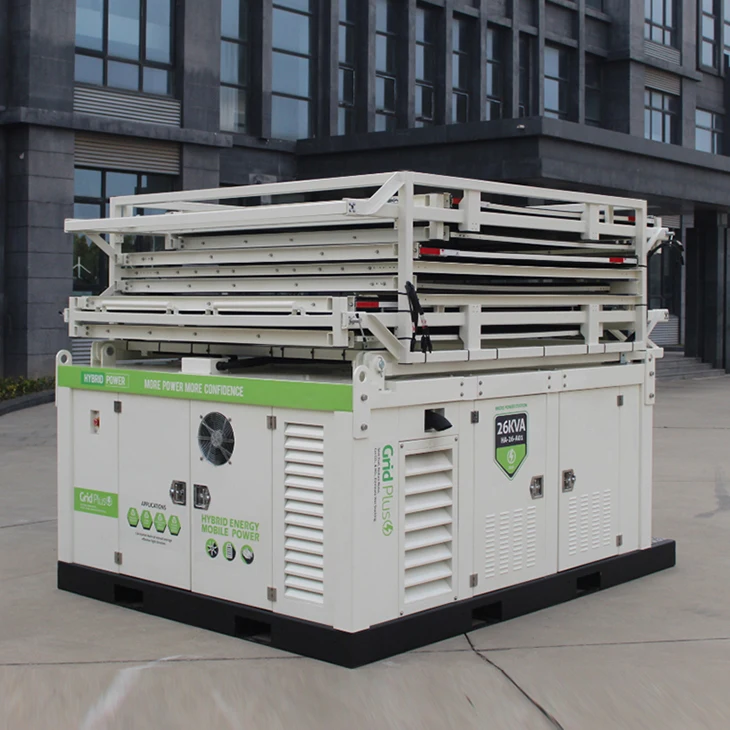

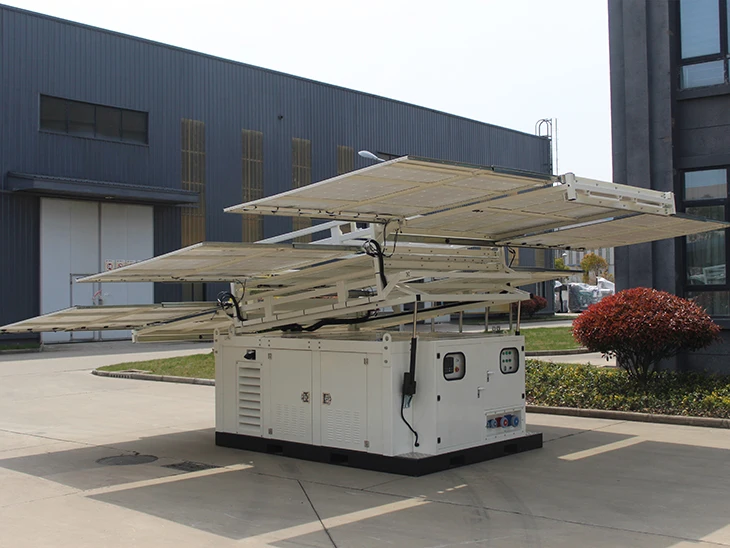

HIPOWER® is a new range of secure integrated hybrid power plant. With solar power , genset and other hybrid energy storage contained within one secure unit, HIPOWER® provides a simple all in one power solution ensuring drastically reduced fuel use and CO2 emissions. Delivered in a form factor that eliminates tampering and fuel theft vulnerability, HIPOWER® also delivers class leading noise attributes with 10 dbA when in hybrid mode and just 65 dBA@7m when the external diesel generator is running. HIPOWER® is mainly developed for Off Grid Distributed Power Solutions, Hybrid Pumps, Island House Power Stations, Telecom 5G Base Station applications, etc.
General Specification | |
Model | HIPOWER-26 |
Rated System voltage | DC48V |
Max. Solar Power | 5850W |
Daily power consumption | 23.4KW.H(Solar) |
Rated. genset power | 20KW/25KVA |
Rated AC. voltage | AC400V |
Rated DC. voltage | DC48V |
Max.AC load power | 6KW |
Max. DC load power | 19KW |
Ambient Operating Temperature | -5~60℃ |
Storage Temperature | -25~60℃ |
Solar Panel | |
Model | SMD325M-6X12 |
Quantity | 18pcs |
Maximum Power | 325W |
Maximum Power Voltage | 38.5VDC |
Maximum Power Current | 8.45A |
Power Tolerance | 0~+5W |
Dimension | 1979×1019×5.6 mm(L*W*H) |
Extending type | Sliding |
Extending area | 36.5m2 |
Energy storage battery | |
Model | 6-CNFJ-200 |
Quantity | 12pcs |
Rated Capacity | 200AH |
Rated Voltage | 12VDC |
Maximum System Charging Current | 150A |
System Discharging Current | 250A |
Dimension | 520*241*220mm(L*W*H) |
Type | Special colloid battery for photovoltaic |
Solar Charging Controller | |
Model | SCH-100A |
Quantity | 1pcs |
Solar Rated Voltage | 48VDC |
PV Operating Voltage | 60~150V |
Max.Output Current | 100A |
Self Consumption | 2W |
Max.Conversion Efficiency | 98.5% |
Dimension | 405*230*110mm(L*W*H) |
Protection Function | PV array short circuit , over charging , battery reverse polarity , output short circuit |
Communication port | RS485 |
Inverter | |
Model | H960248 |
Quantity | 1pcs |
Rated Power | 6000W |
Rated Input Voltage | 48VDC |
Rated Output Voltage | 220Vac±2% |
Output Waveform | Pure sine wave , Power frequency |
Protection Function | Over load , short circuit , over/under voltage , |
Overloading Capacity | 30s @ 120% load , 300ms @ 160% load |
Dimension | 640*255*205mm(L*W*H) |
Display Type | LCD |
Standby Diesel Generator | |
Model | MDLS25-1 |
Quantity | 1pcs |
Max. Power | 20kW |
Rate Voltage | AC400V |
Phase / Power Factor | 3P / 0.8 |
Speed | 1500rpm |
Engine Type | 3-Cylinder ,4-Stroke, Air-cooled,Veritical |
Start type | Manual |
Tank Capacity | 90 Liter |
Sound Level | ≤65dBA@7m |
Charger | |
Model | ADY6111 |
Quantity | 1pcs |
Rated Power | 9000W |
Rated Input Voltage | 400Vac±10% / 3P |
Frequency | 50Hz |
Rated Output Voltage | 38~60VDC (Adjustable) |
Effective | ≥90% |
Communication port | RS485/RS232/CAN |
Dimension | 420*275*630 mm(L*W*H) |
Display Type | LCD |
\\
