Машина для изготовления ногтей


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 0.76 $* 0.5 $*
Aug-16-2025 0.25 $* 0.40 $*
Jul-16-2025 0.74 $* 0.59 $*
Jun-16-2025 0.1 $* 0.90 $*
May-16-2025 0.87 $* 0.9 $*
Apr-16-2025 0.87 $* 0.15 $*
Mar-16-2025 0.90 $* 0.41 $*
Feb-16-2025 0.95 $* 0.79 $*
Jan-16-2025 0.93 $* 0.61 $*

Характеристики

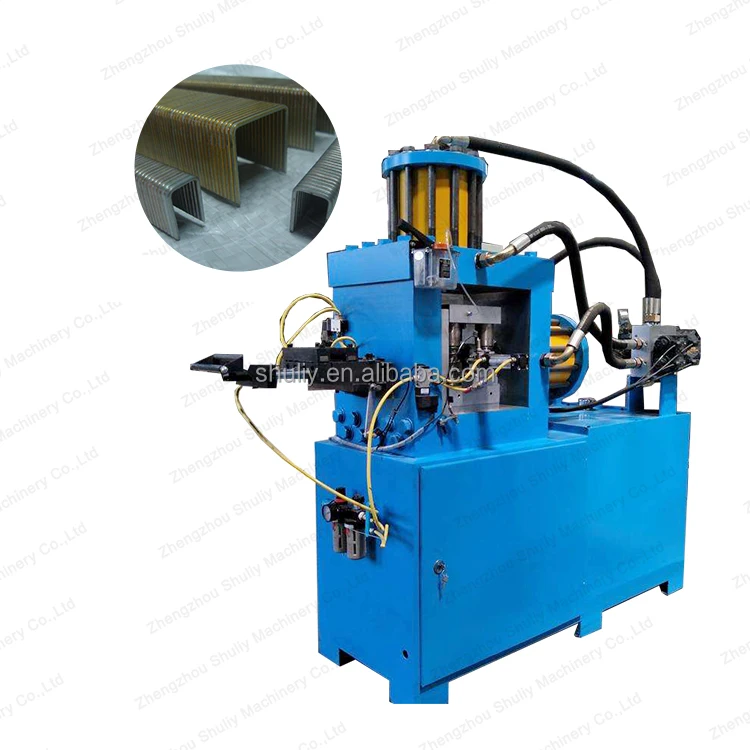

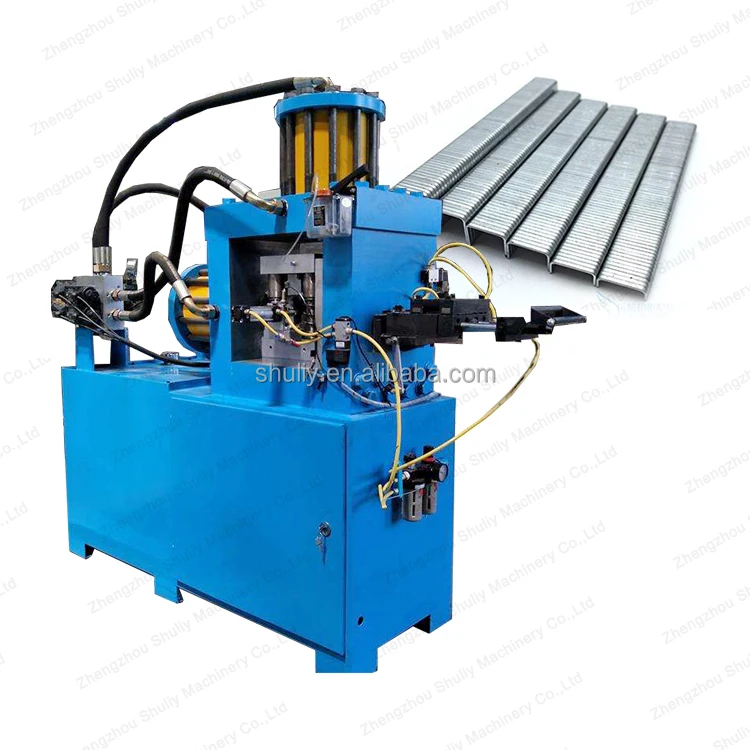

New type high-speed straight nail/U-shaped nail equipment



Product Description


 _01
  Name: New type high-speed straight nail/U-shaped nail equipment
   The nailing equipment is equipped with special high-speed molds, all made of special steel, and finished with original processing technology. It has the advantages of small size, wear resistance and fast nailing.
   The biggest feature: fast and stable row nail forming, saving tools!


_02


The production line consists of three parts:


      1. Flattening machine; 2. Threading machine; 3. Forming host (divided into straight nail machine and code nail machine)


Production workflow:


      First, the thread is crimped by a flattening machine, then the thread is glued and spliced by a gluing and splicing machine, and finally the molding is performed.


      Water drawing and flattening machine→  Wire splicing machine→ F/T Nail Forming Machine/Code Nail Forming Machine


_04






F, T nails (straight nails): F10/F15/F20/F25/F30, T38/T50;

U-shaped nails: N nails, K nails, J10 series, cultural and educational nails, box-sealing nails, etc.


Machine details


 _05_01










































model



Water drawing and flattening machine



Maximum incoming line



2.0mm



Minimum outlet



0.65mm



Reel diameter



160-180



Finished line speed



460 rpm/min



Electric power



2.2-3kw



Dimensions



3000*1200*880



Lubrication method



Soapy water



control method



Frequency






_05_02_05_03
































































Straight nails



technical parameter



unit



F nail



T nail



Number of trips



Times/min



110-150



50-120



Line board width



mm



50-120



50-120



Board thickness



mm



0.8-1.0



1.0-1.5



Dimensions



Before and after



mm



1000



1000



Left and right



mm



2000



2000



Height



mm



1650



1650



Electric motor



kw



7.5



7.5



weight



kg



1600



1700





Models of Straight nailsF10F15/F20/F25/F30, T38/T50
     Equipment performance and characteristics:
1. The automatic hydraulic nailing machine adopts high-pressure oil circuit, has low noise and low failure rate. The circuit adopts PLC integrated control, and the product is infinitely limited and exquisitely made.
2. Supporting lengthened conveying equipment can automatically pick nails. The equipment has a high degree of automation, reducing nail picking workers and reducing production costs.

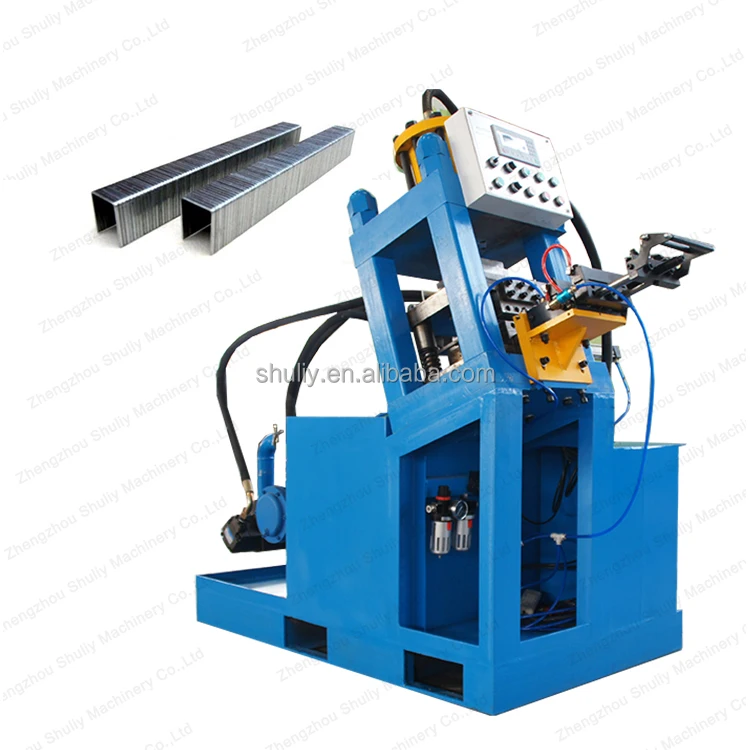

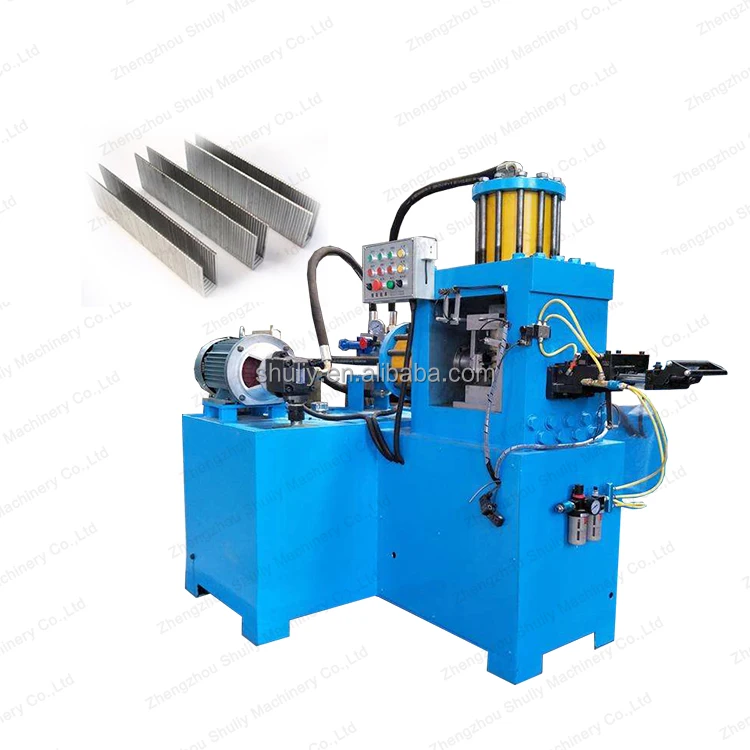

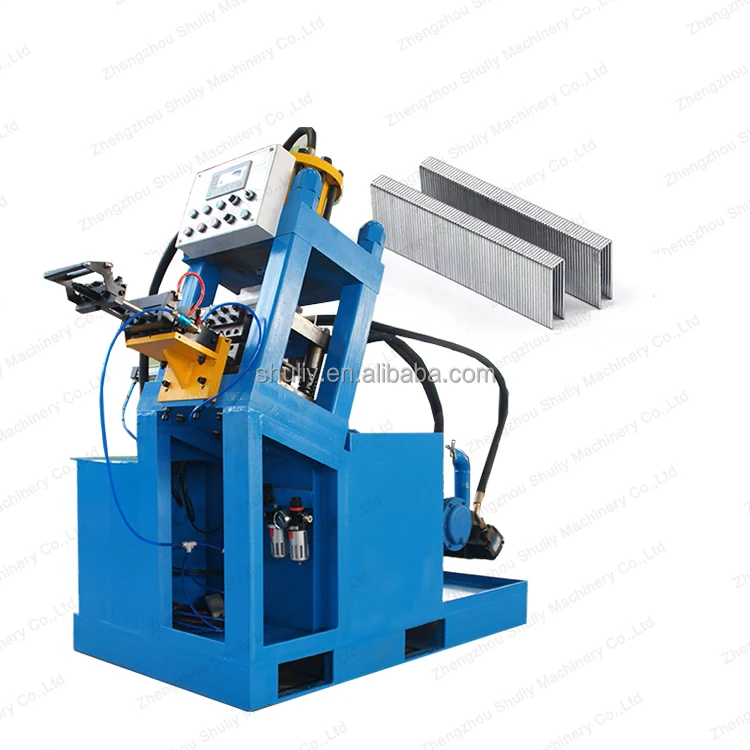

Model of U-shaped nail machine: N nails, K nails, J10 series, cultural and educational nails, box-sealing nails and other U-shaped nails
    This machine abandons the traditional heavy-duty punch, uses a hydraulic system as the executive component, and uses PLC microcomputer centralized control. It has the characteristics of safe operation, stable performance, and low noise. It has a significant increase in nailing speed than the traditional punch forming machine.




Our Factory


 _06





Packaging & Shipping


_07





Certifications








Company Information


company&customers


Zhengzhou Shuliy Machinery Co., Ltd was found in 2000. Our company specializes mainly produce Recycling and environmentally friendly processing machines, cardboard shredder machine, egg tray making machine, woodworking machine, aerators, toothpicks making machine, feed processing machinery, charcoal processing machinery and so on. We not only provide customers with cost-effective products, but also provide first-class service support and solutions. Shuliy has passed SGS, ISO, TUV, CE, BV and other certifications. Our products have been exported to countries and regions such as Arabia, India, Russia, Central Asia, Africa and Mongolia. Perfect after-sales service system allows you to worry-free.





FAQ


Q1: Are you manufacturer or trade company?


A1:We are a professional manufacturer for producing machinery over 10 years.


Q2: How is the quality of your product?


A2: Our products are manufactured according to national and international standard, and we have a test on every machine before delivery.


Q3: How about the price?


A3: We are a professional manufacturer and be able to provide you with the lowest price than market one. We will give you the best quotation.


Q4:What if the machine is damaged?
A5:One year warranty and all-round after-sales service. After this deadline, we shall charge at low cost to keep after-sales service.




Данные ресурс не является интернет-магазином, а лишь содержит ссылки на международную торговую площадку Alibaba.com
