1) Detailed product desciption of the prefab steel prefab house Prefabricated steel framed biudings, portable cabins, kitset homes, emergency shelter and housing By using light steel as its framework, materials are sandwich panel, total new conception and economical and environmental protected house, which also called prefabricated houses.
2) Specifications of the whole lifting portable house: *Steel Frame: high quality steel structure 4mm steel profile
* Wall Panel: 1) 50mm/75mm/100mm sandwich board(with EPS, PU for its interlaye) 2) Cement & EPS sandwich panel
* Roof Panel: 1) 50mm/75mm/100mm sandwich board(with EPS, PU for its interlaye) 2) Color-glazed roof sheet
Part
Name
Specification
Steel Structure System
Cold-formed thin wall steel/Q550
0.8-1.5mm thickness
Wall System
Decoration Panel
Metal or PVC decoration panel
XPS panel(Grade B1)
1220*600*40mm
Moistureproof paper
50m2/coil
OSB board
6mm/9mm/12mm/15mm, conform to EU
EN300 standard.
Inner wall-- interior gypsum board
1220*2440*9mm
Roof System
Roof Tile
Asphalt tile/Resin tile+SBS+OSB+Glass Wool
Insulation System
Wall,roof ,floor and ceiling
90/100mm glass wool, XPS Panel
Doors & Windows
Entry door
Steel security door, can be customized
Interior door
Composite door, can be customized
Aluminum alloy door
Glass sliding door, can be customized
Window
Plastic steel or Aluminum Alloy Window,
double- layer glass
Ceiling System
Gypsum Panel + insulation cotton
90/100mm glass wool
The Advantages of light steel villa : Easy to install: all the fixed holes and pipe holes are prepunched, 2-3 workers can finish the installation. (save 70% labor cost, shorten 10% construction period, fasten 30% the construction precess) Suitable for extreme climate, can endure 9 grade seismic, 12 grade hurricane, 1500mm snow load 2.5h fire resistance. Moisture-proof and great ventilation design. Long lifespan up to 50 years. Dry construction and recycled building materials, environment-friendly. Short construction period, saving up to 50% time period of construction.
Three Housing Options:
Economic
Standard
Better Insulation

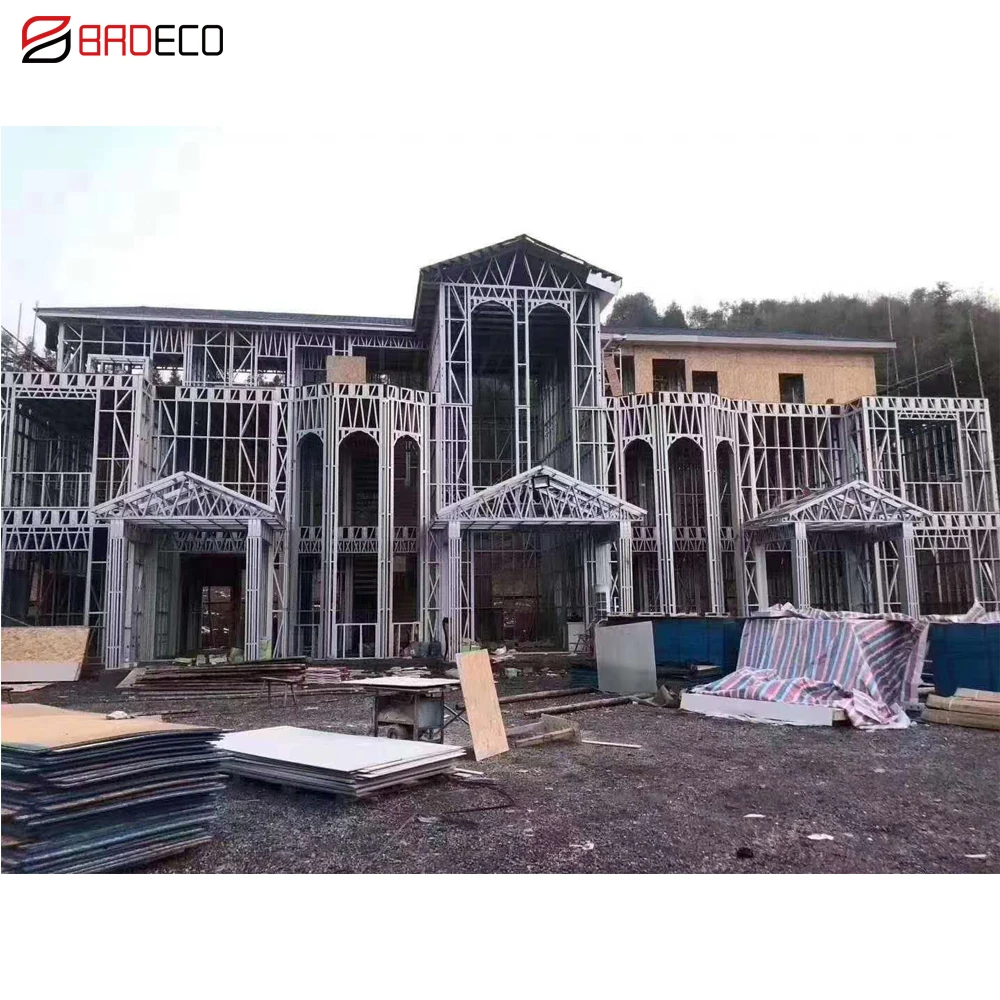

Light Steel Villa Project
School
Hotel

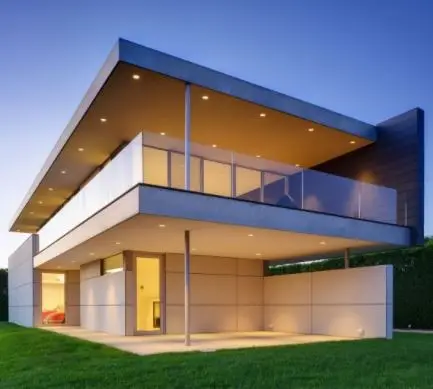

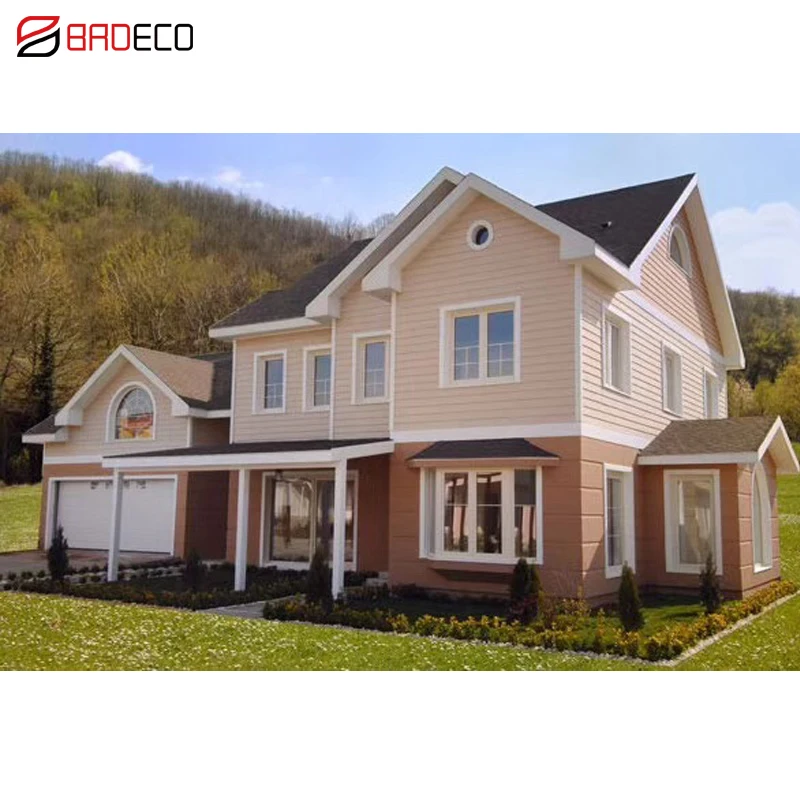

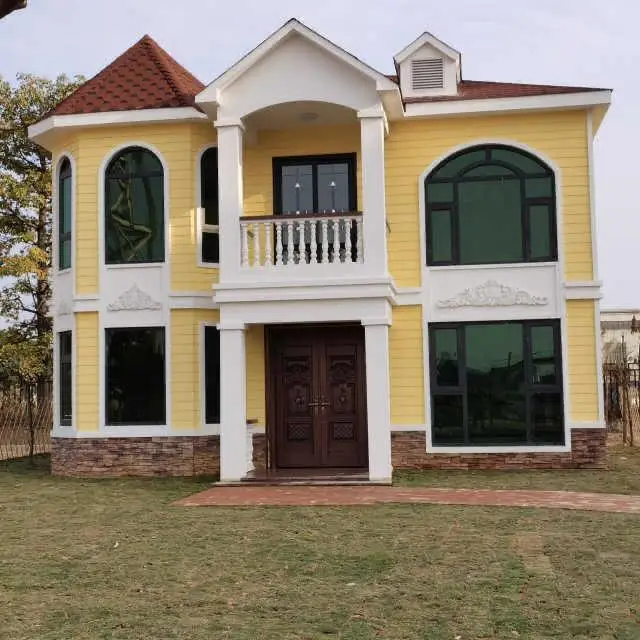

Villa
About Us
ABOUT US BRD Group, was established in 1995, we have more than 500 existing staffs in the company, and have more than 30 million square meters production area. BRD Group is a modern enterprise which focusing on full systems of steel building, such as steel structure, pu sandwich panel, thermal insulation and decorative panel, steel truss deck, and light steel villa.
In the past 25 years, BRD committed is to creating high-quality products, internal, external finishes of solutions, to provide customers with high quality, safe, environmentally friendly building materials solutions, to meet all your needs from product design, technology, sales and construction.
Large Order, Manufacturing Capabilities
BRD GROUP is located in Kapar,Klang Industrial Zone, Selangor.We Also have manufaccturing branches around the world. Our factories have fully automatic production lines that can produce 100 sets of garage door per day.
Our Service
Pre-Sales Service
* Design, produce, and full technical support.
* Sample testing support.
After-Sales Service
* Engineers available to guid construction on site.
* Long life time quality assurance.
* Extend the service life of panels.
Sales to 71 Oversea Countries
Our company has got ISO9001 and TUV certifications, and our products has got CE certification. Our distributor covers more than 21 cities of the world. BRD Group export sales net has covered over 35 countries and places, such as America,United Kingdom, Canada, Russia, Peru, Vietnam, Trinidad and Tobago, Australia, Sweden, and some other countries in Europe, Southeast Asia ,South Africa and other places. We sincerely hope to cooperate with you to create a double win situation.
