Standard and certificate:

Containers shall comply with following in their latest editions :

1) ISO/TC-104

668	-	Dimensions and ratings(1993 edition)
6346	-	Coding, identification and marking(the third edition 1995)
1161	-	Specification of corner fittings(1990 edition/Cor.1.: 1990)
1496/2	-	Specification and testing thermal containers(1996 edition)
3874	-	Freight containers, handling and securing.
6359	-	Freight containers-Consolidated data plate

2) The International Union of Railway (UIC) code 592 OR.

3) The Customs Convention on the International Transport of Goods(TIR).

4) The International Convention for Safe Containers (CSC).

5) Transportation Cargo Containers and Unit Loads Quarantine Aspects and Procedures by Commonwealth of Australia Department of Health. (TCT)

6) provide certificates from classification society (BV, ABS, GL, CCS, LR, KR).

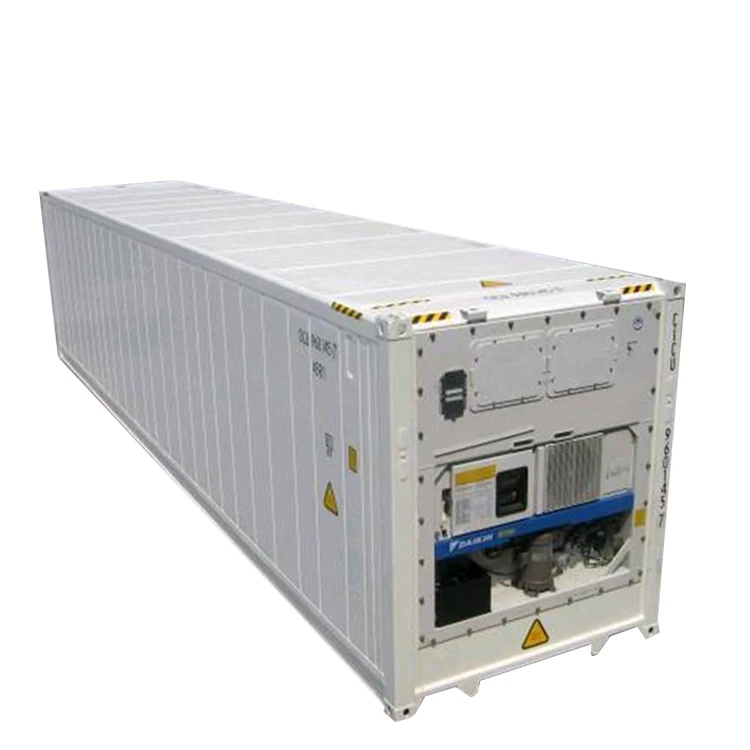

The specifications of 20’ reefer containers:

1 Dimension

	External Dimensions	Internal Dimensions
Length	6,058 ( 0, -6 ) mm	5,456 ( 0, -12 ) mm
Width	2,438 ( 0, -5 ) mm	2,273 ( 0, -10 ) mm
Height	2,591 ( 0, -5 ) mm	2,294 ( 0, -10 ) mm

2 Door Opening

Width   ..................	2,290 ( 0,-5 )	mm
Height ...................	2,264 ( 0,-5 )	mm
Cargo access height	2,221 ( 0,-5 )	mm

3 Fork Pocket

Width   ..................	360	mm
Height ...................	115	mm
Center distance .......	2,050	mm

4 Inside Cubic Capacity

                       28.4 cu.m       1,002 cu.ft

5 Rating



Applications or special features:

1. ISO standard reefer container.

2. for sea, inland, and railway transportation.

3. convenient for loading, lifting, moving.
