Электромагнитный расходомер из углеродистой стали PTFE измерение расхода воды пожарным
- Категория: Счетчики воды >>>
- Поставщик: Kaifeng,Pusheng,Instrument,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 210.1 $* | 214.44 $* |
| Jul-19-2025 | 170.36 $* | 173.96 $* |
| Jun-19-2025 | 206.67 $* | 210.72 $* |
| May-19-2025 | 205.86 $* | 209.27 $* |
| Apr-19-2025 | 163.89 $* | 166.70 $* |
| Mar-19-2025 | 201.30 $* | 205.93 $* |
| Feb-19-2025 | 200.29 $* | 204.52 $* |
| Jan-19-2025 | 198.81 $* | 202.20 $* |
Характеристики
Product Description
Introduction to Electromagnetic flowmeter
Electromagnetic flowmeter is a flowmeter that measures flow according to Faraday's law of electromagnetic induction. The advantages of electromagnetic flowmeters are minimal pressure loss and a wide range of measurable flow rates. The ratio of the maximum flow to the minimum flow is usually greater than 20:1. The applicable industrial pipe has a wide diameter, up to 3 meters. The output signal has a linear relationship with the measured flow rate, with high accuracy. The conductivity can be measured ≥5μs/cm. The fluid flow of acids, alkalis, salt solutions, water, sewage, corrosive liquids, and mud, pulp, paper pulp, etc.

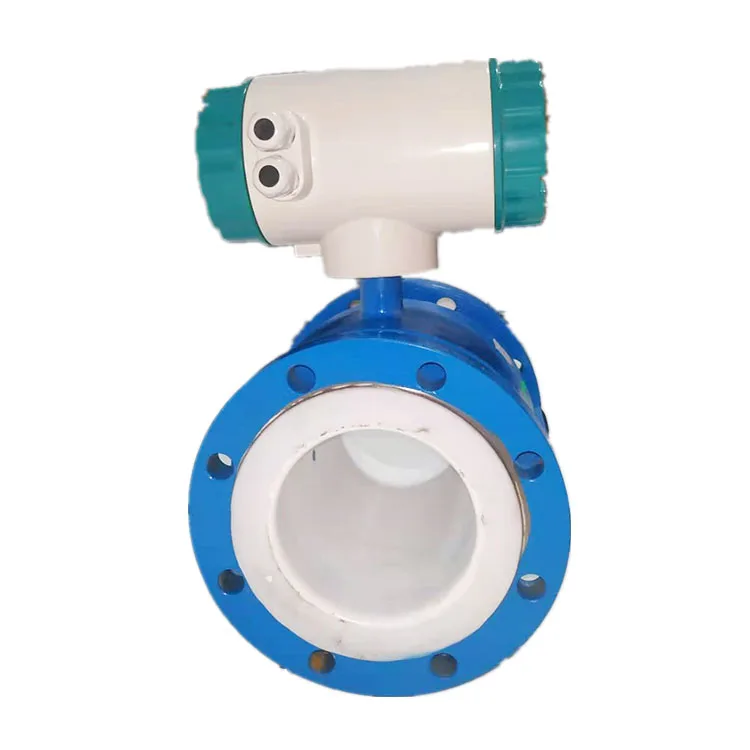

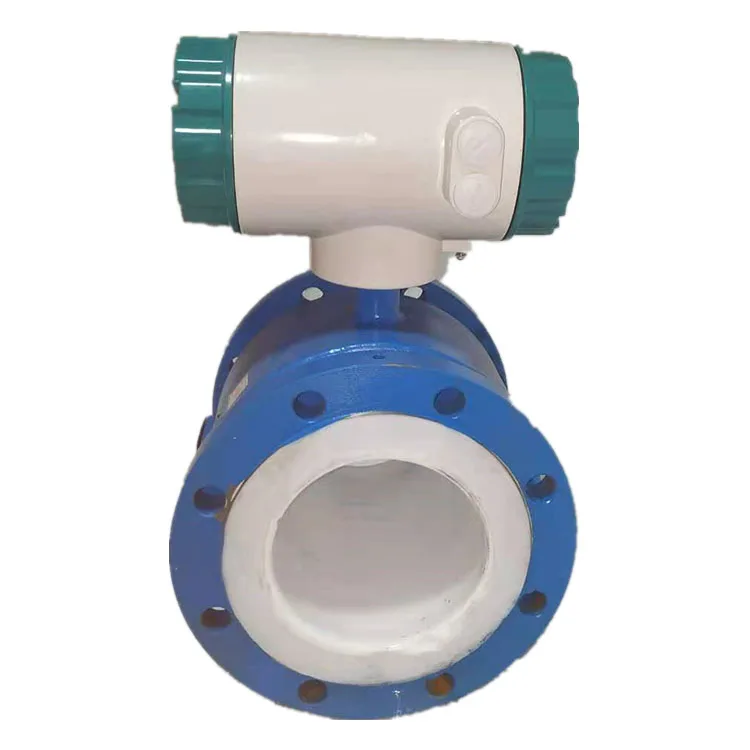

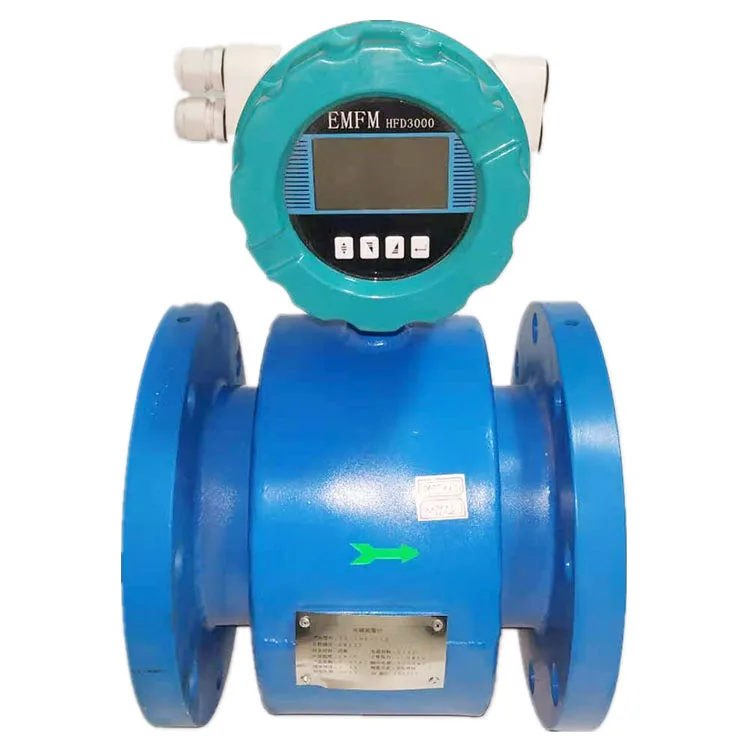

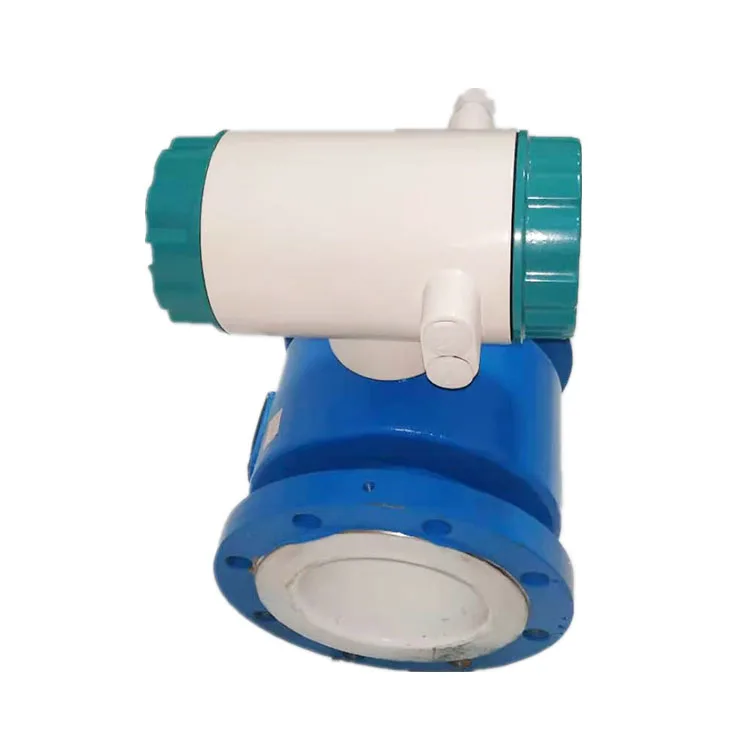

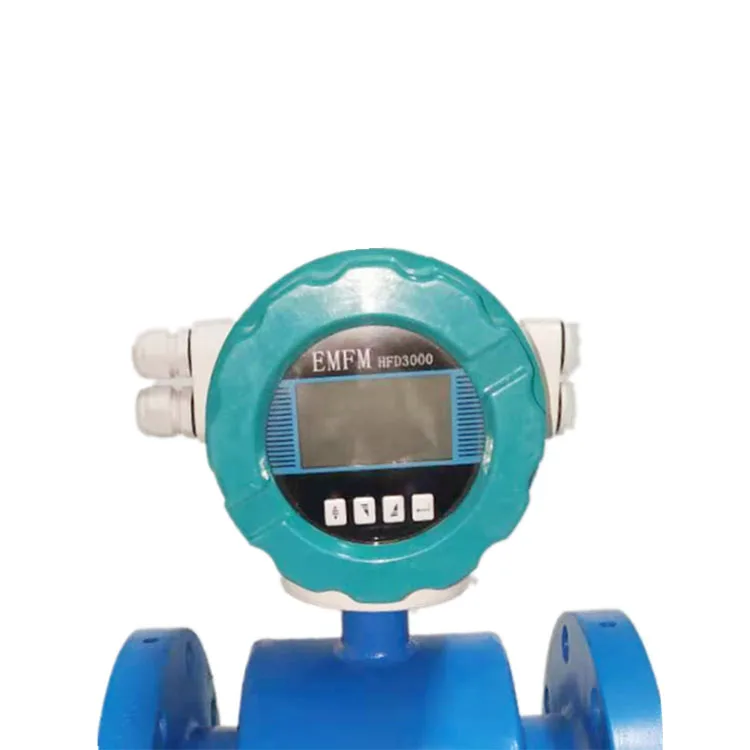

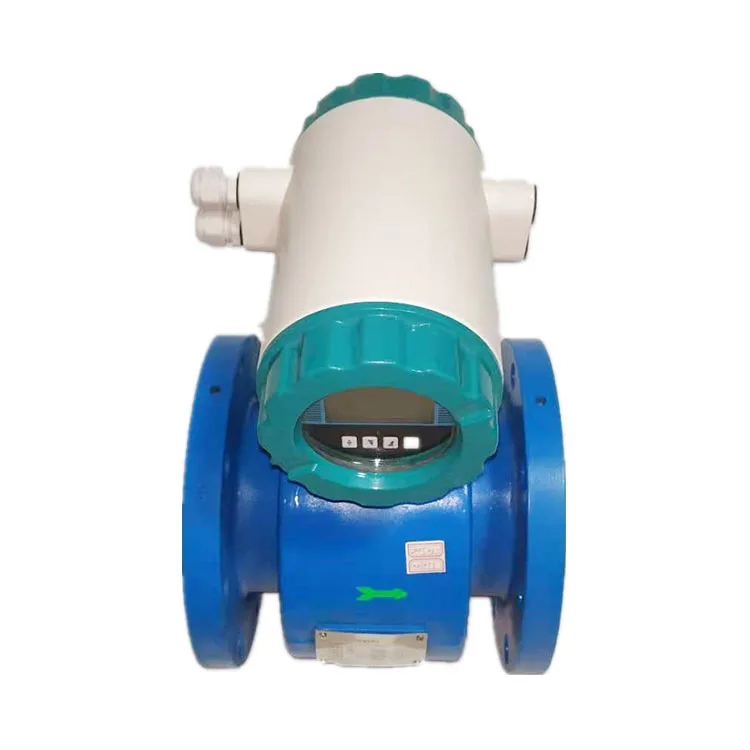

Details Images
Product Paramenters
Product parameter | ||
product name | Electromagnetic Flowmeter | |
Measuring range | 0~ 9999m3/H | |
Operating temperature | 120°C | |
Work pressure | 1.6Mpa 4Mpa 16Mpa | |
Nominal diameter | DN10- DN1000 | |
Accuracy class | 0.5 level | |
Lining material | Rubber/PTFE/PO/PTFE/PFA, etc. | |
Electrode material | 316L, Hastelloy, Tantalum electrode, etc. | |
Supply voltage | 24V, 220V, lithium battery power supply optional | |
output signal | 4~20mA, 485 protocol, HART protocol | |
Applicable medium | Conductive liquid / various strong acids / strong alkali liquids / condensed water | |
Installation Instructions
Company Profile
Certifications
Packaging&Shipping
FAQ
1 What product quality your factory offer?
we offer most competitive prices with best quality.
2 we want to know monthly capacity?
10000sets/month .
3 what kind of certificate you have?
Our company already achieve ISO.
4 What to do if I have any other specifications for the current?
If you have any different requirements,just contact us and we will meet you.
5 Could I get samples?
Yes,we have materials in stock to help you to get the samples as soon as we can.
2 we want to know monthly capacity?
10000sets/month .
3 what kind of certificate you have?
Our company already achieve ISO.
4 What to do if I have any other specifications for the current?
If you have any different requirements,just contact us and we will meet you.
5 Could I get samples?
Yes,we have materials in stock to help you to get the samples as soon as we can.
