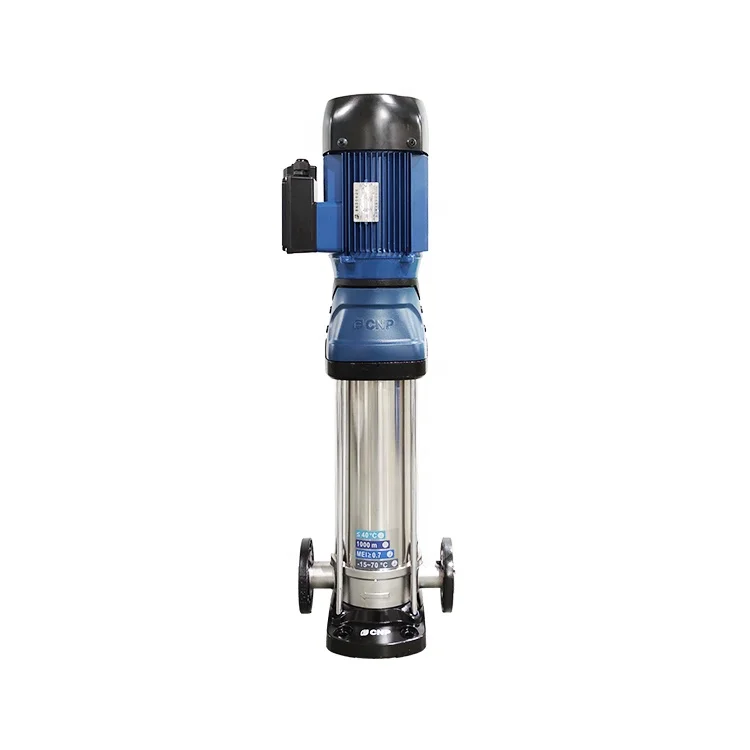

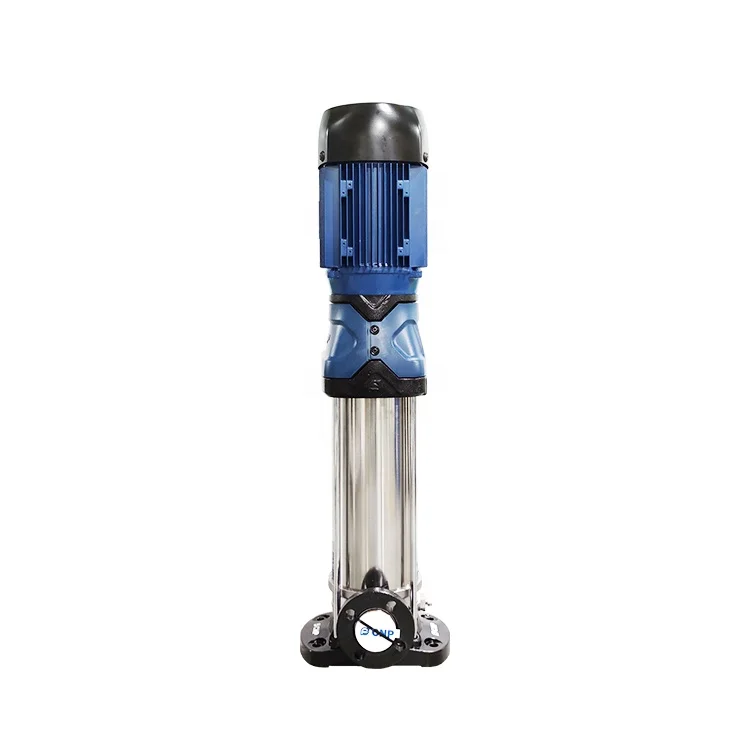

Китай поставка CNP CDMF5 60 Гц высокое давление нержавеющая сталь вертикальные многоступенчатые центробежные электрические водяные
- Категория: Pumps >>>
- Поставщик: Tiger,(hangzhou),Flow,Systems,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.68 $* | 0.17 $* |
| Aug-19-2025 | 0.24 $* | 0.66 $* |
| Jul-19-2025 | 0.41 $* | 0.44 $* |
| Jun-19-2025 | 0.73 $* | 0.43 $* |
| May-19-2025 | 0.69 $* | 0.74 $* |
| Apr-19-2025 | 0.61 $* | 0.16 $* |
| Mar-19-2025 | 0.54 $* | 0.5 $* |
| Feb-19-2025 | 0.71 $* | 0.47 $* |
| Jan-19-2025 | 0.64 $* | 0.69 $* |
Характеристики
Recommend Products
Product Description
Product name | China Supply CNP CDMF5 60HZ High Pressure Stainless Steel Vertical Multistage Centrifugal Electric Booster Water Pumps |
Material | Stainless Steel(Except Flow Passage Components) |
Packaging | Wooden case or carton box will be provided. |
Product Description
Motor
Totally enclosed, fan cooled, 2 pole standard motor
IP class: IP55
Insulation class: F
Voltage: 60Hz: 3×200-230/346-400V
3×200-255/380-440V
3×220-277/380-485V
Totally enclosed, fan cooled, 2 pole standard motor
IP class: IP55
Insulation class: F
Voltage: 60Hz: 3×200-230/346-400V
3×200-255/380-440V
3×220-277/380-485V
Working conditions
Thin, clean, non-flammable, non-explosive, solid free, fiber free, physically and chemically water-like liquid.
Liquid temperature:
Normal temperature type: -15℃ to 70℃
Hot water type:-15℃ to 120℃
Ambient temperature:up to +40℃
Altitude: up to 1000m
Performance curve
Following conditions are suitable for performance curve below.
1.All curves are based on the measured values of 60Hz;constant motor speed 3500rpm or 3540rpm.
2.Curve tolerance in conformity with ISO9906:2012, Grade 3B.
3.Measurement is done with 20℃ air-free water, kinematic viscosity of 1mm2 /sec.
4.The operation of pump shall refer to the performance region indicated by the thickened curve to prevent overheating due to too small flow rate or overload of motor due to too large flow rate.
Material
NO | Name | Material | ANSI/ASTM | |||
1 | Motor | |||||
2 | Pump Head | Cast Iron | ASTM25B | |||
3 | Mechanical Seal | Tungsten carbide /Carbon | ||||
4 | Top Diffuser | Stainless Steel | AISI 304 | |||
5 | Diffuser | Stainless Steel | AISI 304 | |||
6 | Support Diffuser | Stainless Steel | AISI 304 | |||
7 | Inducer | Stainless Steel | AISI 304 | |||
8 | Impeller | Stainless Steel | AISI 304 | |||
9 | Bearing | Tungsten carbide | ||||
10 | Shaft | Stainless Steel | AISI304/316L | |||
11 | Impeller Sleeve | Stainless Steel | AISI 304 | |||
12 | Cylinder | Stainless Steel | AISI 304 | |||
13 | Coupling | Carbon Steel/Powder metallurgy | AISI 304 | |||
CDMF | Submersible motor | |||||
14 | Inlet&Outlet Chamber | Stainless Steel | AISI 304 | |||
15 | Lining | Stainless Steel | AISI 304 | |||
16 | Base Plate | Cast aluminum | ||||
CDM | ||||||
17 | Inlet&Outlet Chamber | Cast Iron | ASTM25B | |||
Performance Table
Installation
Product Categories
Company Profile
Packing & Shipping
FAQ
Q1: How can I get a price quote?
Answer: Leave us a message with your purchase requirement and we will reply you within one hour on working time.
Answer: Leave us a message with your purchase requirement and we will reply you within one hour on working time.
Q2:May I get a cheaper price?
Answer: A workable discount will be given if there’s a large quantity.
Q3:Is your price included freight?
Answer: Our usual price is based on FOB shanghai.If you request CIF or CNF,please let us know our delivery port,and we will quoted price accordingly.
Q4:Is OEM acceptable?
Answer: Yes, please contact us for design details.we will offer you a reasonable price and make samples for you ASAP.
Q5:What’s your quality guarantee?
Answer: We have our professional quality control workers with inspection machines. Or if you have Chinese agency, you also can ask them to do inspection in our factory before shipment.
Q6:How long is your warranty?
Answer: Our Warranty is ONE year
Q7:How long to deliver the products?
Answer: The exact delivery date need to depend on your ordered quality and quantity. Usually Small orders will be shipped within 14days after received the full payment. Large orders will be shipped within 35-40days after received 30% balance payment.
Q8: Can I visit your factory before ordering?
Answer: Yes, you're warmly welcome to visit our factory.
Q9: What's your payment term?
Answer: 70% TT as initial payment & 30% TT balance payment before shipment.
Answer: A workable discount will be given if there’s a large quantity.
Q3:Is your price included freight?
Answer: Our usual price is based on FOB shanghai.If you request CIF or CNF,please let us know our delivery port,and we will quoted price accordingly.
Q4:Is OEM acceptable?
Answer: Yes, please contact us for design details.we will offer you a reasonable price and make samples for you ASAP.
Q5:What’s your quality guarantee?
Answer: We have our professional quality control workers with inspection machines. Or if you have Chinese agency, you also can ask them to do inspection in our factory before shipment.
Q6:How long is your warranty?
Answer: Our Warranty is ONE year
Q7:How long to deliver the products?
Answer: The exact delivery date need to depend on your ordered quality and quantity. Usually Small orders will be shipped within 14days after received the full payment. Large orders will be shipped within 35-40days after received 30% balance payment.
Q8: Can I visit your factory before ordering?
Answer: Yes, you're warmly welcome to visit our factory.
Q9: What's your payment term?
Answer: 70% TT as initial payment & 30% TT balance payment before shipment.
