3в1 приемник теплообменника
- Категория: Refrigeration & Heat Exchange Parts >>>
- Поставщик: Changzhou,Loman,Refrigeration,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 19.59 $* | 19.87 $* |
| Jul-16-2025 | 15.1 $* | 15.72 $* |
| Jun-16-2025 | 19.76 $* | 19.24 $* |
| May-16-2025 | 19.13 $* | 19.84 $* |
| Apr-16-2025 | 15.5 $* | 15.38 $* |
| Mar-16-2025 | 18.40 $* | 18.51 $* |
| Feb-16-2025 | 18.25 $* | 18.92 $* |
| Jan-16-2025 | 18.47 $* | 18.42 $* |
Характеристики
Product Description

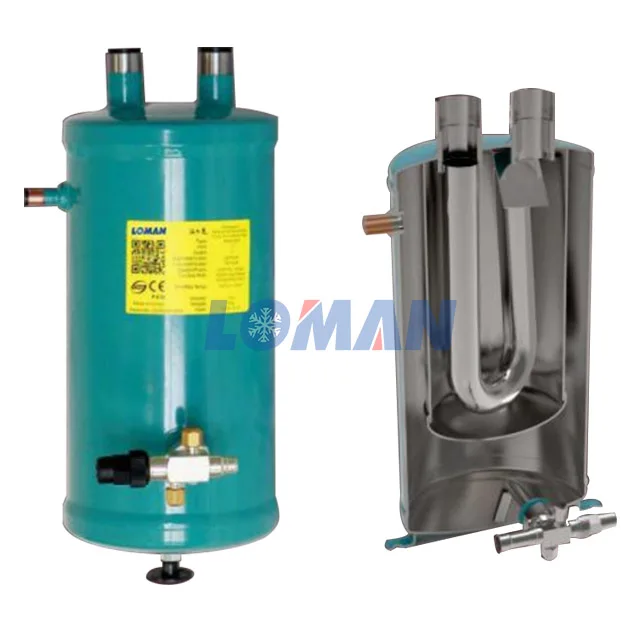

The function of Suction accumulator with heat exchanger is to put the pipes for high pressure high temperature refrigerant and low pressure low temperature refrigerant to one vessel to exchange high and low temperature, to cool or warming refrigerant. After the heatexchange, a better performance of the whole system and cooling effect achieved.
In air conditioning refrigeration,the refrigerant pipelines have high pressure and low pressure lines,the high pressure refrigerant with high temperature needs cooled, and thelow pressure from evaporator needed to be separated to liquid and gas refrigerant, the liquid refrigerant need some time and temperaturetobeevaporated to gas and then enter to compressor.It avoids liquid slugging to protect compressor.
In air conditioning refrigeration,the refrigerant pipelines have high pressure and low pressure lines,the high pressure refrigerant with high temperature needs cooled, and thelow pressure from evaporator needed to be separated to liquid and gas refrigerant, the liquid refrigerant need some time and temperaturetobeevaporated to gas and then enter to compressor.It avoids liquid slugging to protect compressor.
Specification
Main Features
·Energy saving: Recycling the wasting undercooling and electric power caused by water dropping of the low-pressure side of accumulator to high-pressure liquid receiver, thus subcooling increased and electric power saved.
·Better refrigeration effect: Over refrigerating and proper over heating increased by heat exchanging between the low pressure accumulator and high pressure receiver, thus circulating enthalpy value increased before entering expansion valve and gets best refrigerating capacity when evaporating.
·Liquid compression avoided: Ensure no liquid returns to compressor and cause liquid compression.
·No water dropping and thermal insulation not required·Labor, materials and installation space saving.
·Aesthetic improved, no mustiness, and non-pollution.
Part NO. | High pressure Conn (in) | Low pressure Conn (in) | Diemensions | ||||||||
A (in) | B (in) | H1 (in) | H2 (in) | H3 (in) | |||||||
PKH-304 | 3/8 | 1/2 | 4.0 | 3.0 | 9.6 | 7.3 | 2.3 | ||||
PKH-305 | 3/8 | 5/8 | 5.5 | 4.0 | 9.4 | 7.5 | 2.3 | ||||
PKH-307 | 3/8 | 7/8 | 6.2 | 5.0 | 13.3 | 10.6 | 3.14 | ||||
PKH-411 | 1/2 | 1-1/8 | 8.6 | 6.5 | 13..6 | 9..8 | 3.0 | ||||
PKH-513 | 5/8 | 1-3/8 | 8.6 | 6.5 | 16.0 | 12.1 | 3.0 | ||||
PKH-515 | 5/8 | 1-5/8 | 8.6 | 6.5 | 17.5 | 14.8 | 3.0 | ||||
PKH-721 | 7/8 | 2-1/8 | 10.7 | 8.6 | 19.3 | 14.5 | 4.3 | ||||
Refrigeration system flow diagram
Other products

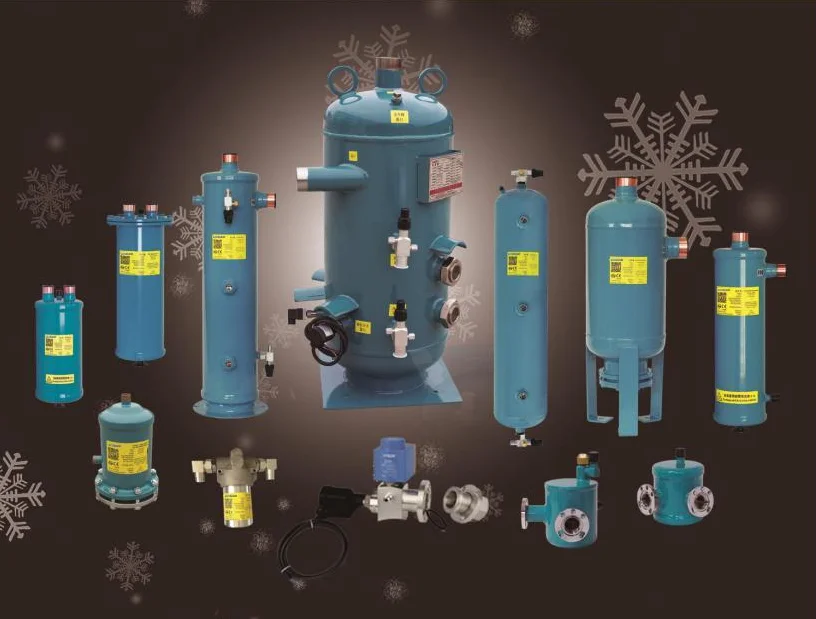

Oil separator series

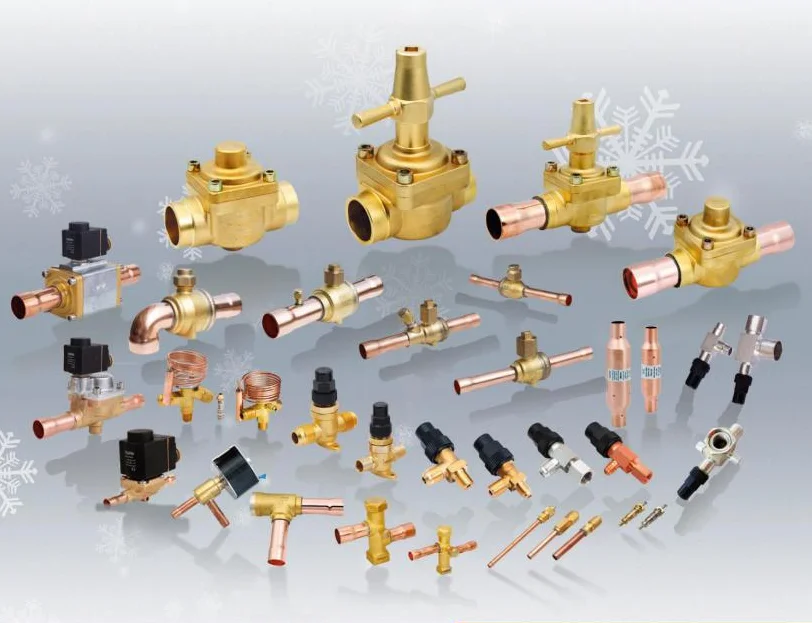

Refrigeration Valve
Suction line accumulator
Filter Drier Series

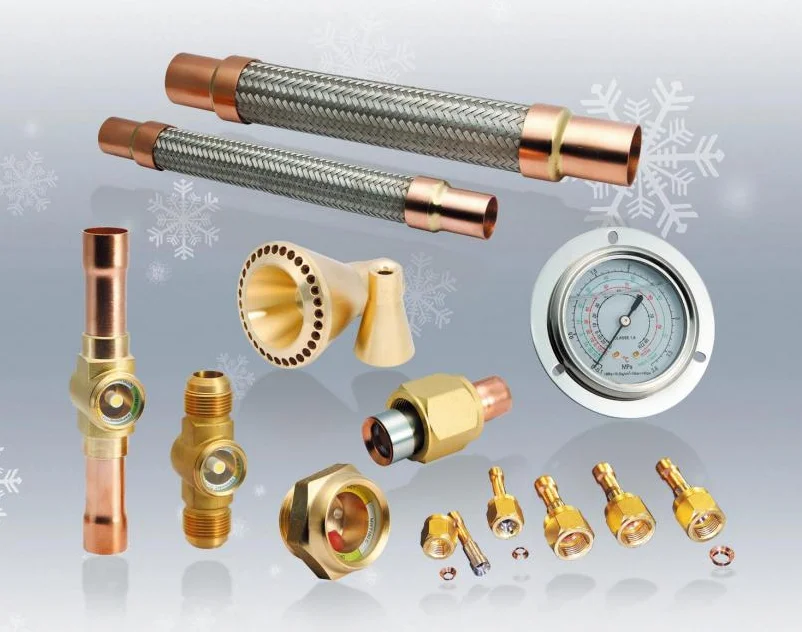

Pipeline fittings

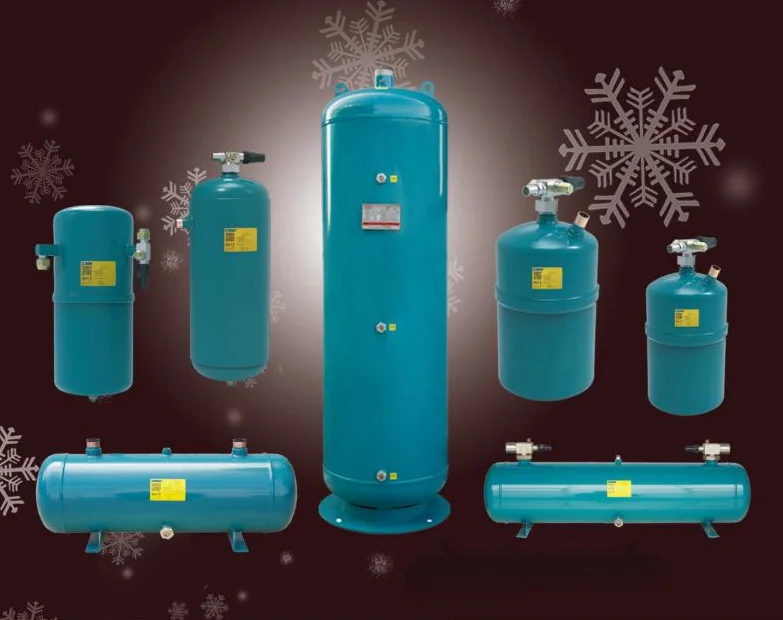

Liquid Receiver
Related Products
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
LOMAN was founded in 2002, we have 15 years design, research & development, production,installation and sales experience in refrigeration line.
Our main products include: refrigeration condensing unit , evaporator, polyurethane sandwich insulation panel, cold room door , refrigeration parts. We undertake fresh keeping storage, blast freezer, cold storage which apply to fruit, vegetables, meat , food processing and other fields.
We commit to developing the global market, seeking cooperation all over the world, establishing a wide range of services and information network.
Advise us what you want, we return you a complete turn-key project.
LOMAN, your true partner.
Our main products include: refrigeration condensing unit , evaporator, polyurethane sandwich insulation panel, cold room door , refrigeration parts. We undertake fresh keeping storage, blast freezer, cold storage which apply to fruit, vegetables, meat , food processing and other fields.
We commit to developing the global market, seeking cooperation all over the world, establishing a wide range of services and information network.
Advise us what you want, we return you a complete turn-key project.
LOMAN, your true partner.
