Лидер продаж хорошая цена ZJLJ официальное дорожное оборудование CP8000 8 м дорожный бетонный асфальтоукладчик для дороги и
- Категория: Асфальтоукладчики >>>
- Поставщик: Zhenjiang,Road,Machine,Heavy,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.6 $* | 0.13 $* |
| Aug-19-2025 | 0.55 $* | 0.80 $* |
| Jul-19-2025 | 0.88 $* | 0.99 $* |
| Jun-19-2025 | 0.89 $* | 0.54 $* |
| May-19-2025 | 0.97 $* | 0.54 $* |
| Apr-19-2025 | 0.86 $* | 0.93 $* |
| Mar-19-2025 | 0.42 $* | 0.22 $* |
| Feb-19-2025 | 0.62 $* | 0.39 $* |
| Jan-19-2025 | 0.67 $* | 0.12 $* |
Характеристики
Product Overview

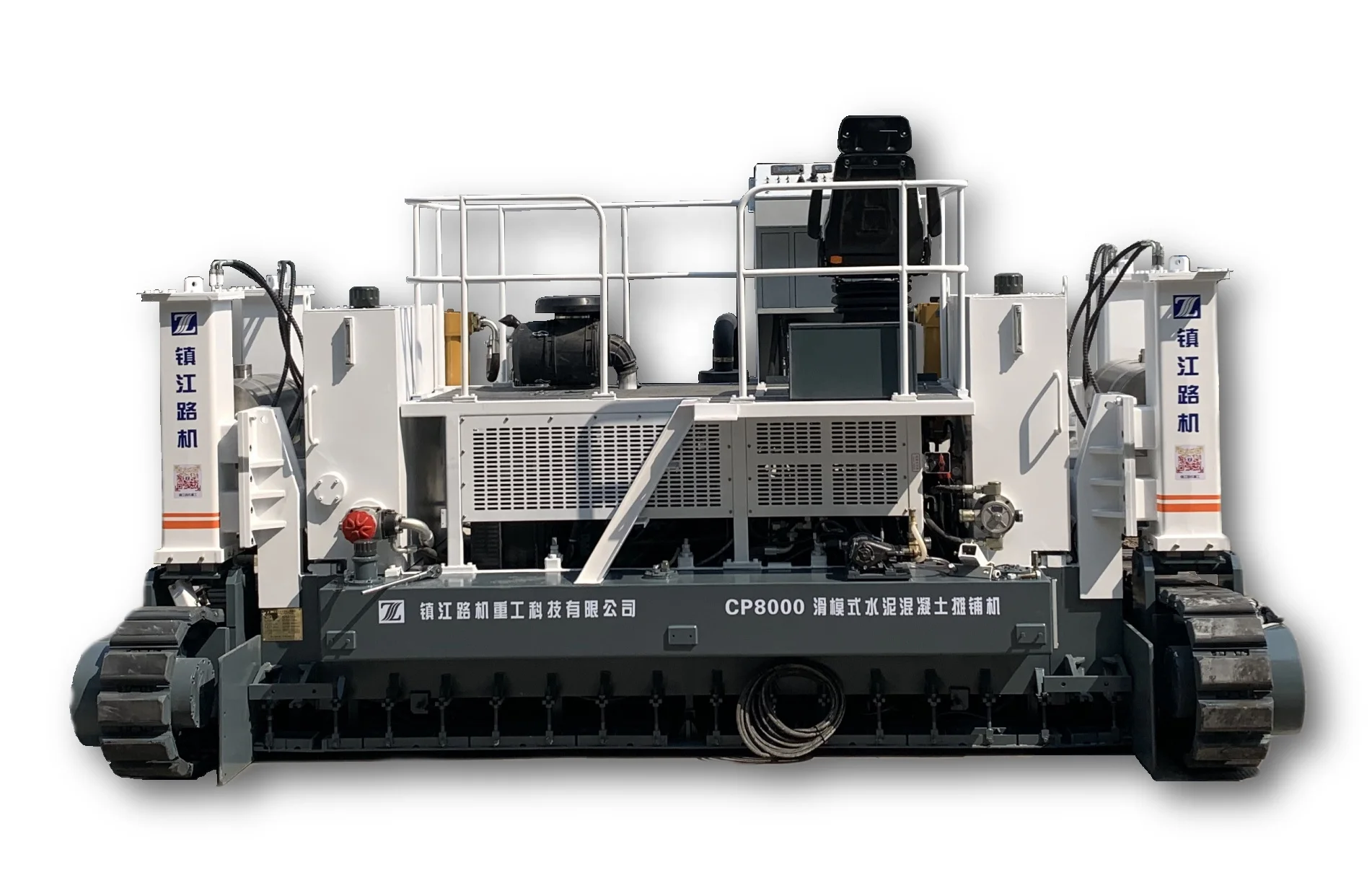

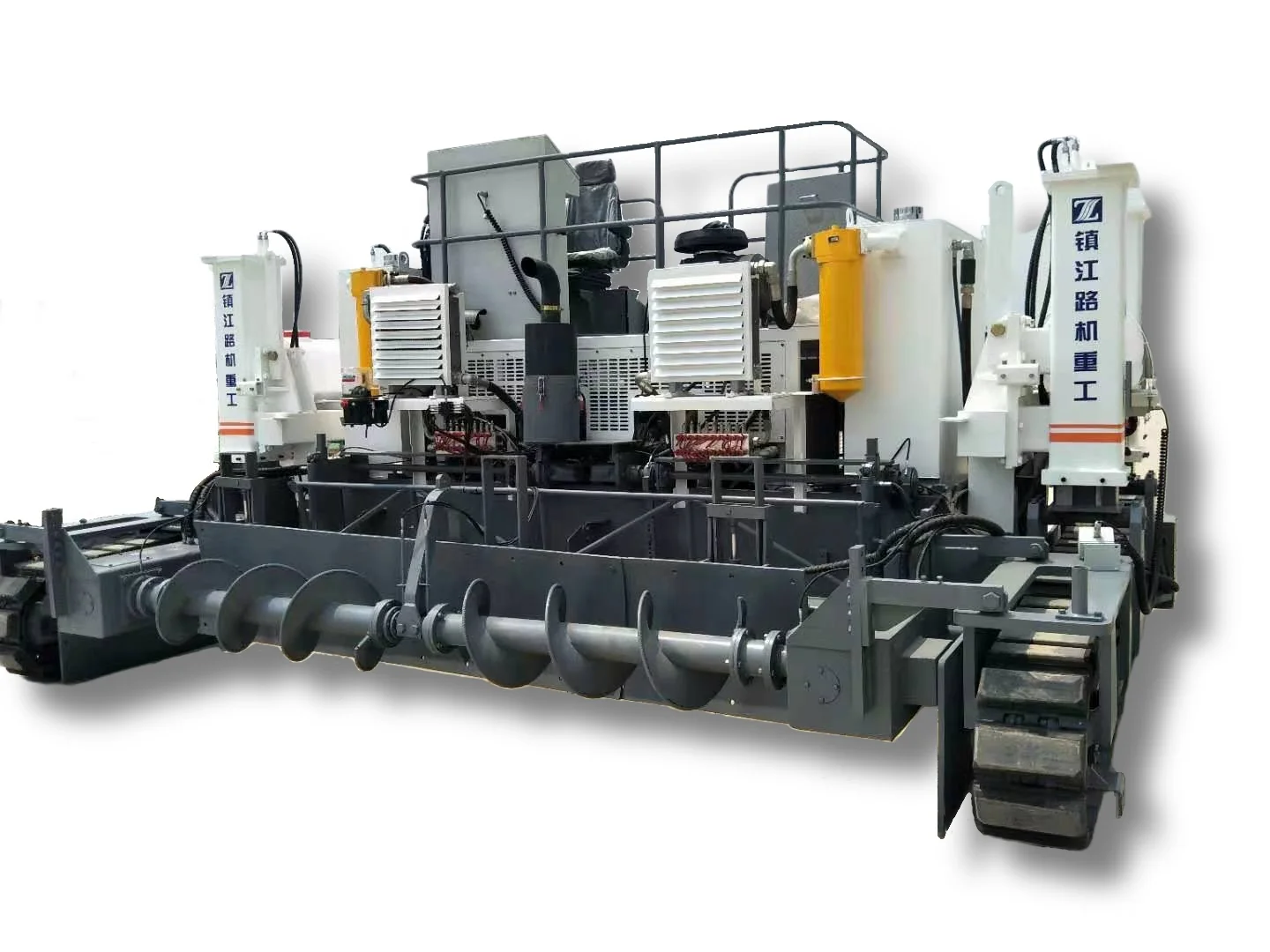

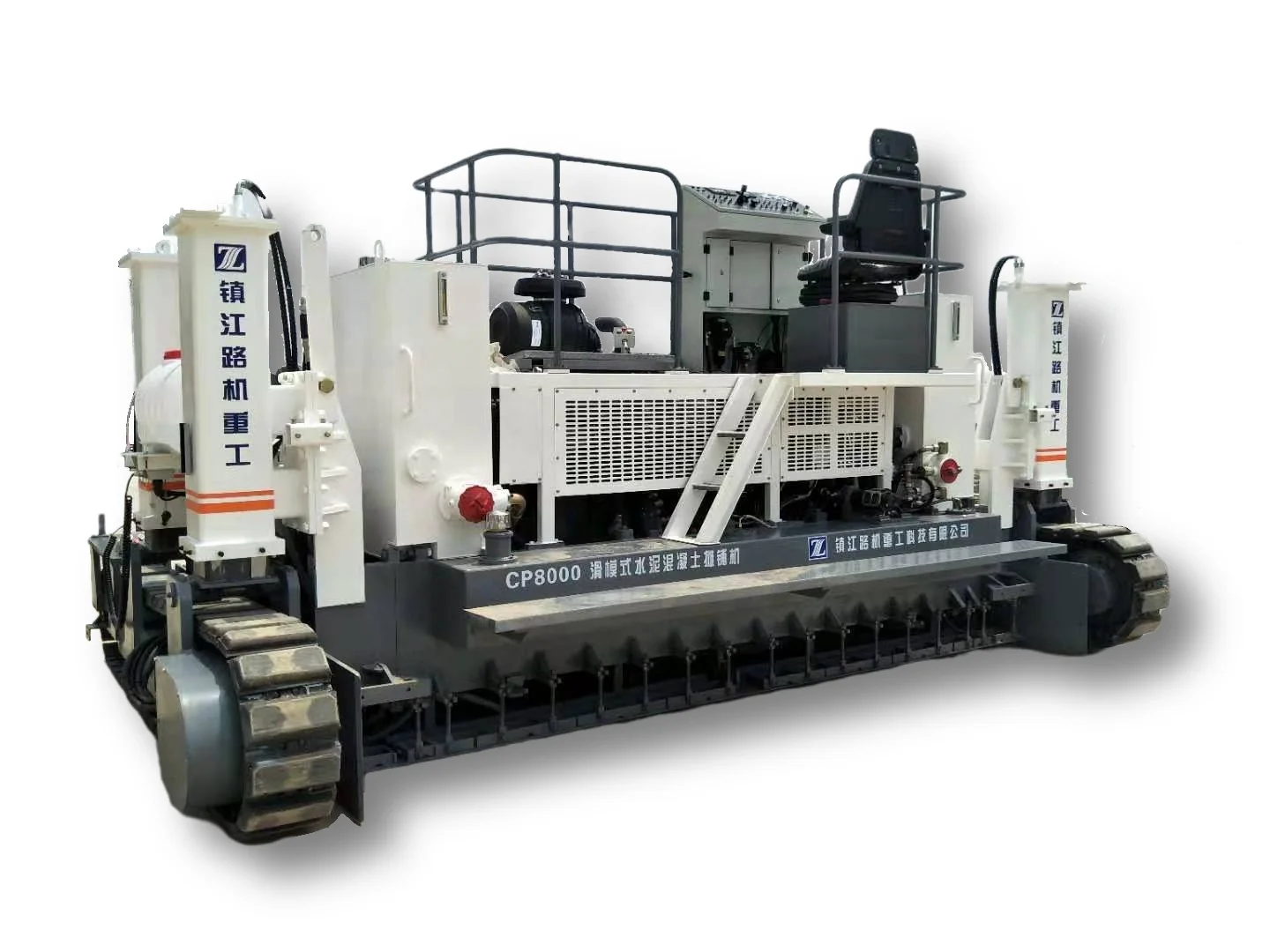

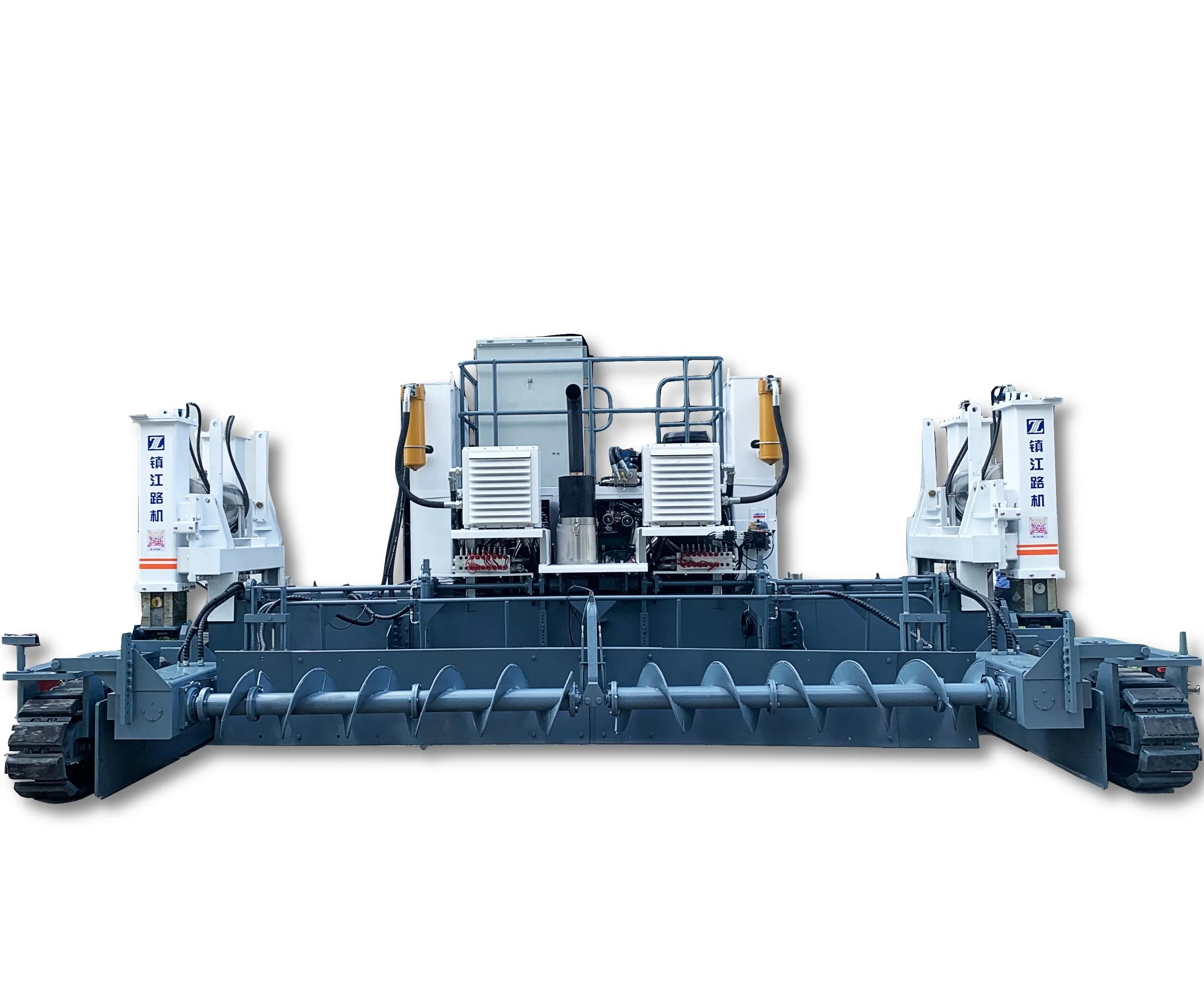

ZJLJ Official CP8000 Road Machinery 8m Road SLIPFORM Cement Concrete Paver
two crawler, automatic driving and automatic leveling control system, can complete the cement concrete paving, scraping,
vibrating, stamping, extrusion molding and pavement working procedure, and can complete the middle reinforced insert, side steel insert etc. process..
Performance Characteristics
•Wide scraping plate with fine adjustment mechanism to ensure paving surface flatness.
•Special angle-cutting mechanism for good pavement shaping.
•Simultaneous operations of scraping, vibrating, tamping, shaking extruding, and shaping at the same time. Meanwhile, reinforce steel bars can be inserted from from either middle or side.
•Full hydraulic independent drive, micro-computer with display and self-diagnostic capability.
•Auto levelling and tracing systems to ensure paving flatness, straightness and smoothness at road bends.
•Ergonomically designed with smart controls for operational comfort and ease.
•Imported key components to ensure machine reliability and prolong service life of the paver.
•Special angle-cutting mechanism for good pavement shaping.
•Simultaneous operations of scraping, vibrating, tamping, shaking extruding, and shaping at the same time. Meanwhile, reinforce steel bars can be inserted from from either middle or side.
•Full hydraulic independent drive, micro-computer with display and self-diagnostic capability.
•Auto levelling and tracing systems to ensure paving flatness, straightness and smoothness at road bends.
•Ergonomically designed with smart controls for operational comfort and ease.
•Imported key components to ensure machine reliability and prolong service life of the paver.
FEATURES AT A GLANCE
SPECIFICATION
No | Description | Unit | CP8000 |
1 | Paving Width | mm | 4250-8000 |
2 | Paving thickness | mm | 0-350 |
3 | Paving speed | m/min | 0-10 |
4 | Running speed | km/h | 0-2 |
5 | Drive system | Full hydraulic | |
6 | Running system | Two track | |
7 | Engine Model | TAD851VE(VOLVO) | |
8 | Engine Power | kw | 185 |
9 | Engine Speed | rpm | 2200 |
10 | Paving Evenness | 3mm/3m | |
11 | Vibration Device | American WYCO High frequency & Hydraulic drive | |
12 | Overall size | mm | 4020*9290*2770 |
13 | Machine Weight | t | 25 |
14 | Automatic leveling system | German Moba Automatic leveling system | |
15 | Gearbox System | German STIEBEL GEARBOX |
PRODUCT SHOW
CONSTRATION VIDEO
PRODUCT CONFIGURATION
VOLVO 851 power engine
Imported ATOS control valve
Imported German Moba Automatic leveling system
Imported American Danfoss Hydraulic pumps and motors
Imported American Lincoln Centralized Lubrication
Imported American Wyco Vibration Device

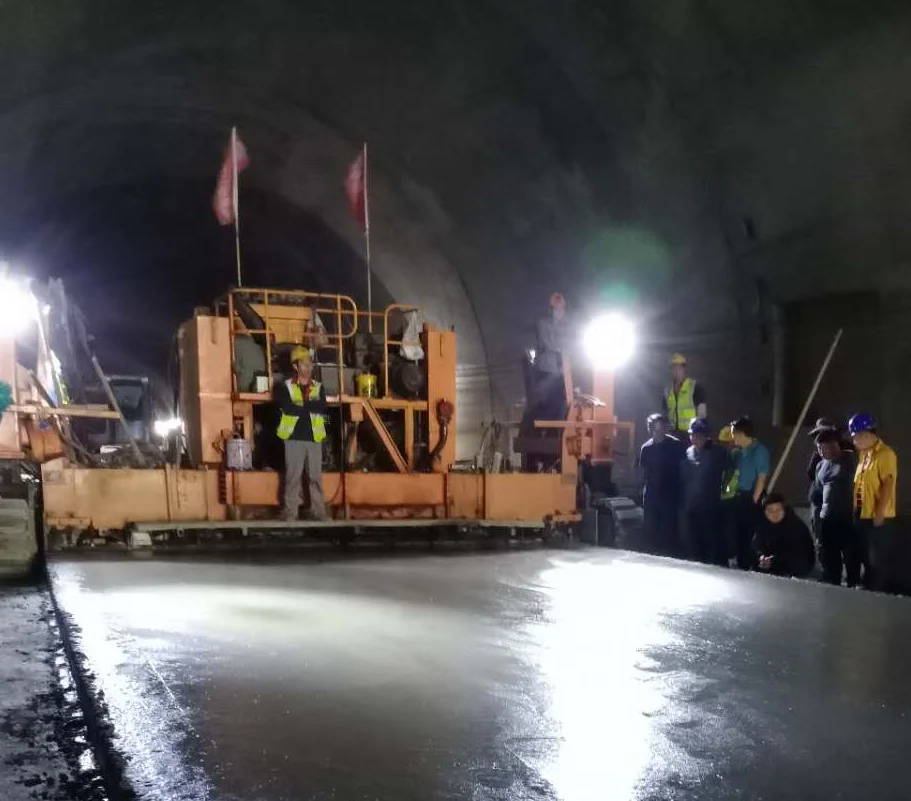

Successful Project
Project in Mauritius Airport

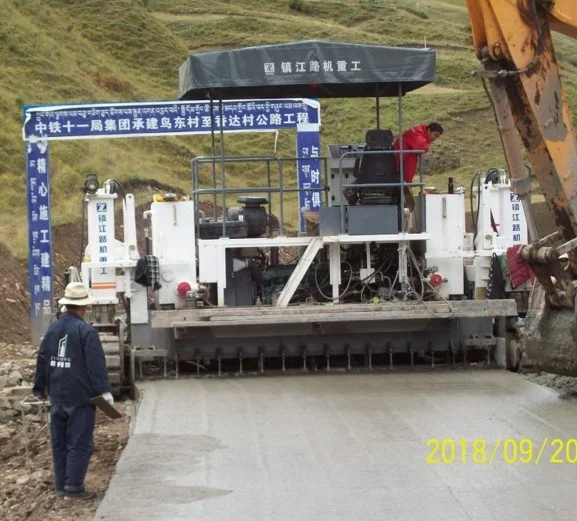

Project in Tibetan plateau
Project in Thailand
SIMILAR PRODUCTS
PACKING AND SHIPPING
COMPANY INFORMATION
FAQ
1 :Are you original manufacture?
A:Yes, we ZJLJ are an official leading manufacture in construction machinery in China and we have the whole
series products you need.
2:What kind terms of payment can be accepted?
A:Normally we can work on T/T term or L/C term.
3:Which Incoterms 2010 terms can we work?
A:Normally we work on FOB, CFR, GIF.
4:What about the delivery time?
A:7-30 days after receving the deposit.
5:What about the warranty time?
A:12 months after shipment or 2000 working hours.
6.What about the Minimum Order Quantity?
A:The MOQ is 1 pcs.
A:12 months after shipment or 2000 working hours，First come first served
6.What about the Minimum Order Quantity?
A:The MOQ is 1 pcs.
A:Yes, we ZJLJ are an official leading manufacture in construction machinery in China and we have the whole
series products you need.
2:What kind terms of payment can be accepted?
A:Normally we can work on T/T term or L/C term.
3:Which Incoterms 2010 terms can we work?
A:Normally we work on FOB, CFR, GIF.
4:What about the delivery time?
A:7-30 days after receving the deposit.
5:What about the warranty time?
A:12 months after shipment or 2000 working hours.
6.What about the Minimum Order Quantity?
A:The MOQ is 1 pcs.
A:12 months after shipment or 2000 working hours，First come first served
6.What about the Minimum Order Quantity?
A:The MOQ is 1 pcs.
