Зарядное устройство для литиевых аккумуляторов 20A RV Solar Dual
- Категория: Зарядное устройство для аккумулятора >>>
- Поставщик: Ningbo,Zhong,Xin,Electronic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 88.15 $* | 92.80 $* |
| Aug-20-2025 | 87.43 $* | 91.86 $* |
| Jul-20-2025 | 73.14 $* | 77.19 $* |
| Jun-20-2025 | 86.9 $* | 90.60 $* |
| May-20-2025 | 75.2 $* | 79.48 $* |
| Apr-20-2025 | 84.19 $* | 88.80 $* |
| Mar-20-2025 | 84.37 $* | 88.59 $* |
| Feb-20-2025 | 83.68 $* | 87.32 $* |
| Jan-20-2025 | 82.27 $* | 86.32 $* |
Характеристики
Product Description
Specification
Input | DC Battery: 12.5~16.0Volts Solar Input: 16.0-25.0 Volts |
Output/Charging Voltage | 14.4~15.4 Volts(Stops charging when alternator output or vehicle battery below 12.5 volts) |
Output Current | DC Output: 20A Solar Output: 20A |
Minimum Start Voltage | 2.5 Volts-For battery being charged |
Soft Start | Yes |
Soft Charge Current | DCDS20@20A |
Bulk Charge Voltage | 14.7V(AGM/Gel)14.4V(Lead Acid)15.4V(Calcium)14.4V(LiON) |
Absorption | Constant voltage with automatic amperage control |
Equalisation | Automatic |
Float Charge Voltage | 13.5V(AGM/Gel)13.5V(Lead Acid)13.5V(Calcium) |
Float Charge Current | 100mA |
Battery Range | 60 to 600Ah |
0-1 Metres | 12AWG |
1-5 Metres | 8 AWG |
5 Metres+ | 6 AWG |

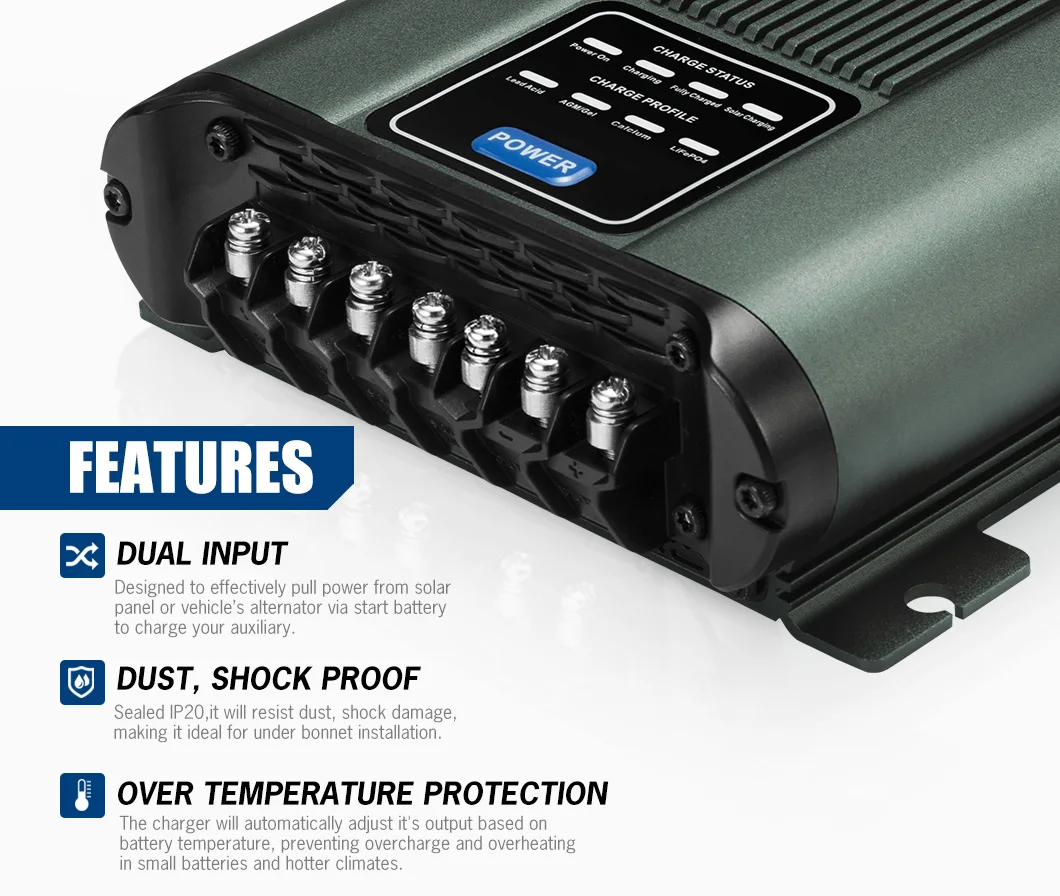

FEATURES
* Dual Input: This Charger is designed to effectively pull power from solar panel (up to 20A) or vehicle’s alternator to charge your auxiliary battery.

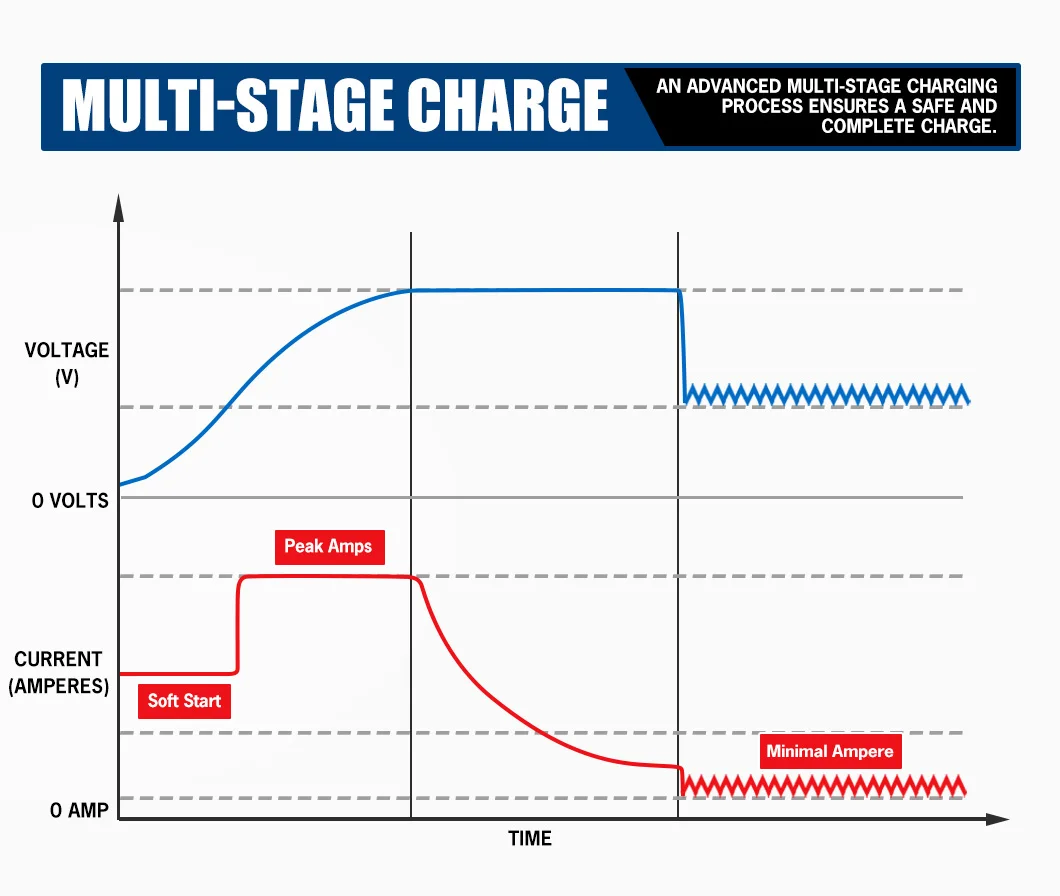

* Multi-Stage Charging: This charger integrates standby, pre-charge, constant current charging, constant voltage charging, full charge and re-charge.
* Multi Battery Selection: This DC to DC charger by ATEM POWER is compatible with Lead Acid, AGM, Gel, calcium, LiON batteries.

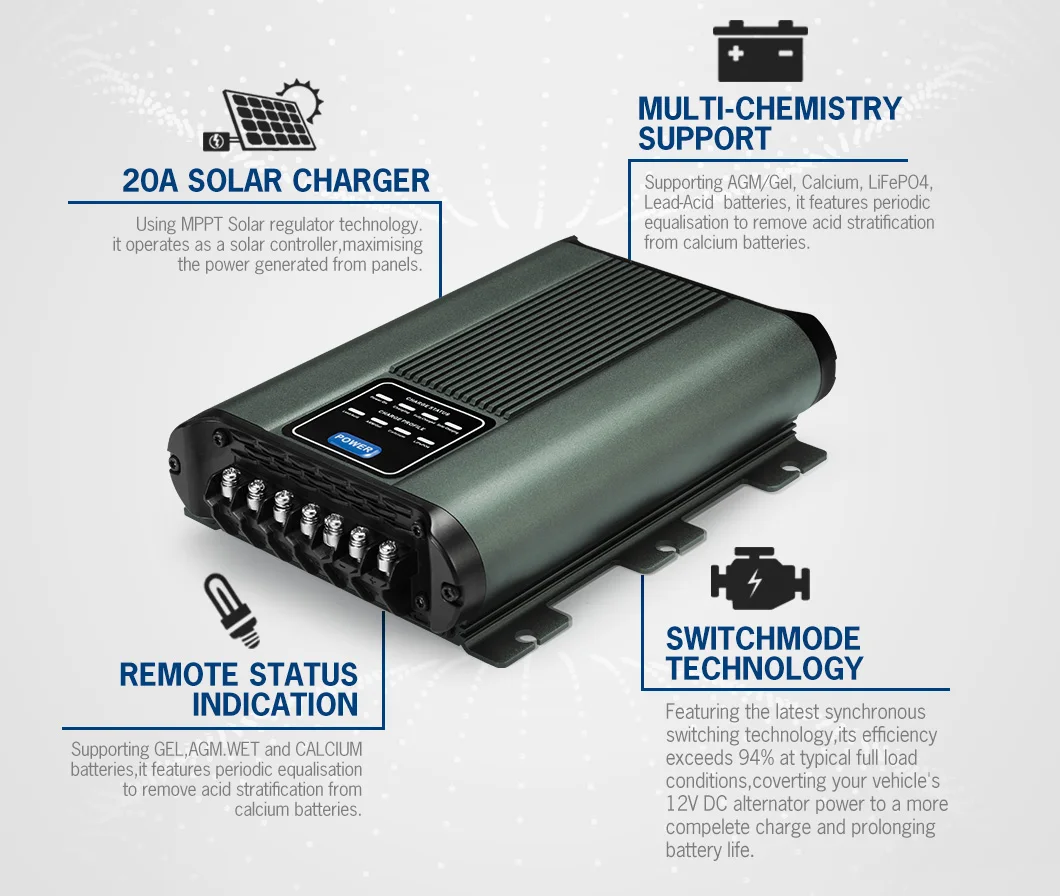

* Built-In MPPT Regulator: The regulator is designed to harvest up more energy from the solar panel, thus reducing the load on your engine.

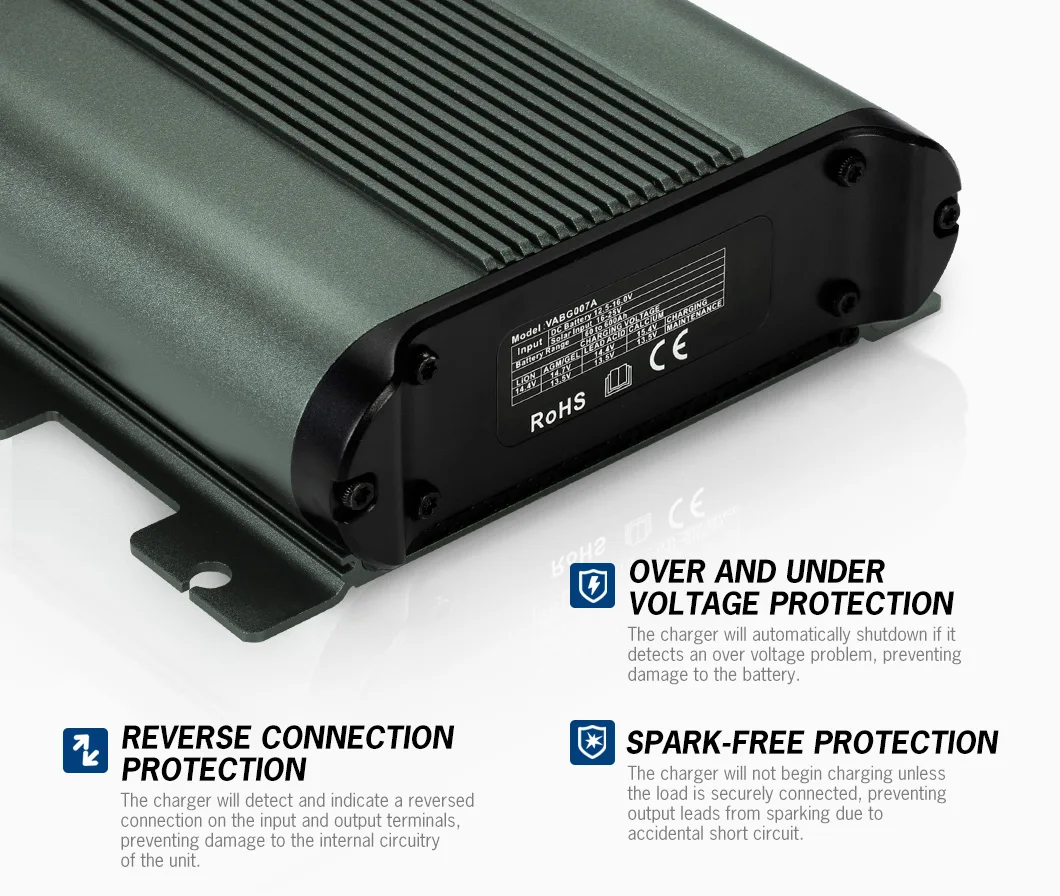

* Multiple Protection: It integrates over-charge, short circuit, over-temperature, thermal load, solar input overload, input/output reverse polarity protection.
* Internal Temperature Monitoring: This mechanism can effectively protect the circuit board, thus prolong the lifespan of the charger.
* Sturdy Construction: Sturdy aluminum housing is built to resist harsh conditions and quality wires are built for long last
durability.
* Upgraded Charging Algorithm: This algorithm is designed to select the optimum charge mode and revive your discharged battery.
* User Friendly Design: The LED indicator shows real-time stage of charging and memory function is integrated to make your charging more convenient.

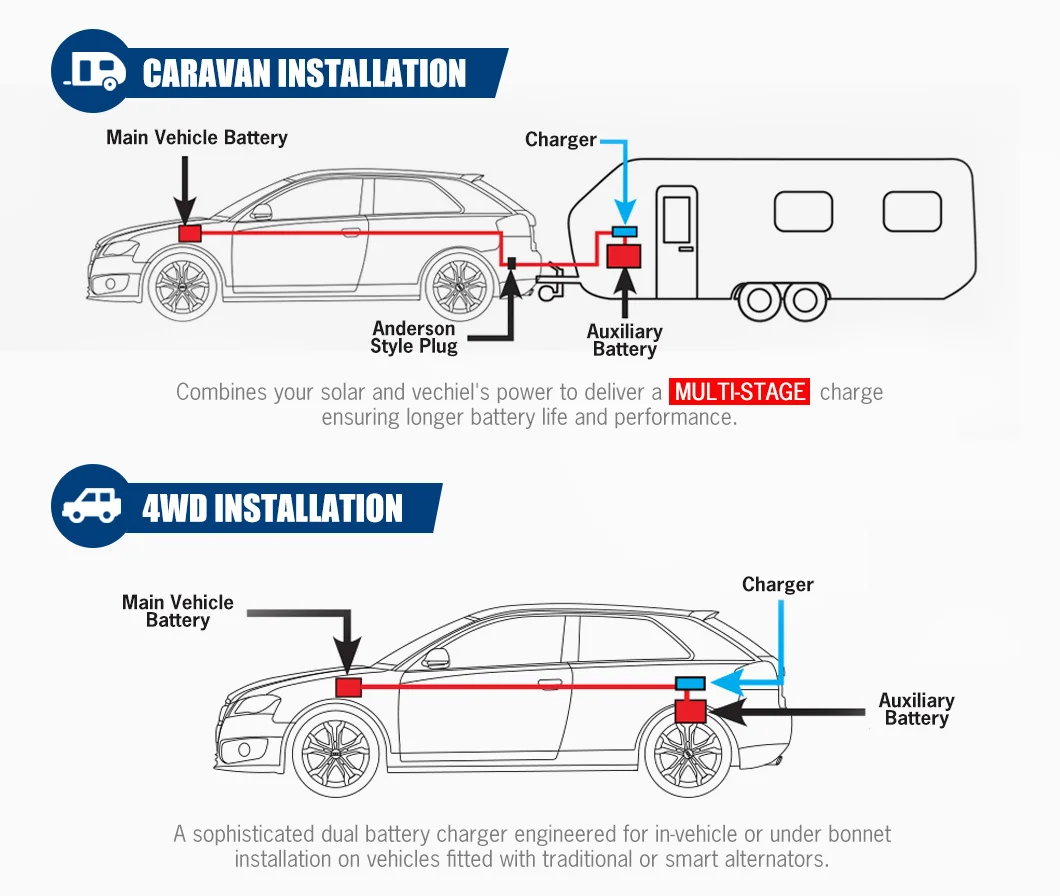

* Superior Versatility: This DC to DC charger is ideal for 4WDs, caravans, RVs, trucks, campers, trailers, campervans, commercial vehicles and boats.
* Dual Input: This Charger is designed to effectively pull power from solar panel (up to 20A) or vehicle’s alternator to charge your auxiliary battery.
* Multi-Stage Charging: This charger integrates standby, pre-charge, constant current charging, constant voltage charging, full charge and re-charge.
* Multi Battery Selection: This DC to DC charger by ATEM POWER is compatible with Lead Acid, AGM, Gel, calcium, LiON batteries.
* Built-In MPPT Regulator: The regulator is designed to harvest up more energy from the solar panel, thus reducing the load on your engine.
* Multiple Protection: It integrates over-charge, short circuit, over-temperature, thermal load, solar input overload, input/output reverse polarity protection.
* Internal Temperature Monitoring: This mechanism can effectively protect the circuit board, thus prolong the lifespan of the charger.
* Sturdy Construction: Sturdy aluminum housing is built to resist harsh conditions and quality wires are built for long last
durability.
* Upgraded Charging Algorithm: This algorithm is designed to select the optimum charge mode and revive your discharged battery.
* User Friendly Design: The LED indicator shows real-time stage of charging and memory function is integrated to make your charging more convenient.
* Superior Versatility: This DC to DC charger is ideal for 4WDs, caravans, RVs, trucks, campers, trailers, campervans, commercial vehicles and boats.
