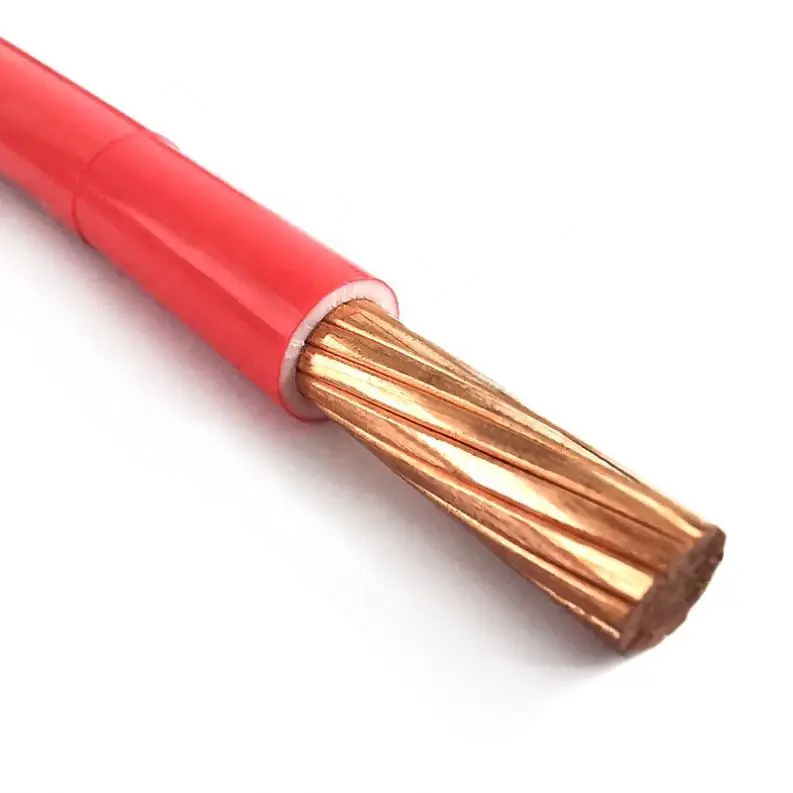

Электрический кабель изоляционный силовой изолированный жесткий Медный BV 35 PVC H05V одножильный ПВХ 400MCM строительный провод

Type

Name

Laying place and requirement

Long term working Temperature 0C

60227IEC01  05

BV

BLV

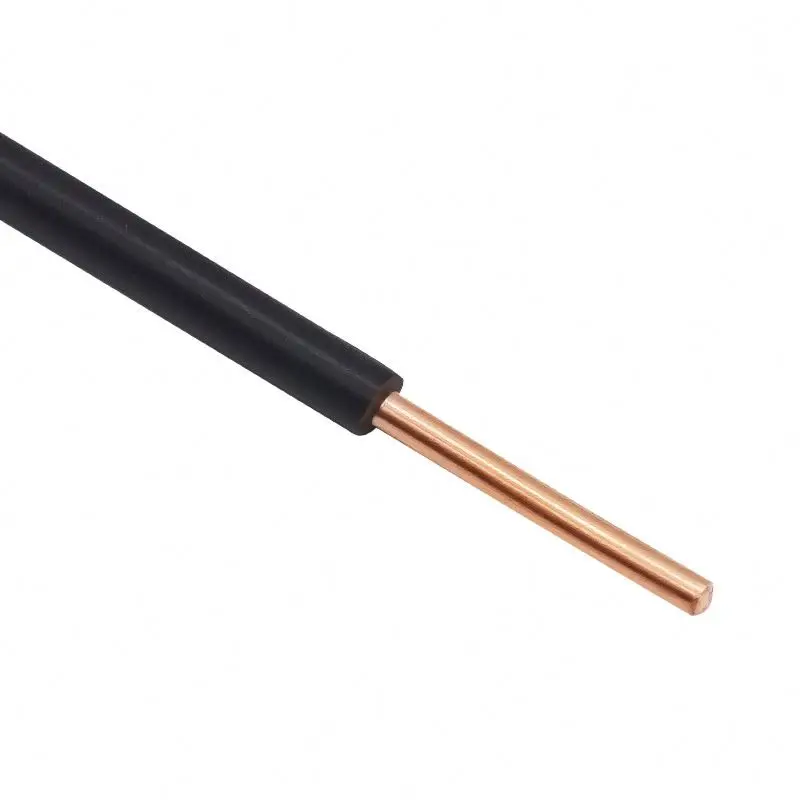

Copper conductor PVC insulated wires

Aluminum conductor PVC insulated wires

Fixed laid indoors

Conduit etc.

     70

60227IEC07

(BV-90)

Heat resistant copper conductor PVC insulated wire at 90 0C

Mainly be laid at the places of high temperature environment and can be laid indoors ,conduits.

    90

BVR

Copper conductor PVC insulated flexible cable

Be for laying permanent place where flexible required.

    70

60227IEC10

(BVV) BVV

Copper conductor PVC insulated PVC sheathed round wires

Fixed laid, fit for the places with high mechanical protection and moisture place, can be laid in the air or underground.

     70

BLVV

Aluminum conductor PVC insulated PVC sheathed round wires

BVVB

Copper conductor PVC insulated PVC sheathed flat wires

BLVVB

Aluminum conductor PVC insulated PVC sheathed flat wires

60227IEC02(RV)

60227IEC06(RV)

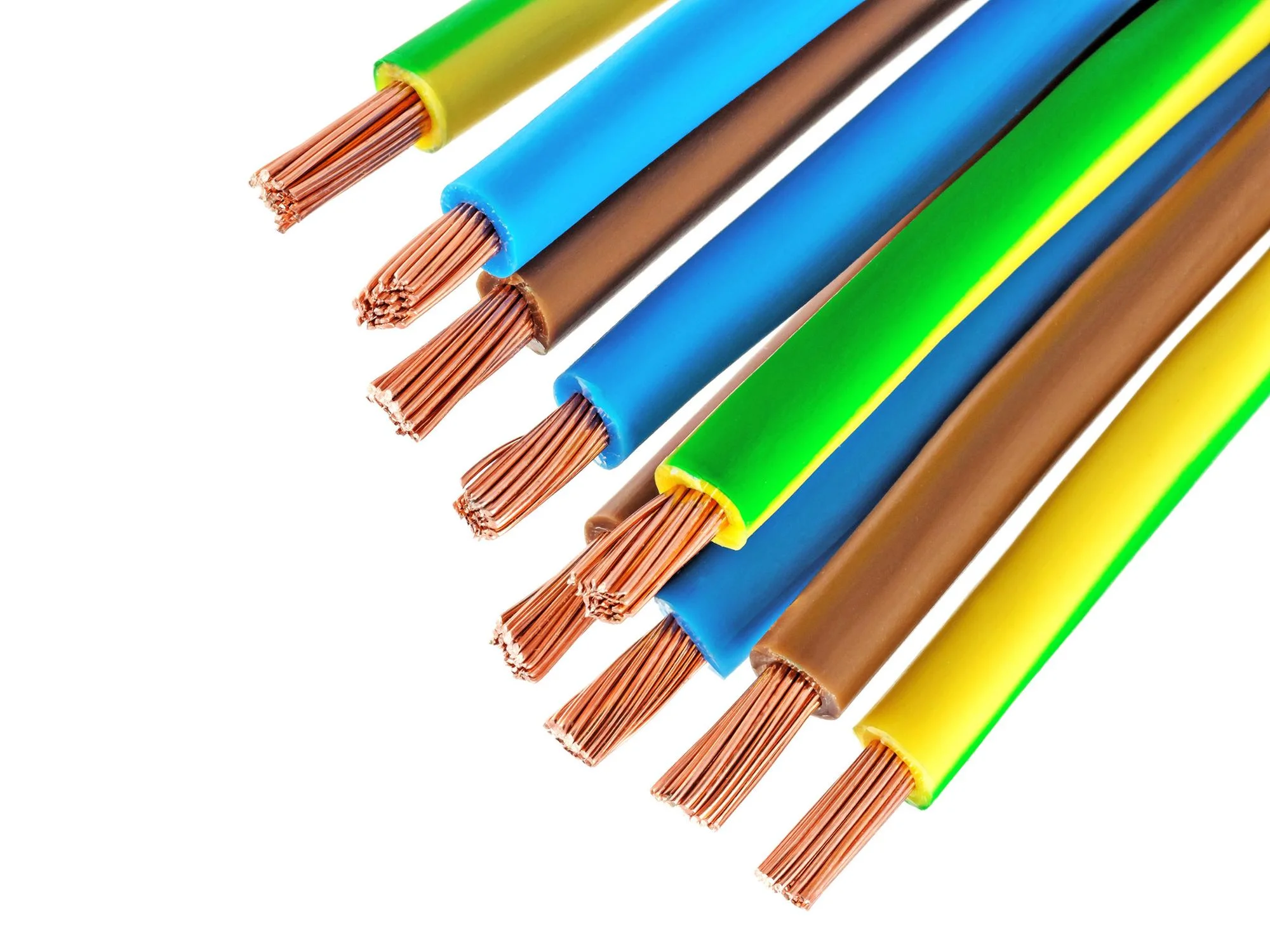

Copper conductor PVC insulated flexible connector wire

Mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexible required

     70

60227IEC42(RVB)

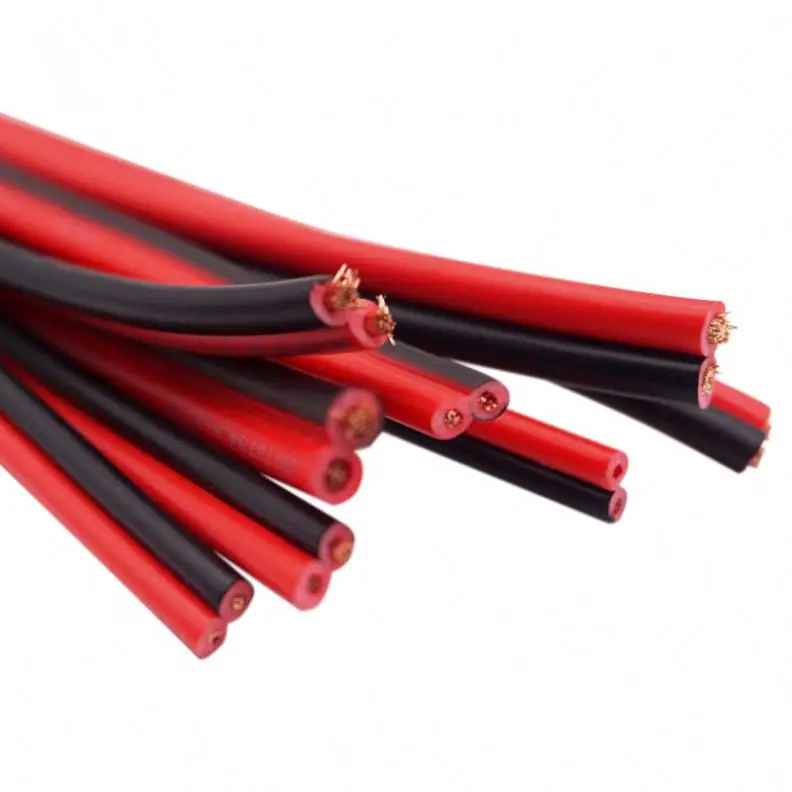

Copper conductor PVC insulated flat flexible connector wire

RVS

Copper conductor PVC insulated flexible twisting connector wire

60227IEC52(RVV)

60227IEC53

Copper conductor PVC insulated PVC sheathed round flexible connector wire

60227IEC08

(RV-90)

Cu conductor heat resistant PVC insulated flexible connector wire at 90 0C

Mainly used at the places where heat resistance is required

 90

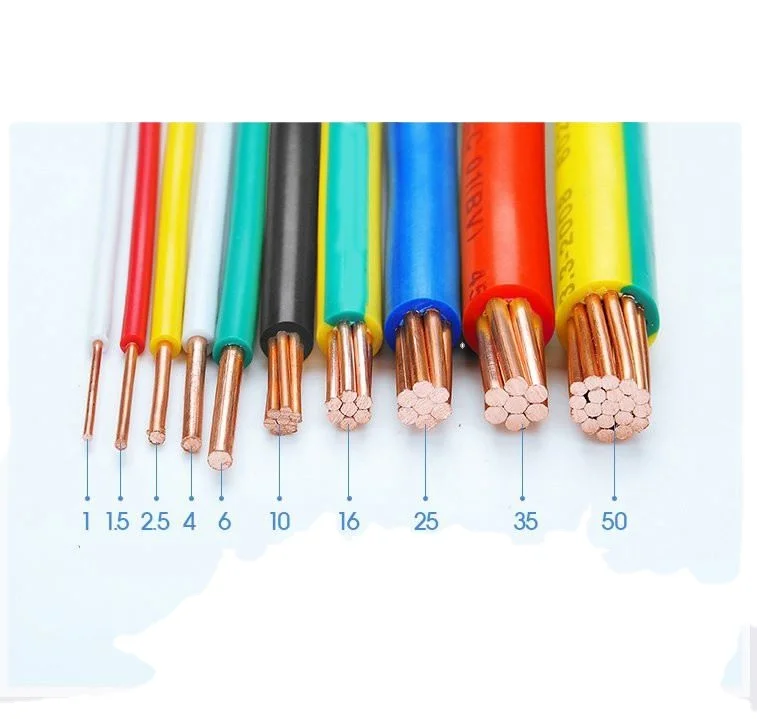

Nominal
sectional area
mm 2

Conductor
No/Dia.
mm

Nominal
Insulated thick
mm

Max overall
Dia.
mm

Condcutor
Resistance at
20

Min insulated
resistance at
70MΩ/km

Cu

Al

1.5

1/1.38

0.7

3.3

12.1

-

0.011

1.5

7/0.52

0.7

3.5

12.1

-

0.010

2.5

1/1.78

0.8

3.9

7.41

11.8

0.010

4

1/2.25

0.8

4.4

4.61

7.39

0.0085

6

1/2.76

0.8

4.9

3.08

4.91

0.0070

10

7/1.35

1.0

7.0

1.83

3.08

0.0065

16

7/1.70

1.0

8.0

1.15

1.91

0.0050

25

7/2.14

1.2

10.0

0.727

1.20

0.0050

35

7/2.52

1.2

11.5

0.524

0.868

0.0040

50

19/1.78

1.4

13.0

0.387

0.641

0.0045

70

19/2.14

1.4

15.0

0.268

0.443

0.0035

95

19/2.52

1.6

17.5

0.193

0.320

0.0035

120

37/2.03

1.6

19.0

0.153

0.253

0.0032

150

37/2.25

1.8

21.0

0.124

0.206

0.0032

185

37/2.52

2.0

32.5

0.099

0.164

0.0032
