For sale automatic reading sts integrated water meter

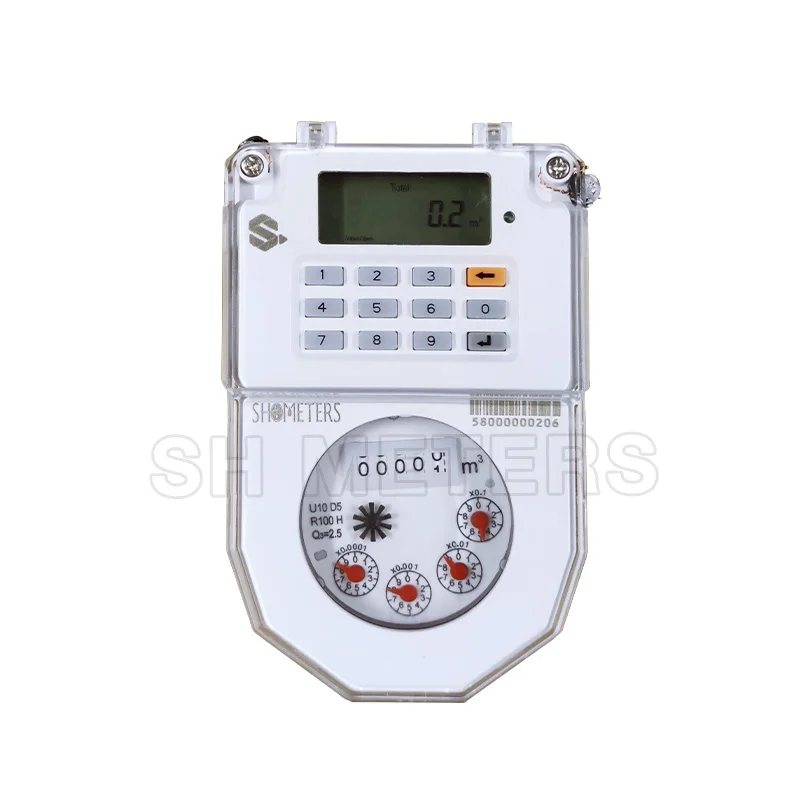

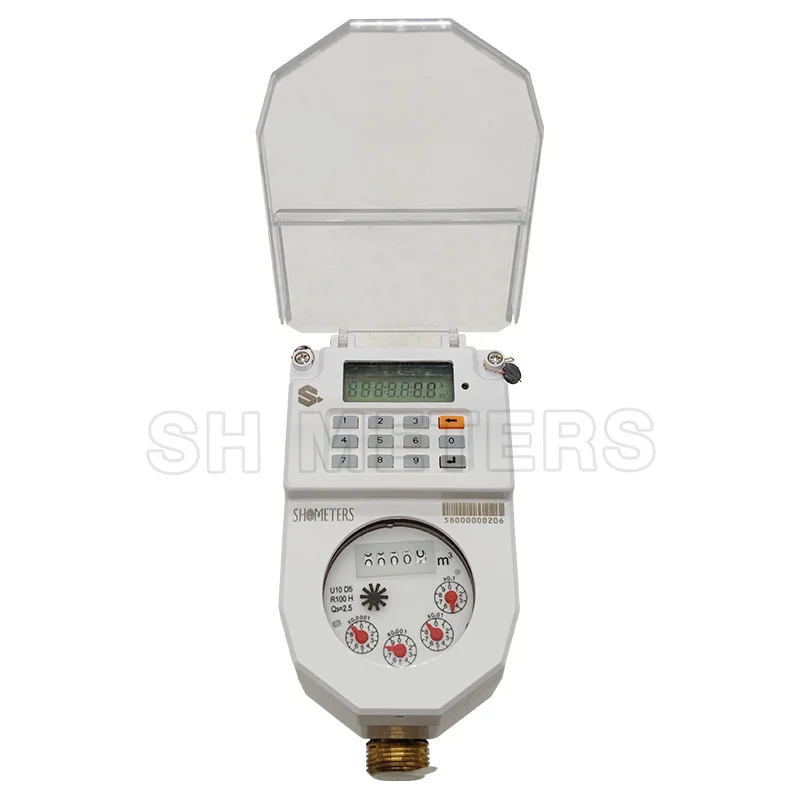

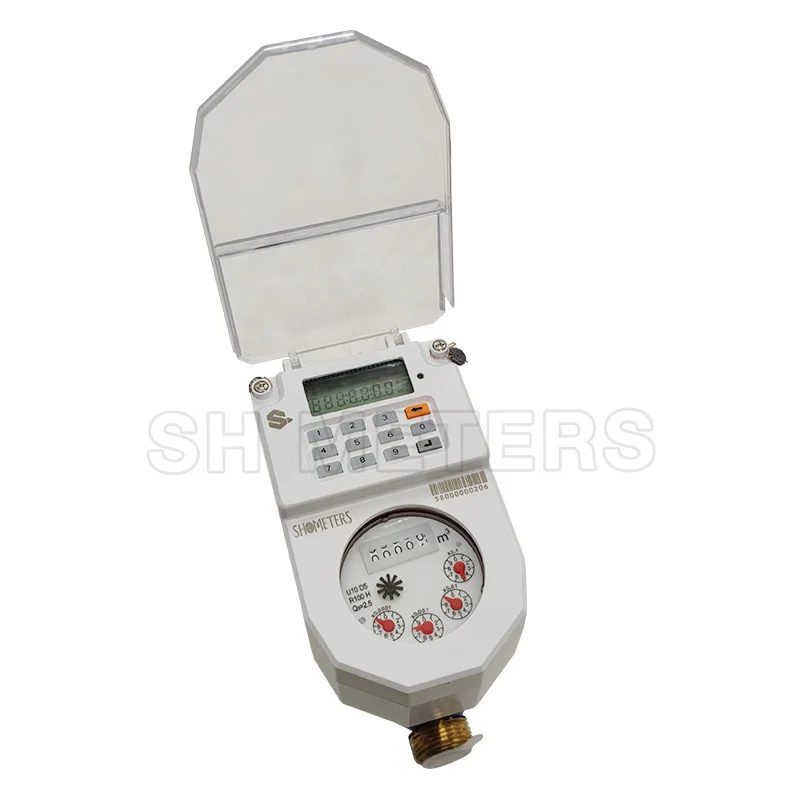

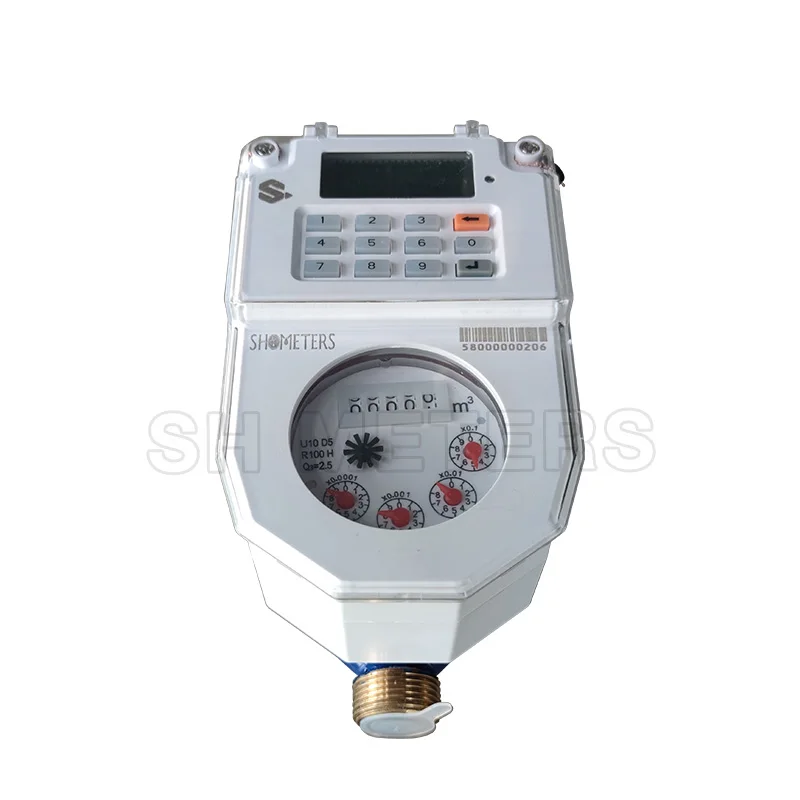

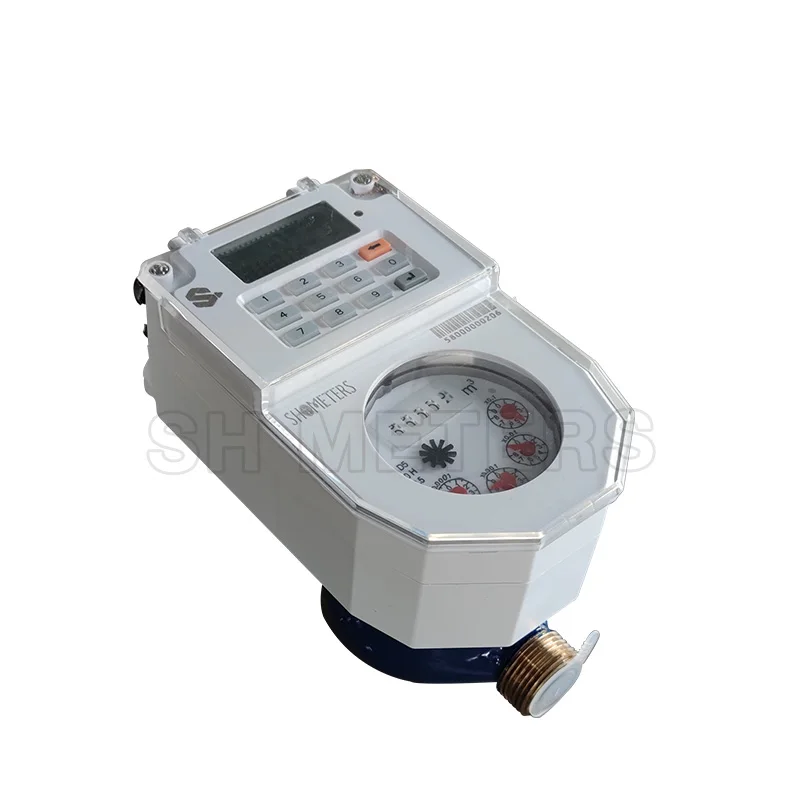

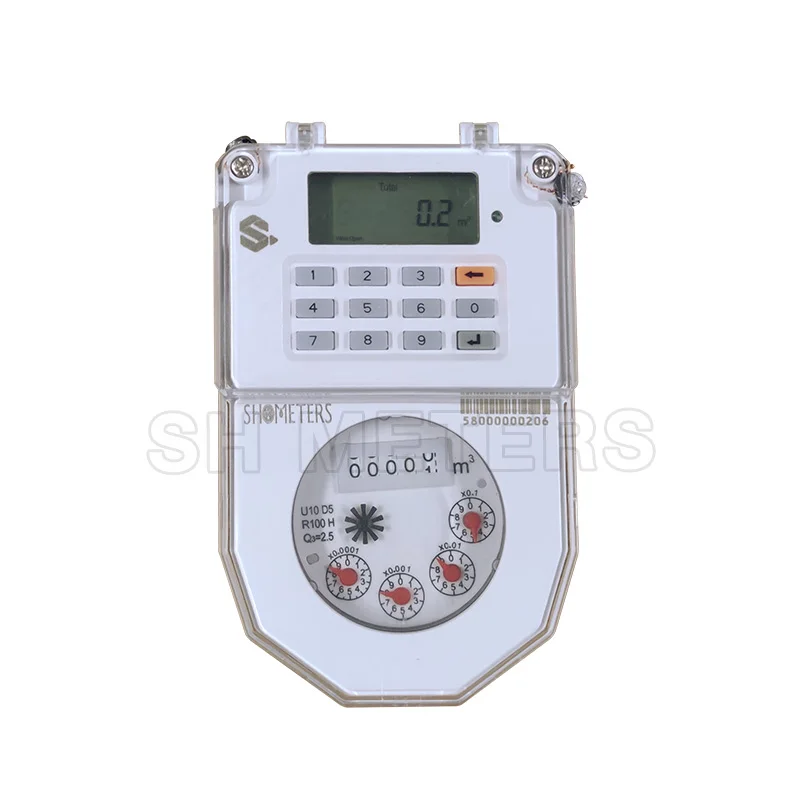

STS PREPAID WATER METER

Caliber-DN15~25











• lngress protection IP67 waterproof


• UP to 8 years battery life


• Automatic valve controling


• STS Standard


• Real-time clock


• Utilities can set step price into meter on request


• Anti-Tamper Magnetic field protection


• LORA-RF communication ( CIU)


• Pay by mobile payment M-PESA,Alipay,MTN,Airtel,etc.















 System function

Our STS product system functions include water price setting, rate setting, quick search and recharge,Print receipts, reset balance, change password, query history, overdraft,etc.



Brief introduction

The keypad Prepaid Water Meters is an STS (Standard Transfer Specification) compliant, electronic valvecontrolled water meter. You are assured of continuously good metrology and revenue protection at thesame time.

RF STS Prepayment Water Meter System consists of smart water meter and integrated keypad withRF module inside for AMR/AMl function.Automatic Meter Reading with/without valve control (AMR/AMI)function is also available,which could realize remote meter data collection & monitor;

lt is compatible with both velocity and volumetric type water meter,which comply with OIMLR49,ISO4064.And conforms to STS standard protocol.





Technical Index And Specifications

1.Nominal Values



Operation	0.1~30℃
Storage	-40℃to+85℃
Meter shell Protection Rate	IP67

2.Metrological Parameters-Directive 2004/22/EC(MID)&EN 14154:2007



Nominal size	Dn	mm	in-line
			15	20	25
Maximum flow	Q4	m³/h	3	5	7
Ratio"R"	Q3/Q1		100	100	100
Permanent l flow	Q3	m³/h	1.5	2.5	3.5
Transitional flow	Q2		0.12	0.20	0.28
Minimum flow	Q1		0.03	0.05	0.07
Minimum reading		m³	0.0005
Miximum reading			99999



3.Dimensions And Diagram



Nominal size	Length	Width	Height	Connecting
mm				D
15	165	101	124	G3/4B
20	195	101	124	G1B
25	225	101	124	G5/4B

Note: dimensions technical pararmeters are subject to physical products or ordering.



Basic Functionality



Function	Details
Prepayment	STS Standard, recharge by input 20digits TOKEN.
Low credit alarm	Alarm value can be set by inputting corresponding TOKEN.
Prepaid and post-paid switch	Meter can be switch to prepaid mode or post-paid mode.
Non-return valve	Non-return valve inside for preventing back-flow.
Anti-tamper	Meter will automatically close the valve after detection of magnetic field and open cover event.
Step Tariff	Step Tariff can be set by inputting corresponding TOKEN.
Overdraft Collection	Non-Revenue water(Overdraft) can be collected day by day or month by month.
Communication	The meter is available with AMl system through GPRS or Bluetooth 4.0 on request.
Information Inquiry	Consumer could check the data like Credit Remain,Total Purchased and Total Credit by input the short code.
Liquid Crystal Display







Pay As You Go Water Vending Process



Water Purchase

(1)Please go to the local selling water business hall.

(2)To provide operator meter ID number ( ID number printed on the water meter).



(3)Tell the operator how much you want to buy and prepay.



(4)On the receipt,you can get a printed TOKEN "20(Digits)"



Smart Water Metering Solution



Solution 1: Prepaid water meter

End-users use IC cards to pay water bills.When the balance in the water meter is 0,the water meter closes the valve and stops the water supply.



Solution  2:AMl water meter system
At present,mature models of wireless remote meter reading in my country are divided into Lora and GPRS.The system could achieve the water consumption of all users who instal water meters can be monitored via cloudy platform in office.Not only can the data be sent to the service olatforrm of the water supply company in the form of data docking,but also the abnormal water consumption meter can be alarrmed.



Solution  2:Pipe Leakage system
Using high precision ultrasonic water meter in water supply main pipe.( its accuracy can reach R400. Even a small flow of water used by a single resident can be measured.) We needn't to go to the site to read the meter.only need read the total water consumption in the area from the manage computer.Then we can use the water consumption of the main pipeline to subtract the water consumption of the sub-pipeline to contirm the pipeline leakage and leakage rate in the area.
