Микрометры с защитой от охлаждающей жидкости из нержавеющей стали маленький скользящий
- Категория: Micrometers >>>
- Поставщик: Koueisangyou,Co,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.0 $* | 0.38 $* |
| Aug-16-2025 | 0.33 $* | 0.69 $* |
| Jul-16-2025 | 0.1 $* | 0.70 $* |
| Jun-16-2025 | 0.48 $* | 0.43 $* |
| May-16-2025 | 0.4 $* | 0.54 $* |
| Apr-16-2025 | 0.5 $* | 0.38 $* |
| Mar-16-2025 | 0.52 $* | 0.22 $* |
| Feb-16-2025 | 0.67 $* | 0.76 $* |
| Jan-16-2025 | 0.86 $* | 0.57 $* |
Характеристики
Products Description

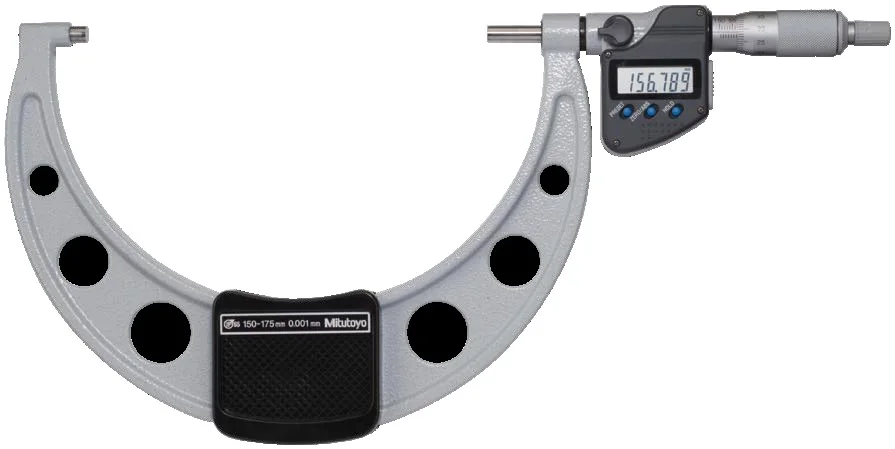

Micrometer

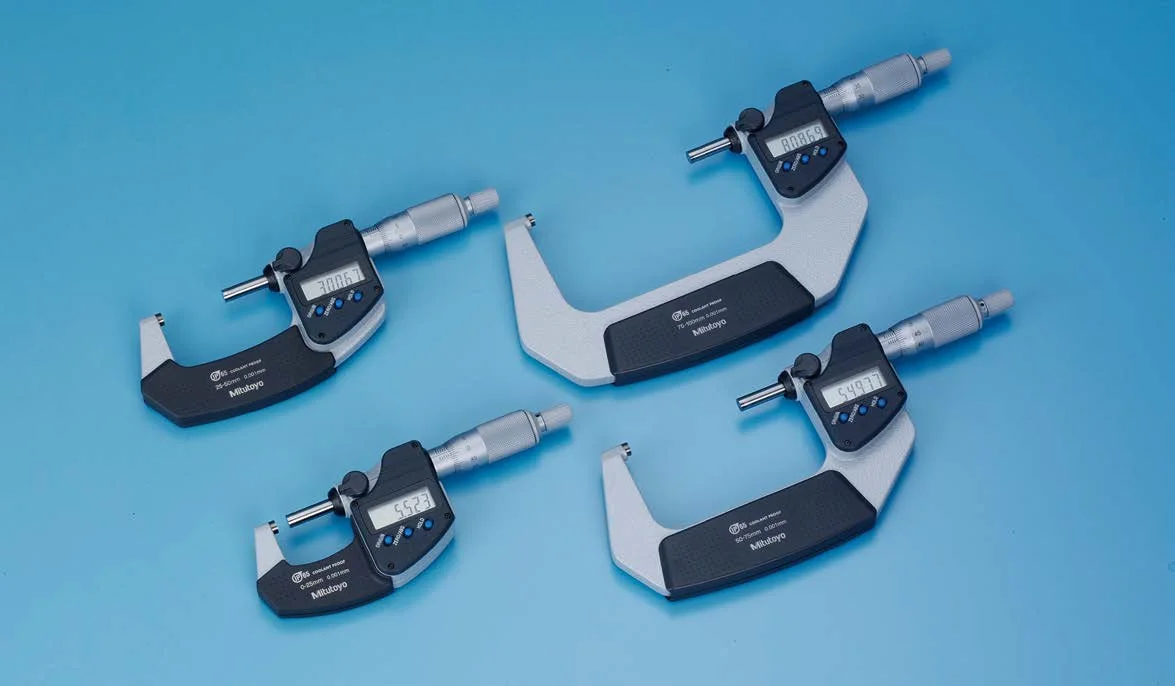

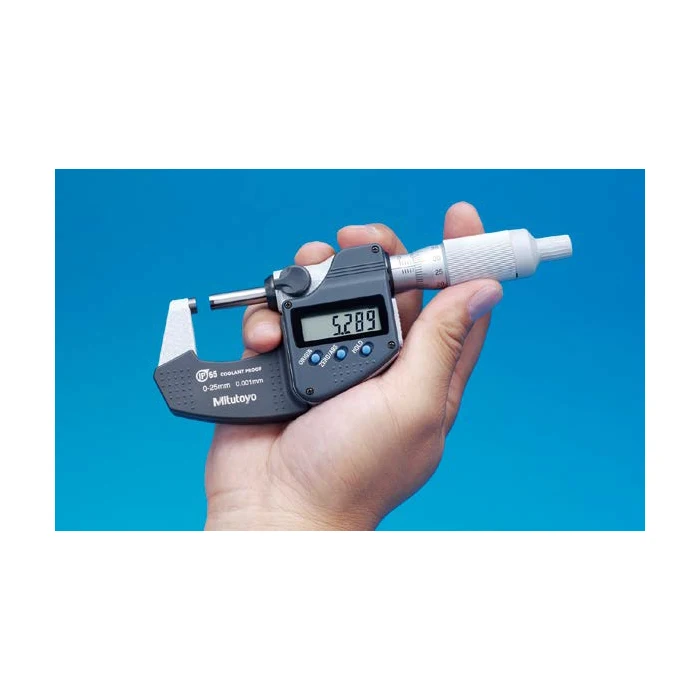

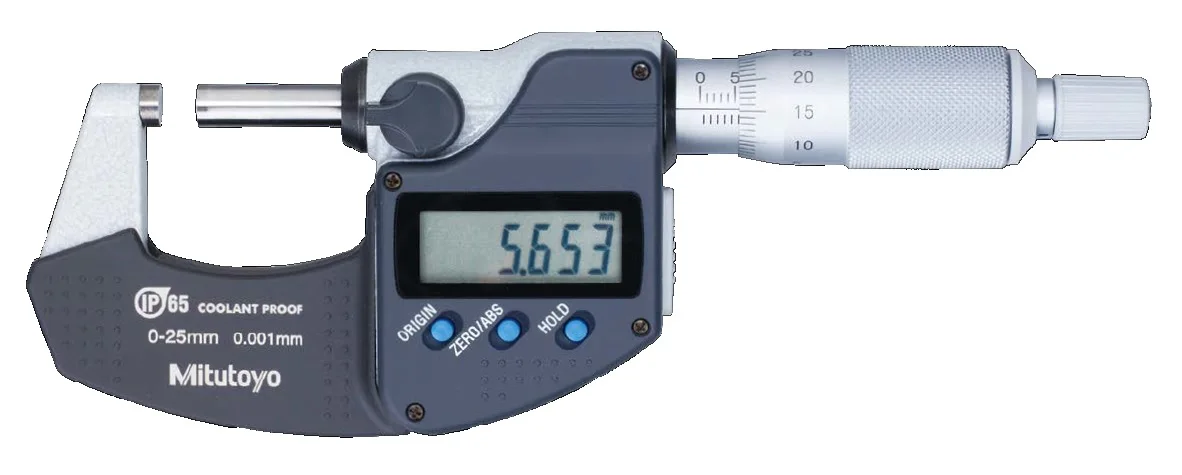

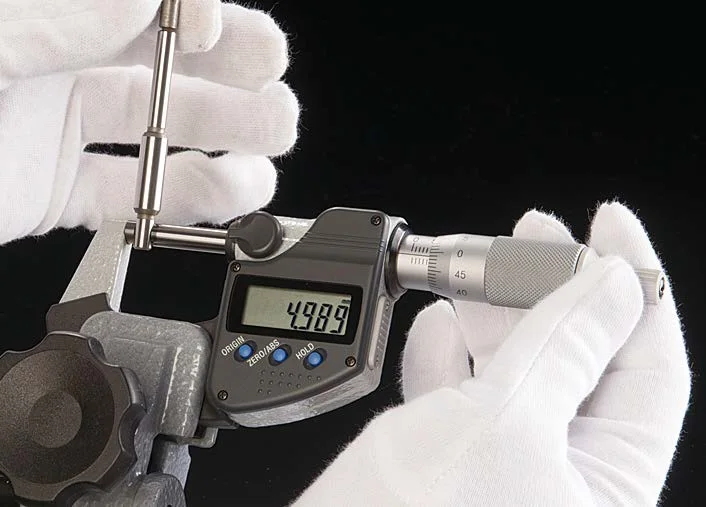

Coolant Proof Micrometers Series 193 with Dust/Water Protection Conforming to IP65 Level
Features
• World's highest performing micrometer overall.
• Extended battery life of approximately 2.4 years.
• Ergonomic anti-slip frame cover and front panel for more comfortable hand-held measurements.
• Ratchet thimble provides better operability for one-handed operation.
• Oil-resistant material used for all plastic parts.
• Models equipped with a Digimatic output port can form part of a statistical process control or networked measurement system. (Refer to page A-3 for details.)
• Interface Input Tools are available that enable the conversion of measurement data to keyboard signals that are then directly input to cells in off-the-shelf spreadsheet software such as Excel. (Refer to page A-13 for details.)
• Two types of constant-force devices are available: Ratchet Stop and Ratchet Thimble.
• Measuring faces: Carbide.
Coolant Proof Micrometers Series 193 with Dust/Water Protection Conforming to IP65 Level
Features
• World's highest performing micrometer overall.
• Extended battery life of approximately 2.4 years.
• Ergonomic anti-slip frame cover and front panel for more comfortable hand-held measurements.
• Ratchet thimble provides better operability for one-handed operation.
• Oil-resistant material used for all plastic parts.
• Models equipped with a Digimatic output port can form part of a statistical process control or networked measurement system. (Refer to page A-3 for details.)
• Interface Input Tools are available that enable the conversion of measurement data to keyboard signals that are then directly input to cells in off-the-shelf spreadsheet software such as Excel. (Refer to page A-13 for details.)
• Two types of constant-force devices are available: Ratchet Stop and Ratchet Thimble.
• Measuring faces: Carbide.
Specifictions
Metric
Order No. | Range (mm) | Resolution (mm) | Accuracy (μm) | Parallelism (µm) | Constant-force device | Mass (g) | |
with SPC data output | 293-230-30 | 0-25 | 0.001 | ±1 | 1 | with ratchet stop | 270 |
293-231-30 | 25-50 | 330 | |||||
293-232-30 | 50-75 | 2 | 470 | ||||
293-233-30 | 75-100 | ±2 | 625 | ||||
293-250-30 | 100-125 | 3 | 600 | ||||
293-251-30 | 125-150 | 740 | |||||
293-252-30 | 150-175 | ±3 | 800 | ||||
293-253-30 | 175-200 | 4 | 970 | ||||
293-254-30 | 200-225 | 1100 | |||||
293-255-30 | 225-250 | ±4 | 1270 | ||||
293-256-30 | 250-275 | 1370 | |||||
293-257-30 | 275-300 | 5 | 1590 | ||||
293-234-30 | 0-25 | ±1 | 1 | with ratchet thimble | 280 | ||
293-235-30 | 25-50 | 340 | |||||
293-236-30 | 50-75 | 2 | 480 | ||||
293-237-30 | 75-100 | ±2 | 635 | ||||
without SPC data output | 293-240-30 | 0-25 | 0.001 | ±1 | 1 | with ratchet stop | 270 |
293-241-30 | 25-50 | 330 | |||||
293-242-30 | 50-75 | 2 | 470 | ||||
293-243-30 | 75-100 | ±2 | 625 | ||||
293-244-30 | 0-25 | ±1 | 1 | with ratchet thimble | 280 | ||
293-245-30 | 25-50 | 340 | |||||
293-246-30 | 50-75 | 2 | 480 | ||||
293-247-30 | 75-100 | ±2 | 635 |
Order No. | Range (mm) | Resolution (mm) | Accuracy (μm) | Parallelism (µm) | Constant-force device | Mass (g) | |
with SPC data output | 293-330-30 | 0-1 | 0.00005 in /0.001 mm | ±0.00005 | 0.00004 | with ratchet stop | 270 |
293-331-30 | 1-2 | 330 | |||||
293-332-30 | 2-3 | 0.00008 | 470 | ||||
293-333-30 | 3-4 | ±0.0001 | 625 | ||||
293-350-30 | 4-5 | 0.0001 in /0.001 mm | 0.00012 | 600 | |||
293-351-30 | 5-6 | 740 | |||||
293-352-30 | 6-7 | ±0.00015 | 800 | ||||
293-353-30 | 7-8 | 0.00016 | 970 | ||||
293-354-30 | 8-9 | 1100 | |||||
293-355-30 | 9-10 | ±0.0002 | 1270 | ||||
293-356-30 | 10-11 | 1370 | |||||
293-357-30 | 11-12 | 0.0002 | 1590 | ||||
293-334-30 | 0-1 | 0.00005 in /0.001 mm | ±0.00005 | 0.00004 | with ratchet thimble | 280 | |
293-335-30 | with friction thimble | 275 | |||||
293-336-30 | 1-2 | 0.00004 | 335 | ||||
without SPC data output | 293-340-30 | 0-1 | ±0.00005 | with ratchet stop | 270 | ||
293-341-30 | 1-2 | 0.00005 in /0.001 mm | 0.00008 | 330 | |||
293-342-30 | 2-3 | 470 | |||||
293-343-30 | 3-4 | ±0.0001 | 0.00004 | 625 | |||
293-344-30 | 0-1 | ±0.00005 | 280 | ||||
293-345-30 | 1-2 | 0.00008 | with ratchet thimble | 340 | |||
293-346-30 | 2-3 | 480 | |||||
293-347-30 | 3-4 | ±0.0001 | 635 | ||||
293-348-30 | 0-1 | ±0.00005 | 0.00004 | with friction thimble | 275 |
