PIEZOMETER 30m 50m 100m 200m Water Level Depth Meter With Sounder And Light

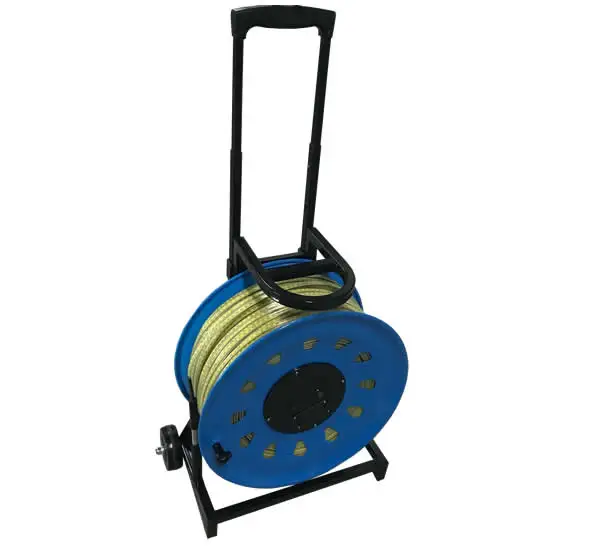

steel reel type

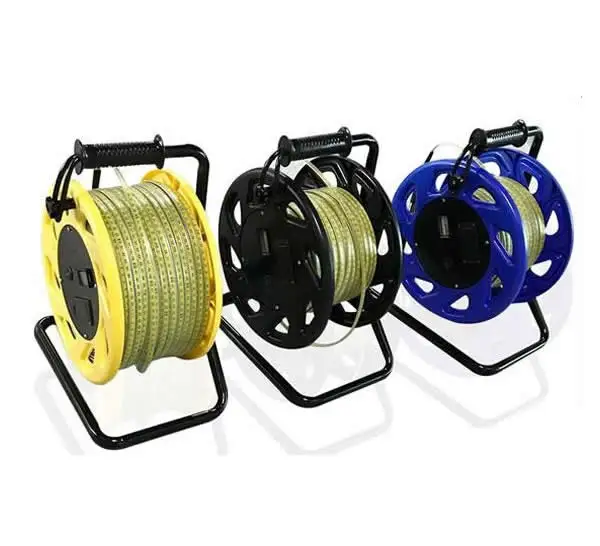

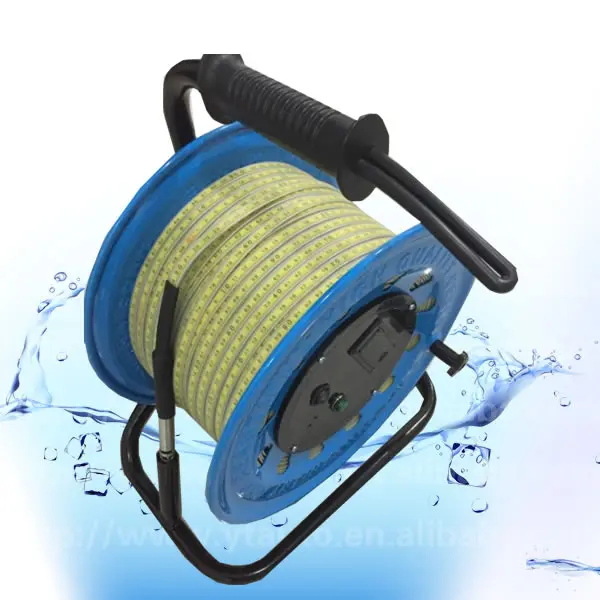

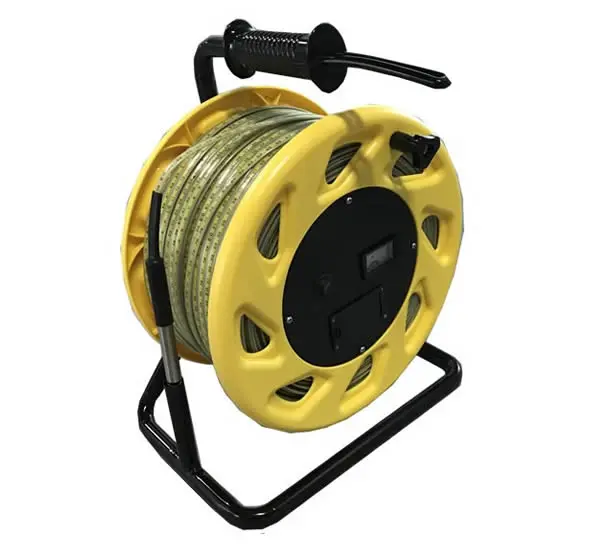

plastic reel type



Introduction

steel ruler water level meter is a new type of patented product .The anti-polarization excitation circuit and the corrosion-resistant electrode can effectively prevent the electrode from rusting and maintain the long-term use of the same sensitivity.



Composition:

The instrument consists of a sensor probe, a host, and a reel.
Easy to use:

1,Slowly slide the sensor probe head down into the water.

2,When the probe head touches the water, an induced potential is generated.

3,After circuit processing, sound and light instructions are issued.
4,Then read out the height difference data between the surface and the ground from the ruler.



Features

1. Quick response circuit design, high detect speed, high sensitivity

2. Adapt to various environmental and regional water quality

3. Low power consumption, battery-powered use two years at once

4. The cable has a ruler scale to measure the water level directly



Specifications

Item	Parameter
Shell color	orange,blue, yellow, white
Measurement range	30m,50m,100m,200m,300m,400m
battery power	9V lithium battery
Instrument for temperature	-20℃~+60℃
The response time for output	≤1ms
Measurement error	≤±0.5mm
Adaptation range of water quality	10μω~1000μω
Measurement signal	LED, buzzer, electricity meter
rated voltage	300V
Testing Voltage	2000V
insulation resistance	>200MΩ×km
Flame retardant	IEC60332-1
temperature range	-40℃~+90℃
