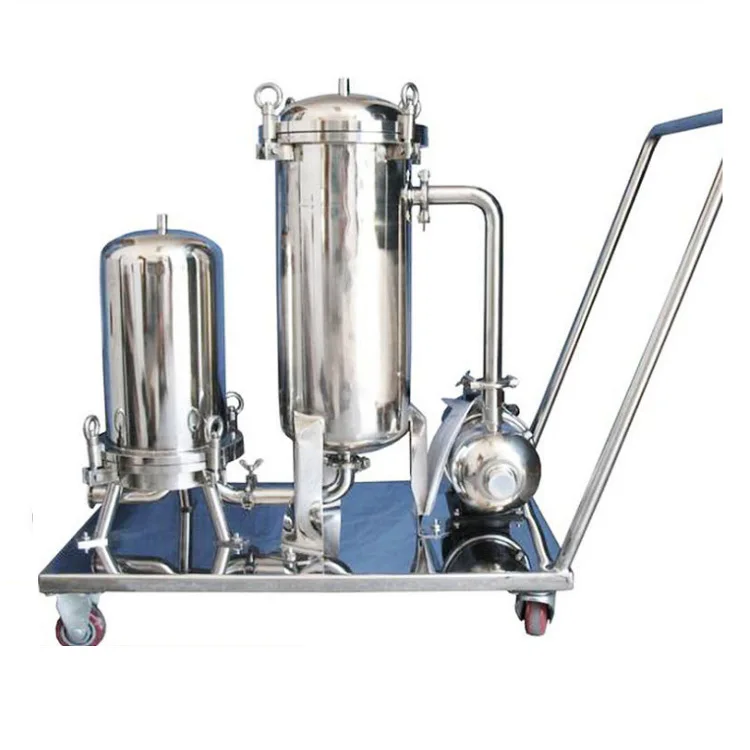

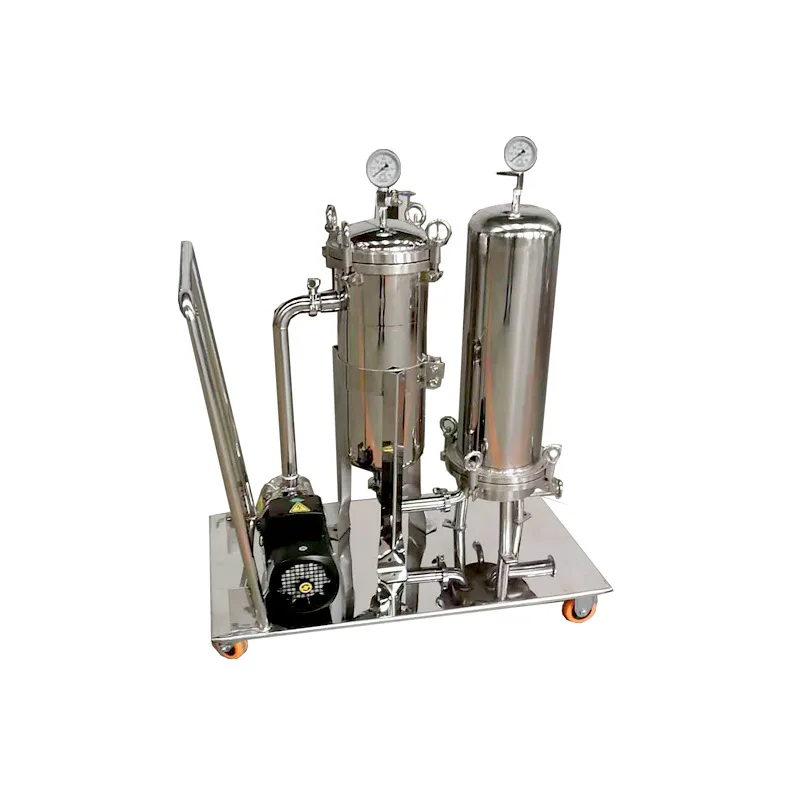

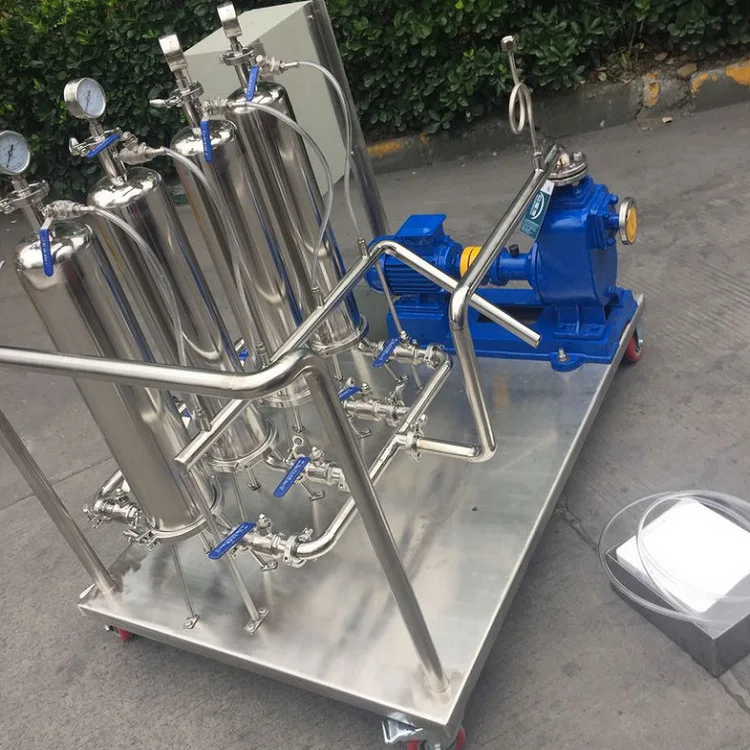

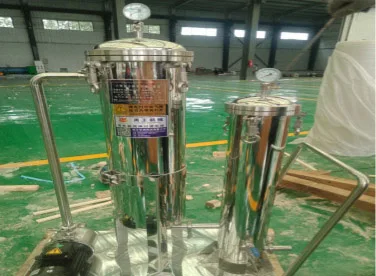

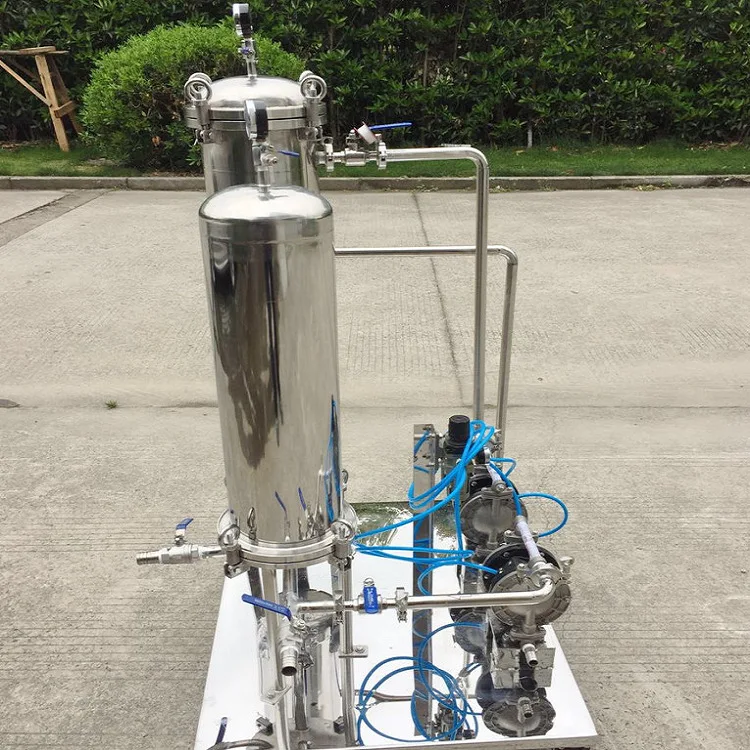

Корпус масляного фильтра для вязких жидкостей SS316L и
- Категория: Other Industrial Filtration Equipment >>>
- Поставщик: Xiamen,Ollital,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.80 $* | 0.76 $* |
| Aug-16-2025 | 0.53 $* | 0.53 $* |
| Jul-16-2025 | 0.28 $* | 0.98 $* |
| Jun-16-2025 | 0.79 $* | 0.95 $* |
| May-16-2025 | 0.22 $* | 0.32 $* |
| Apr-16-2025 | 0.64 $* | 0.54 $* |
| Mar-16-2025 | 0.74 $* | 0.7 $* |
| Feb-16-2025 | 0.95 $* | 0.22 $* |
| Jan-16-2025 | 0.90 $* | 0.42 $* |
Характеристики
Product Description
Specification
Model | Number of filter bags | Filtration area(m²) | Maximum flow(t/h) | Diameter（mm) | Pressure(Mpa) | Cylinder diameter(Φ) | Total height(mm) |
YWDL-1P1S | 1 | 0.25 | 8 | DN40 | 1Mpa/ 0.1-0.3Mpa | 220 | 950 |
YWDL-1P2S | 1 | 0.5 | 40 | DN50 | 220 | 1200 | |
YWDL-1P4S | 1 | 0.2 | 4 | DN32 | 160 | 700 | |
YWDL-2P2S | 2 | 1 | 70 | DN50 | 450 | 1400 | |
YWDL-3P2S | 3 | 1.5 | 105 | DN80 | 500 | 1650 | |
YWDL-4P2S | 4 | 2 | 140 | DN100 | 550 | 1650 | |
YWDL-5P2S | 5 | 2.5 | 175 | DN150 | 600 | 1650 | |
YWDL-6P2S | 6 | 3 | 210 | DN150 | 660 | 1650 | |
YWDL-7P2S | 7 | 3.5 | 245 | DN150 | 710 | 1650 | |
YWDL-8P2S | 8 | 4 | 280 | DN150 | 760 | 1650 | |
YWDL-10P2S | 10 | 5 | 350 | DN200 | 910 | 1650 | |
YWDL-12P2S | 12 | 6 | 420 | DN200 | 960 | 1650 | |
YWDL-14P2S | 14 | 7 | 490 | DN200 | 1010 | 1650 | |
YWDL-16P2S | 16 | 8 | 560 | DN250 | 1110 | 1650 | |
YWDL-18P2S | 18 | 9 | 630 | DN250 | 1160 | 1650 | |
YWDL-20P2S | 20 | 10 | 700 | DN250 | 1210 | 1650 | |
YWDL-22P2S | 22 | 11 | 770 | DN250 | 1360 | 1650 | |
YWDL-24P2S | 24 | 12 | 840 | DN300 | 1410 | 1650 |
Bag filter is a widely used for liquid filtration,it can remove the particles of different size from liquid,in order to achieve
liquid filtration,purification,separation,recovery purposes.It consists of three parts:bag housing,supporting basket and filter
bags.According to flow rate,you may use multiple bags in a bag housing.First,the liquid enter into the housing from the inlet,which may placed in the side or on the top,and then flow into the filter bag which is braced by basket.Due to the impact pressure of fluid,the bag will extend and the liquid get evenly filtered through the bag and flow out of the outlet
pipe.Impurities are trapped in the bag,the filtration process is complete.When you replace or clean the bag,just simply loosen the bolt,rotary hand wheel lifting the lid,and get the bag.
liquid filtration,purification,separation,recovery purposes.It consists of three parts:bag housing,supporting basket and filter
bags.According to flow rate,you may use multiple bags in a bag housing.First,the liquid enter into the housing from the inlet,which may placed in the side or on the top,and then flow into the filter bag which is braced by basket.Due to the impact pressure of fluid,the bag will extend and the liquid get evenly filtered through the bag and flow out of the outlet
pipe.Impurities are trapped in the bag,the filtration process is complete.When you replace or clean the bag,just simply loosen the bolt,rotary hand wheel lifting the lid,and get the bag.
