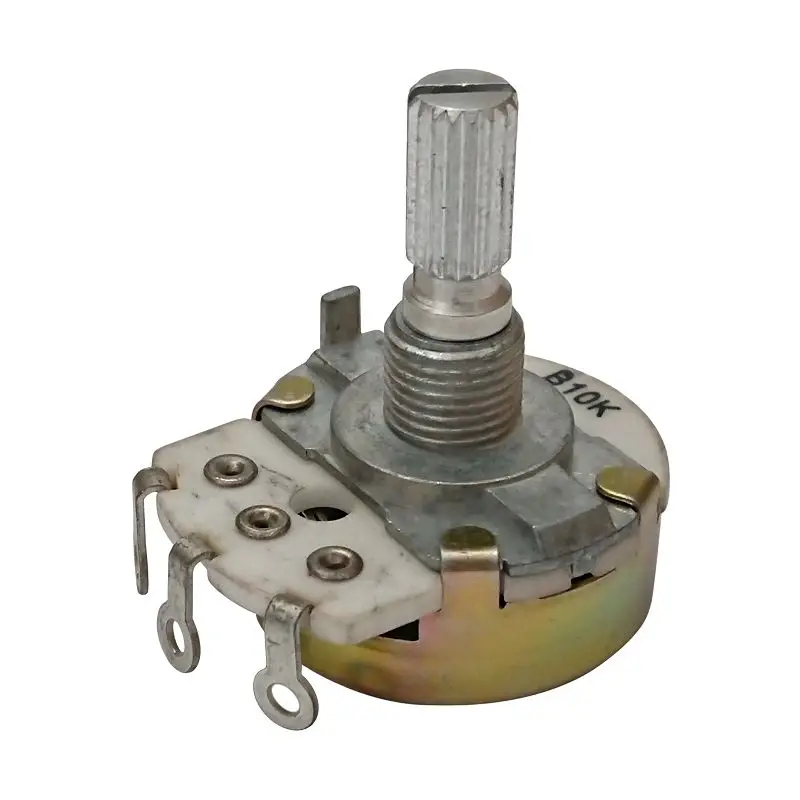

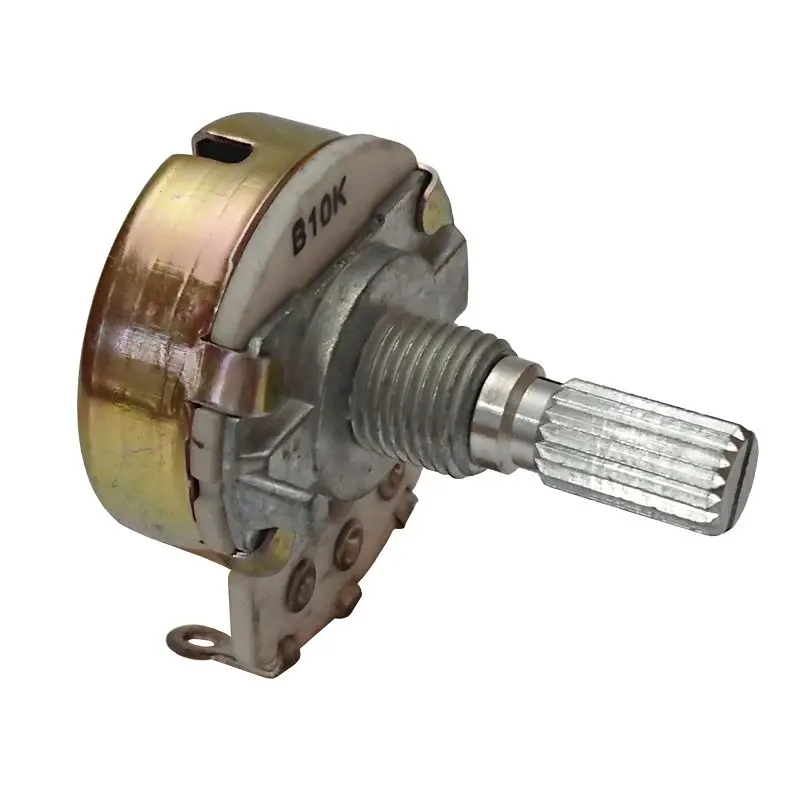

Высокомощный 24 мм потенциометр RC24K4RW с керамическим
- Категория: Потенциометры >>>
- Поставщик: WORLD,WALK,CO.,LTD.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 4.79 $* | 4.52 $* |
| Jul-16-2025 | 3.24 $* | 3.15 $* |
| Jun-16-2025 | 4.55 $* | 4.63 $* |
| May-16-2025 | 4.3 $* | 4.63 $* |
| Apr-16-2025 | 3.46 $* | 3.19 $* |
| Mar-16-2025 | 4.68 $* | 4.30 $* |
| Feb-16-2025 | 4.89 $* | 4.97 $* |
| Jan-16-2025 | 4.4 $* | 4.2 $* |
Характеристики
High Power Ceramic Potentiometer
RC24K4RW, 24mm Wire
Application
Height and horizontal positioning control in Rising and Recline chair.
Height and horizontal positioning control in an Adjustable bed.
Height positioning control in Fire Resistant Roller Shutter.

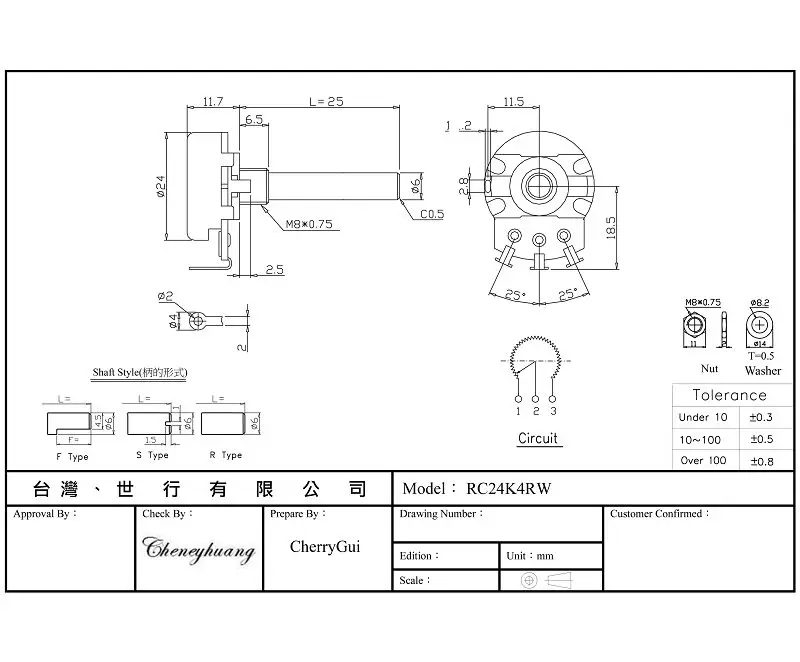

Mechanical Data
| Total Rotational Angle | 300° ± 10° | ||||||
| Rotational Torque | 20~200 gf.cm | ||||||
| Rotational Stopper Strength | 7 kgf.cm Min | ||||||
| Rotational Life | 15,000 Cycles | ||||||
Electrical Data
| Total Resistance | 500Ω~1M | ||||||
| Total Resistance Tolerance | ±10% | ||||||
| Residual Resistance | < 10Ω | ||||||
| Resistance Taper (JIS) | B (Linear) ; A (Log) ; C (An-ti Log) | ||||||
| Power Rating | 2W (B taper) | ||||||
| Max Operating Voltage | AC500V | ||||||
| Slide Noise | Under 47mV | ||||||
| Insulation Resistance | 100MΩ Min. at DC500V | ||||||
| Breakdown Voltage | 1 Minute at AC500V | ||||||
*Special characteristics on customer demand are available
Advantages
1. The sensor is a closed type model which means it is highly resistant against dust, water, and grease
2. The sensor has 260-degree rotation and multi-turn construct which can be fitted with a special resistance taper.
3. Suitable for precise positioning control in many products.
4. Without use pins, does not limit on PCB layout. Could application in different industries.
