Промышленный конусный вытяжной вентилятор 50 дюймов для теплицы курицы бройлера
- Категория: Axial Flow Fans >>>
- Поставщик: Dongguan,Minxin,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 126.78 $* | 129.70 $* |
| Jul-20-2025 | 102.41 $* | 104.71 $* |
| Jun-20-2025 | 124.72 $* | 126.42 $* |
| May-20-2025 | 123.62 $* | 125.5 $* |
| Apr-20-2025 | 98.91 $* | 100.42 $* |
| Mar-20-2025 | 121.3 $* | 123.81 $* |
| Feb-20-2025 | 120.35 $* | 122.52 $* |
| Jan-20-2025 | 119.57 $* | 121.26 $* |
Характеристики
Related Products
Product Description

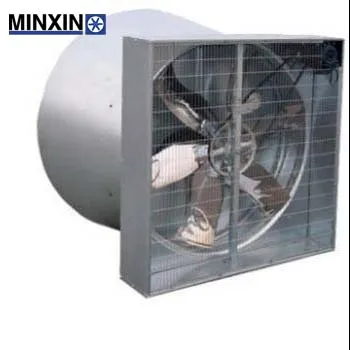

The shutters of 1380mm greenhouse poultry farm butterfly cone ventilation fan industrial wall exhaust fan ventilation and coolingsystem industrial exhaust fan come with swung drop hammer, which can be tightly closed to keep out light, rain or dust, through-wall mount type, clean and tidy or wide open for ventilation purposes in winter.
50inch Industrial Cone Exhaust Fan for Greenhouse Chicken Broiler Poultry Ventilation Cone Fan Technical Details
Type | Standard | OEM |
Fan Size | 1380mmx1380mmx300mm (54"x 54"x12") | Any size |
Fan Diameter (inch) | 50 | 50 |
Fan Color | Silver | Painted or coating in any color |
Fan Blade Material | 1mm galvanized steel | as per customers’ requirements |
Fan Frame Material | 0.6mm galvanized steel | 0.7mm, or higher thickness galvanized steel, fiberglass, or stainless steel |
Size Information
Model | Dimensions | Blade Diameter (mm) | Power | Workable Areas | Fan Speed | Motor Speed | Noise |
MX-P1000 | 1000mmx1000mmx350mm | 910(36in) | 550 W | 90~100㎡ | 450rpm | 1400rpm | <60db |
MX-P1100 | 1100mmx1100mmx350mm | 1000(50in) | 550 W | 110~130㎡ | 450rpm | 1400rpm | <60db |
MX-P1380 | 1380mmx1380mmx350mm | 1270(50in) | 1100 W | 140~160㎡ | 450rpm | 1400rpm | <60db |
Details Images

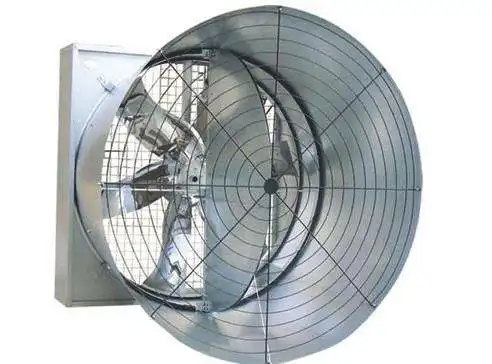

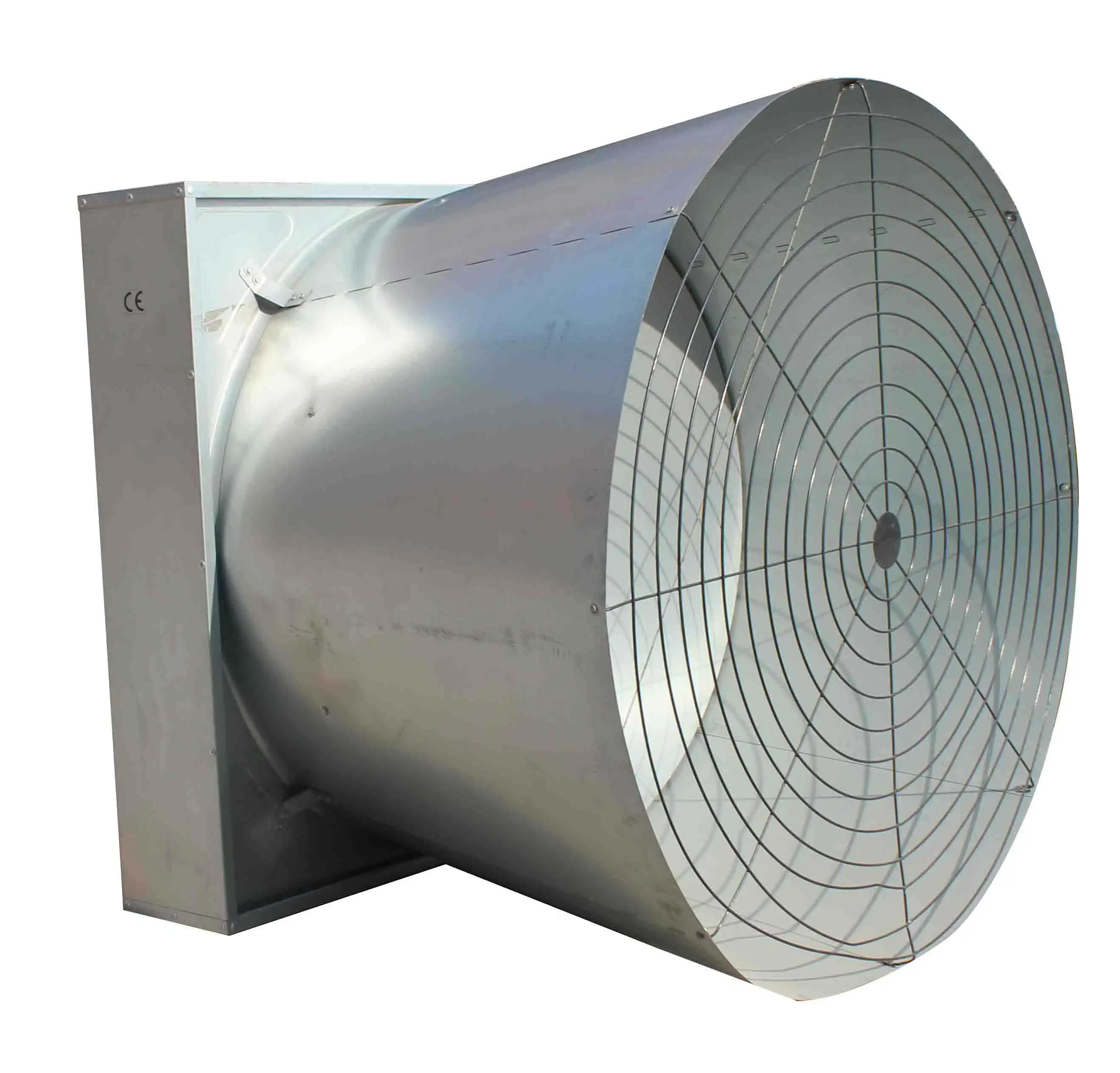

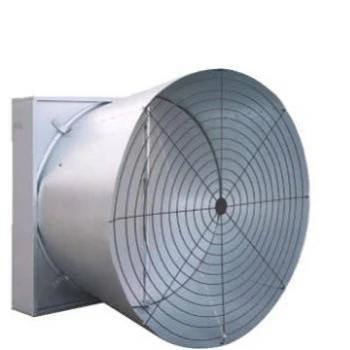

Advanced cone designing, frontward open system, butterfly type, The cone designing can put air volume together and concentrate on the direction, more larger air capacity, more energy-saving and noise reduction。
The protective net is strong and stable with high density, long service life and more durable。
Fan Blade
easy to deform after one stamping
Fan Motor
Large power, high efficiency and energy-savingProtective Net
Stability, high density, long service lifeAluminum Alloy Wheel
Sanlux B belt
Long service life, maintenance free
Packing&Shipping
The exhaust fans can either be shipped in unassebled way to save space and shipping cost, or shipping the assembled exhaust fans to save trouble and time.
Unassembled Exhaust Fan Parts
The unassembled fan parts can be shipped to customers for assembly, it will help to save shipping cost.
Assembled Exhaust Fans
The assembled exhaust fans can be sent to customers for immediate installation.
After Sales Service
One Year Warranty, Lifetime Aftersale Service
We offer 1 year warranty on the motors and the entire fan, and we will provide free spare parts for any defective models within the warranty period.
Why Chose Us
Long Standing History
10 years' OEM experience of industrial cone exhaust fans, over 200 skilled employees.
Well Equipped
Equipped with over 100 automatic machines and 10 production lines, lower product cost for our customers.
Fully Customizable
Full customization on voltage, materials, dimensions, design and private labeling to meet your unique request.
Most Complete Fan Sizes
10 years' OEM experience of industrial cone exhaust fans.
Cone fans sizes range from1000 to 1380mm, ventilation capacity ranges
from 47600CFM to 86700CFM
from 47600CFM to 86700CFM
Fast Delivery

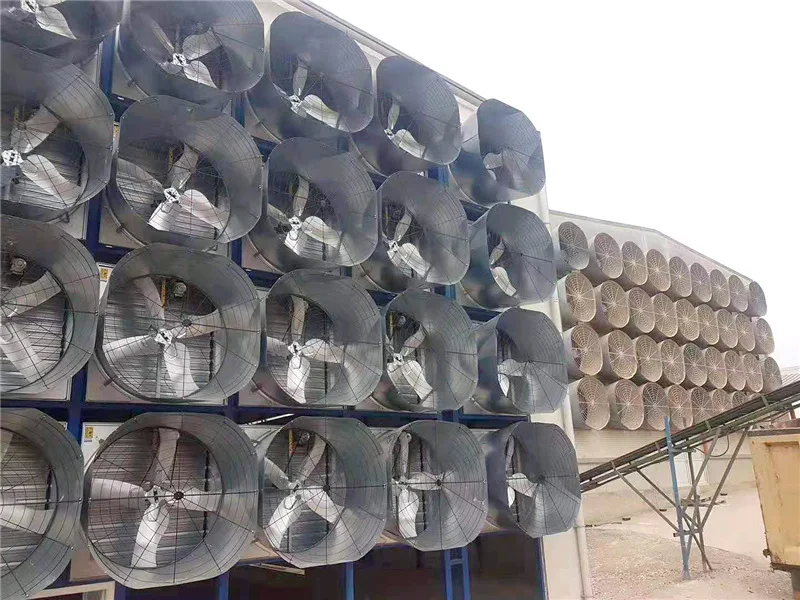

Highest production capacity in China, our daily output is 3,000pcs. Most of our customers can be delivered within 7 days, some can be delivered same day or 3 days.
Complete Product Line
95% of the fan parts are produced in our own facility, we handle from coil sliding and folding, laser welding, die casting and stamping, motor cooper coil winding, CNC machining and assembly to ensure high precision of each part and higher performance of
the cone exhaust fans
the cone exhaust fans
Company Introduction
MINXIN INDUSTRIAL is well known for its most complete production line for industrial exhaust fans, evaporative air conditioners, and mobile air coolers.
Our Services & Strength
Minxin Industrial was founded in 2015, since then Minxin has been specialized in manufacturing industrial exhaust fans and evaporative air coolers of all sizes, such as:
1. Minxin Belt drive ventilating exhaust fans
2. Minxin Direct drive ventilating exhaust fans
3. Yihoo Water-cooling evaporative air conditioner
4. Yihoo Mobile evaporative air cooler
1. Minxin Belt drive ventilating exhaust fans
2. Minxin Direct drive ventilating exhaust fans
3. Yihoo Water-cooling evaporative air conditioner
4. Yihoo Mobile evaporative air cooler
MINXIN Headquater
Space: 20,000㎡
Production: Fan parts production, motor production
MINXIN Plant 2
Space: 6,000㎡
Production: Air cooler and cooling pad production and assembly
MINXIN Plant 3
Space: 6,000㎡
Production: Exhaust fan and circulation fan assembly
MINXIN Plant 4
Space: 5,000㎡
Production: Exhaust fan and circulation fan assembly
Our Production Lines
Supporting 120 employees, our 20,000 square meter factory is top-notch, Minxin Industrial equipped itself with all the production equipment processes in house for better control of the quality and delivery time:
1. Steel coil sliding and cutting line, steel pipe cutting line
2. Aluminum Die Cast Tooling & Casting
3. Plastic Molding & Injection workshop
4. Metal Stamping & Laser Cutting
5. Motor Copper Coil Winding Line
6. Motor Assembly Workshop
7. Exhaust Fan Assembly Workshop
8. Water Air Cooler Assembly Workshop
1. Steel coil sliding and cutting line, steel pipe cutting line
2. Aluminum Die Cast Tooling & Casting
3. Plastic Molding & Injection workshop
4. Metal Stamping & Laser Cutting
5. Motor Copper Coil Winding Line
6. Motor Assembly Workshop
7. Exhaust Fan Assembly Workshop
8. Water Air Cooler Assembly Workshop
