Лидер продаж, экономичный, двойной насос крыльчатки
US $5000-$5500
Вентилятор из стекловолокна ФАП конусный вытяжной вентилятор с системой вентиляции для свиной птицефермы охлаждающий
- Категория: Вытяжные вентиляторы >>>
- Поставщик: Dongguan,Minxin,Industry,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 152.54 $* | 160.84 $* |
| Aug-16-2025 | 151.35 $* | 159.7 $* |
| Jul-16-2025 | 127.44 $* | 133.9 $* |
| Jun-16-2025 | 148.94 $* | 155.3 $* |
| May-16-2025 | 129.44 $* | 135.61 $* |
| Apr-16-2025 | 146.21 $* | 153.91 $* |
| Mar-16-2025 | 145.45 $* | 152.74 $* |
| Feb-16-2025 | 143.22 $* | 150.66 $* |
| Jan-16-2025 | 142.27 $* | 149.14 $* |
Характеристики
Related Products
Product Description

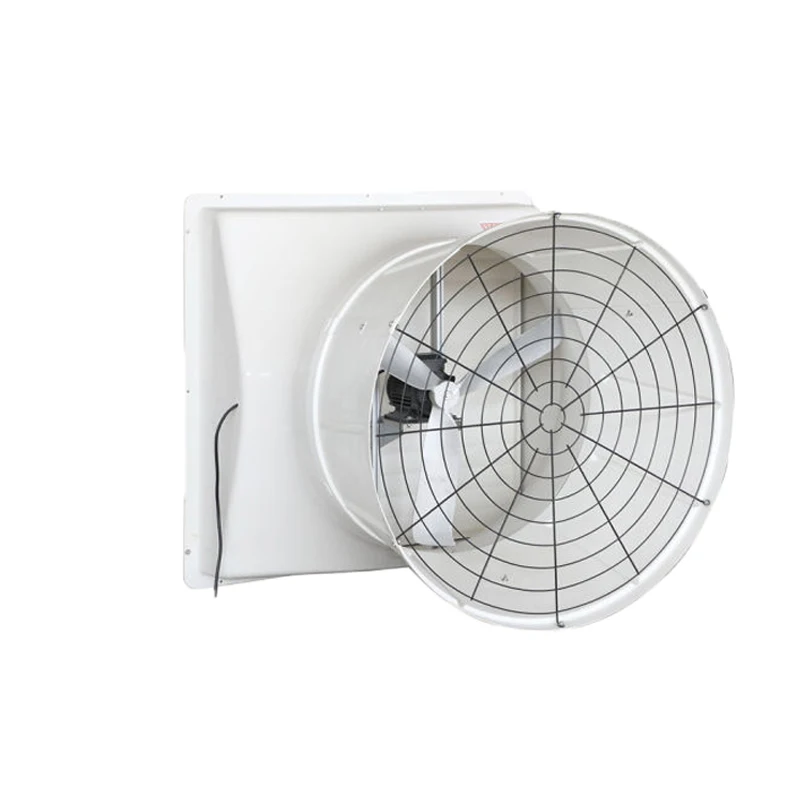

The shutters of Fiber Glass Fan frp Cone Exhaust Fan with Ventilation System for Pig Poultry Farm Butterfly Cone Fan with large air flow industrial wall exhaust fan ventilation and cooling system industrial exhaust fan come with swung drop hammer, which can be tightly closed to keep out light, rain or dust, through-wall mount type, clean and tidy or wide open for ventilation purposes in winter.
Fiber Glass Fan frp Cone Exhaust Fan with Ventilation System for Pig Poultry Farm Butterfly Cone Cooling Fan Technical Details
Type | Standard | OEM |
Fan Size(mm) | 1520*1520 | Any size |
Hood Size(mm) | 1470*1470 | 1470*1470 |
Fan Color | White | Painted or coating in any color |
Fan Blade Material | Cast Aluminum | Customized |
Fan Frame Material | 0.6mm galvanized steel | 0.7mm, or higher thickness galvanized steel, fiberglass, or stainless steel |
Model | 24inch | 36inch | 50inch | 54inch |
Fan Size(mm) | 790*790 | 1250*1250 | 1520*1520 | 1710*1710 |
Hood Size(mm) | 740*740 | 1170*1170 | 1470*1470 | 1660*1660 |
Voltage | 380V | 380V | 380V | 380V |
Rated Power | 370W | 750W | 1100W | 1500W |
Rated Current（A） | 1.2 | 1.6 | 3.4 | 3.8 |
Weight | 28KG | 53KG | 83KG | 91KG |
Rated Speed(rpm) | 860rmp | 920rmp | 650rmp | 650rmp |
Air Capacity | 9420CFM | 13825CFM | 29415CFM | 37647CFM |
Blade Diameter | 580mm | 920mm | 1290mm | 1380mm |
Blade | 3 | 3 | 3 | 3 |
Drive Mode | Direct-Drive | Direct-Drive/Belt-Drive | Direct-Drive/Belt-Drive | Belt-Drive |
Motor Protection Grade | IP55 | IP55 | IP55 | IP55 |
Details Images
Large Air Volume，Anti-corrosion，High
Speed Ventilation
Low Nosie，High Quality Nylon Fan Blade，Easy Installation，High Strength Aluminum Alloy
1. High strength aluminum-alloy by die-casting.
2. Blast-sanding treatment, eliminate internal stress to improve its own rigidity and stability
3. Attractive appearance
Packing&Shipping
The exhaust fans can either be shipped in unassebled way to save space and shipping cost, or shipping the assembled exhaust fans to save trouble and time.
Unassembled Exhaust Fan Parts
The unassembled fan parts can be shipped to customers for assembly, it will help to save shipping cost.
Assembled Exhaust Fans
The assembled exhaust fans can be sent to customers for immediate installation.
After Sales Service
One Year Warranty, Lifetime Aftersale Service
We offer 1 year warranty on the motors and the entire fan, and we will provide free spare parts for any defective models within the warranty period.
Why Chose Us
Long Standing History
10 years' OEM experience of industrial exhaust fans, over 200 skilled employees.
Well Equipped
Equipped with over 100 automatic machines and 10 production lines, lower product cost for our customers
Fully Customizable
Full customization on voltage, materials, dimensions, design and private labeling to meet your unique request.
Most Complete Fan Sizes
10 years' OEM experience of industrial exhaust fans. Exhaust fans sizes range from 790mm to 1710mm, ventilation capacity ranges from 9420CFM to 37647CFM
Fast Delivery
Highest production capacity in China, our daily output is 3,000pcs. Most of our customer can be delivered within 7 days, some can be delivered some day or 3 days
Complete Product Line
95% of the fan parts are produced in our own facility, we handle from coil sliding and folding, laser welding, die casting and stamping, motor cooper coil winding, CNC machining and assembly to ensure high precision of each part and higher performance of
the exhaust fans
the exhaust fans
Company Introduction
MINXIN INDUSTRIAL is well known for its most complete production line for industrial exhaust fans, evaporative air conditioners, and mobile air coolers.
Our Services & Strength
Minxin Industrial was founded in 2015, since then Minxin has been specialized in manufacturing industrial exhaust fans and evaporative air coolers of all sizes, such as:
1. Minxin Belt drive ventilating exhaust fans
2. Minxin Direct drive ventilating exhaust fans
3. Yihoo Water-cooling evaporative air conditioner
4. Yihoo Mobile evaporative air cooler
1. Minxin Belt drive ventilating exhaust fans
2. Minxin Direct drive ventilating exhaust fans
3. Yihoo Water-cooling evaporative air conditioner
4. Yihoo Mobile evaporative air cooler
MINXIN Headquater
Space: 20,000㎡
Production: Fan parts production, motor production
MINXIN Plant 2
Space: 6,000㎡
Production: Air cooler and cooling pad production and assembly
MINXIN Plant 3
Space: 6,000㎡
Production: Exhaust fan and circulation fan assembly
MINXIN Plant 4
Space: 5,000㎡
Production: Exhaust fan and circulation fan assembly
Our Production Lines
Supporting 120 employees, our 20,000 square meter factory is top-notch, Minxin Industrial equipped itself with all the production equipment processes in house for better control of the quality and delivery time:
1. Steel coil sliding and cutting line, steel pipe cutting line
2. Aluminum Die Cast Tooling & Casting
3. Plastic Molding & Injection workshop
4. Metal Stamping & Laser Cutting
5. Motor Copper Coil Winding Line
6. Motor Assembly Workshop
7. Exhaust Fan Assembly Workshop
8. Water Air Cooler Assembly Workshop
1. Steel coil sliding and cutting line, steel pipe cutting line
2. Aluminum Die Cast Tooling & Casting
3. Plastic Molding & Injection workshop
4. Metal Stamping & Laser Cutting
5. Motor Copper Coil Winding Line
6. Motor Assembly Workshop
7. Exhaust Fan Assembly Workshop
8. Water Air Cooler Assembly Workshop
Steel coil sliding and cutting line, steel pipe cutting line
Aluminum Die Cast Tooling & Casting
Plastic Molding & Injection workshop
Motor Copper Coil Winding Line
Motor Assembly Workshop
Stamping Workshop
Wire Guard Welding
Fan Parts CNC Machining
Laser Cutting
