Радиатор для кондиционера отходов медный сепаратор продажи машина переработки радиатора отработанного

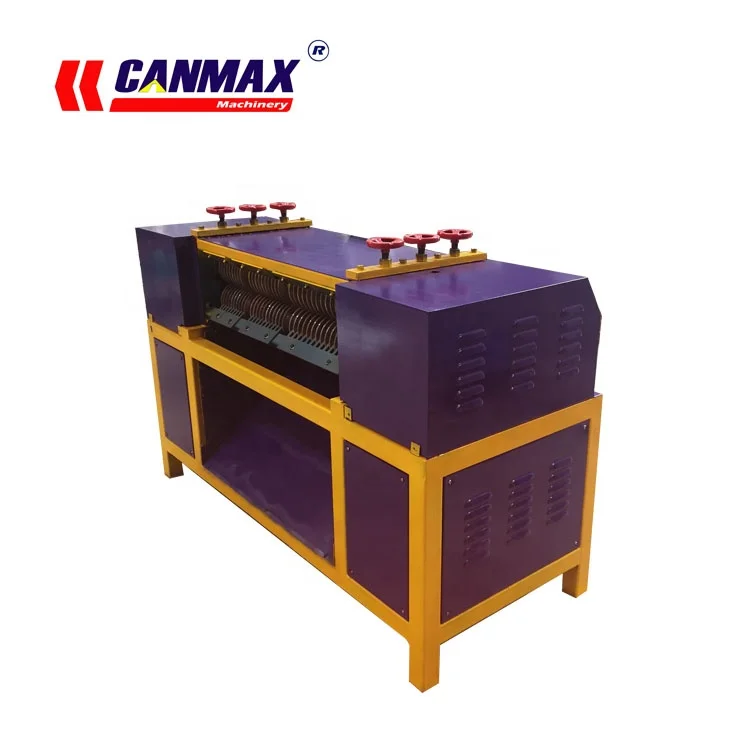

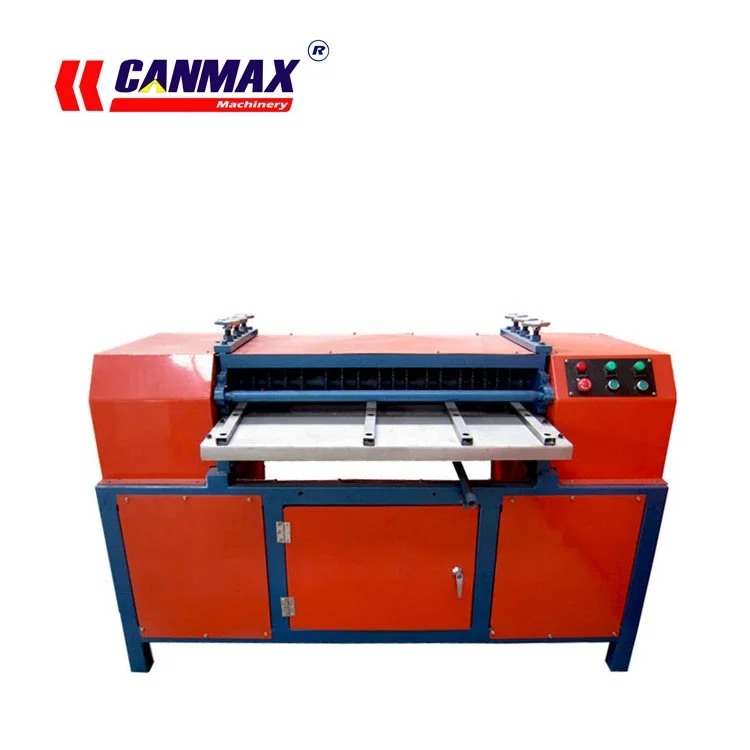

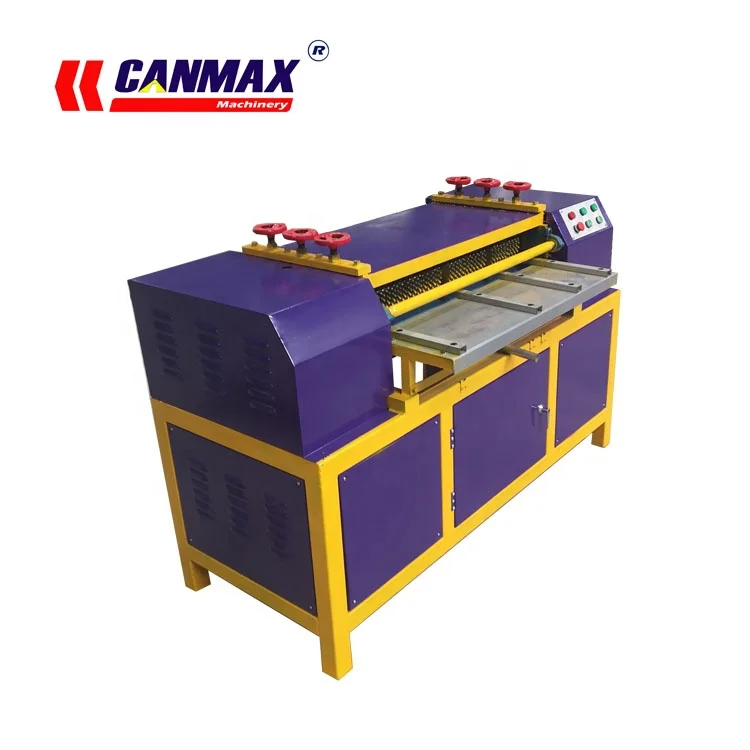

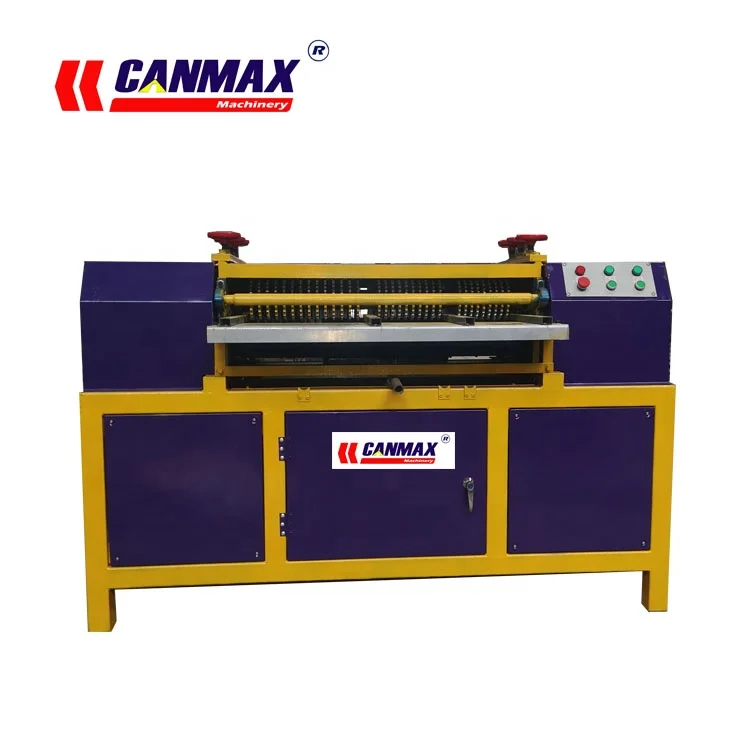

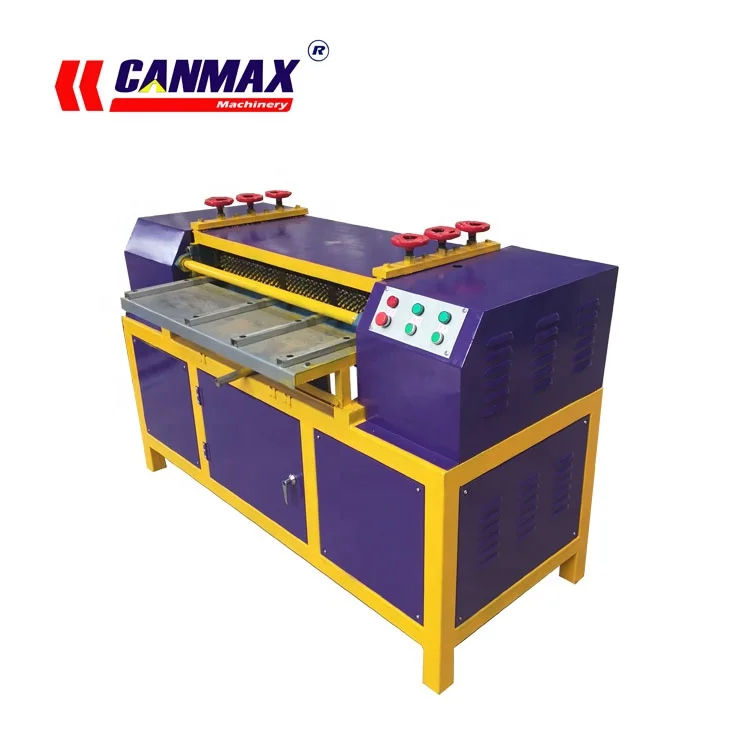

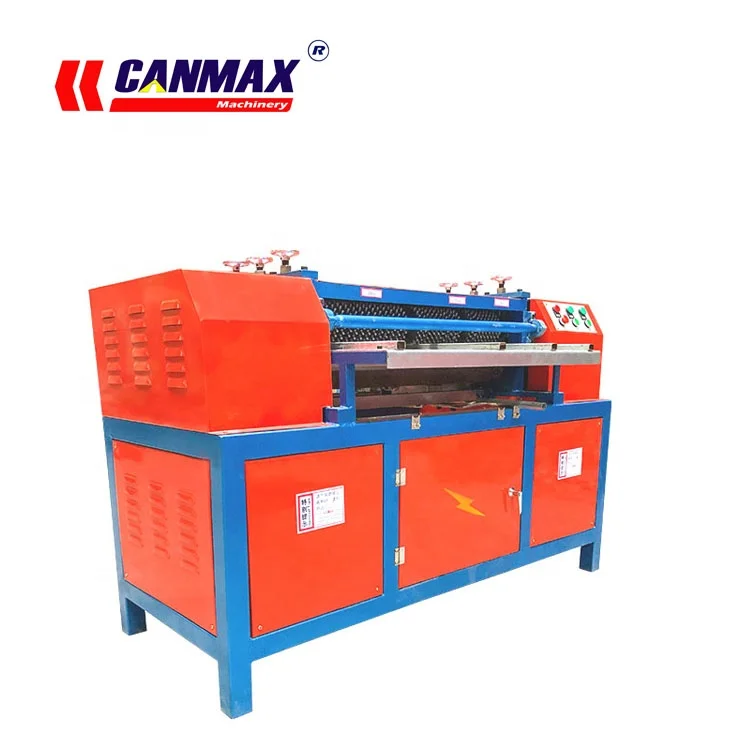

>>>Waste air condition radiator recycling machine is used for separating the outside aluminium foil and the inside copper pipe of wasted air conditioning radiator. Each set of this kind of machine just can separate two different specification radiators. Because the interval width of the copper pipe are different in the radiator, so we need you can offer us the width of the copper pipe of the radiator. In China, the width of the radiator copper pipe is 21MM, 25MM, and 19MM. Besides, the thickness is one layer and two layers.
If the thickness is 3 to 4 layer, the Band Saw Machine is necessary.

>>>Application

Various water tanks, convection radiators, steel radiators, aluminum radiators, copper radiators, stainless steel radiators, copper-aluminum composite radiators, etc., as well as the original cast iron radiators.

>>>Detailed Structure

	1.Control panel
	2.Blade adjuster:when process radiators,you need to adjust the distance between blades and radiators,then the processing effect will be good.
	3.operation panel
	4.Bar:It is used to make change from processing one layer to two layer.When this bar shows under the corresponding feeding mouth,it can only process one layer radiator.
	5.Blades:The recycling machine has 69 blades,including 29 small blades and 40 big blades.

>>>Operation Steps

1. Turn the reversing switch and check the rotating direction.
2. Inject oil into the two oil holes in the left and right side of the machine to lubricate transmission gears (normally once per 4 working hours).
3. Push different radiator into different material inlets according to their specs(19mm,21mm,25mm); the left side of radiators must touch the left side of material inlets; or the right side of radiators must touch the right side of material inlets (the first copper pipe in the lower layer shall be nearer to the guiding ruler,When two-layer radiators are processed, the left side of the radiators shall touch the left side of each Material Inlet, and the first copper pipe in the Upper Layer to the left side of each Material Inlet must be nearer than the first copper pipe in the Lower Layer to the Left Side of each Material Inlet. )
4. After radiators are taken into the machine, copper pipes and aluminum are separated and come out of the machine automatically.
5. According to the layers of radiators and their height, adjust each pair of Adjusting Wheels on the machine (after adjusting, tighten screws below).

>>>Band sawing machine

Our radiator recycling machine can process one layer,two layers and three layer radiators.But the separation effect will be better for one layer and two layer radiator.If your radiator is more than 3 layers,here we recommend you the band sawing machine to cut the radiator into one layer or two layers,to reach a super separation rate.

Name	Band sawing machine	Picture
Model	DJ-500
Power	2.2kw
Max.Width of processing	310mm
Max.thickness of processing	260mm
Capacity	500kg/h
Sawing diameter	500mm
Overall dimension	900*700*1820mm
Weight	400kg

>>>Metal Baler

After the copper and aluminum be separated,you can use the metal baler to bale them.The bale size and wight can be customized as your requirement.

Model	Pressure (Ton)	Press box size (mm)	bale size (mm)	capacity (t/h)	bale weight (kg)	power (kw)	weight (T)
M63-20	100	1100*850*450	200*200*500	0.8-1	25	15	3.2
M63-25	120	1150*900*550	250*250*600	1.1-1.3	40	15	3.8
M80-30	125	1300*950*550	300*300*600	1.6-2.0	60	18.5	5.2
