Specifications:
camera: High x width x depth: 130 mm x 170 mm x 138 mm
Weight: 585 grams
Speaker Phone: High x width x depth: 240 mm x 65 mm x 240 mm
Weight: 1223 grams
Hub: High x width x depth: 94 mm x 34 mm x 74 mm
Weight: 83g
Remote control: High x width x depth: 50 mm x 120 mm x 12 mm
Weight: 51g
Wall / Desktop Base: High x width x depth: 210 mm x 120 mm x 99 mm
Weight: 255 grams
Extended Microphone: High x width x depth: 83 mm x 83 mm x 21 mm
Weight: 230g
System Requirements:
Windows® 7, 8.1, or 10
Mac® OS X 10.7 or higher
Technical specifications:

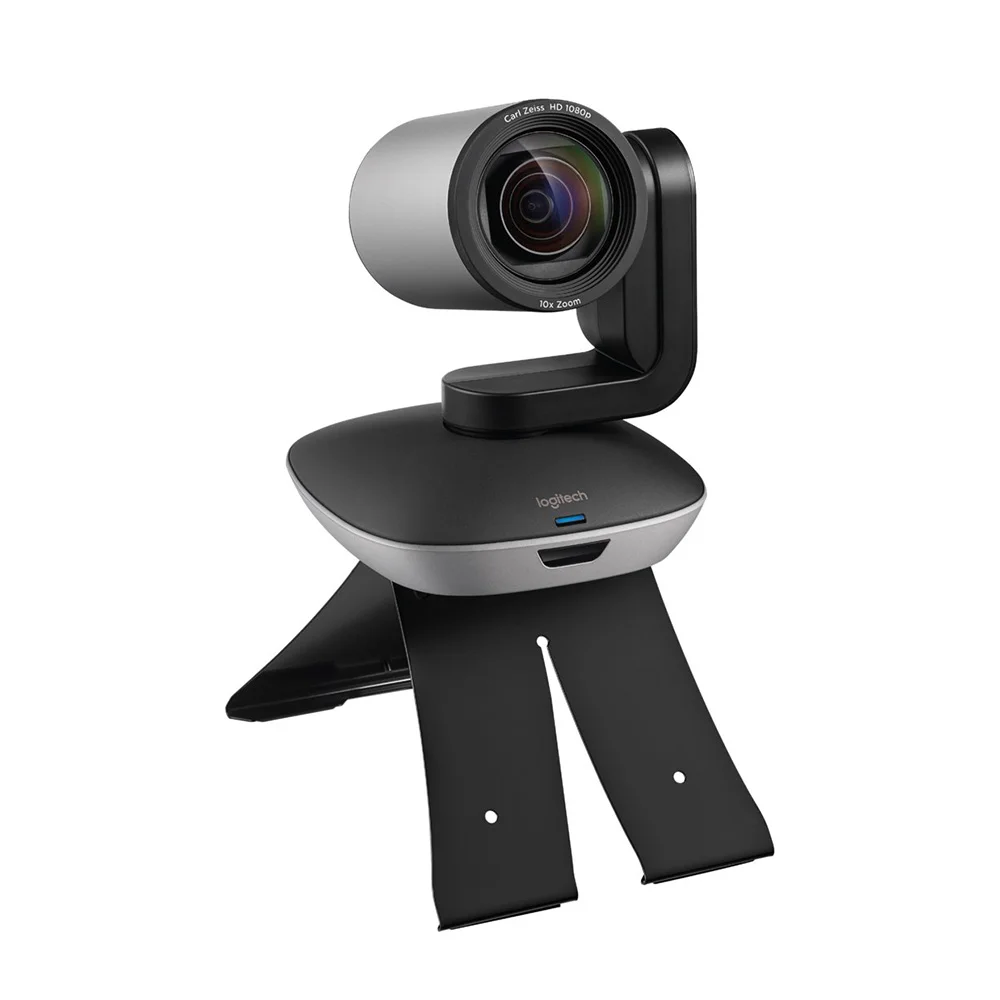

Camera:
Smooth electric translation
Tilt and zoom
You can control 260 ° pan at the remote end or console
130 degree inclination
10X lossless high definition digital zoom
90 degree view
Full HD 1080p 30fps
H.264 UVC 1.5 with Scalable Video Coding (SVC)
Autofocus 5 camera presets
ConferenceCam product remote control (PTZ)
Zeiss® lens certification
Kensington anti-theft lock jack
LED indicates video playback
Standard tripod mounting thread
Remote control:
8.5 m / 28 ft (dockable)
Speaker phone:
Full duplex performance
Echo cancellation
Noise reduction technology
Ultra wideband audio
Supports Bluetooth ™ and NFC
The LCD indicates the caller ID, the duration of the call, and other functional responses
LED indicates speakerphone playback, mute, lock and bluetooth
Can be achieved by touch call up / hang up, volume adjustment and mute, Bluetooth and camera
PTZ, "home" default and remote control
Microphone (Tx):
Four omnidirectional sound microphones support a 6 m / 20 ft diameter range
Frequency response: 100Hz - 11KHz
Sensitivity: -28dB +/- 3dB
Distortion: <5% at 200Hz
Kensington anti-theft lock jack

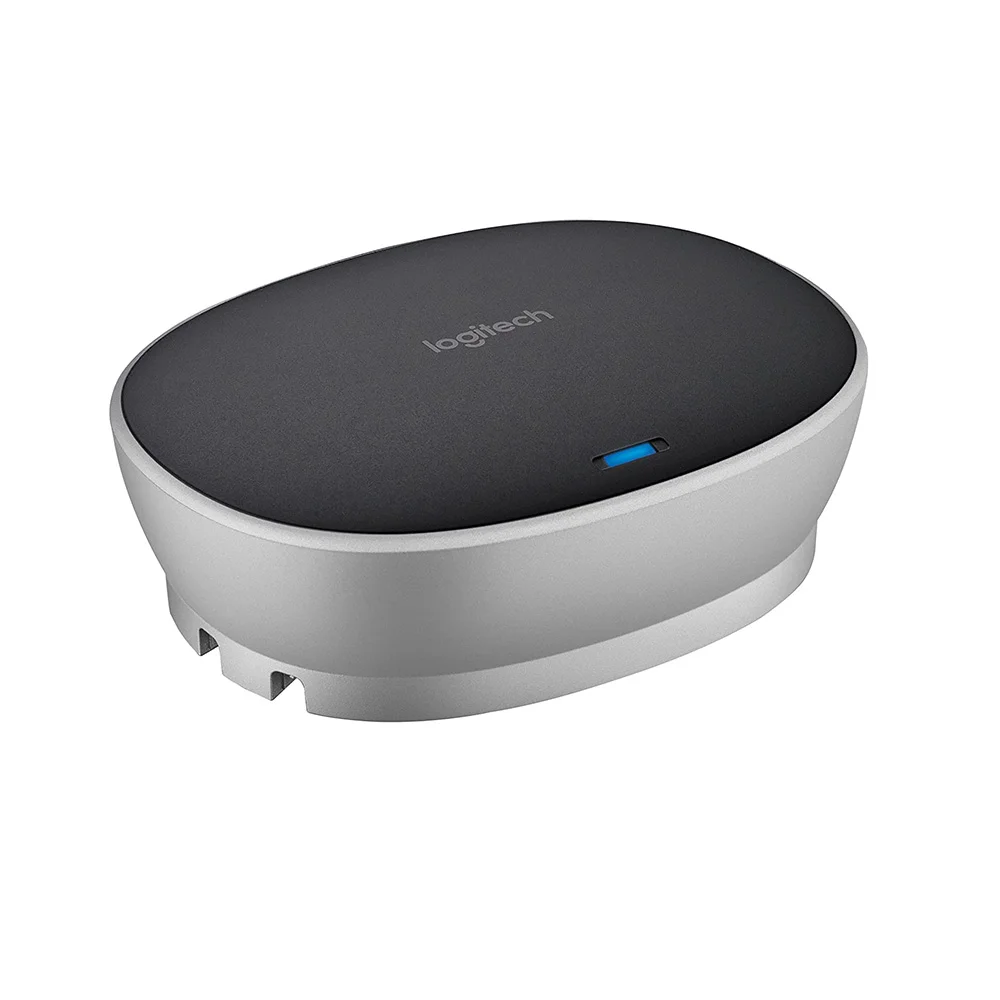

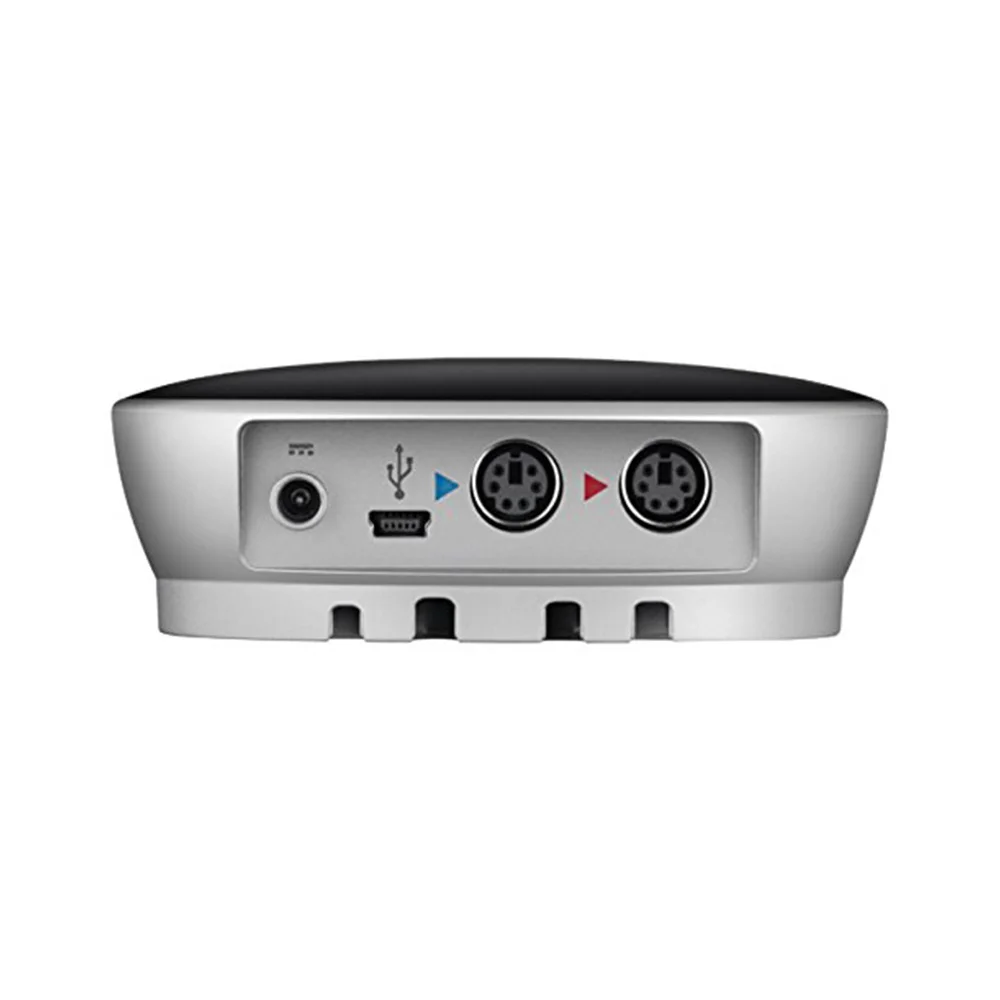

Hub / cable
The center can be installed with hubs for connecting all components
Including the use of adhesive under the table
Two connecting lines for connecting hubs and camera / speaker telephones (length: 5 m / 16 ft)
One USB cable for connection to PC / Mac (length: 2 m / 6.6 ft)
AC adapter (length: 3 m / 9.8 ft)
