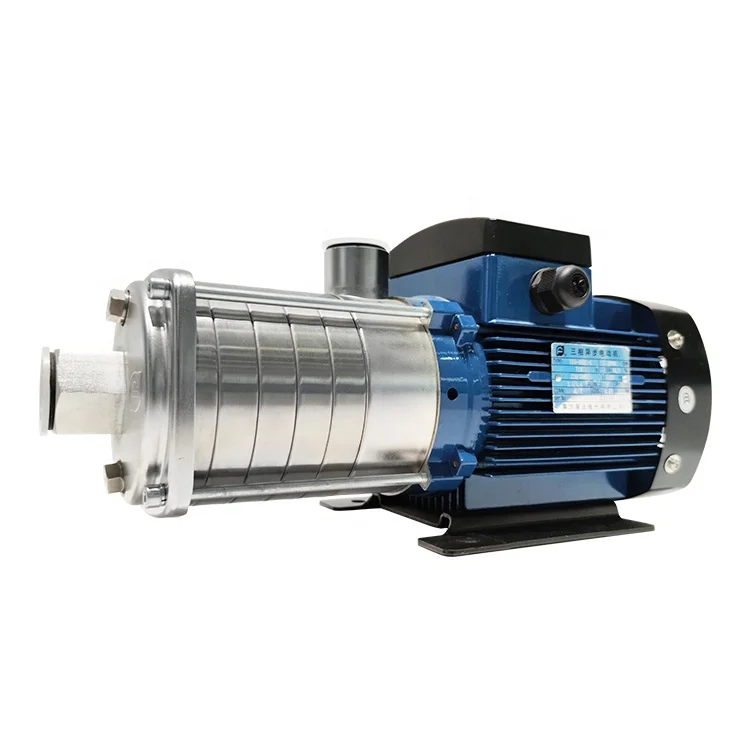

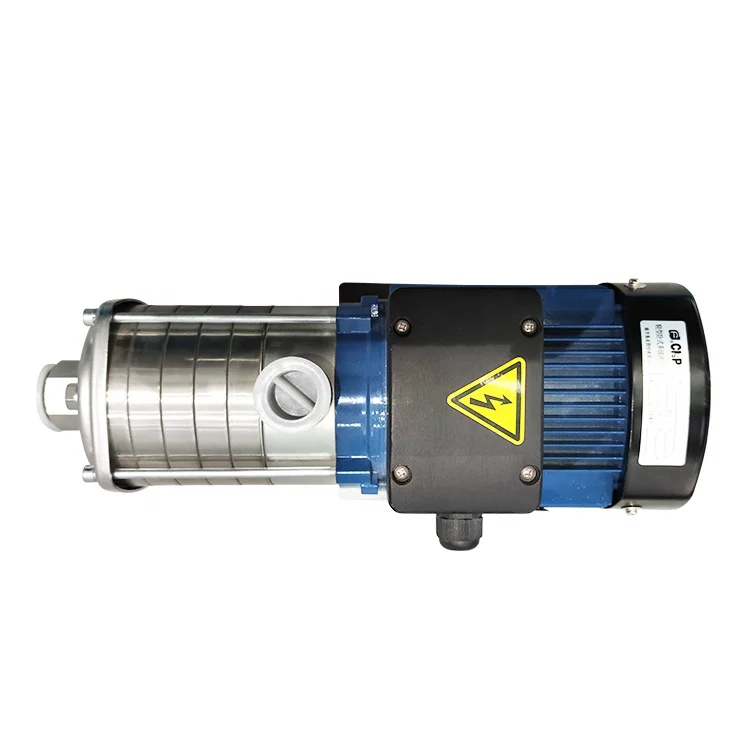

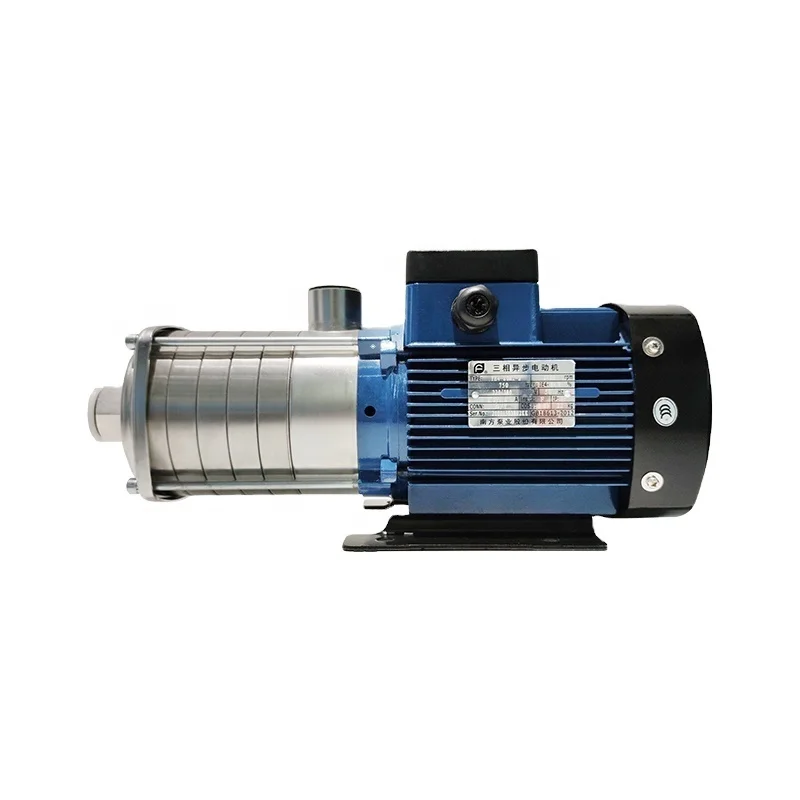

Производитель CNP CHM2 50 Гц легкий центробежный горизонтальный многоступенчатый водяной насос для системы кондиционирования
- Категория: Pumps & Parts >>>
- Поставщик: Tiger,(hangzhou),Flow,Systems,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.59 $* | 0.81 $* |
| Aug-17-2025 | 0.72 $* | 0.81 $* |
| Jul-17-2025 | 0.37 $* | 0.63 $* |
| Jun-17-2025 | 0.98 $* | 0.19 $* |
| May-17-2025 | 0.59 $* | 0.37 $* |
| Apr-17-2025 | 0.53 $* | 0.1 $* |
| Mar-17-2025 | 0.83 $* | 0.90 $* |
| Feb-17-2025 | 0.72 $* | 0.60 $* |
| Jan-17-2025 | 0.90 $* | 0.79 $* |
Характеристики
Recommend Products
Product Description
Product name | Manufacturer CNP CHM2 50HZ Light Centrifugal Horizontal Multistage Water Pump For Air Conditioning System |
Material | Stainless Steel(Except Flow Passage Components) |
Packaging | Wooden case or carton box will be provided. |
Product Description
Motor
TEFC motor 2-pole
Protection class: IP 55
Insulation class: F
Standard voltage: 50Hz: 1×220-240V
3×220-240V/380V-415V
-Max.power of mono-phase motor: 2.4kW
Operation conditions
Liquid temperature: Normal temperature type: -15℃~+70℃
Hot water type: -15℃~+105℃
Ambient temperature: +40℃
Max.operation pressure: 10bar
Max.inlet pressure is limited by Max.operation pressure
Curve conditions
Following conditions are suitable for the performance curves shown below:
All curves are based on the measured values of constant motor speed 2850r/min(if motor power is 0.25kW) and
2900r/min(other motor power) .
Curve tolerance is conformity with ISO9906: 212, 3B
Measurement is done with 20℃air-free water, kinematic viscosity of 1mm'/s.Non cooperation of pump shall refer to the performance region described by the thickened curve to prevent overheating due to too small flood water or overload of motor due to too large flood water.
Protection class: IP 55
Insulation class: F
Standard voltage: 50Hz: 1×220-240V
3×220-240V/380V-415V
-Max.power of mono-phase motor: 2.4kW
Operation conditions
Liquid temperature: Normal temperature type: -15℃~+70℃
Hot water type: -15℃~+105℃
Ambient temperature: +40℃
Max.operation pressure: 10bar
Max.inlet pressure is limited by Max.operation pressure
Curve conditions
Following conditions are suitable for the performance curves shown below:
All curves are based on the measured values of constant motor speed 2850r/min(if motor power is 0.25kW) and
2900r/min(other motor power) .
Curve tolerance is conformity with ISO9906: 212, 3B
Measurement is done with 20℃air-free water, kinematic viscosity of 1mm'/s.Non cooperation of pump shall refer to the performance region described by the thickened curve to prevent overheating due to too small flood water or overload of motor due to too large flood water.
NO. | Name | Material |
1 | Plug | Stainless steel |
2 | Clamp plate | Die-casting aluminum |
3 | Diffuser casing | Stainless steel |
4 | Inlet and outlet chamber | Stainless steel |
5 | Inducer | Stainless steel |
6 | Diffuser | Stainless steel |
7 | Discharge diffuser | Stainless steel |
8 | Seal seat | Stainless steel |
9 | Motor | |
10 | Baseplate | Steel plate |
11 | Mechanical seal | Graphite/SiC |
12 | Impeller | Stainless steel |
Performance Table
