Высокое качество кухня аварийный запорный клапан детектор утечки газа

Высокое качество кухня аварийный запорный клапан детектор утечки газа

Категория: Датчики давления >>>
Поставщик: Longkou,Hongye,International,Trading,Co.,Ltd.

Цена:57,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-19-2025	72.11 $*	73.83 $*
Jul-19-2025	59.95 $*	60.31 $*
Jun-19-2025	71.27 $*	72.7 $*
May-19-2025	71.91 $*	72.86 $*
Apr-19-2025	56.81 $*	57.42 $*
Mar-19-2025	70.10 $*	71.9 $*
Feb-19-2025	69.77 $*	70.30 $*
Jan-19-2025	68.19 $*	69.4 $*

Характеристики

PRODUCT DESCRIPTION

GAS CONTROLLER INTRODUCTION

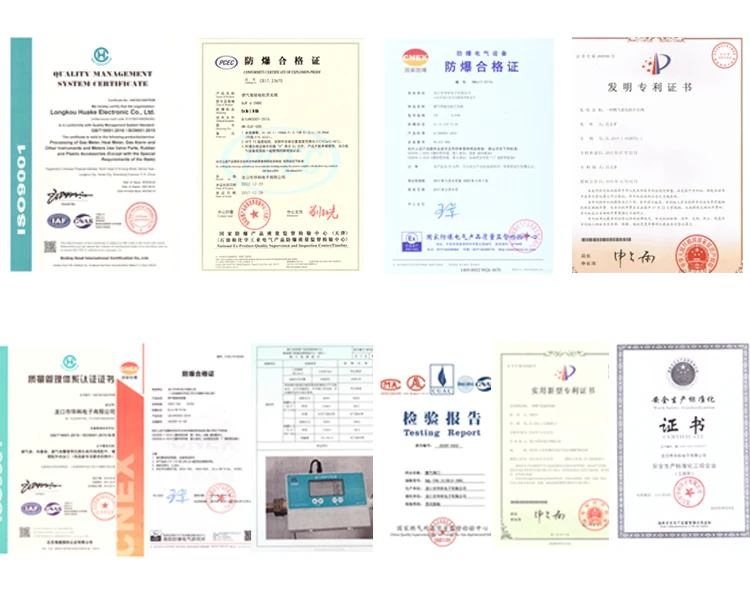

Our company developed a new multi-function intelligent gas controller that can set the gas usage time of cooking , monitor the gas pipeline pressure and temperature, and shut off the gas valve automatically if any abnormality, which has been awarded the invention patent in 2019 and got conformity Certificate of Explosion-Proof. It can guarantee the safety of gas for residents and help gas companies to control the safety of gas remotely, thus saving labor costs. We believe that our new product will open up new markets and business opportunities for you.

The gas controller consists of controller and remote control. The two use wireless communication, long communication distance, no dead Angle, easy to install and use.

GAS CONTROLLER FEATURES AND ADVANTAGES

1.Timer principle. The user can set cooking time, and gas valve will be automatically closed when the set time is up.

2.Monitor the pipe pressure and temperature parameters. It will cut off the gas supply and alarm in case of any abnormality.

3.Protect and extend the service life of gas meters and stoves.

4.Remote control system. wireless communication.

5.Provide convenience to the residents, and guarantee the safety of gas.

6.Gas company can check gas usage status of the user and close the gas valve if any abnormality without entering the house using a remote manager

GAS CONTROLLER SPECIFICATION

Main Parameter	Technique Data	parameter specification
Applicable flow range	0～6 m3/h	different nominal calibers
Working voltage range	DC(4.8~6)V	External connection DC5V power supply or 4 no. 5 alkaline batteries (standby)
Wireless communication frequency	2.4GHz	common band
Wireless communication distance	>10m	One machine, one address, no interference
Measuring pressure range	0～100kPa	measurement accuracy: ±1%,
Measuring pressure range	0～100kPa			measurement resolution: 1Pa
Measuring temperature range	（-45～80）℃	Measurement accuracy: 0.1℃, measurement resolution: 0.01℃
On/off valve time	(1.5~2.5) m3/h :<2s	Under normal working pressure
On/off valve time		Under normal working pressure	(4.0~6.0) m3/h :<5s
On/off valve current	<100mA	Under normal working pressure
Motor valve switching times	>10000 times	under normal working conditions
Timing time range	（5～300）min；	factory setting for 45min, user can modify the setting arbitrarily;
Timing time range		24h（normally open）	When set to 24h, it is normally open (such as winter heating)
Lower pressure alarm value	1.2kPa±0.2	factory set value
Upper pressure alarm value	3.5kPa±0.2	factory set value
Pressure abrupt transition alarm value	0.5kPa	factory set value
Installation location	meet the gas installation specifications	Installed in front of the gas meter or gas stove
